ACLAS PP7X Manuale utente
PP7X PRINTER
USER’S MANUAL
PINNACLE TECHNOLOGY CORP.
Tel: +86-592-5710087 Fax: +86-592-5710029
Http:// www.aclas.com Email: [email protected]
Safety Precautions
Before using the present appliance, please keep the following safety regulations in order to prevent any hazard or
material damage.
1. WARNING
（1）Connect the printer with a reliable grounded power receptacle. Do not plug with large electronic
machines in one multi-outlet, which can provoke power fluctuation or over-heating, even a fire.
（2）Do use the only supplied adapter.
（3）Do not keep the machine in a hot, wet or polluted place.
（4）Do not plug in or unplug with your hands wet.
（5）Do not pull the cable to unplug. This can damage the cable, which is the origin of a fire or a breakdown
of the printer.
2. CAUTIONS
（1）Install the printer on the stable surface. If the printer falls down, it may be broken and hurt you.
（2）If you find a strange smoke, odor or noise from the printer, unplug it at once and call your dealer.
（3）Do not try to disassemble, repair or remodel it for yourself. Call your dealer if you need these services.
（4）Do not let water or other foreign objects in the printer. If this happened, switch off and unplug the printer
before calling your dealer.
（5）Switch off the printer if you will not use it in a long time.
（6）Make sure the switch is off when plug or unplug the power.
（7）Do not use the printer when it is out of order. Switch off and unplug the printer before calling your dealer.
（8）Keep this manual for future use.
CONTENTS
1INTRODUCTION............................................................................................................................................. 1
1.1 Application Range ............................................................................................................................. 1
1.2 Unique Functions............................................................................................................................... 1
1.3 Advanced Functions and Features..................................................................................................... 1
1.4 Specifications..................................................................................................................................... 2
1.5 Appearance........................................................................................................................................ 3
1.6 Accessories........................................................................................................................................ 4
2INSTALLATION............................................................................................................................................... 5
2.1 Display Installation (The printer with customer display) .................................................................. 5
2.2 Communication Board Replacement................................................................................................. 7
2.3 Paper Installation ............................................................................................................................... 8
3SETTING THE PRINTER .............................................................................................................................. 10
3.1 Using the Printer.............................................................................................................................. 10
3.2 Connecting the Computer................................................................................................................ 10
3.3 Connecting the Power Supply...........................................................................................................11
4SELF TEST ..................................................................................................................................................... 12
5CONNECTING THE CABLES ...................................................................................................................... 12
5.1 Serial Interface................................................................................................................................. 12
5.1.1 RS232 (D9).............................................................................................................................. 12
5.1.2 RS232 (PHONE8C)................................................................................................................. 13
5.1.3 RS232 (PHONE6C)................................................................................................................. 14
5.1.4 RS232 (PHONE4C)................................................................................................................. 15
5.2 Parallel Interface.............................................................................................................................. 16
5.3 USB Interface .................................................................................................................................. 17
5.4 Drawer Port Definition .................................................................................................................... 18
6DIP SWITCH................................................................................................................................................... 19
7MAINTENANCE............................................................................................................................................ 21
8TROUBLESHOOTING .................................................................................................................................. 22
1
1INTRODUCTION
1.1 Application Range
The quality of easy operation, high speed and stable performance has made the printer one of the most economical
and practical printing devices. It has been applied in various fields such as supermarkets, department stores, hotels,
franchises, finance, telecommunications and ticket business as a receipt printer. And it could be combined with
cash registers, touch-pos terminals, computers and other equipments.
There are two kinds of printers about PP7X Printer: the printer with customer display, and the printer without
customer display.
1.2 Unique Functions
※Oblique paper-sensor. Detect the paper precisely, even if the paper is stuck to the end of paper slot or the PP7X
is positioned in different places (desktop or hang on the wall).
※Unique mechanism to replace paper-cutter easily without opening the printer cover.
※Special paper cutter design (the movable cutter is on the upper side). You can easily eliminate paper jam by
opening the upper cover; while using traditional printers (brand E,C) in market whose movable cutter is
designed in the front seat, you must open the front cover and move the gear to withdraw the cutter manually
(you cannot withdraw the cutter without opening the cover).
※With agile black mark sensor: locate printing position quickly, support detection in left and right direction.
Also could connect with optional operator/customer display and function keyboard to work as a receipt and
fiscal printer.
※RF2.4G/RF433MHz applies Pinnacle‟s patented CSMA power-saving protocol (P-tooth) to establish reliable
and stable many-to-many wireless communication.
※Firstly introduced POS printer which adopts wireless communication (2.4G P-tooth, BT, and WIFI) in the
market, avoiding wire clutter on the desk.
※The most complete options of port modules in the world. 4 types of wireless communication modules: WIFI,
BT, P-tooth (2.4G Pinnacle protocol), 433MHz (100M long distance); four types of wire communication
modules: RS232 port, USB port, parallel port, and Ethernet port. Customers could choose the module
according to the system that they used.
1.3 Advanced Functions and Features
※High print speed, max: 250mm/s(PP7XHX)
※Unique easy-loading paper mechanism.
※Two options: with auto-cutter mechanism (PP71X), and without auto-cutter low-price mechanism (PP70X).
※Can be fixed on wall. And can work with big paper roll outside to reduce changing paper frequency.
2
1.4 Specifications
Optional type
PP721MX
PP721HX
PP71MX
PP71HX
Speed
150mm/s
250mm/s
150mm/s
250mm/s
Power Supply
DC24V /2A
Print Method
thermal print
Resolution
203dpi
Paper
Paper type
Thermal paper
Paper width
57.5±0.5mm
79.5±0.5mm
Paper roll diameter
80mm
Paper installation type
Unique mechanism that make paper installation easily
Character
print
Character set
ANK character set, Chinese GB2312,
Traditional Chinese BIG5, 12×24 dots, 24×24 dots
Number of columns
48 columns
Barcode type
UPC-A, UPC-E, Code128, EAN128.Jan8, Jan13(EAN),
Interleaved 2 of 45, Codabar
Data receiving buffer
4KB
Flash memory
8Mbit
Optional function
Fiscal (with operator and customer display), customer display,
operator display, black mark detector, GPRS module
Interface
Ethernet, parallel, RS232, USB, WiFi, BT, P-tooth
Cash drawer driver
2 ports (compatible with EPSON)
Printer head life
150km (recommend to use high quality thermal paper, such as OJI,
PD-160R or Aclas paper.)
Paper-cutter life
500,000 times
Cash drawer impulse
DC 24V/1A
Work Temperature
0℃~ 40℃
Work Humidity
5%R.H. ~ 90%R.H.
Driver
Win9X, WinME, Win2000, WinNT, WinXP, compatible with EPSON
Printing command
Compatible with command ESC/POS
Size
The printer with customer display: 226.5*176*208mm;
The printer without customer display: 196.5*145*135mm
3
1.5 Appearance
The printer with customer display:
The printer without customer display:
Power switch
Upper cover switch
Customer display
Power switch
Upper cover switch
4

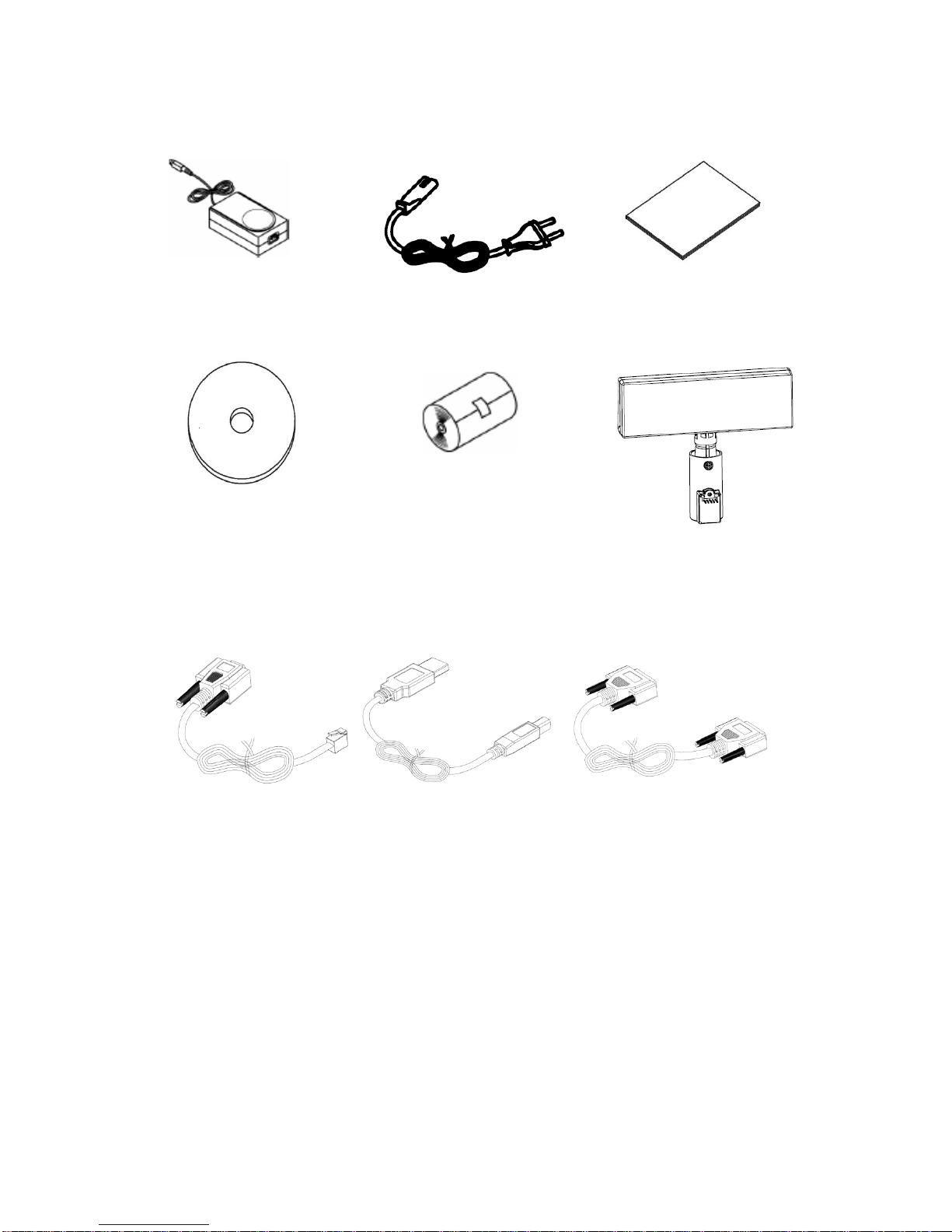

1.6 Accessories
Customer display (only for the
printer with the customer display)
PC Disk
User manual
AC adapter
AC power cord
Paper roll
Communication cable (Different types of printer will match with different kinds of cable.)
parallel cable
serial cable
USB cable
5
2INSTALLATION
2.1 Display Installation (The printer with customer display)
Install customer display before using the PP7X printer.
(1) Press printer upper cover button upwards to open the printer cover as picture1.
(2) Install the customer display via the interface as picture 2.
Picture 2
6
(3) Use screwdriver to lock the customer with screw tightly as picture 3.
Picture 3
7
2.2 Communication Board Replacement
Note: Make sure that PP7X is powered off when you are changing the communication board. Power off
PP7X for more than 10s, then the communication board can be replaced.
(1) Use cross screwdriver to unscrew the two screws of the communication board as picture 4.
(2) Take off the communication board and replace it as picture 5.
(3) Install the new communication board along the slot, lock the two screws. We suggest that you should
tighten the two screws side by side to avoid damaging the main board.
Note: Don’t press the communication board if it does not at the same level with the printer.
the two screws
Picture 5
