ACME PEXEL 100 Manuale utente

CONTENTS

1. Safety Instructions ................................................................................................. 1

2. Technical Specifications.......................................................................................... 3

3. Control Panel ......................................................................................................... 5

4. How To Set The Unit............................................................................................... 6

4.1 Main Function .................................................................................................. 6

5. Control By Universal DMX Controller.................................................................... 13

5.1 DMX512 Connection ...................................................................................... 13

5.2 Address Setting .............................................................................................. 13

5.3 DMX512 Configuration................................................................................... 14

6.Error Information ................................................................................................. 26

7.Troubleshooting ................................................................................................... 27

8.Fixture Cleaning ................................................................................................... 27

1. Safety Instructions

WARNING

Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that

they also receive this instruction manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will

not accept liability for any resulting defects or problems.

Unpack and check carefully that there is no transportation damage before using the unit.

This product is for indoor use only.

DO install and operate by qualified operator.

DO NOT allow children to operate the fixture.

Use safety chain when fixing the unit. Handle the unit by carrying its base instead of head only.

The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent

surfaces.

Be sure that no ventilation slots are blocked, otherwise the unit will be overheated.

Before operating, ensure that the voltage and frequency of power supply match the power

requirements of the unit.

It’s important to ground the yellow/green conductor to earth in order to avoid electric shock.

Minimum ambient temperature TA: 0℃. Maximum ambient temperature TA: 40℃.

DO NOT connect the device to any dimmer pack.

Make sure there are no flammable materials close to the unit while operating to avoid fire

hazard.

Examine the power wires carefully; replace them immediately if there is any damage.

Unit’s surface temperature may reach up to 65℃. DO NOT touch the housing bare-handed

during its operation.

Avoid any inflammable liquids, water or metal objects entering the unit. Once it happens, cut

off the mains power immediately.

DO NOT operate in dirty or dusty environment, do clean fixtures regularly.

Please read the instruction carefully which includes important information about

the installation, usage and maintenance.

DO NOT touch any wire during operation as there might be a hazard of electric shock.

Avoid power wires together twist other cables.

The minimum distance between light output and the illuminated surface must be more than

0.5 meters.

In the event of serious operating problem, stop using the unit immediately.

Never turn on and off the unit time after time.

The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

DO NOT open the unit as there are no user serviceable parts inside.

Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to

damage or malfunction. Please contact the nearest authorized technical assistance center if

needed.

Disconnect the mains power if the fixture is has not been used for a long time.

DO use the original packing materials before transporting it again.

DO NOT look directly at the light while the bulb is on.

DO NOT start on the unit without bulb enclosure or when housing is damaged.

Installation:

The fixture should be mounted via its Omega Quick Release Clamp bracket. Always ensure that the

unit is firmly fixed to avoid vibration and slipping while operating and make sure that the structure

to which you are attaching the unit is secure and is able to support a weight of 10 times of the

fixtures weight. Always use a safety cable that can hold 12 times of the weight of the fixture when

installing.

The equipment must be installed by professionals. It must be installed in a place where is out of the

reach of people and no one can pass by or under it.

2. Technical Specifications

Power Voltage:

PIXEL 100:DC24V

PIXEL POWER 8:100-240V~ 50/60Hz

Power Consumption:

PIXEL 8:75W

PIXEL POWER 8：530W

Light Source:

1 x 80W RGBL

24 x 5050RGB LED

Color Temperature:

2500K-8000K

Beam Angle:

2.7°-21°

Field Amgle:

4.4°-26.3°

Dimmer/Shutter:

Smooth dimming from 0-100%; outstanding strobe effect with variable speed

Control:

DMX Channel: 19/103/152 Channels

Protocols: DMX512, RDM

Firmware Upgrade via DMX link

Construction:

Display: OLED

Data In/Out: 3-pin (5-pin XLR is optional)

Power In/Out: Power Connector in/out

Protection Rating: IP20

Data In/Out：Power & Signal Hybrid 5-pin Cable Out / 3-pin XLR In

Features:

PIXEL 100:

•High brightness, energy saving

•The light output can reach 8,500 lm at 5 meters distance

•Pixel & ring control for backlight on the lens

•Compact design, small size, only 1.9kg, passed the 10 times weight load-bearing test

•Hanger & buckle design, multiple units can be split-jointed horizontally and vertically

without any tools, various installation options

•Smooth dimming from 0-100%

•Outstanding strobe effect with variable speed

•Use with power box - UNIBOX, one power box can carry 8 units UNIDOT

•Flicker free management

PIXEL POWER 8:

•Eight five-core DMX sockets provide power and signal to PAR 100 through dedicated

five-core power supply signal compound wire.

•With fast connection function, it is convenient to install,

•Safe and fast, energy-saving and environmental protection, compact and lightweight, saving

more costs.

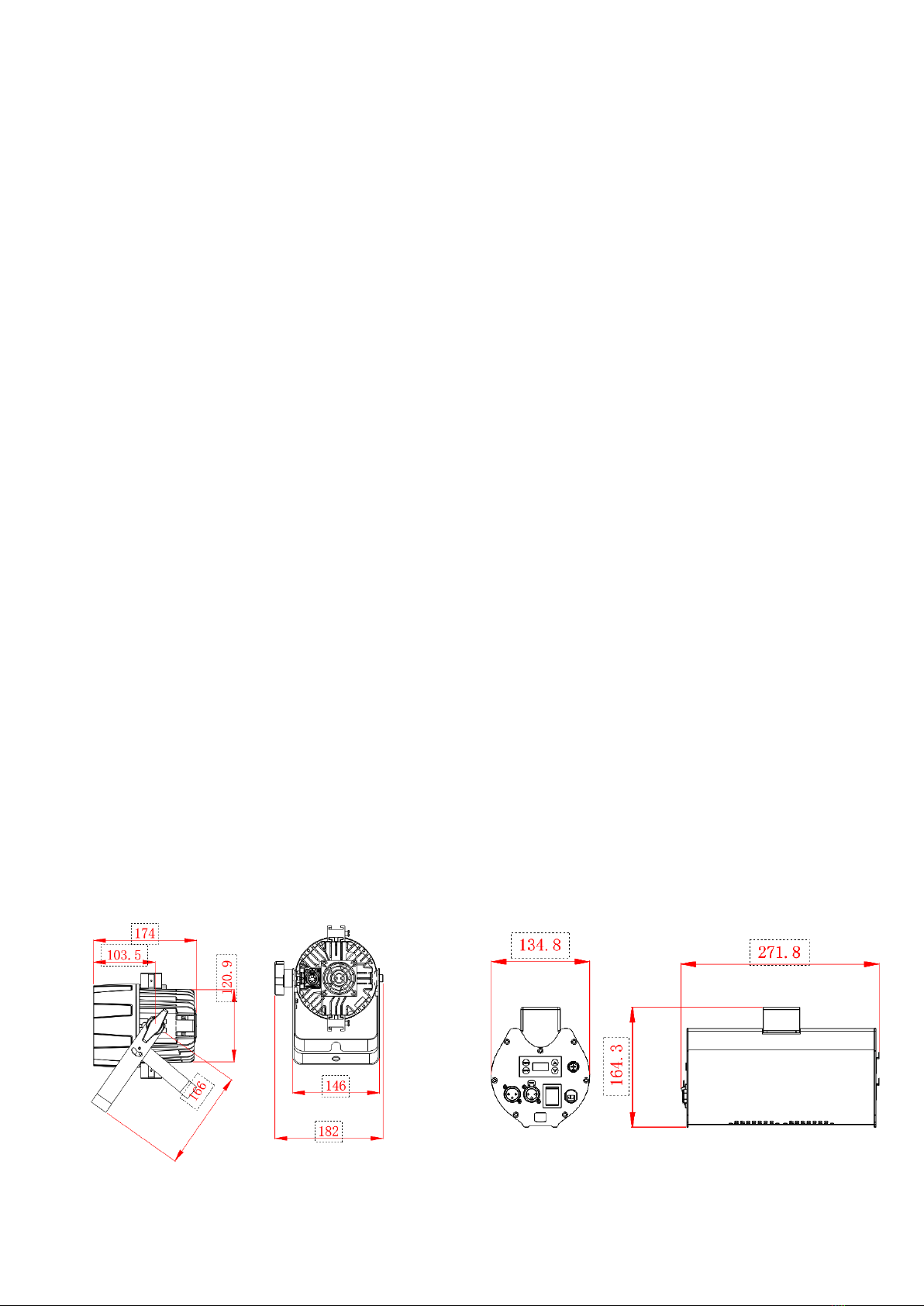

Dimension/Weight:

PIXEL 100:

6.9"x7.2"x10"in,4.2lbs

PIXEL POWER 8:

10.8"x5.3"x6.5"in,7.1lbs

Photometrics Diagram:

2.7

Lux

65625

16406

7292

4102

0.1

0.2

0.3

21°Lux

1450

441

196

122

0.8

1.6

2.3

3.1

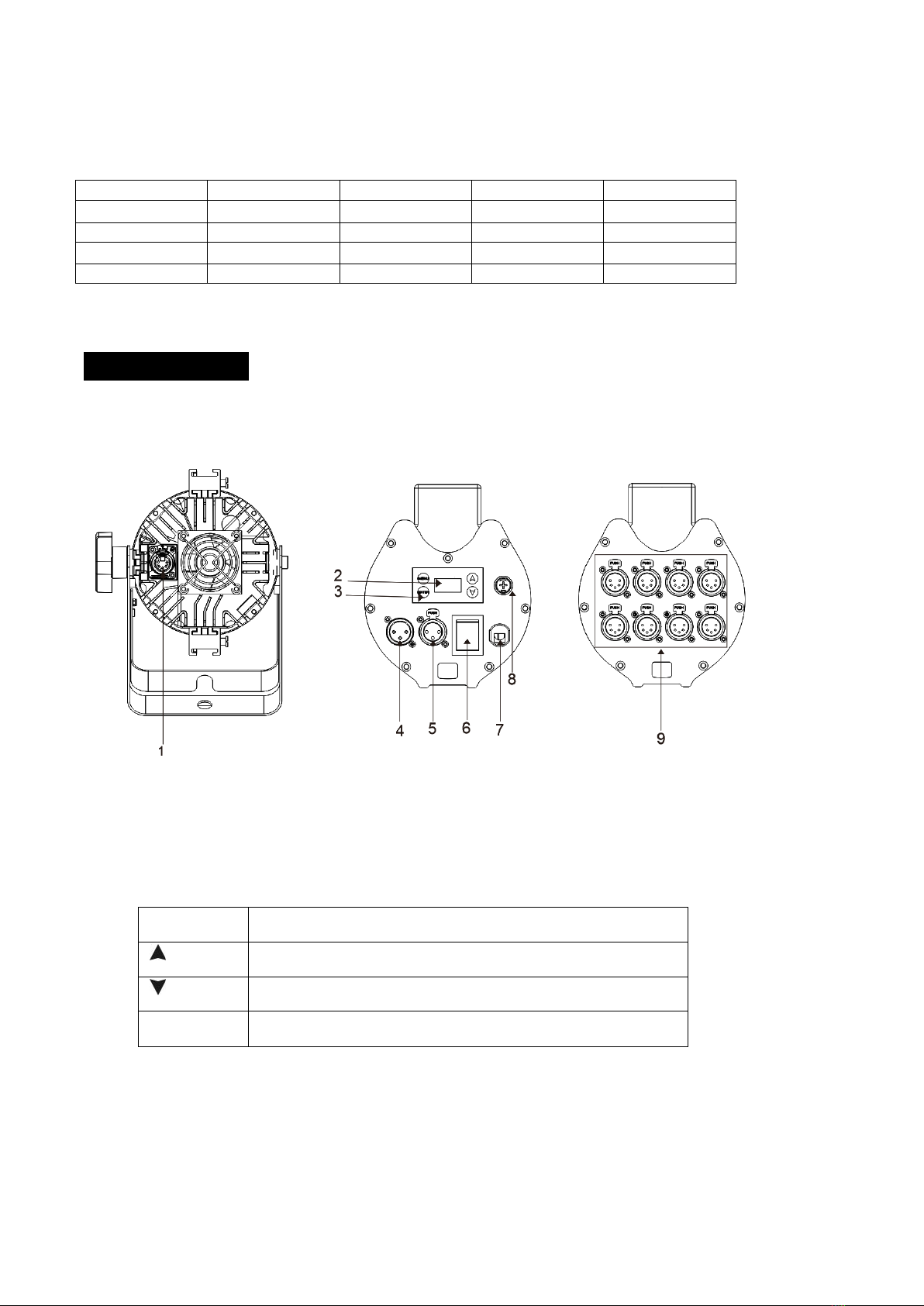

3. Control Panel

POWERCON Version:

PIXEL 100: PIXEL POWER 8:

1 DMX IN:DMX 512 operation, use 3-pin XLR cable to link the next units (5-pin XLR is optional)

2 DISPLAY:To show the various menus and the selected function

3 Button:

To enter into move backward or leave the menu

To go backward to move up in the menu

DOWN

To go forward to move down in the menu

ENTER

To perform the desired functions

4 POWER IN(POWERCON Version):

To connect to supply power

5 POWER OUT(POWERCON Version):

To connect to the next fixture

6.WER SWITCH: Turn Power On/off

7.wer Cord (straight-out version) : connected to power supply

8. Safety Tube (T6.3a) : overcurrent protection

9 Power output (POWERCON) :connect the next lamp

4.How To Set The Unit

4.1Main Function

Turn on the unit, press the MENU button into menu mode, and press the UP/DOWN button until

the required function is shown on the monitor. Select the function by the ENTER button. Use the

UP/DOWN button to choose the submenu, press the ENTER button to store and automatically

return to the last menu. Press the MENU button or let the unit idle 30 seconds to exit menu mode.

The main functions are shown below:

RDM UID xxxxxx

DMX Address

DMX Channel Mode

No DMX Status

BlackOut

Hold

Manual

DMX Settings

Main Menu

Fixture Settings

Dimmer Curve

Dimmer Speed

White Balance

Red1

Green1

Blue1

Smooth

Fast

Linear

Square law

Inv SQ law

S Curve

Display Settings

Display Invert

Temperature Unit

Yes

Language

English

Chinese

Fixture Test Auto Test

Manual Mode

Fixture Information

Fixture Use Hour

LED Use Hour

Temperature

Firmware Version

Error Logs

Total LED Hour

LEDHours Reset

LED On Hour

Fixture Errors

Reset Error Log No

Yes Passsword=050

Yes

Special Functions Factory Restore

Passsword=050

19Channel

Lemon1

001-501(19CH)

001-410(103CH)

001-361(152CH)

103Channel

152Channel

Red2

Green2

Blue2

Lemon2

Red3

Green3

Blue3

Lemon3

Red4

Green4

Blue4

Lemon4

Red5

Green5

Blue5

Lemon5

Red6

Green6

Blue6

Lemon6

Red7

Green7

Blue7

Lemon7

Red8

Green8

Blue8

Lemon8

125-255

Cooling Mode

Quiet

Fast

Auto

DMX Settings

To select DMX Settings, press the ENTER button to confirm, use the UP/DOWN button to select

DMX Address, DMX Channel Mode Or No DMX Status.

DMX Address

To select DMX Address, press the ENTER button to confirm. Use the UP/DOWN button to adjust the

address from 001 to 501/306, press the ENTER button to store. Press the MENU button back to the

last menu or let the unit idle One Minute to exit menu mode.

DMX Channel Mode

To select DMX Channel Mode, press the ENTER button to confirm. Use the UP/DOWN button to

select 19CH/103CH/150CH, press the ENTER button to store. Press the MENU button back to the

last menu or let the unit idle 30 seconds to exit menu mode.

No DMX Status

To select No DMX Status, press the ENTER button to confirm. Use the UP/DOWN button to select

BlackOut(fixture blacks out if DMX signal stops) , Hold(fixture continues to obey the last command

it received Via DMX if DMX signal stops)or Manual((When DMX signal is disconnected, the device

runs in manual mode), press the ENTER button to store. Press the MENU button back to the last

menu or let the unit idle 30 seconds to exit menu mode.

Fixture Settings

To select Fixture Settings, press the ENTER button to confirm, use the UP/DOWN button to select

Dimmer Curve, Dimmer Speed, White Balance ,

Dimming curve

To select Dimmer Curve, press the ENTER button to confirm. Use the DOWN/UP button to select

Linear, Square Law, Inv SQ Law or S Curve, press the ENTER button to store. Press the MENU

button back to the last menu or let the unit idle 30 seconds to exit menu mode.
