ACO SOLID FR Manuale utente
ACO Access Covers
Installation manual
SOLID FR
ITA HUN
POR BUL
ESP POL
FRA LIT
GER LAV
ENG EST
Installation Manual
ACO Access Cover
Installationsanleitung
ACO Schachtabdeckungen
Instructions d´installation
Manual De Instalación
ACO Tapas de registro
Manual de Instalação
Manuale d‘installazione
ACO Access Cover
Installatiehandleiding
ACO Toegangsluiken
Instalační manuál
Инструкция По Установке
Installationsanvisning
Instalasjons Manual
Asennusohje
Installationsvejledning
Paigaldusjuhend
Uzstādīšanas instrukcija
ACO Tehnisko lūku vāki
Montavimo instrukcija
ACO apžiūros liukai
Instrukcja montażu
Инструкции за инсталация
Beépítési útmutató
Instructiuni de instalare
Upute za ugradnju
Navodila za vgradnjo
Preporuka za ugradnju
ACO Müdahale Kapakları
SWE SRP
TUR
FIN
NOR
DAN
RUS SLV
CZE HRV
NLD RUM
Installation manual
ACO Access Cover SOLID FR
Installation manual
ACO Access Cover SOLID FR
1
ACO Access Covers SOLID FR
Order information
Clear
opening
(A x B)
External
dimensions
(C x D)
Frame
height
Load class
(EN 253)
Weight E EI Part No.
(1.0037)
[mm] [mm] [mm] [kg] GS
300 x 300 392x392 90 A15 14,7 E120 EI45 448093
450 x 450 542x542 90 A15 24,7 E120 EI45 448094
500 x 500 592x592 90 A15 28,7 E120 EI45 448095
400 x 400 492x492 90 A15 21 E120 EI45 448096
300 x 300 392x392 90 B125 18,4 E120 EI45 448101
450 x 450 542x542 90 B125 32,2 E120 EI45 448102
500 x 500 592x592 90 B125 36,5 E120 EI45 448103
400 x 400 492x492 90 B125 28,1 E120 EI45 448104
600 x 600 692x692 90 B125 46 E120 EI45 448105
600 x 600 692x692 90 A15 37,5 E120 EI45 448112
Notes:
Installation manual
ACO Access Cover SOLID FR
Installation manual
ACO Access Cover SOLID FR
2 3

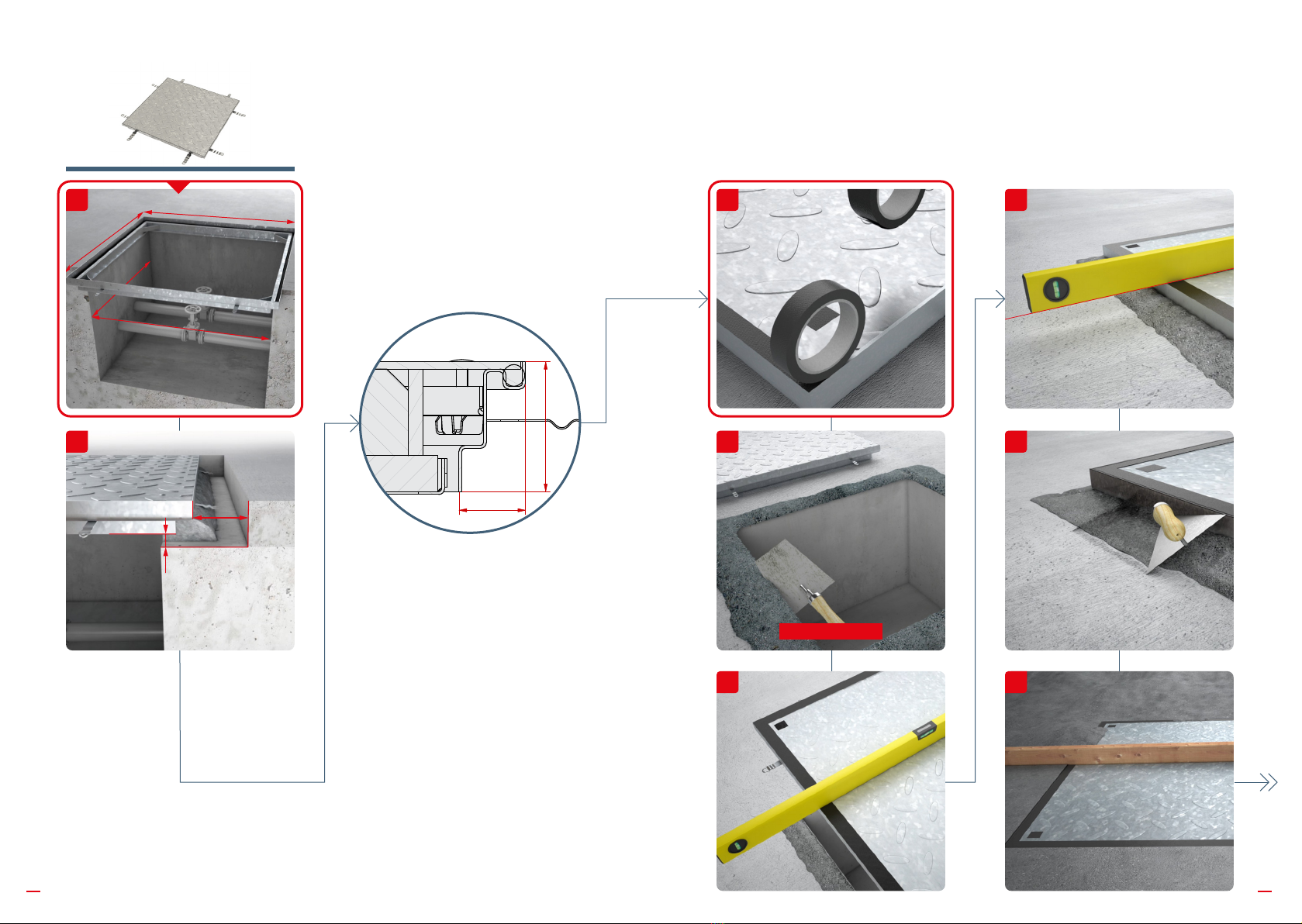

C
B
A
D
20 - 40 mm
120 mm
1
2
A-A ( 1 : 3 )
B ( 2 : 3 )
A A
B
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
A A
B B
C C
D D
E E
F F
The reproduction , distribut ion and utiliz ation of th is docume nt as well as the co mmunica tion of its con tents to othe rs witho ut expres s authoriz ation is
prohib ited. Offen ders will be h eld liable for the p ayment of damages. All rights reserved in the e vent of the gra nt of a patent, utility model or design.
Observe copyright by ISO 16016
Create d by Reviewed by Projection ISO-E
Relase dat e
ACO Industries k.s.
Havlíčkova 260
582 22 Přibyslav; CZ
Tel.: +420 569 491 111
www.aco.com
www.aco-indu stries.cz
Title
Material Mass
Scale
Created date
Tolerance
ISO 2768 - 1m - 2L
Tolerance for welding
EN ISO 13920 - AE
Drawing NO. Index Article
46,06 kg
448105
A2
9.5.2022
448105
Vchandrayaswamy
ACO Access Cover Solid FR 600x600 B125
Žár. zink./Hot-dip galv.
Surface finish
1 /1
Sheet
1 : 3
D
C
46
90
46A x B
90
46
SOLID FR
4
5
6
1
2
3
C35/45 (EN 206)
Installation manual
ACO Access Cover SOLID FR
Installation manual
ACO Access Cover SOLID FR
4 5
10
11
12
7
8
9
13
Installation manual
ACO Access Cover SOLID FR
Installation manual
ACO Access Cover SOLID FR
6 7
ACO Access Covers UNIFACE
Fire Resistance (FR)
ACO Access Covers PAVING
Fire Resistance (FR)
ACO Access Covers SOLID
Fire Resistance (FR)
ACO. we care for water
Havlickova 260
582 22 Pribyslav
Czech Republic
www.aco-accesscovers.com
ACO Industries k.s.
ACO products support
the ACO System Chain
NM19728 ACO Access Covers - SOLID FR Manual/EN/Q4/22
