ACU-RITE 1015 Manuale utente

Instruction Manual

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Questions? Contact Customer Support at

(877) 221-1252 or visit www.AcuRite.com.

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: 5-in-1....... 3

Features: Display Unit ............ 4

Back of Display Unit............... 6

Setup .................................... 7

5-in-1 Sensor Setup ................ 7

Display Unit Setup ................. 8

Set the Time & Date ............... 9

Measurement Units ...............10

Placement Guidelines ............11

5-in-1Sensor Installation.........12

Using the Weather Center .....13

Weather Ticker .....................14

Programmable Alarms...........16

Troubleshooting ....................18

Care & Maintenance............ 20

Calibration .......................... 20

Specications....................... 22

FCC Information .................. 22

Customer Support ................ 23

Warranty............................. 23

Professional Weather Center

model 01015

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display unit with tabletop stand

2. 5-in-1 sensor

3. Sensor mounting bracket

4. Mounting hardware

5. Snap-in debris lter for rain collector

6. Power adapter

7. Instruction Manual

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

►

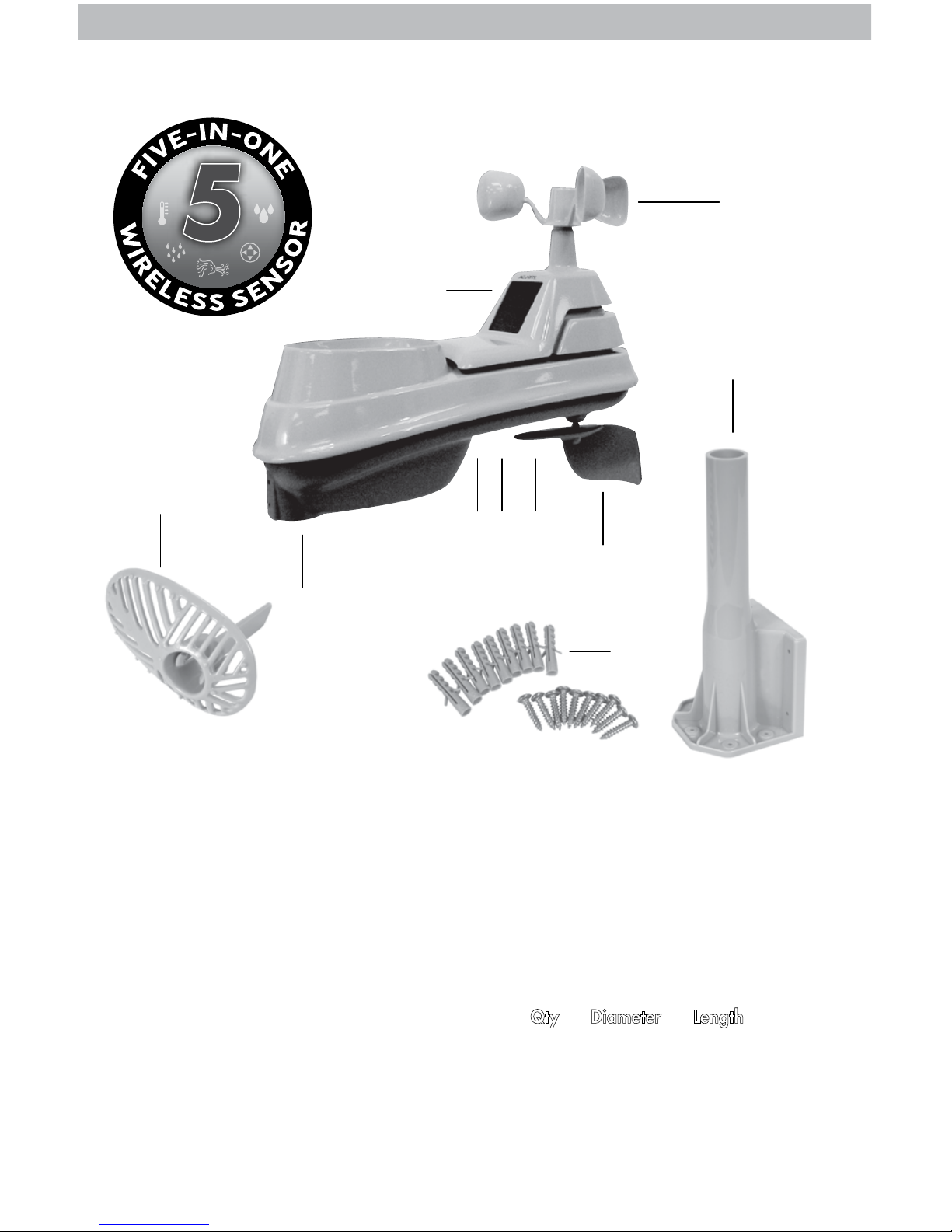

Features & Benets

5-IN-1 SENSOR

1. Rainfall Collector Funnel

2. Solar Cell Panel

Converts sunlight into power to run

internal aspirating fan.

Internal Aspirating Fan

(not shown)

Draws ambient air into

sensor to reduce solar radiation

heating, resulting in more accurate

temperature measurement.

3. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

4. Battery Compartment

5. Temperature & Humidity Sensors

(internal)

6. Mounting Point

7. Wind Speed Anemometer

8. Wind Direction Vane

9. Mounting Bracket

10. Mounting Hardware

Qty Diameter Length

4 #4 1”

2 #6 ½”

11. Debris Filter

Snaps into rain collector to lter out

twigs, leaves, etc.

Features & Benets

Display Unit

3835

12 161514 14 1713 18

1. Peak Wind Speed

Highest speed from past 60 minutes.

2. Average Wind Speed

of all speeds from past 2 minutes.

3. Learning Mode Icon

Press to change the Weather Select

category data being displayed.

4. Weather Select

Heat index, dew point, wind chill,

indoor temperature / humidity,

rainfall rate (rain per hour)

5. Weather Select Button

Press to change the Weather Select

category data being displayed.

6. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls

data from the outdoor sensor to

generate your personal forecast.

7. 5-in-1 Sensor Signal Strength

8. Alarm On/Off Indicator

for Selectable Category (#31).

9. Programmable Alarm Settings

10. Indicates Active Weather Ticker

Message

During ticker customization mode.

11. Indicates Deactivated Weather

Ticker Message

During ticker customization mode.

12. ALARM On/Off Button

Activate alarm; press and hold to

adjust alarm values.

13. Deactivate Weather Ticker

Message

14.

▲

▼

to Select Category

(shown in #31) & Adjust Settings

15. SET Button

16. Weather Ticker Manual Cycle

Press to advance through messages.

17. All-Time Records Button

Press for all-time low and date

recorded for current category

selected on display (#31). Press

twice for all-time high and date

recorded.

18. Activate Weather Ticker Message

19. Current Outdoor Temperature

Arrow icon indicates direction

temperature is trending.

20. Outdoor Temperature Alarm On

Indicator

21. Current Outdoor Humidity

Arrow icon indicates direction

humidity is trending.

22. Outdoor Humidity Alarm On

Indicator

23. Storm Alert Alarm On Indicator

24. Current Rainfall

Accumulates data during rainfall.

25. Rain Alarm On Indicator

26. Current Barometric Pressure

Arrow icon indicates direction

pressure is trending.

27. All-Time Rainfall

28. Current Month Total Rainfall

29. Date

30. Clock

31. Selectable Category

32. Record Highs

Shown for current category selected

on the display (#31).

33. Record Lows

Shown for current category selected

on the display (#31).

34. Weather Ticker™

35. Current Wind Direction

36. Previous 2 Wind Directions

37. Touch Activated Backlight

Momentary during battery power,

always on/off for power adapter

38. Current Wind Speed

39. Wind Speed Alarm On Indicator

Back of Display Unit 12

BACK OF DISPLAY UNIT

1. Integrated Hang Hole

For easy wall mounting

2. Plugin for Power Adapter

3. A-B-C Switch

ID code that must match 5-in-1

sensor’s A-B-C switch to ensure

units synchronize

4. Clear Today

Clears data recorded since

12:00am

5. Clear All

Clears all recorded data without

having to reset time and date

6. Reset

Full reset to factory defaults

7. Battery Compartment

8. Power Adapter

9. Battery Compartment Cover

(not shown)

A B C

SETUP

5-IN-1 Sensor Setup

1A-B-C Switch

Set to match

display unit

2Install Batteries

4 AA Batteries

3Rain Gauge Stabilizer

Remove and discard

Set the A-B-C Switch

Locate the A-B-C switch inside the

battery compartment. Set the A-B-C

switch to A, B or C. You must select

the same letter choices for both the

sensor and the display unit in order

for the units to synchronize.

Install or Replace Batteries

Batteries MUST be installed for

this product to operate. AcuRite

recommends high quality alkaline

or lithium batteries for the best

product performance. Heavy duty

or rechargeable batteries are not

recommended.

The 5-in-1 sensor requires lithium

batteries in low temperature

conditions. Cold temperatures can

cause alkaline batteries to function

improperly. Use lithium batteries in

the 5-in-1 sensor for temperatures

below -4ºF / -20ºC.

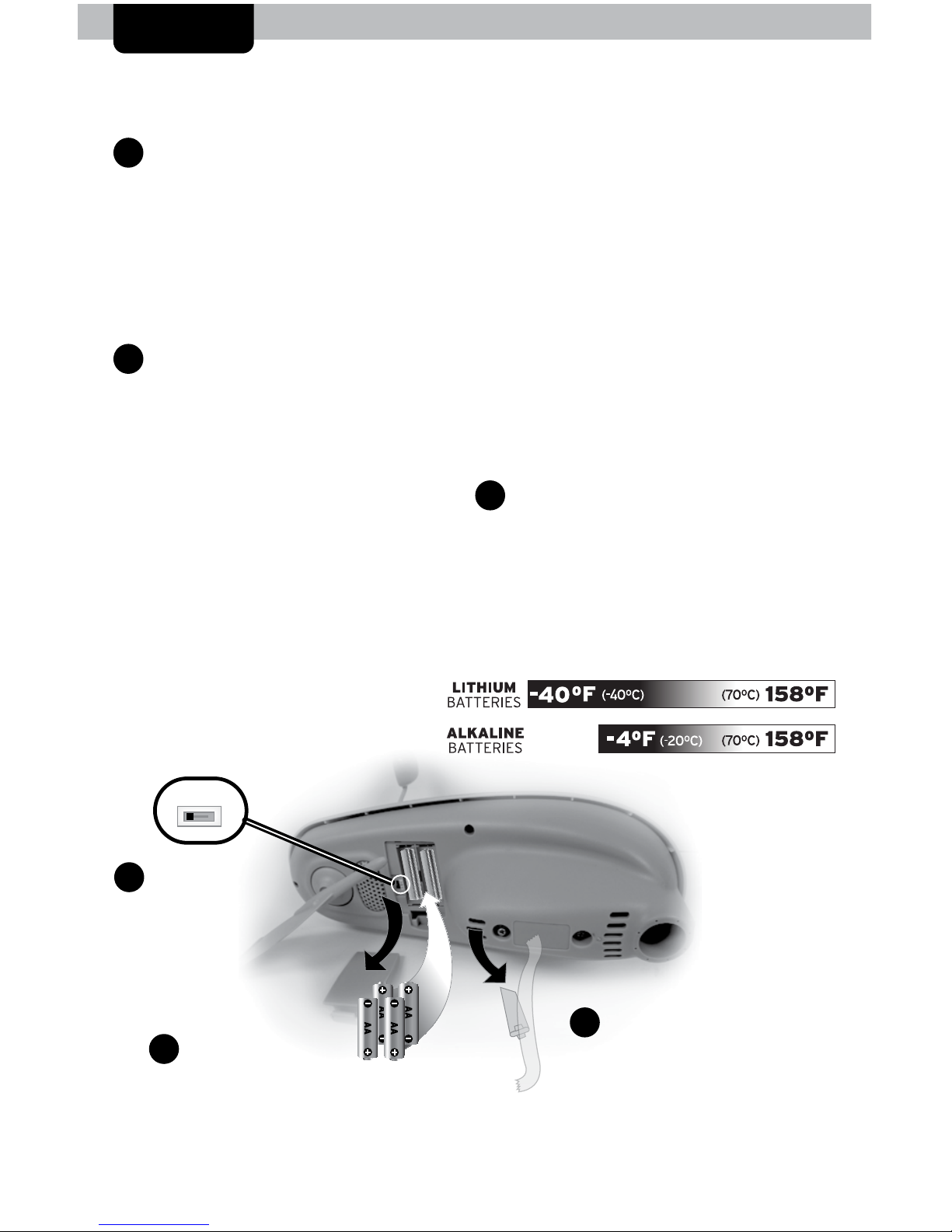

1. Slide off the battery

compartment cover.

2. Insert 4 x AA batteries into the

battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Remove Rain Gauge Stabilizer

Locate and remove the rain gauge

stabilizer (plastic tab) taped into

the bottom of the sensor. The rain

gauge will not function until this is

removed.

Display Unit Setup

The display unit operates with batteries and/or power adapter. Regardless

of the power source, it is recommended that batteries always be installed to

ensure continuous operation (and retain records) in case of a power outage.

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display unit in order for the

units to synchronize.

Install or Replace Batteries

Insert 6 x AA alkaline batteries

into the battery compartment,

as shown. Follow the polarity

(+/-) diagram in the battery

compartment.

Plug Power Adapter into

Electric Outlet (optional)

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

2Install Batteries

6 AA Batteries

A B C

1A-B-C Switch

set to match

sensor

Momentary backlight

during battery power.

Backlight can always

remain on (or off)

when power adapter

is plugged in.

LIGHT

3Plug in Power

Adapter

(optional)

Set the Time & Date

The clock and calendar are utilized to time stamp history records and other

data, so it is important to set the time and date soon after you power on the

display unit.

Set the Time

1. Press the “

▲

” or “

▼

” buttons until

“SET CLOCK?” is displayed on the

Selectable Category part of the display unit.

2. Press the “SET” button to set the clock.

3. Press the “

▲

” or “

▼

” buttons to adjust the

hour. Note the “AM” and “PM” indicators.

4. Press the “SET” button to conrm hour

selection.

5. Press the “

▲

” or “

▼

” buttons to adjust

minutes.

6. Press the “SET” button to conrm minute

selection.

The clock is now set.

Set the Date

1. Press the “

▲

” or “

▼

” buttons until

“SET DATE?” is displayed on the Selectable

Category part of the display unit.

2. Press the “SET” button to set the date.

3. Press the “

▲

” or “

▼

” buttons to adjust the

month.

4. Press the “SET” button to conrm month

selection.

5. Press the “

▲

” or “

▼

” buttons to adjust the

day.

6. Press the “SET” button to conrm day

selection.

7. Press the “

▲

” or “

▼

” buttons to adjust the

year.

8. Press the “SET” button to conrm year

selection.

The date is now set.

Note: The “ ” stays in

Selectable Categories,

even after setup.

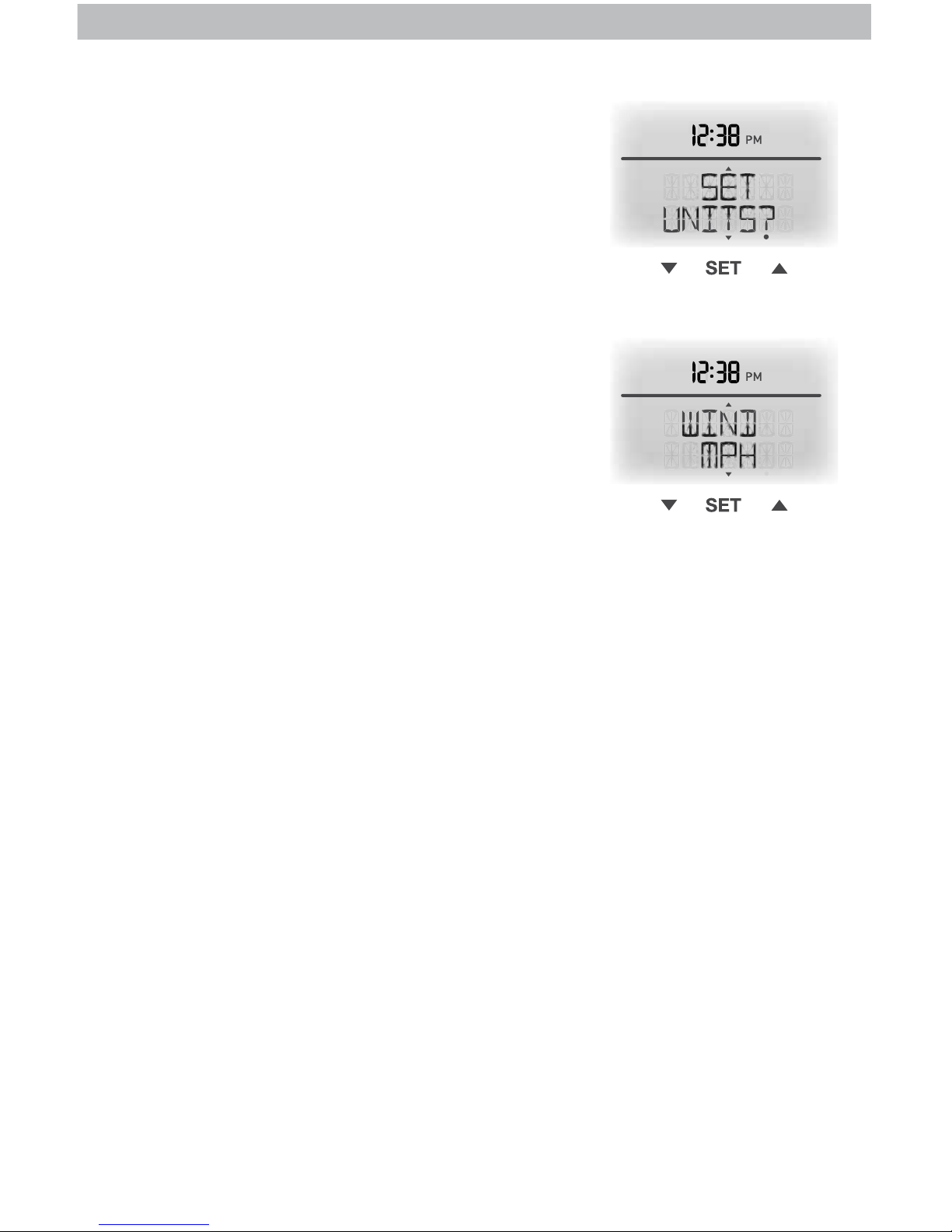

Select Measurement Units

To select between standard units (mph, ºF, etc.) or

metric units (kph, ºC, etc.):

1. Press the“

▲

” or “

▼

” buttons until “SET UNITS?”

is displayed on the Selectable Category part of the

display unit.

2. Press the “SET” button to set the unit preference.

3. Press the “

▲

” or “

▼

” buttons to select “STAND”

for standard or “METRIC” for metric units.

4. Press the “SET” button to conrm your selection.

5. Next, you will see “WIND MPH”. Press the “

▲

”

or “

▼

” buttons to select MPH, KPH, or KNOTS for

wind speed units.

6. Press the “SET” button to conrm your selection.

Units are now set.

Altri manuali per 1015

Indice

Altri manuali ACU-RITE Stazione meteorologica

ACU-RITE

ACU-RITE 06095 Manuale utente

ACU-RITE

ACU-RITE 1025 Manuale utente

ACU-RITE

ACU-RITE 02048HD Manuale utente

ACU-RITE

ACU-RITE 06004RM/VN1TXC Manuale utente

ACU-RITE

ACU-RITE 02064C Manuale utente

ACU-RITE

ACU-RITE 992 Manuale utente

ACU-RITE

ACU-RITE 1604 Manuale utente

ACU-RITE

ACU-RITE 1506 Manuale utente

ACU-RITE

ACU-RITE 00439DI Manuale utente

ACU-RITE

ACU-RITE 00484 Manuale utente

ACU-RITE

ACU-RITE 00639W Manuale utente

ACU-RITE

ACU-RITE 1525 Manuale utente

ACU-RITE

ACU-RITE 502 Manuale utente

ACU-RITE

ACU-RITE 00386S Manuale utente

ACU-RITE

ACU-RITE 589 Manuale utente

ACU-RITE

ACU-RITE 01531 Manuale utente

ACU-RITE

ACU-RITE 06088 Manuale utente

ACU-RITE

ACU-RITE 00837W Manuale utente

ACU-RITE

ACU-RITE 1528 Manuale utente

ACU-RITE

ACU-RITE 06014 Manuale utente

ACU-RITE

ACU-RITE 02022WB Manuale utente

ACU-RITE

ACU-RITE 02050CAUDI Manuale utente

ACU-RITE

ACU-RITE 01129 Manuale utente

ACU-RITE

ACU-RITE 00832 Manuale utente

Manuali Stazione meteorologica popolari di altre marche

Auriol

Auriol AHFL 433 A1 Manuale utente

NexSens

NexSens G2-HYDROMET Manuale utente

Hyundai

Hyundai WS 2202 Manuale utente

IROX

IROX HBVR761 UV-X Manuale utente

La Crosse Technology

La Crosse Technology C86371 Manuale utente

ADE

ADE WS 1711 Manuale utente

Auriol

Auriol z29592 Manuale utente

Auriol

Auriol 296289 Manuale utente

Hyundai

Hyundai WS 2266 Manuale utente

La Crosse Technology

La Crosse Technology WS-2210 Manuale utente

La Crosse Technology

La Crosse Technology WS-811561 Manuale utente

Ventus

Ventus W177 Manuale utente

National Geographic

National Geographic VA Colour RC Manuale utente

Renkforce

Renkforce 1208067 Manuale utente

Levenhuk

Levenhuk Discovery Report WA40 Manuale utente

Instant Transmission

Instant Transmission MA 10410 Manuale utente

Lutron Electronics

Lutron Electronics PHB-318 Manuale utente

WAREMA

WAREMA EWFS Weather station eco Manuale utente
