Weather Station

models 02010 / 02014 / 02015

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display unit

2. Outdoor sensor

3. Instruction Manual

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

►

Features & Benets

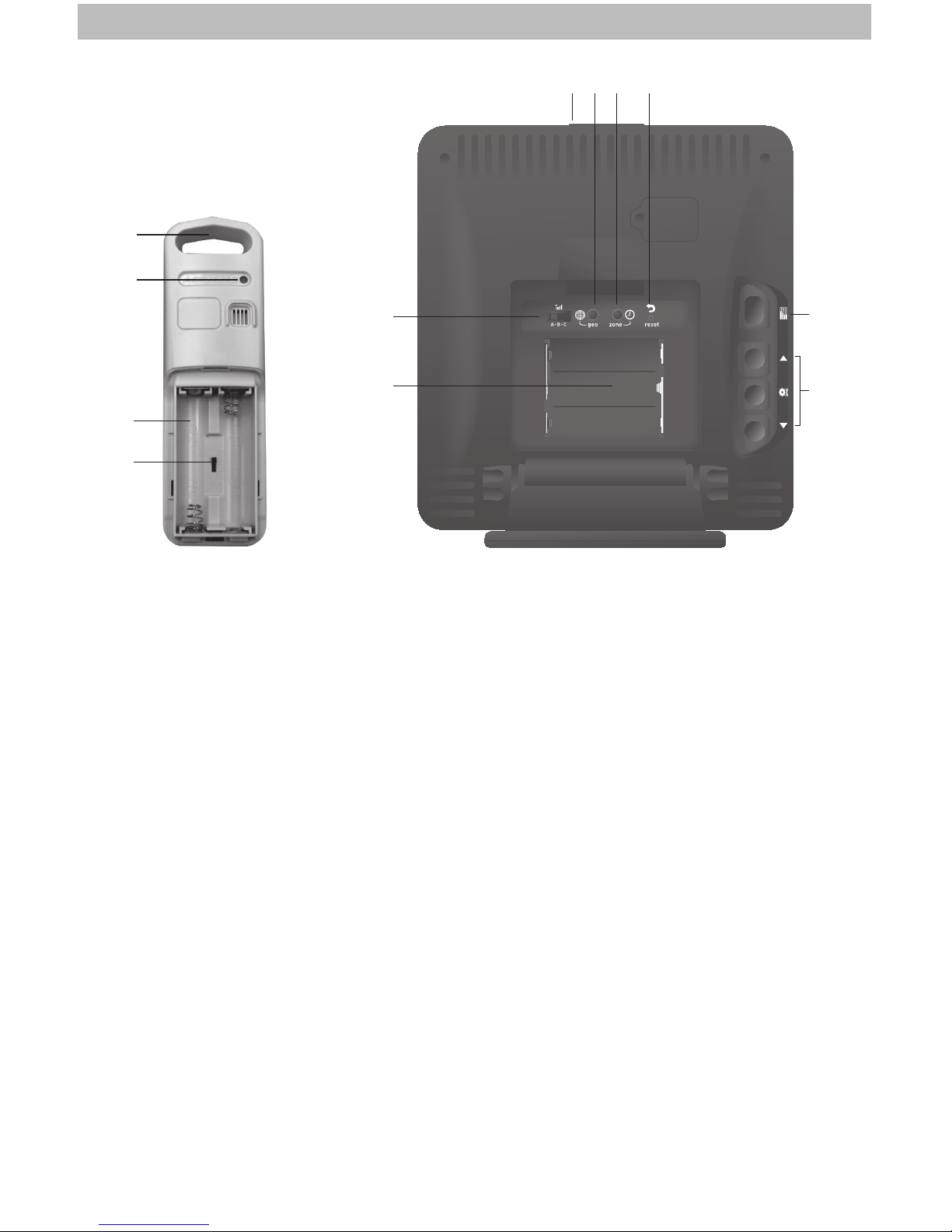

OUTDOOR SENSOR

1. Integrated Hanger

For easy placement.

2. Wireless Signal Indicator

Flashes when data is being sent to the

display unit.

3. Battery Compartment

4. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

5. Battery Compartment Cover

(not shown)

BACK OF DISPLAY UNIT

6. A-B-C Switch

ID code that must match sensor’s

A-B-C switch to ensure

units synchronize.

7. Battery Compartment

8. UP, SET & DOWN Buttons

for setup preferences.

9. HISTORY CHART Mode

Press to toggle between pressure,

outdoor temperature or outdoor

humidity on History Chart. Press and

hold for 4 seconds to enter auto-cycle

mode (5 second rotation).

10. RESET Button

Full reset to factory defaults.

11. ZONE Button

Set time zone preference.

12. GEO Button

Set geographic region preference.

13. Momentary Backlight Button

(top of display unit)

14. Battery Compartment Cover

(not shown)

Sensor Back of Display Unit

12 11 1013

Features & Benets

13 14 15

282930 27 26 25

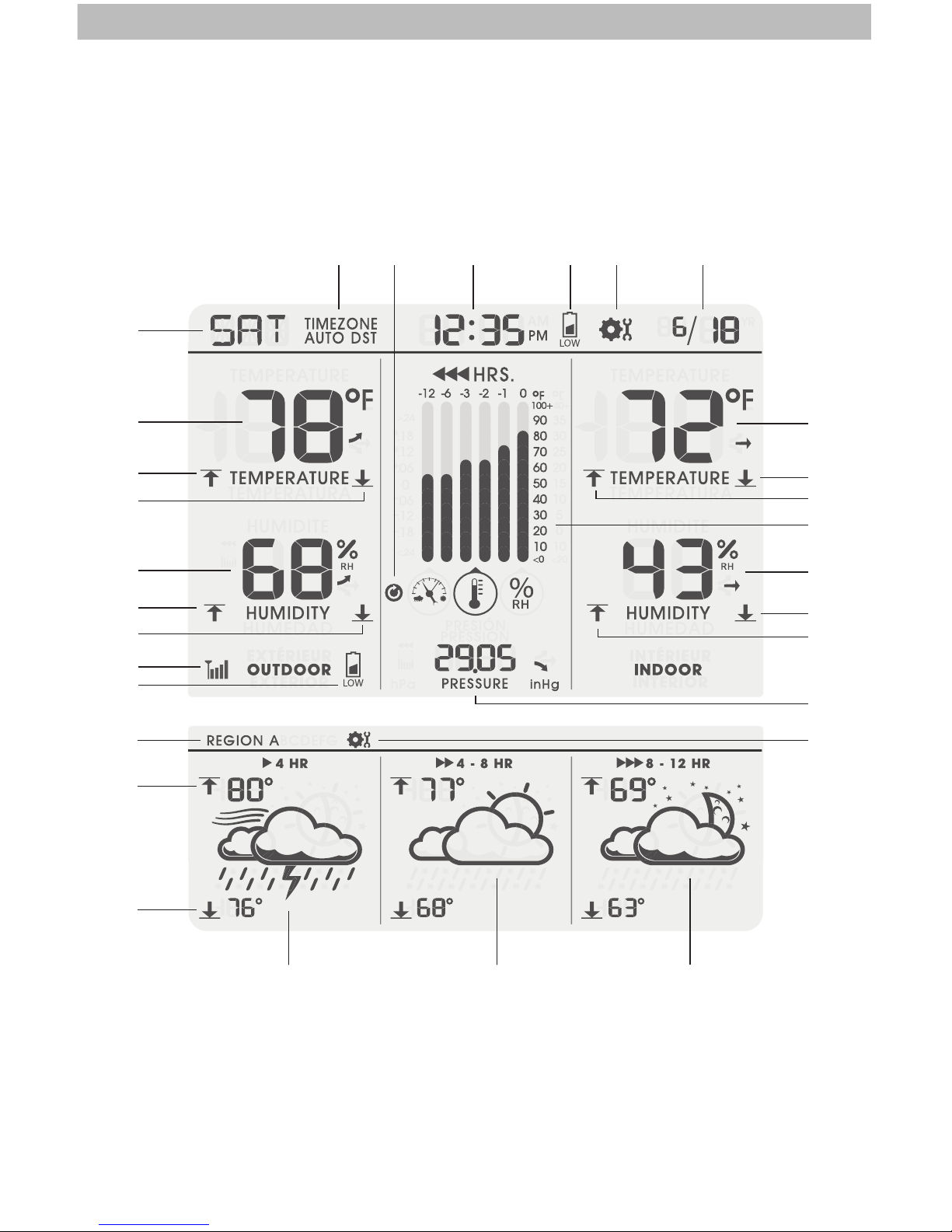

DISPLAY UNIT

1. Day of the Week

2. Current Outdoor Temperature

Arrow icon indicates direction

temperature is trending.

3. Outdoor High Temperature Record

Indicates highest outdoor temperature

recorded since midnight.

4. Outdoor Low Temperature Record

Indicates lowest outdoor temperature

recorded since midnight.

5. Current Outdoor Humidity

Arrow icon indicates direction

humidity is trending.

6. Outdoor High Humidity Record

Indicates highest outdoor humidity

recorded since midnight.

7. Outdoor Low Humidity Record

Indicates lowest outdoor humidity

recorded since midnight.

8. Outdoor Sensor Signal Strength

9. Low Sensor Battery Indicator

10. Geographic Region Selection

for setup preferences.

11. Forecasted High Temperature

12. Forecasted Low Temperature

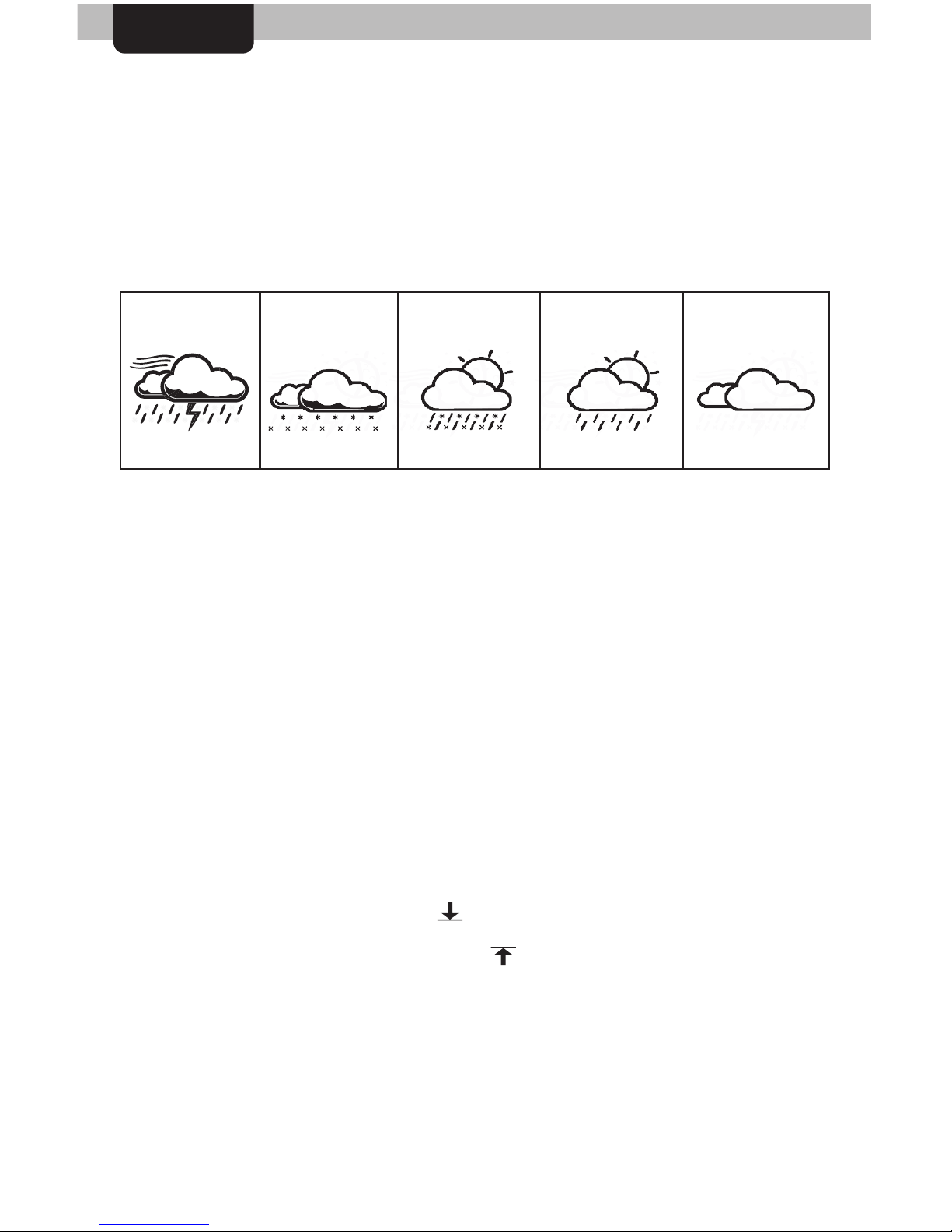

13. Up to 4 Hour Weather Forecast

Precision Forecasting combines

regional trends with data from your

outdoor sensor to generate your

personal forecast.

14. 4 to 8 Hour Weather Forecast

15. 8 to 12 Hour Weather Forecast

16. SET Icon

Flashes to indicate setup mode.

17. Barometric Pressure

Arrow icon indicates direction

pressure is trending.

18. Indoor High Humidity Record

Indicates highest indoor humidity

recorded since midnight.

19. Indoor Low Humidity Record

Indicates lowest indoor humidity

recorded since midnight.

20. Current Indoor Humidity

Arrow icon indicates direction

humidity is trending.

21. Multi-Variable History Chart

Displays the past 12 hours of data

for pressure, outdoor temperature or

outdoor humidity.

22. Indoor High Temperature Record

Indicates highest indoor temperature

recorded since midnight.

23. Indoor Low Temperature Record

Indicates lowest indoor temperature

recorded since midnight.

24. Current Indoor Temperature

Arrow icon indicates direction

temperature is trending.

25. Date

26. SET Icon

Flashes to indicate setup mode.

27. Display Unit Low Battery Indicator

28. Intelli-Time®Clock

29. Auto-Cycle Mode Indicator

30. Time Zone & Daylight Saving Time

for setup preferences.

SETUP

Set the A-B-C Switch

The A-B-C switch is located inside

the battery compartment. It can

be set to A, B or C. However,

you must select the same letter

choices for both the sensor and

the display unit in order for the

units to synchronize.

Install or Replace Batteries

AcuRite recommends high quality

alkaline or lithium batteries for

the best product performance.

Heavy duty or rechargeable

batteries are not recommended.

The sensor requires lithium

batteries in low temperature

conditions. Cold temperatures

can cause alkaline batteries

to function improperly. Use

lithium batteries in the sensor for

temperatures below -4ºF / -20ºC.

1. Slide off the battery

compartment cover. Take

note of the A-B-C switch

setting inside the battery

compartment for part 2.

2. Insert 2 x AA batteries into

the battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Sensor Setup

1A-B-C Switch

set to match

display unit

2Install Batteries

2 AA batteries

A B C

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Display Unit Setup

Set the A-B-C Switch

Locate the A-B-C switch inside

the battery compartment. Set

the A-B-C switch to A, B or C.

You must select the same letter

choices for both the display unit

and the sensor in order for the

units to synchronize.

Install or Replace Batteries

1. Remove the battery

compartment cover.

2. Insert 3 x AA alkaline

batteries into the battery

compartment, as shown.

Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

A B C 2Install Batteries

3 AA alkaline

batteries

1A-B-C Switch

set to match

sensor

Setup: Geographic Region

Select your geographic region according

to the map (pictured right) by pressing the

“GEO” button. Geographic region must

be set in order for Precision Forecasting to

function properly.

Intelli-Time®Clock

Intelli-Time clock and calendar set themselves

to the correct time and date, and update

automatically for Daylight Saving Time. All

you need to do is select your time zone using

the “ZONE” button.

Setup: Time, Date, Units & Language

Press the “ ” button, located on the back of the display unit, to enter SET

MODE. Once in set mode, the preference you are currently setting will blink on

the display.

To adjust the currently selected (ashing) item, press and release the “

” or

“

“ buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the “SET” button again to adjust

the next preference. The preference set order is as follows:

TIME ZONE ( PST MST CST EST AST HAST AKST)

AUTO DST (ON automatically updates time during Daylight Saving Time)

CLOCK HOUR

CLOCK MINUTE

CALENDAR MONTH

CALENDAR DATE

CALENDAR YEAR (Note: Year is only visible during setup)

UNITS: TEMPERATURE (ºF or ºC)

UNITS: PRESSURE (inHg or hPa)

LANGUAGE (English, Spanish or French)

You will automatically exit SET MODE if no buttons are pressed for 30 seconds.

Enter setup mode at any time by pressing the

“ ” button.

Placement for Maximum Accuracy

AcuRite sensors are sensitive to surrounding environmental conditions. Proper

placement of both the display unit and outdoor sensor are critical to the

accuracy and performance of this product.

ABCD

EFG

Display Unit Placement

Place display unit in a dry area

free of dirt and dust. Display stands

upright for tabletop use or is wall-

mountable. Viewing angle can be

adjusted by rst loosening the locking

knobs, then by tilting the display to your desired

angle. Tighten knobs to set the angle.

For wall mounting, hang using the two keyholes

located on bottom of the base.

Outdoor Sensor Placement

Sensor must be placed outside to observe outdoor conditions. Sensor

is water resistant and is designed for general outdoor use, however, to

extend its life place the sensor in an area protected from direct weather

elements.

Hang the sensor using the integrated hang holes or hanger, or by using

string (not included) to hang it from a suitable location, like a well

covered tree branch. The best location is 4 to 8 feet above the ground

with permanent shade and plenty of fresh air to circulate around the

sensor.

Important Placement Guidelines

• To ensure accurate temperature measurement, place units out of direct

sunlight and away from any heat sources or vents.

• Display unit and outdoor sensor must be within 330 ft (100 m) of each other.

• To maximize wireless range, place units away from large metallic items, thick

walls, metal surfaces, or other objects that may limit wireless communication.

• To prevent wireless interference, place both units at least 3 ft (.9 m) away

from electronic devices (TV, computer, microwave, radio, etc.).

Setup is Complete

The sensor will now synchronize with the display unit. It may take a few

minutes for synchronization to complete. NOTE: It will take up to 4 hours to

generate a weather forecast after initial setup.

TV 3

(100 meters)

(330 feet maximum)

(.91 m)

LEAST

APART

Display Angle

Locking Knobs

Using the Weather Station

Precision Weather Forecasting

AcuRite’s Precision Forecasting provides your personal forecast of morning,

noon & night (4 hour, 4 to 8 hour and 8 to 12 hour) weather conditions. The

patent-pending technology combines regional weather patterns with data

measured by a sensor in your yard. It generates a forecast with pinpoint

accuracy - personalized for your exact location.

Multi-Variable History Chart

The multi-variable history chart lets you monitor the change in conditions over

the last 12 hour time period (-12, -6, -3, -2, -1, 0). Toggle between barometric

pressure, outdoor temperature and outdoor humidity readings.

Barometric Pressure

Subtle variations in barometric pressure greatly impact the weather. This

weather center displays the current pressure with an arrow icon to indicate the

direction the pressure is trending (FALLING, STEADY, or RISING). The multi-

variable history chart lets you monitor the change in pressure over time.

High & Low Records

The “

” and “

“ buttons, located on the back of the display unit, display

minimum and maximum recordings for outdoor and indoor temperature and

humidity. To view the MINIMUM temperature and humidity readings, press

and release the “

” button. The “ ” icon appears on the display next to

the low records. To view the MAXIMUM temperature and humidity readings,

press and release the “

” button. The “ ” icon appears on the display next

to the high records.

To reset the MINIMUM records, press and hold the “

” button while viewing

the minimum records. Dashes will display to conrm all minimum values have

been cleared.

To reset the MAXIMUM records, press and hold the “

” button while viewing

the maximum records. Dashes will display to conrm all maximum values have

been cleared.

OPERATION

SNOW / RAIN

MIX LIKELY

RAIN

LIKELY

SNOW

LIKELY

STORMY

& WINDY

MOSTLY

CLOUDY

(flashing=stormy)

View the complete list of icons at www.AcuRite.com/acurite-icons

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ACU-RITE Stazione meteorologica

ACU-RITE

ACU-RITE 00595 Manuale utente

ACU-RITE

ACU-RITE 1500 Manuale utente

ACU-RITE

ACU-RITE 605 Manuale utente

ACU-RITE

ACU-RITE 00899 Manuale utente

ACU-RITE

ACU-RITE 509 Manuale utente

ACU-RITE

ACU-RITE 00777 Manuale utente

ACU-RITE

ACU-RITE 02027 Manuale utente

ACU-RITE

ACU-RITE 02007/06035RM Manuale utente

ACU-RITE

ACU-RITE 502 Manuale utente

ACU-RITE

ACU-RITE 00593W Manuale utente

ACU-RITE

ACU-RITE 01602BPDIA2 Manuale utente

ACU-RITE

ACU-RITE 1502RX Manuale utente

ACU-RITE

ACU-RITE 06019RM Manuale utente

ACU-RITE

ACU-RITE 01202 Manuale utente

ACU-RITE

ACU-RITE 01536CAUDI Manuale utente

ACU-RITE

ACU-RITE 02022WB Manuale utente

ACU-RITE

ACU-RITE 838 Manuale utente

ACU-RITE

ACU-RITE 01602BPDI Manuale utente

ACU-RITE

ACU-RITE 2007 Manuale utente

ACU-RITE

ACU-RITE 02050CCDI Manuale utente

ACU-RITE

ACU-RITE 75077 Manuale utente

ACU-RITE

ACU-RITE 00593W Manuale utente

ACU-RITE

ACU-RITE 518346 Manuale utente

ACU-RITE

ACU-RITE 75321A1 Manuale utente

Manuali Stazione meteorologica popolari di altre marche

Auriol

Auriol AHFL 433 A1 Manuale utente

NexSens

NexSens G2-HYDROMET Manuale utente

Hyundai

Hyundai WS 2202 Manuale utente

IROX

IROX HBVR761 UV-X Manuale utente

La Crosse Technology

La Crosse Technology C86371 Manuale utente

ADE

ADE WS 1711 Manuale utente

Auriol

Auriol z29592 Manuale utente

Auriol

Auriol 296289 Manuale utente

Hyundai

Hyundai WS 2266 Manuale utente

La Crosse Technology

La Crosse Technology WS-2210 Manuale utente

La Crosse Technology

La Crosse Technology WS-811561 Manuale utente

Ventus

Ventus W177 Manuale utente

National Geographic

National Geographic VA Colour RC Manuale utente

Renkforce

Renkforce 1208067 Manuale utente

Levenhuk

Levenhuk Discovery Report WA40 Manuale utente

Instant Transmission

Instant Transmission MA 10410 Manuale utente

Lutron Electronics

Lutron Electronics PHB-318 Manuale utente

WAREMA

WAREMA EWFS Weather station eco Manuale utente
