ADC FPL Series Manuale utente

ADCP-90-328 • Issue 2 • November 2005

1345101 Rev A Page 1

FPL Series Termination/Splice Panel

User Manual)

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Trademark Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1 DESCRIPTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3 SPECIFICATIONS AND DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

4 APPLICATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5 INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.1 Installing Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

5.2 Installing Pigtails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.3 Mounting the Panel on the Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.4 Installing OSP or IFC Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

5.5 Splicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

(continued)

FPL Termination/Splice Panel

Content Page

424854606672

414753596571

404652586470

394551576369

384450566268

424854606672

1218243036

1117232935

1016222834

915212733

814202632

17807-A

ADCP-90-328 • Issue 2 • November 2005

Page 2

5.6 Installing FOT Patch Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

5.6.1 Interconnect Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

5.6.2 Cross-Connect Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

6 OPERATION (CROSS-CONNECT PATCH CORDS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

7 CUSTOMER INFORMATION AND ASSISTANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

APPENDIX A: SHIELD CONNECTOR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

_________________________________________________________________________________________________________

INTRODUCTION

This user manual describes the FPL Series Termination/Splice Panel, and provides all

information required to install and operate this product. All FPL panels can be mounted on

either a 19-inch or 23-inch WECO or EIA rack.

Revision History

quad cabl es and patch cord routing

Trademark Information

ADC is a registered trademark of ADC Telecommunications, Inc.

1 DESCRIPTION

The FPL Series Termination/Splice Panel documented in this manual may be any of a number

of rack-mounted panels built using the same chassis style and incorporating similar features

such as angled adapters and vertical cable guides. Panel configurations include the following:

•Termination Only Panels—Available with 12, 24, 48, 72, or 96 termination positions.

LX.5 and LC connectors may be used with the 12, 24, 48, and 72 position panels to double

the density. These panels require connectorized fibers on both sides of the termination

bulkhead.

•Termination and Splice Panels—Available with 12, 24, 48, 72, or 96 termination

positions. LX.5 and LC connectors may be used with the 12, 24, 48, and 72 position

panels to double the density. These panels provide a transition between bare fibers and

connectorized fibers.

• High Density Termination and Splice Panel—Provides 144 termination and splice

positions in the same chassis, using standard connector types. The bulkhead on this panel

is slanted inward in a “V” design to provide room for a greater number of adapters.

Content (continued) Page

ISSUE DATE REASON FOR CHANGE

Issue 1 07/2002 Original.

Issue 2 11/2005 Added 1RU 12/24 position panels.

ADCP-90-328 • Issue 2 • November 2005

Page 3

Figure 1 shows an example of a termination only panel, the 72 position model. Other models

have analogous features.

Figure 1. 72 Position Termination Only Panel

The features called out are as follows (from top center clockwise):

•FPL Chassis—is the boxlike, solid metal frame on which the panel is built. The chassis

shown is 8.7 inches (22.1 cm) high, 16.4 inches (41.7 cm) wide, and 12.0 inches (30.5 cm)

deep. This same chassis is also used for the 48 and 96 position panels, as well as for the

48, 72, and 96 position termination and splice panels. Shorter-height chassis are used for

the 12 and 24 position panels and a deeper chassis is used for the 144 position high density

panel. For details, refer to Table 1 on Page 8.

•Adjustable Mounting Bracket—(one on each side) can be oriented to provide either 19-

inch or 23-inch WECO or EIA rack mounting with either a 4-inch or 5-inch recess. The

panel is shipped with the mounting brackets positioned for installation in a 19-inch rack

with a 5-inch recess.

•Cable Clamp Assembly—is a kit used to clamp a cable to the panel. Two cable clamp

assemblies are provided with every FPL panel. Each clamp can accommodate a maximum

cable diameter of 0.80 inch (2.03 cm). A grounding lug is included with each cable clamp

for use if needed.

424854606672

414753596571

404652586470

394551576369

384450566268

424854606672

1218243036

1117232935

1016222834

915212733

814202632

17816-A

FPL

CHASSIS

TERMINATION

BULKHEAD

ANGLED

ADAPTERS

PATCH CORD

DESIGNATION

CARD

VERTICAL

CABLE GUIDE

VERTICAL

CABLE GUIDE

ADJUSTABLE

MOUNTING

BRACKET

ADJUSTABLE

MOUNTING

BRACKET

REMOVABLE

FRONT DOOR

OPTIONAL

LOCK MOUNT

CABLE CLAMP

ASSEMBLY

CABLE

CLAMP

COVER

ADCP-90-328 • Issue 2 • November 2005

Page 4

•Cable Clamp Cover—protects cable at entry to the panel (not present on 12 and 24

position panels).

•Vertical Cable Guide—(one on each side) is a metal cable retainer designed to provide

cable management by confining and directing patch cords to and from the panel and along

the frame on which the panel is installed.

•Patch Cord Designation Card—is a laminated card fastened to the inside of the panel

front door. The designation card is used to record the near-end and far-end termination

locations of each patch cord installed on the panel.

•Optional Lock Mount—provides ability to lock front door.

•Removable Front Door—protects the termination bulkhead and can be removed to

provide access to the bulkhead for connecting patch cords.

•Termination Bulkhead—provides a location for connecting patch cords. The bulkhead

shown has 72 holes for 72 adapters. Other bulkheads for the chassis size shown provide 48

or 96 locations for mounting connectors.

•Angled Adapters—are pass-through receptacles for connectors. They are angled to either

left or right to hold terminated fibers at an angle with respect to the bulkhead. The purpose

of the angle is prevent fiber bend.

Figure 2 and Figure 3 show the 48 and 96 position panels, respectively. Figure 4 shows the three

rack unit 24 position panel. Figure 5 shows the one rack unit 12/24 position panel.

Figure 2. 48 Position FPL Termination Panel

17808-A

06121824

05111723

04101622

03091521

02081420

01071319

30364248

29354147

28344046

27333945

26323844

25313743

ADCP-90-328 • Issue 2 • November 2005

Page 5

Figure 3. 96 Position FPL Termination Panel

Figure 4. 24 Position FPL Termination Panel (3RU)

17815-A

54 60 66 72 78 84 90 96

53 59 6571 77 83 89 95

52 58 64 70 76 82 88 94

51 57 63 69 75 81 87 93

50 56 62 68 74 80 86 92

49 55 61 67 73 79 85 91

612 18 24 3036 42 48

511 17 23 29 35 41 47

410 16 22 28 34 40 46

3915 21 27 33 39 45

2814 20 2632 38 44

1713 19 25 31 37 43

0306091215182124

0205081114172023

0612182430364248

17820-A

ADCP-90-328 • Issue 2 • November 2005

Page 6

Figure 5. 12/24 Position FPL Termination Panel (1RU)

Figure 6 shows a rear view of a termination and splice panel. The panel shown is the 72 position

termination and splice panel.

Figure 6. FPL Termination and Splice Panel

20973-A

17819-A

SPLICE

AREA

INTERNAL

PIGTAIL

SPLICE

TRAY

REMOVABLE

REAR ACCESS

DOOR

OPTIONAL

LOCK MOUNT

ADCP-90-328 • Issue 2 • November 2005

Page 7

The front side of the 72 position termination and splice panel is identical to the termination only

panel shown in Figure 1. In general, the termination components of any FPL termination and

splice panel are identical to the termination components of the panel’s termination and splice

panel counterpart. Only the splice components are different.

Figure 6 on the preceding page shows the typical components unique to the splice function of a

termination and splice panel. They are as follows (from left to right in the figure):

•Splice Area—is a protected chamber within the chassis intended for splice trays. In

termination only panels, this area can be used for cable storage.

•Internal Pigtail—is a factory-installed fiber optic cable with a connector at one end and a

bare fiber on the other end. The connector end of the pigtail is terminated on the rear side

of the termination bulkhead. The bare end of the pigtail is available for splicing to a bare

fiber at the customer site. The cable from which the bare fibers are broken out for splicing

may be either Outside Plant (OSP) or Intra Facility Cable (IFC).

•Splice Tray—is a tray installed in the splice area. Each tray holds one or more splice chips

of a selected type.

•Removable Rear Access Door—provides access to the splice area.

•Optional Lock Mount—provides ability to lock rear access door.

Figure 7 shows the 144 position high density termination and splice panel. Additional features

called out here are the split termination bulkhead, which provides the room required for the

greater number of adapters, and the splice area access door, which opens into a locked

horizontal position to serve as a splice deck.

Figure 7. 144 Position High Density Termination and Splice Panel

17906-A

SPLIT

TERMINATION

BULKHEAD

SPLICE AREA

ACCESS DOOR

ADCP-90-328 • Issue 2 • November 2005

Page 8

2 ACCESSORIES

The following accessory items may be ordered separately for FPL panels:

• Single and dual splice trays (for types, see Splice Type in Table 1 below)

• Additional kits for clamping and grounding cables

• Key locks for front and rear doors

• Buildout attenuators (ST and biconic)

• Bulkhead attenuators (ST, SC, D4, FC, and biconic)

3 SPECIFICATIONS AND DIMENSIONS

Table 1 lists specifications for the FPL modules.

Table 1. FPL Modules Specifications

PARAMETER SPECIFICATION

Common to All Panels

Rack mounting 19-inch (48.26 cm) or 23-inch (58.42 cm)

Hole spacing EIA or WECO

Recess options 4-inch (10.16 cm) or 5-inch (12.7 cm) recess

Connector types Multimode SC, SC duplex, ST©, LX.5©, and LC;

Singlemode FC, FC (zirconia adapter), FC (8o polish), SC, SC (zirco-

nia adapter), SC (8o polish), SC duplex, ST©, ST©(zirconia adapter),

E-2000 (8o polish), E-2000 (flat polish), LX.5©, LC

Pigtail type Stranded or ribbon

Splice type Bare fusion, heat shrink fusion, mechanical, rotary, FibrLok, Raychem

Universal (R), Nortel, AFL

Pre-termination (optional) cable types Multimode IFC stranded 62.5/125;

Singlemode IFC stranded, IFC plenum stranded, OSP single armor

stranded, indoor-outdoor, OSP dielectric stranded, IFC Maxi-Strip,

IFC ribbon, OSP single armor ribbon, OSP dielectric ribbon

12/24 Position Panel (1RU)

Dimensions (H x W x D) 1.72 inch x 17.0 in. x 11.48 in.

(4.4 cm x 43.2 cm x 29.2 cm)

Capacity 12 or 24 termination positions

LX.5©and LC connectors double the termination capacity

24 Position Panel (3RU)

Dimensions (H x W x D) 5.0 inch x 16.4 in. x 12.0 in.

(12.7 cm x 41.7 cm x 30.5 cm)

Capacity 24 termination positions

LX.5©and LC connectors double the termination capacity

ADCP-90-328 • Issue 2 • November 2005

Page 9

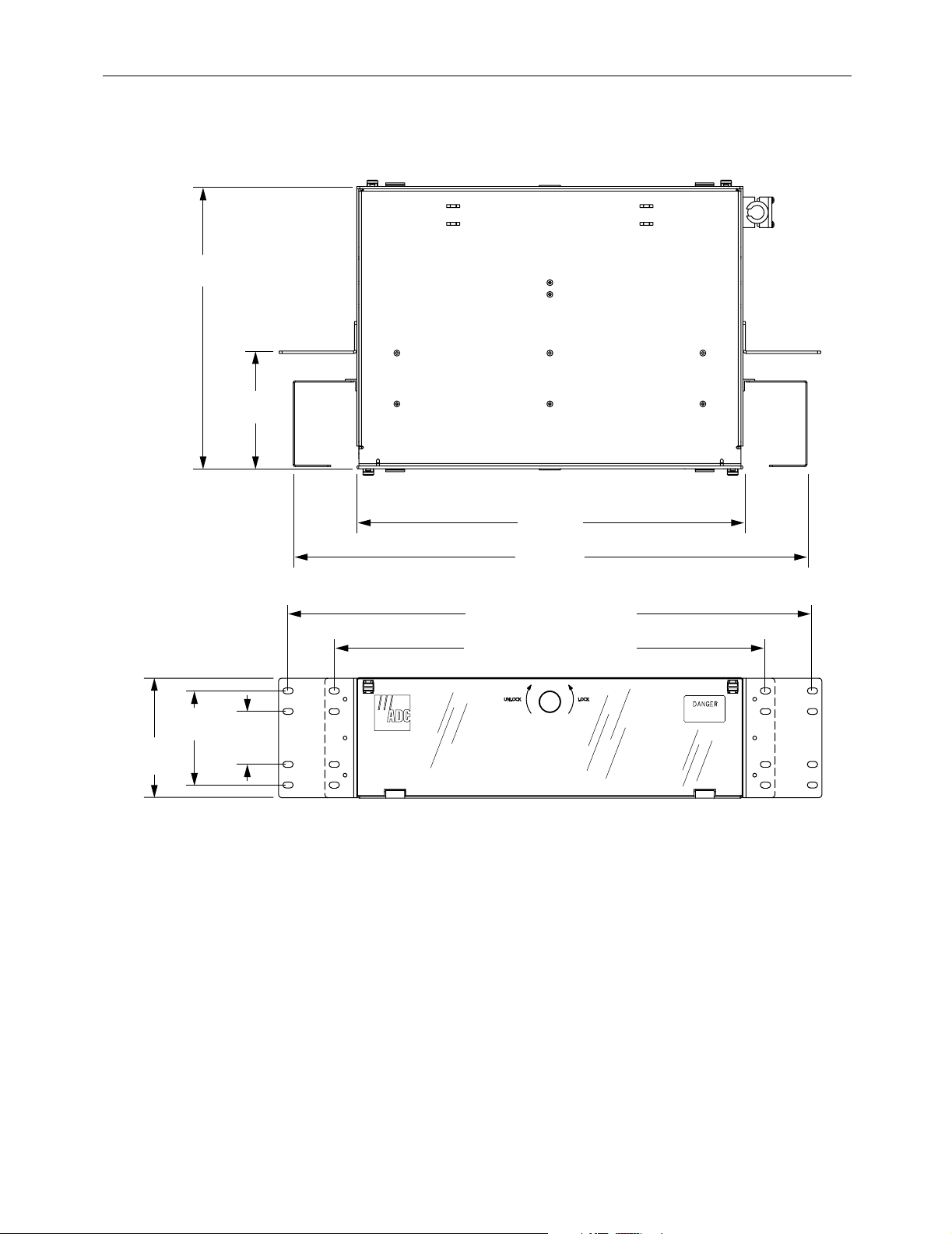

Figure 8 shows dimensions for the 12/24 position 1RU panel.

Figure 8. 12/24 Position 1RU Panel

48/72/96 Position Panel (5RU)

Dimensions (H x W x D) 8.7.0 inch x 21.9 in. x 12.0 in.

(22.1 cm x 56.7 cm x 30.5 cm)

Capacity 48, 72, or 96 termination positions

LX.5©and LC connectors double the termination capacity

144 Position High Density Panel (5RU)

Dimensions (H x W x D)

Depth with rear door splice deck open

8.7.0 inch x 21.9 in. x 15.0 in.

(22.1 cm x 56.7 cm x 38.1 cm)

23.0 inch (58.42 cm)

Capacity 144 termination positions

Table 1. FPL Modules Specifications

PARAMETER SPECIFICATION

1.72 IN.

(4.4 CM)

4.86 IN.

(12.3 CM)

11.48 IN.

(29.2 CM)

17.0 IN.

(43.2 CM)

1.25 IN.

(3.2 CM)

18.32 IN. (46.5 CM)

19-IN. RACK MOUNT (48.3 CM)

22.32 IN. (56.7 CM)

23-IN. RACK MOUNT (58.4 CM)

20959-A

TOP VIEW

FRONT VIEW

20.24 IN.

(51.4 CM)

ADCP-90-328 • Issue 2 • November 2005

Page 10

Figure 9 shows dimensions of the 24 position 3RU panel.

Figure 9. Panel Dimensions (24 Position 3RU)

16.4 IN.

(41.7 CM)

21.9 IN.

(55.5 CM)

18.32 IN. (46.5 CM)

19-IN. RACK MOUNT (48.3 CM)

22.32 IN. (56.7 CM)

23-IN. RACK MOUNT (58.4 CM)

5.0 IN.

(12.7 CM)

5.0 IN.

(12.7 CM)

12.0 IN.

(30.5 CM)

2.25 IN.

(5.7 CM)

4.0 IN.

(10.2 CM)

17822-A

TOP VIEW

FRONT VIEW

Indice

Altri manuali ADC Hardware di rete

ADC

ADC H2TU-C-388 HiGain Istruzioni operative originali

ADC

ADC PG-Flex FLC-706 1A Istruzioni per l’uso

ADC

ADC UniPatch Modular System RS-422 Manuale utente

ADC

ADC HRE-425 List 1 Istruzioni operative originali

ADC

ADC PG-FLEXPLUS PLL-735 Manuale utente

ADC

ADC HiGain HDU-404 LIST 2 Istruzioni operative originali

ADC

ADC H2TU-C-202 Manuale utente

ADC

ADC PG-Flex FLC-704 Manuale utente

ADC

ADC LPS-H2C-L7A Istruzioni operative originali

ADC

ADC H2TU-C-202 Istruzioni operative originali

ADC

ADC HIGAIN H4TU-C-231 LIST 5A Istruzioni operative originali

ADC

ADC HiGain HLU-200 Manuale utente

ADC

ADC Cross-Connect Family FlexDSX Manuale utente

ADC

ADC Double Pair/Line Power G.SHDSL WorldDSL G.S Manuale utente

ADC

ADC HiGain H2TU-C-231 Manuale utente

ADC

ADC Active Digital Signal Cross-Connect ASX Manuale utente

ADC

ADC Universal Transport Platform for Access Networks PONy Express... Manuale utente

ADC

ADC H2TU-C-202 Manuale utente

ADC

ADC UltraWAVE 2000 Manuale utente

ADC

ADC Digivance NXD Manuale

ADC

ADC DSX-1 Manuale

ADC

ADC HiGain H2TU-C-319 List 4E Istruzioni operative originali

ADC

ADC H2TU-C-231 L7 Istruzioni operative originali

ADC

ADC ProPatch Miniature Series Manuale utente

Manuali Hardware di rete popolari di altre marche

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuale utente

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuale utente

Yudor

Yudor YDS-16 Manuale utente

D-Link

D-Link ShareCenter DNS-320L Manuale utente

Samsung

Samsung ES1642dc Istruzioni per l’uso

Honeywell Home

Honeywell Home LTEM-PV Istruzioni per il montaggio

evertz

evertz 7700 Series Manuale utente

D-Link

D-Link ShareCenter DNS-343 Manuale utente

Asante

Asante AsanteBridge 1012 Manuale utente

FireBrick

FireBrick FB2700 Manuale utente

Audiovox Electronics

Audiovox Electronics ARWH2T Manuale utente

NetComm

NetComm NF2 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 5620 Manuale utente

Dell EMC

Dell EMC XC6420 Series Manuale utente

Lanner

Lanner NCA-1020A Manuale utente

Allied Telesis

Allied Telesis AT-TN121-A Manuale utente

Arista

Arista CCA-ETM-Q12 Manuale utente

Lanner

Lanner NCA-1525 Manuale utente
