LSA-PLUS®NT Termination Blocks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Spec Sheet

Today’s ever-changing network deployments frequently require wires to be reterminated, relocated

or rewired. That rewiring can quickly degrade the quality of wire terminations. ADC has developed

products like the LSA-PLUS®NT block to maintain superior connectivity through hundreds of

reterminations and deliver the best electrical performance in the industry. The LSA-PLUS NT block is

a high–density solution that utilizes the silver plated, world renowned LSA-PLUS contact principle.

Its gas-tight contacts ensure a reliable and long lasting connection.

System side contacts and the cross connections on the LSA-PLUS NT block are situated

perpendicular to one another, increasing pair density while decreasing the chance of accidental

tampering of system side terminations. Both test access and cross–connect contacts are accessible

from the front, and the block can be easily released to access system side contacts for new wiring

or rewiring.

The LSA-PLUS NT block’s unique perpendicular configuration of the system and cross-connect sides

creates additional space. Its vertical mounting pitch of 17.5 mm results in a vertical space savings

of 21% over LSA-PLUS Series 2 solutions.

6/07 • 104619AE LSA-PLUS®NT Termination Blocks

LSA-PLUS®NT Termination Blocks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

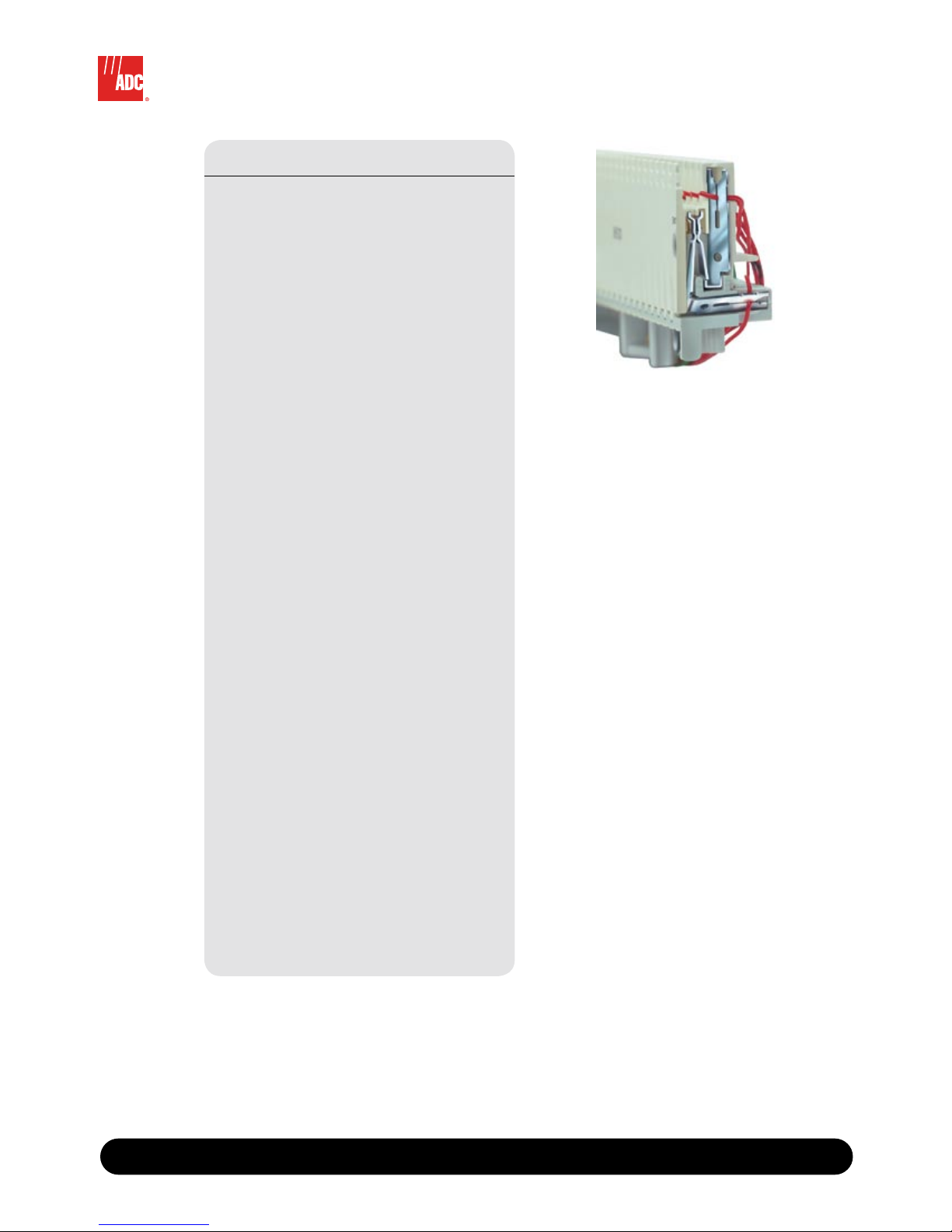

LSA-PLUS®NT Termination Block

(IDC Orientation)

Features & Benefits

• Utilizes proven reliability of the LSA-PLUS®

45º silver plated contacts

• Unique perpendicular configuration facilitates

quick and reliable installations

• Vertical mounting pitch of 17.5 mm results in

21% space savings over Series 2 blocks

• System side contacts situated at a right angle

on the bottom of the block protect cable

wiring and prevent accidental tampering

during cross–connect work

• Clear labeling system eliminates wiring

mistakes

• Built in “look-both-ways” test port

• Designed for use with ADC back mount

frame; other versions are available for use

with ADC profile rod mount brackets

• Various identification and marking

possibilities: marking caps used to mark

individual pairs, identify special lines or

protect a given line from being mistakenly

switched

• Switchover adapters allow interrupt-

free switchover to a new system, active

equipment or connection of new cables

• One-pair “look-both-ways” test cord with

banana plugs allows for independent testing

of incoming and outgoing signals; no need

for wire removal

• LSA PLUS insertion tool manages all wire

terminations; no need for additional tools

• Wall and rack mountable

• Can be mounted on 19- or 23-inch frames

Applications

• Well suited for applications requiring a

bandwidth greater than POTS

• Offers superior high-speed connections for

voice and data in backbone cabling

• Ideal for next generation broadband

networks that need to support voice, video

and data transmission (IPTV, ADSL2+, VDSL2,

etc)

6/07 • 104619AE LSA-PLUS®NT Termination Blocks

www.adc.com • +1-952-938-8080 • 1-800-366-3891

Specifications

MECHANICAL

Wire range for solid copper conductors

(single wire per contact): 0.4 mm to 0.8 mm (26 to 20 AWG)

Wire range for stranded tinned copper conductors

(single wire per contact): 7 x 0.12 mm to 7 x 0.32 mm (36 to 28 AWG)

Two wires per contact (same gauge): 0.4 mm to 0.65 mm (26 to 22 AWG)

Wire insulation diameter range (PE, PVC): 0.7 mm to 1.6 mm (0.02” to 0.06”)

Number of wire terminations: ≥200

Number of disconnect port plug-in cycles: ≥750

ELECTRICAL

NEXT (average worst case performance): 39 dB @ 100 MHz:

Insulation resistance: ≥50 GΩ

Contact resistance: ≤1 mΩ(typical)

Electrical strength / impulse strength: 2 kV / 3.6 kV (8/20 μs)

Operation voltage for basic insulation (B/S): 120 V TNV

Transient overvoltage for B/S insulation: 1.5 kV

Current carrying capacity: 5 A (50 Hz, 1 s)

Impulse current: 5 kA (8/20 μs)

Air gap / creepage: 2.8 mm / 2.93 mm (.11"/.12")

ENVIRONMENTAL AND SAFETY

Safety Compliance: UL 1863

Flammability rating of plastic housing: UL 94 V-0

Storage temperature range: -40° to 90° C (-40° to 194° F)

Operating temperature range: -20° to 80° C (-4° to 176° F)

Telcordia®compliance: Telcordia Technologies TR-NWT-001195,

“Generic Requirements for Insulation

Displacement Connector (IDC) Cross-Connect

Terminal Blocks”, Issue 1, June 1992

MATERIALS

Plastics: PBT

Contact plating: Silver (Ag)

LSA-PLUS®NT Termination Blocks

Cross-Connect Side of Block

Side View

Equipment Side of Block 17.5 mm (0.7")

39.5 mm (1.6")

27.5 mm

(1.1")

112 mm (4.4")

Website: www.adc.com

From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: +1-952-938-8080

Fax: +1-952-917-3237 • For a listing of ADC’s global sales office locations, please refer to our Website.

ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101

Specifications published here are current as of the date of publication of this document. Because we are continuously

improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may

verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.

views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features

contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer

Spec Sheet

Ordering Information

Description Dimensions (H x W x D) Catalog Number

LSA-PLUS®NT 10-pair;

Disconnect block

Quantity: 1 (Order in multiples of 10)

17.5 mm x 112 mm x 27.5 mm

(.7" x 4.4" x 1.1")

7014 1 004-03

5-position back mount frame with rear cable hole

Quantity: 1

98.3 mm x 92 mm x 50.8 mm

(3.9" x 3.6" x 2")

6655 2 851-05

10-position back mount frame with rear cable hole

Quantity: 1

186 mm x 92 mm x 50.8 mm

(7.3" x 3.6" x 2")

6655 2 851-10

20-position back mount frame with rear cable hole

Quantity: 1

361 mm x 92 mm x 50.8 mm

(14.2" x 3.6" x 2")

6655 2 851-20

30-position back mount frame with rear cable hole

Quantity: 1

536 mm x 92 mm x 50.8 mm

(21.1" x 3.6" x 2")

6655 2 851-30

Accessories

Black NT dummy plug – Quantity: 1 (Order in multiples of 100) 7014 3 049-00

Red NT marking cap – Quantity: 1 (Order in multiples of 100) 6196 3 042-00

Red NT disconnect plug – Quantity: 1 (Order in multiples of 100) 7014 3 021-00

NT 10-pair hinged label holder – Quantity: 1 7014 2 007-00

NT 10-pair label holder – Quantity: 1 7014 2 006-00

NT one-pair site mounted test cord – Quantity: 1

XX = length of test cord in feet

04 = 1.2 m (4'), 07 = 2.1 m (7'), 10 = 3 m (10')

6645 2 126-XX

NT one-pair “look-both-ways” test cord – Quantity: 1

XXX = length of test cord in feet

001 = 0.3 m (1') 004 = 1.2 m (4'), 007 = 2.1 m (7'), 010 = 3 m (10')

ANP-12NBA5-XXX

NT changeover adapter – Quantity: 1 (Order in multiples of 10) 7014 1 044-00

NT to Series 2 one-pair adapter – Quantity: 1 7014 1 014-00

Other NT termination blocks and accessories are available upon request.

Please contact ADC Technical Assistance Center.
