FlexDSX®Multifunction Panel

ADC’s FlexDSX®Multifunction Product Solutions provide maximum flexibility while eliminating the

need to support multiple DSX-1, DSX-3, Fiber and Ethernet panels, particularly valuable in a small

to medium size application.

Designed to meet your requirements, one FlexDSX®panel is capable of housing all forms of

multimedia services, including fiber, coax, and twisted pair connectivity. Ultimate flexibility is

provided with the mix and match modularity of FlexDSX modules.

Attain space savings through FlexDSX’s compact, high density design without compromising full

test access functionality including the dual monitor feature of the DS1 and DS3 modules.

The FlexDSX multifunction panel offers the convenience of complete M13 mux termination in a

single compact 19“ W x 5.25“ H panel: 56 DS1, 2 DS3 and up to 6 fiber terminations or mix and

match to meet site specific requirements.

Features:

- Increased modularity

- Increased efficiency and flexibility

- One panel meets DS1/3, fiber, and Ethernet

termination requirements

- Interchangeable modules allow

maximum flexibility

• DS1

• DS3

• Fiber terminations

• Category 5e Ethernet

• -40 V and +24 V options

- Compact size for standard mounting

• 5.25“ high EIA

• 6“ high WECO

- Supports bidirectional testing

- High density

• 16 modules in 19“ width

• 21 modules in 23“ width

Website: www.adc.com

From North America, Call Toll Free: 1-800-366-3891 • Outside of North America: +1-952-938-8080

Fax: +1-952-917-3237 • For a listing of ADC’s global sales office locations, please refer to our website.

ADC Telecommunications, Inc., P.O. Box 1101, Minneapolis, Minnesota USA 55440-1101

Specifications published here are current as of the date of publication of this document. Because we are continuously

improving our products, ADC reserves the right to change specifications without prior notice. At any time, you may

verify product specifications by contacting our headquarters office in Minneapolis. ADC Telecommunications, Inc.

views its patent portfolio as an important corporate asset and vigorously enforces its patents. Products or features

contained herein may be covered by one or more U.S. or foreign patents. An Equal Opportunity Employer

Spec Sheet

Ordering Information

ADC’s FlexDSX Multifunction Panel can support a variety of module combinations and DS1/3 or fiber

handoffs. The DS1 cross-connect provides four jack cards per module with a dual monitor while two

network element terminations with bidirectional circuit access are provided by each DS3 interconnect

module. The fiber termination module is equipped with six SC-type adapters. The FlexDSX Multifunction

Panel’s modular design easily adapts to meet a variety of customer needs.

Applications:

- Wireless cell sites

- OSP cabinets, CEV or hut

- POP

- Collocation

- CPE

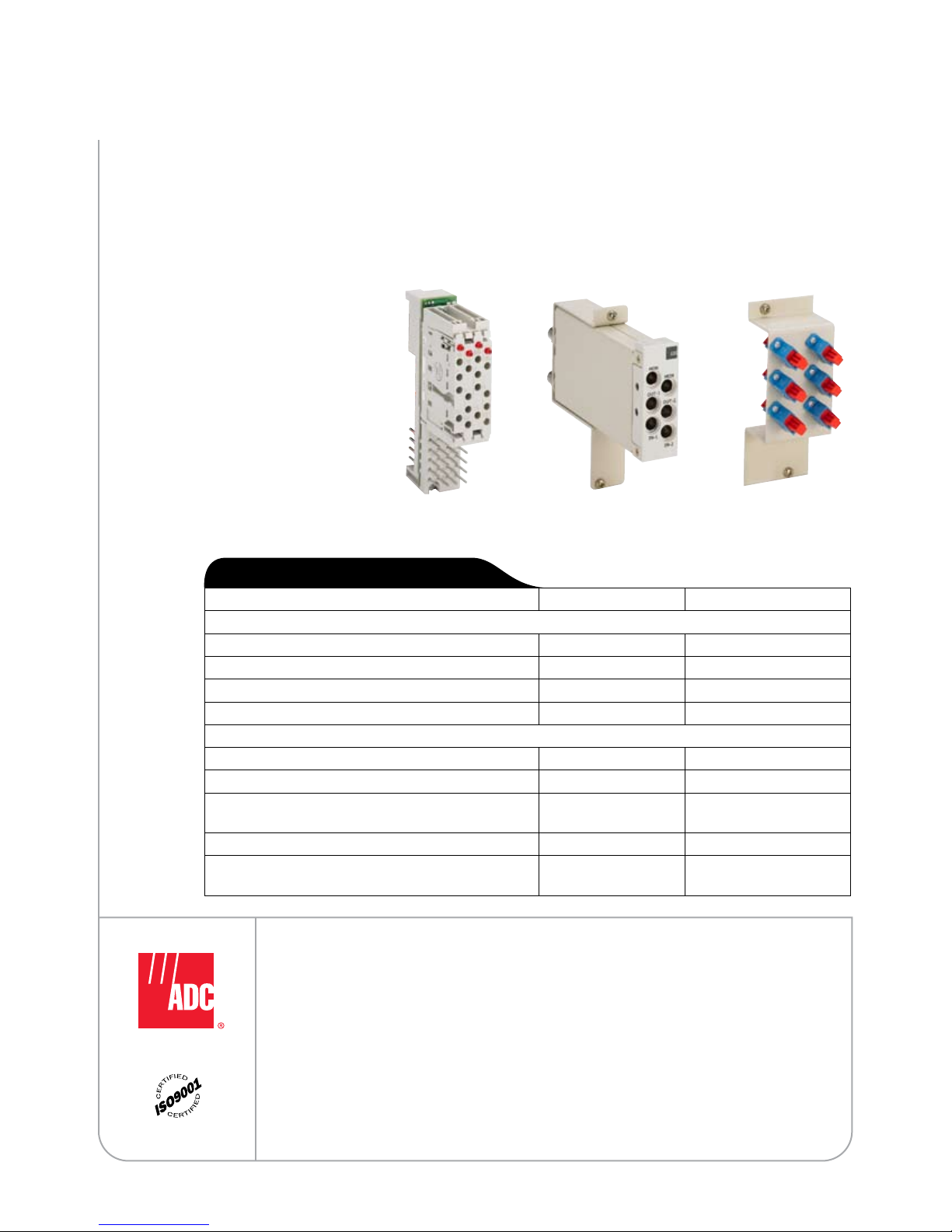

DSX-1 Module DSX-3 Module Fiber Module

Description Dimensions (HxWxD) Catalog Number

Empty Panels

19" 16 module capacity 5.25" x 19" x 5" DFX-9E0002

19" +24 V DC power, 16 module capacity 5.25" x 19" x 5" DFX-9E0002-24

23" 21 module capacity 6" x 23" x 6" DFX-9T0001

23" +24 V DC power, 21 module capacity 6" x 23" x 6" DFX-9T0001-24

DS1 Modules

Includes 4 jack cards w/dual monitor 1 Module width DFX-9T1000

+24 V DC power, Includes 4 jack cards w/dual monitor 1 Module width DFX-9T1000-24

DS3 Module: MPOP Interconnect

Includes jacks for 2 network elements (IN/OUT)

1 Module width DFX-D3000

Fiber Module Includes 6 SC adapters 2 Module width DFX-SC0002

RJ Cat 5e Ethernet Module

Includes 3 Cat 5e RJ45 coupler adapters

1 Module width DFX-9RJ002
