ADF Web HD67837-B2 Manuale utente

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ D

eviceNet Slave

Document code: MN67837_ENG Revision 1. Pagina 1 di 4

User Manual

Revision 1.

English

DALI / DeviceNet Slave - Converter

(Order Code: HD67837-B2-Y, HD67837-B2-N)

for Website information:

www.adfweb.com?Product=HD67837

for Price information:

www.adfweb.com?Price=HD67837-B2

Benefits and Main Features:

Very easy to configure

Electrical isolation

Temperature range: -4 °C/85°C (-4 °F/185°F)

For others DALI products, see also the following links:

Converter DALI to

www.adfweb.com?Product=HD67822 (KNX)

www.adfweb.com?Product=HD67831 ( S485)

www.adfweb.com?Product=HD67832 (BACnet/IP Master)

www.adfweb.com?Product=HD67833 (BACnet/IP Slave)

www.adfweb.com?Product=HD67834 (CAN)

www.adfweb.com?Product=HD67835 (CANopen)

www.adfweb.com?Product=HD67836 (DeviceNet Master)

www.adfweb.com?Product=HD67838 (DMX)

www.adfweb.com?Product=HD67839 (Ethernet)

www.adfweb.com?Product=HD6784 (EtherNet/IP)

www.adfweb.com?Product=HD67842 (Modbus Master)

www.adfweb.com?Product=HD67843 (Modbus Slave)

www.adfweb.com?Product=HD67844 (Modbus TCP Master)

www.adfweb.com?Product=HD67845 (Modbus TCP Slave)

www.adfweb.com?Product=HD67848 (P OFINET)

www.adfweb.com?Product=HD67849 (SNMP Manager)

www.adfweb.com?Product=HD6785 (SNMP Agent)

Do you have an your customer protocol?

www.adfweb.com?Product=HD67 3

Do you need to choose a device? do you want help?

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ D

eviceNet Slave

Document code: MN67837_ENG Revision 1. Pagina 2 di 4

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

DALI 1

CAN 11

ETHERNET 12

USE OF COMPOSITOR SW67837 13

NEW PROJECT / OPEN PROJECT 14

SOFTWARE OPTIONS 15

SET COMMUNICATION 17

DALI ACCESS 18

UPDATE DEVICE 19

USE OF DALI CONSOLE SOFTWARE 21

STRUCTURE OF THE SOFTWARE 22

SETUP 23

NETWORK SETTING 24

DEVICENET MAP 29

MECHANICAL DIMENSIONS 37

ORDERING INFORMATIONS 38

ACCESSORIES 38

DISCLAIMER 39

OTHER REGULATIONS AND STANDARDS 39

WARRANTIES AND TECHNICAL SUPPORT 4

RETURN POLICY 4

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

EVISION LIST:

WA NING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

T ADEMA KS:

All trademarks mentioned in this document belong to their respective

owners.

evision

Date Author Chapter

Description

1. 15/ 6/2 17

Ff All First Release

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ D

eviceNet Slave

Document code: MN67837_ENG Revision 1. Pagina 3 di 4

SECU ITY ALE T:

ENE AL

NFO MATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

E SONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFO MITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ D

eviceNet Slave

Document code: MN67837_ENG Revision 1. Pagina 4 di 4

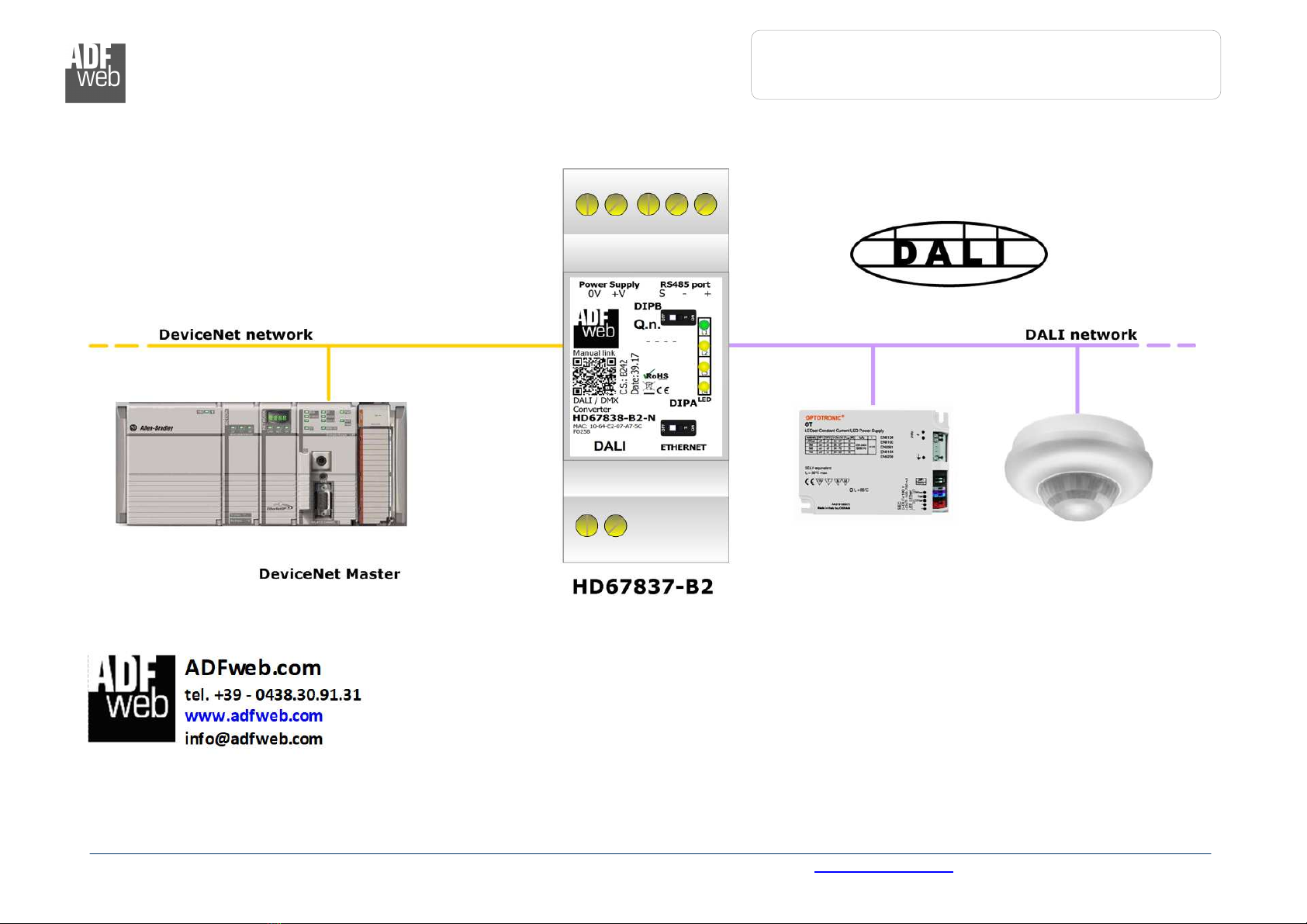

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ D

eviceNet Slave

Document code: MN67837_ENG Revision 1. Pagina 5 di 4

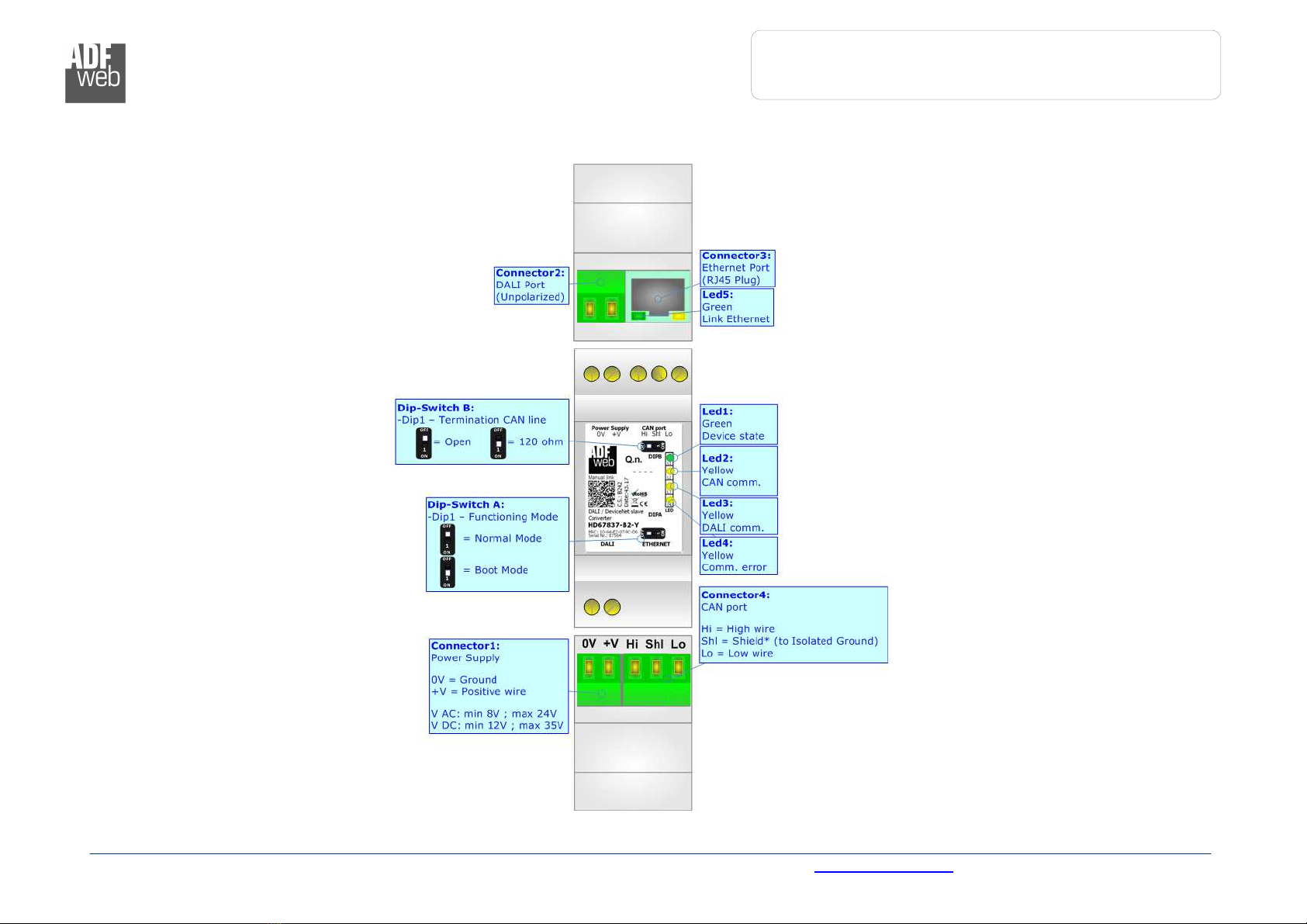

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67837-B2

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ D

eviceNet Slave

Document code: MN67837_ENG Revision 1. Pagina 6 di 4

CHA ACTE ISTICS:

The HD67837 is a DALI / DeviceNet - Converter.

It has the following characteristics:

Up to 56 devices on DALI bus;

Configurator for DALI network/devices;

Isolation between DALI – DeviceNet, Power Supply – DeviceNet. Additional isolation Power Supply – DALI for HD67837-B2-N version;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].

CONFIGU ATION:

You need “DALI Console” software on your PC in order to perform the following:

Configure the DALI network;

Setup the DALI devices (groups, scenes, IDs, …);

Test DALI communication.

You need Compositor SW67837 software on your PC in order to perform the following:

Define the parameter of DeviceNet line;

Define the parameter of DALI line;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ D

eviceNet Slave

Document code: MN67837_ENG Revision 1. Pagina 7 di 4

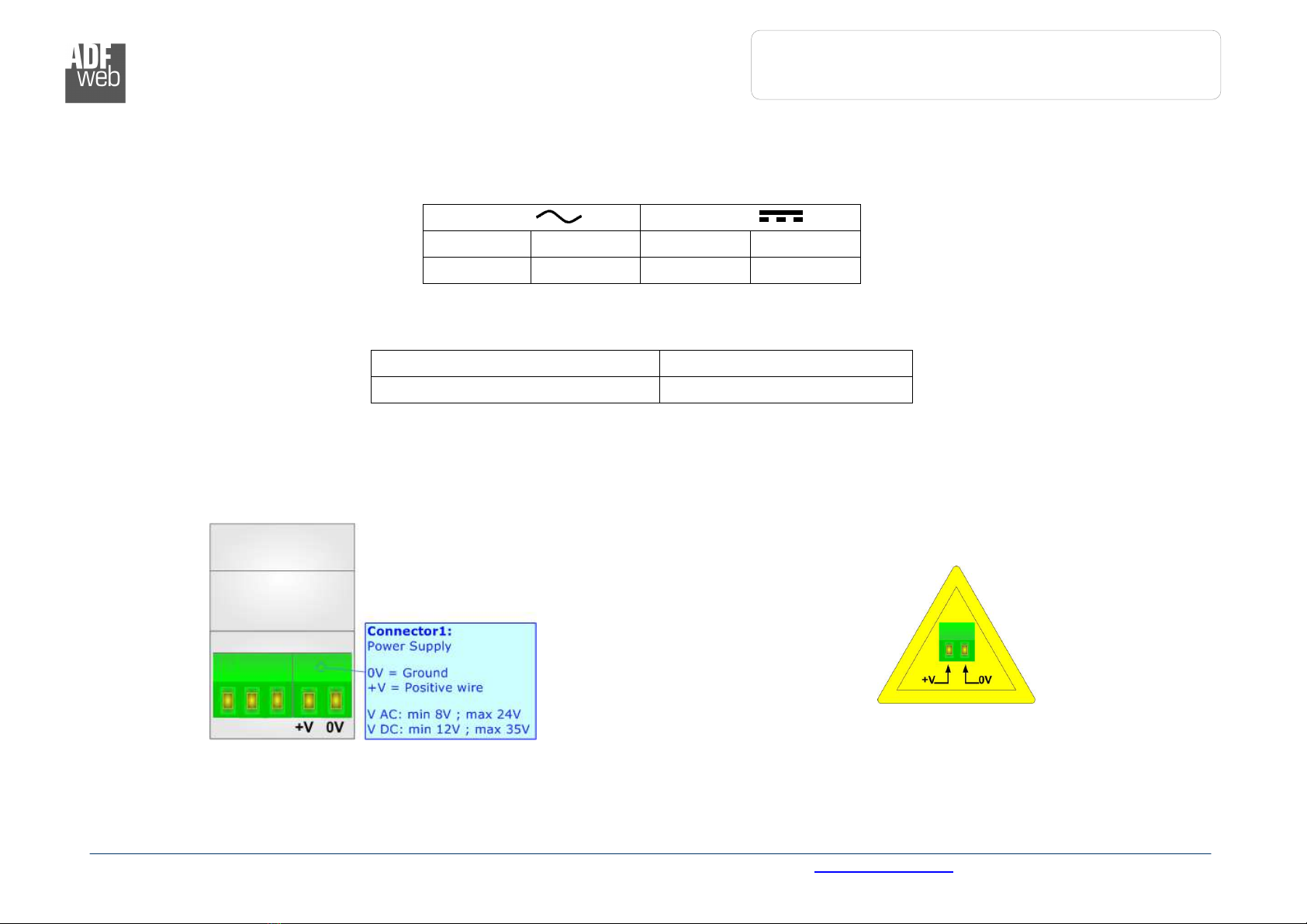

POWE SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67837-B2 3.5

HD67837-B2

Caution: Not reverse the polarity power

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ D

eviceNet Slave

Document code: MN67837_ENG Revision 1. Pagina 8 di 4

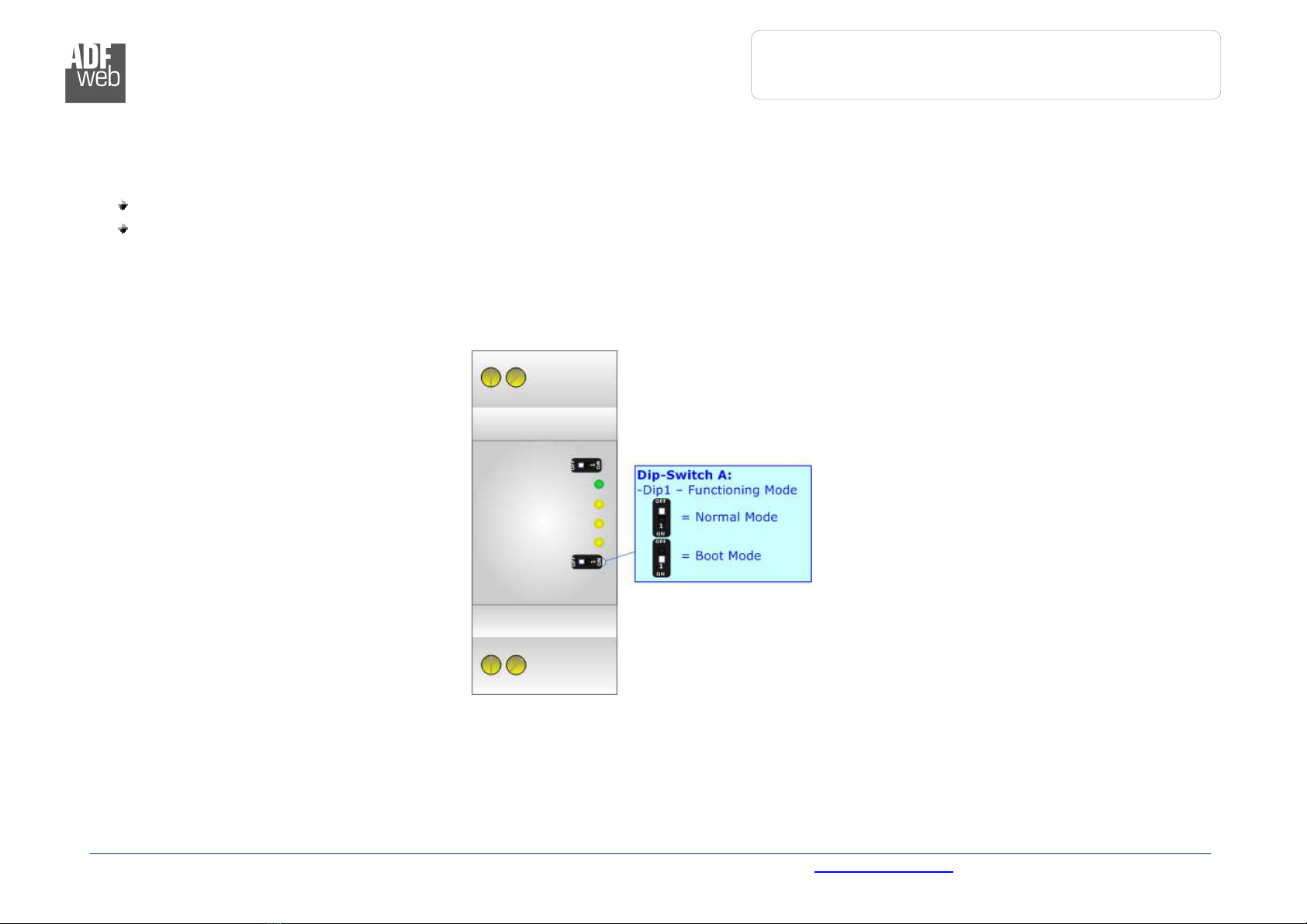

FUNCTION MODES:

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ D

eviceNet Slave

Document code: MN67837_ENG Revision 1. Pagina 9 di 4

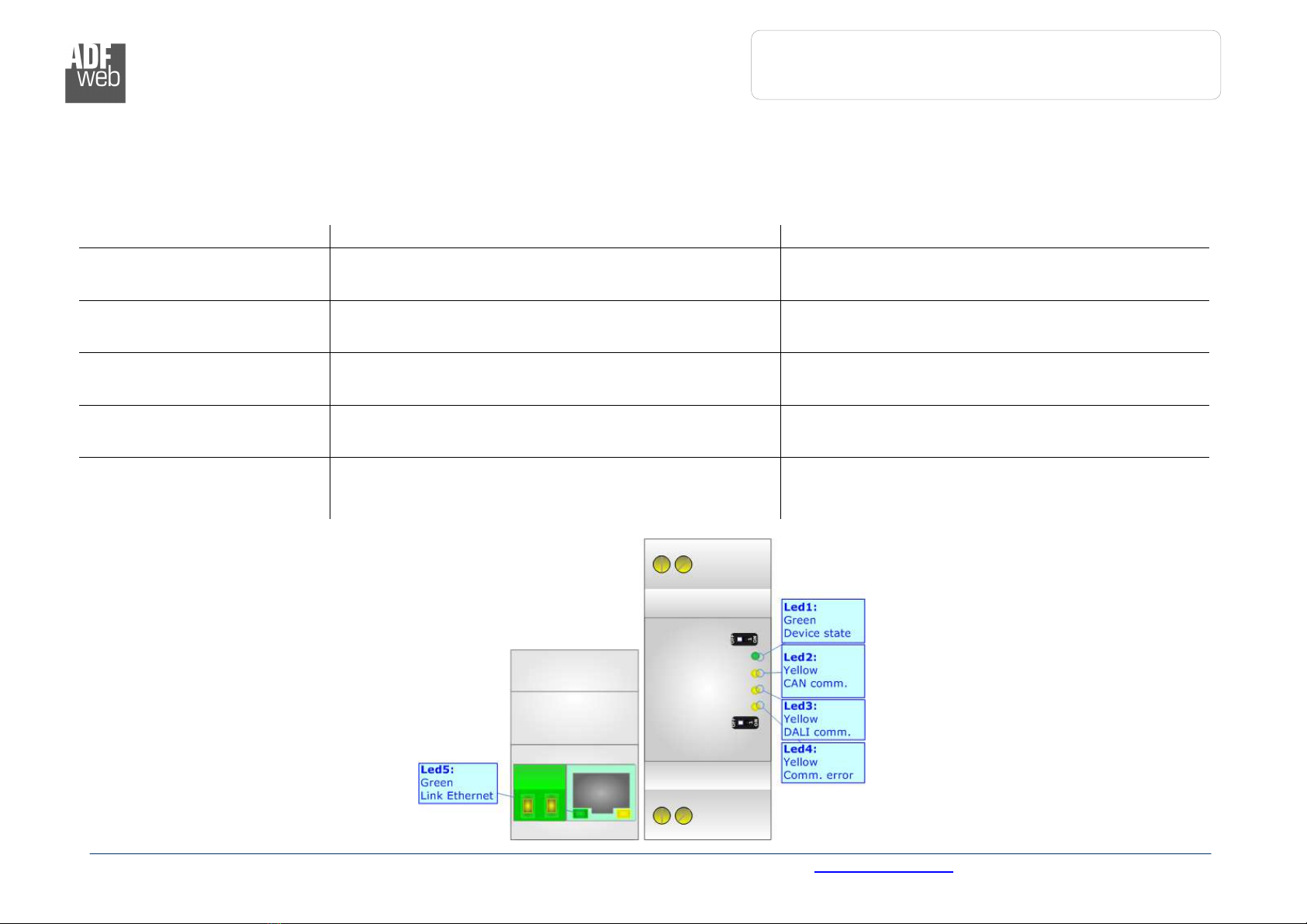

LEDS:

The device has got five LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: CAN communication

(yellow) Blinks when DeviceNet communication is running Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: DALI communication

(yellow) Blinks when DALI communication is running Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: Comm. error (yellow) Turns ON when DALI devices defined are not present Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

5: Ethernet Link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

DALI

/ D

eviceNet Slave

Document code: MN67837_ENG Revision 1. Pagina 1 di 4

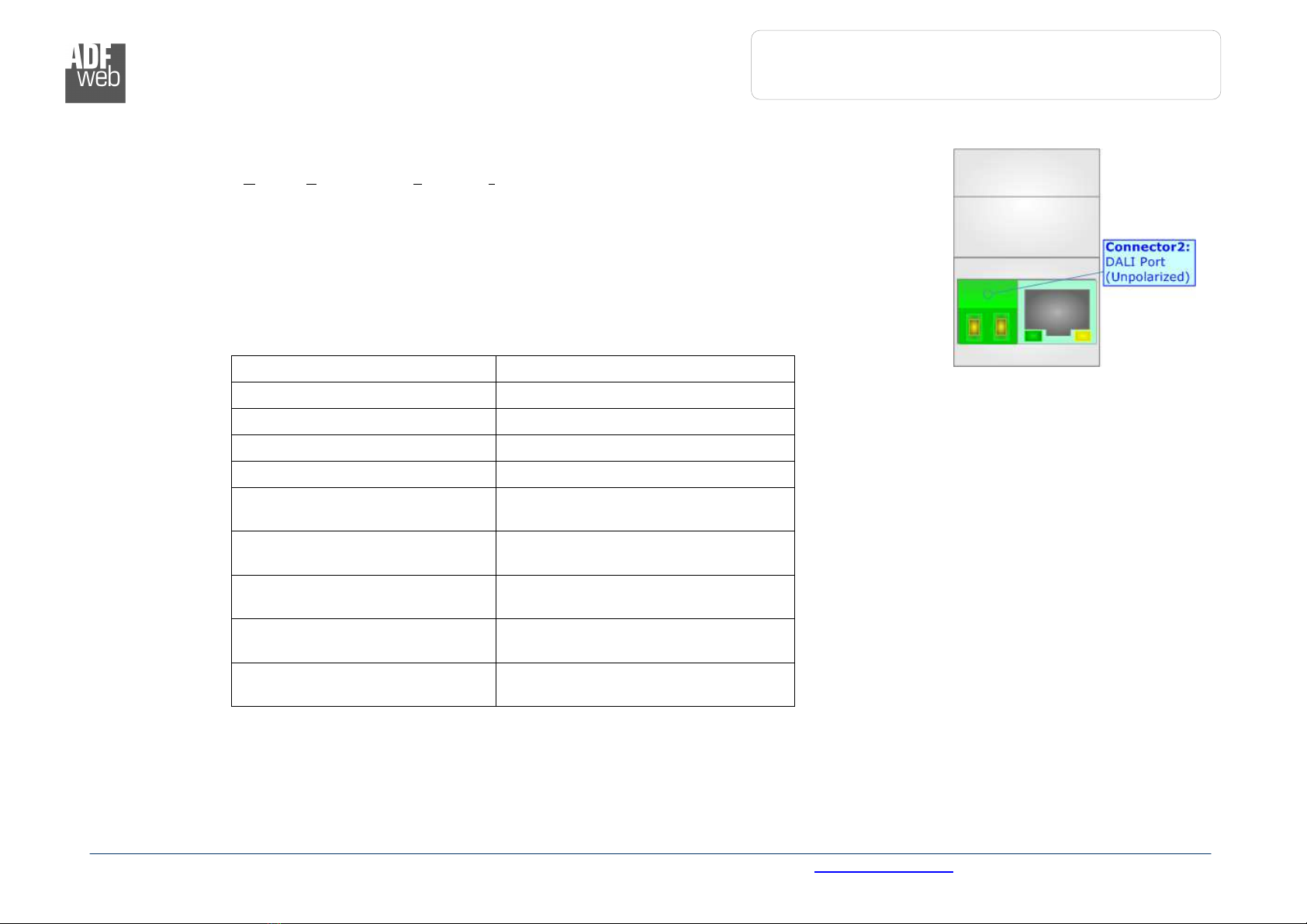

DALI:

DALI stands for “Digital Addressable Lighting Interface” and it is an interface protocol for digital

communication between electronic lighting equipment (electronic ballasts, transformers, etc.).

With the right choice of individual DALI components an extremely wide range of requirements can be met,

from operating the lighting system from a simple light switch to lighting management systems for entire

office complexes with thousands of light sources. Using ADFweb.com’s DALI converters, any light source,

including incandescent lamps, fluorescent lamps, high-intensity discharge lamps and even LEDs, can be

controlled irrespective of whether they are installed in an office, a restaurant or a street light.

Characteristics Description

Medium Shielded Twisted Pair

Topology Linear, Star or mixed

Device power consumption Max 25 mA

DALI voltage 9.5 V – 22.5 V (typical 16 V)

Maximum cable length 3 m (1.5 mm2 wire)

Maximum number of DALI

devices 64

Baud rate 12 bps

Maximum number of DALI

groups 16

Maximum number of DALI

scenes 16
