ADF Web HD67939-B2 Manuale utente
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN / MQTT
Document code: MN67939_ENG Revision 1. Page 1 of 32
User Manual
Revision 1.
English
CAN / MQTT - Converter
(Order Code: HD67939-B2)
For Website information:
www.adfweb.com?Produc=HD67939-B2
For Price information:
www.adfweb.com?Price=HD67939-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18…35V DC and 8…24 V AC
Temperature range: -4 °C/+85°C (-4 °F/+185°F)
For others MQTT products, see also the following links:
Converter MQTT to
www.adfweb.com?Product=HD6793 (Ethernet)
www.adfweb.com?Product=HD67931 (M-Bus)
www.adfweb.com?Product=HD67932 (Serial)
www.adfweb.com?Product=HD67933 (Modbus Master)
www.adfweb.com?Product=HD67934 (Modbus Slave)
www.adfweb.com?Product=HD67935 (Modbus TC Master)
www.adfweb.com?Product=HD67936 (Modbus TC Slave)
www.adfweb.com?Product=HD67937 (BACnet Master)
www.adfweb.com?Product=HD67938 (BACnet Slave)
www.adfweb.com?Product=HD6794 (CANopen)
www.adfweb.com?Product=HD67941 (DALI)
www.adfweb.com?Product=HD67942 (DeviceNet Master)
www.adfweb.com?Product=HD67943 (DeviceNet Slave)
www.adfweb.com?Product=HD67944 (DMX)
www.adfweb.com?Product=HD67945 (EtherNet/I )
www.adfweb.com?Product=HD67946 (J1939)
www.adfweb.com?Product=HD67947 (KNX)
www.adfweb.com?Product=HD67948 (NMEA 0183)
www.adfweb.com?Product=HD67949 (NMEA 2000)
www.adfweb.com?Product=HD6795 ( ROFIBUS Master)
www.adfweb.com?Product=HD67951 ( ROFIBUS Slave)
www.adfweb.com?Product=HD67952 ( ROFINET)
www.adfweb.com?Product=HD67953 (SNM Manager)
www.adfweb.com?Product=HD67954 (SNM Agent)
Do you have an your customer protocol?
www.adfweb.com?Product=HD67 3
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
User Manual
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN / MQTT
Document code: MN67939_ENG Revision 1. Page 2 of 32
INDEX:
Page
INDEX 2
UPDATED DOCUMENTATION 2
REVISION LIST 2
WARNING 2
TRADEMARKS 2
SECURITY ALERT 3
EXAMPLE OF CONNECTION 4
CONNECTION SCHEME 5
CHARACTERISTICS 6
CONFIGURATION 6
POWER SUPPLY 7
FUNCTION MODES 8
LEDS 9
CAN 1
ETHERNET 11
USE OF COMPOSITOR SW67939 12
NEW CONFIGURATION / OPEN CONFIGURATION 13
SOFTWARE OPTIONS 14
SET COMMUNICATION 16
MQTT SET TOPIC 21
RECEIVE FRAMES 23
SEND FRAMES 24
UPDATE DEVICE 26
TEMPLATE STRING: DEFINITION OF MQTT
PAYLOAD 28
MECHANICAL DIMENSIONS 29
ORDERING INFORMATIONS 3
ACCESSORIES 3
DISCLAIMER 31
OTHER REGULATIONS AND STANDARDS 31
WARRANTIES AND TECHNICAL SUPPORT 32
RETURN POLICY 32
U DATED DOCUMENTATION:
Dear customer, we thank you for your attention and we remind you that
you need to check that the following document is:
Updated
Related to the product you own
To obtain the most recently updated document, note the “document code”
that appears at the top right-hand corner of each page of this document.
With this “Document Code” go to web page www.adfweb.com/download/
and search for the corresponding code on the page. Click on the proper
“Document Code” and download the updates.
REVISION LIST:
WARNING:
ADFweb.com reserves the right to change information in this manual about
our product without warning.
ADFweb.com is not responsible for any error this manual may contain.
TRADEMARKS:
All trademarks mentioned in this document belong to their respective
owners.
Revision
Date Author Chapter
Description
1. 5/12/2 17
Ff All First release version
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN / MQTT
Document code: MN67939_ENG Revision 1. Page 3 of 32
SECURITY ALERT:
G
ENERAL
I
NFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and
safety regulation are required for each individual application. The same applies also when using accessories.
I
NTENDED
U
SE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.
independent limit switches, mechanical interlocks, etc.).
Q
UALIFIED
ERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and
who have appropriate qualifications for their job.
R
ESIDUAL
R
ISKS
The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and
operated by untrained personnel. These instructions refer to residual risks with the following symbol:
This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or
death and / or the possibility of damage.
CE
CONFORMITY
The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN / MQTT
Document code: MN67939_ENG Revision 1. Page 4 of 32

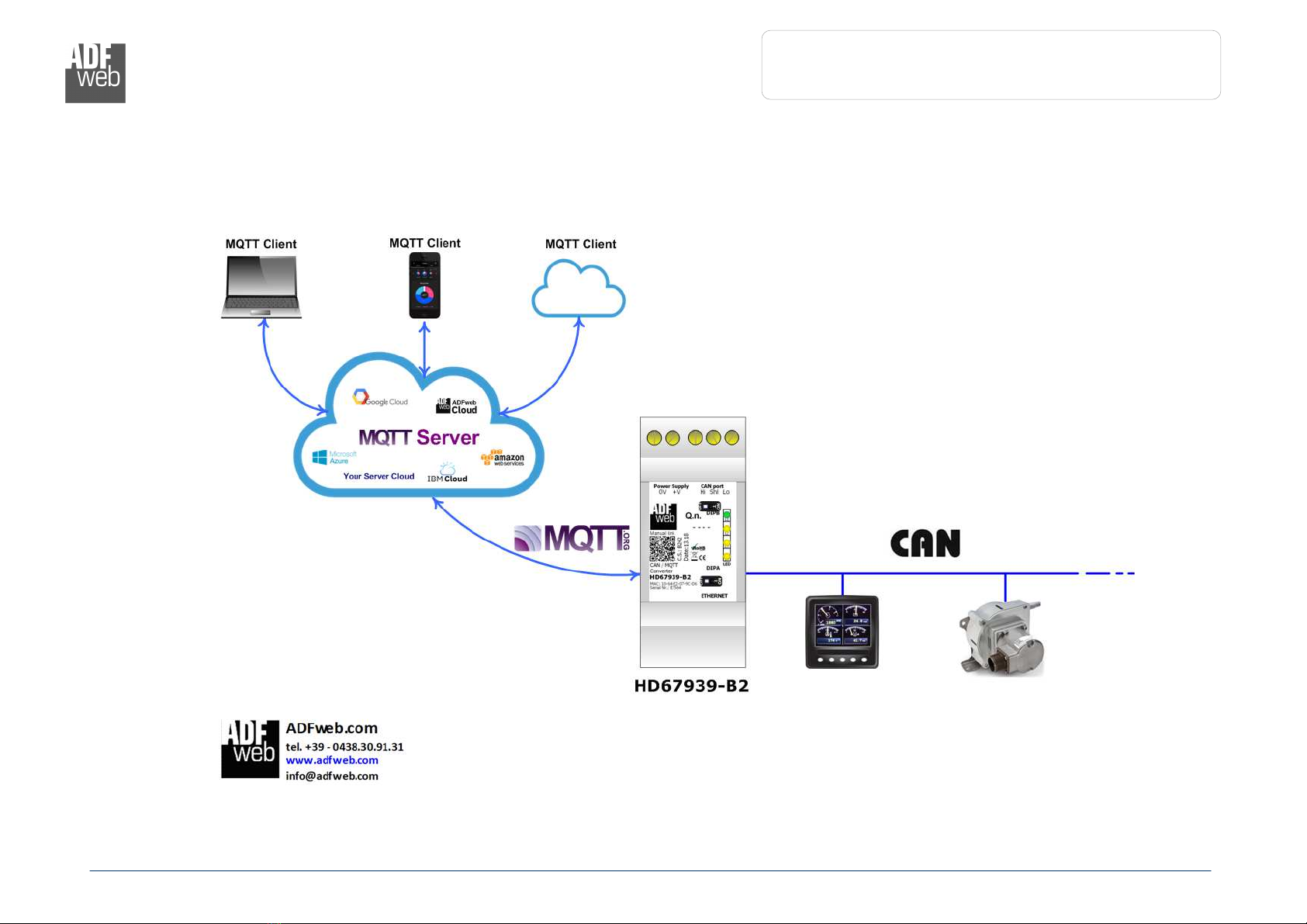

EXAM LE OF CONNECTION:
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN / MQTT
Document code: MN67939_ENG Revision 1. Page 5 of 32
CONNECTION SCHEME:
Figure 1: Connection scheme for HD67939- 2
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN / MQTT
Document code: MN67939_ENG Revision 1. Page 6 of 32
CHARACTERISTICS:
The HD67939-B2 is a CAN / MQTT Converter.
It allows the following characteristics:
Electrical isolation between Ethernet and CAN;
Mountable on 35mm Rail DIN;
Wide power supply input range: 18…35V DC and 8…24V AC;
Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].
CONFIGURATION:
You need Compositor SW67939 software on your PC in order to perform the following:
Define the parameter of MQTT;
Define the parameter of CAN line;
Define the MQTT topics to be published/subscribed in the MQTT Server;
Define the list of CAN messages in reception and transmission;
Update the device.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN / MQTT
Document code: MN67939_ENG Revision 1. Page 7 of 32
OWER SU LY:
The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.
VAC
VDC
Vmin Vmax Vmin Vmax
8V 24V 12V 35V
Consumption at 24V DC:
Device Consumption [W/VA]
HD67939-B2 3.5
HD67939-B2
Caution: Not reverse the polarity power
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN / MQTT
Document code: MN67939_ENG Revision 1. Page 8 of 32
FUNCTION MODES:
The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:
The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.
The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.
For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.
According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN / MQTT
Document code: MN67939_ENG Revision 1. Page 9 of 32
LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED Normal Mode Boot Mode
1: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
2: CAN communication
(yellow) Blinks when CAN communication is running Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
3: MQTT status (yellow)
ON: MQTT not connected
OFF: MQTT connected
Blinking: MQTT communication
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
4: Not used (yellow) OFF Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
5: Ethernet Link (green) ON: Ethernet cable connected
OFF: Ethernet cable disconnected
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
Industrial Electronic Devices
ADFweb.com S.r.l.
User Manual
CAN / MQTT
Document code: MN67939_ENG Revision 1. Page 1 of 32

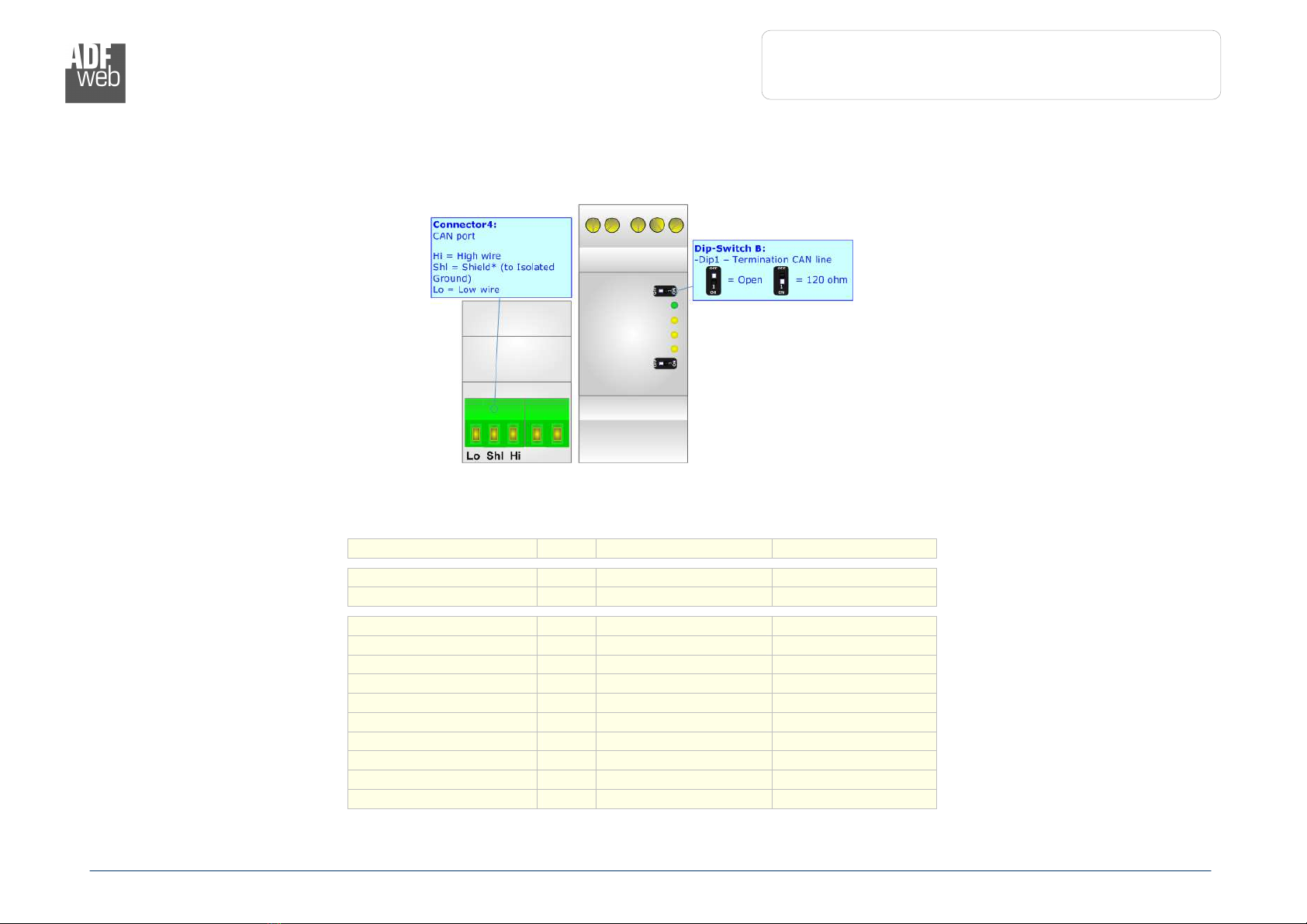

CAN:
For terminate the CAN line with a 12 Ω resistor it is necessary that the Dip1 of ‘Dip-Switch B’ is at ON position.
Cable characteristics:
DC parameter: Impedance 7 Ohm/m
AC parameters: Impedance 12 Ohm/m
Delay 5 ns/m
Length Baud Rate [bps] Length MAX [m]
1 K 5
2 K 25
5 K 1
1 K 65
125 K 5
25 K 25
5 K 1
8 K 5
1 K 25
