User Manual

EnOcean

IEC

61850

erver

Document code: MN67C65_ENG Revision 1. Page 1 of 27

User Manual

Revision 1.

English

EnOcean / IEC61850 Server - Converter

(Order Code: HD67C65-B2)

For Website information:

www.adfweb.com?Product=HD67C65-B2

For Price information:

www.adfweb.com?Price=HD67C65-B2

Benefits and Main Features:

Very easy to configure

Power Supply 18…35V DC and 8…24 V AC

Temperature range: -4 °C/+85°C (-4 °F/+185°F)

For others EnOcean products, see also the following links:

Converter EnOcean to

www.adfweb.com?Product=HD67C5 (Seria )

www.adfweb.com?Product=HD67C52 (Modbus S ave)

www.adfweb.com?Product=HD67C54 (Modbus TCP S ave)

www.adfweb.com?Product=HD67C56 (BACnet S ave)

www.adfweb.com?Product=HD67C57 (CAN)

www.adfweb.com?Product=HD67C58 (CANopen)

www.adfweb.com?Product=HD67C61 (DeviceNet S ave)

www.adfweb.com?Product=HD67C63 (EtherNet/IP S ave)

www.adfweb.com?Product=HD67C66 (J1939)

www.adfweb.com?Product=HD67C67 (KNX)

www.adfweb.com?Product=HD67C7 (MQTT)

www.adfweb.com?Product=HD67C72 (NMEA 0183)

www.adfweb.com?Product=HD67C73 (NMEA 2000)

www.adfweb.com?Product=HD67C75 (PROFIBUS S ave)

www.adfweb.com?Product=HD67C77 (PROFINET S ave)

www.adfweb.com?Product=HD67C79 (SNMP Agent)

Do you need to choose a device? Do you want help?

www.adfweb.com?Cmd=helpme

User Ma

nual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EnOcean

IEC

61850

erver

Document code: MN67C65_ENG Revision 1. Page 2 of 27

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

ETHERNET 1

ENOCEAN 11

USE OF COMPOSITOR SW67C65 12

NEW CONFIGURATION / OPEN CONFIGURATION 13

SOFTWARE OPTIONS 14

SET COMMUNICATION 16

ENOCEAN ACCESS 17

IEC6185 ACCESS 2

TLS KNOWN CERTIFICATE 21

UPDATE DEVICE 22

MECHANICAL DIMENSIONS 24

ORDERING INFORMATIONS 25

ACCESSORIES 25

DISCLAIMER 26

OTHER REGULATIONS AND STANDARDS 26

WARRANTIES AND TECHNICAL SUPPORT 27

RETURN POLICY 27

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Revision

Date Author Chapter

Description

1. 5/12/2 19

Ff All First release version

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EnOcean

IEC

61850

erver

Document code: MN67C65_ENG Revision 1. Page 3 of 27

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EnOcean

IEC

61850

erver

Document code: MN67C65_ENG Revision 1. Page 4 of 27

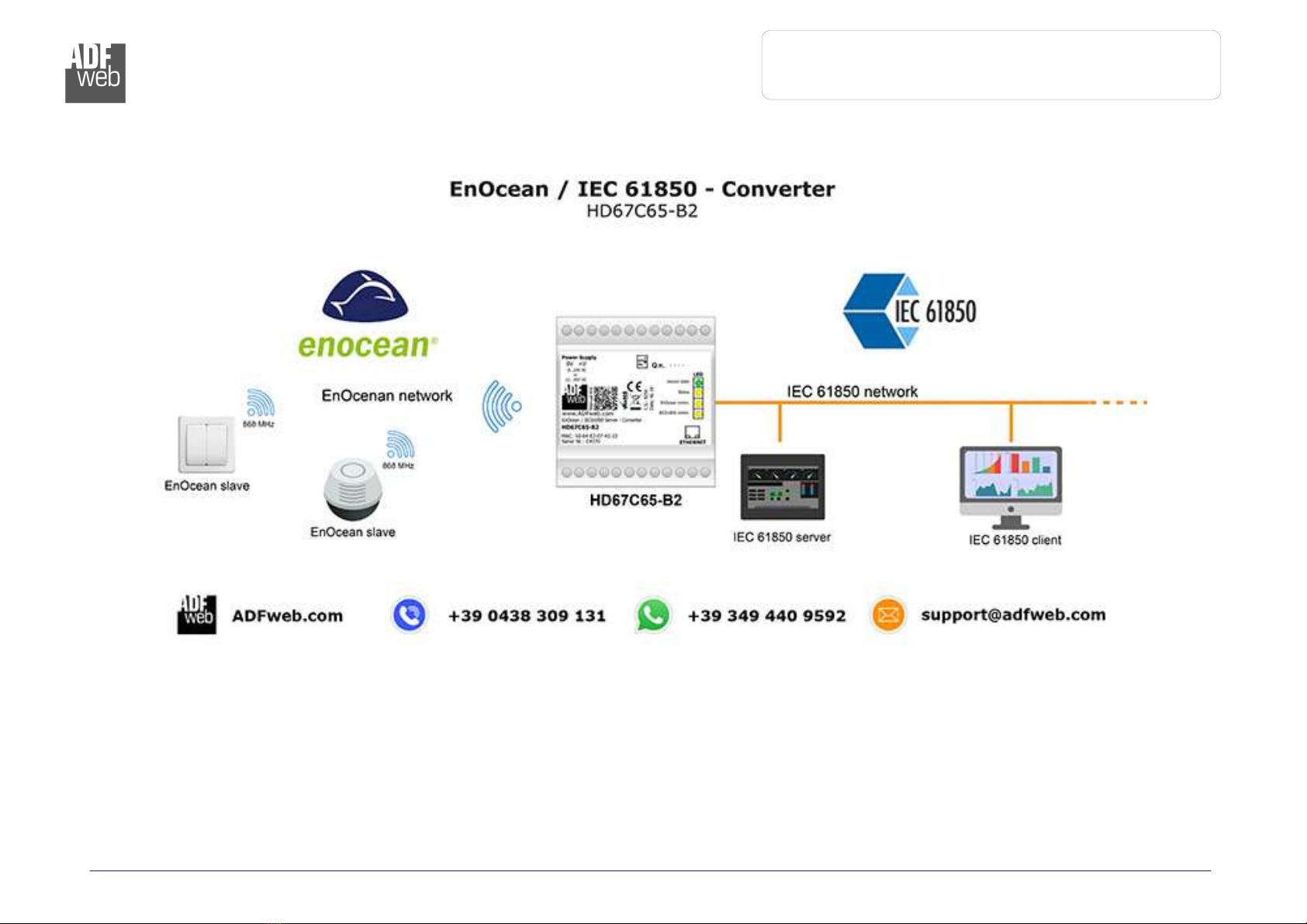

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EnOcean

IEC

61850

erver

Document code: MN67C65_ENG Revision 1. Page 5 of 27

CONNECTION SCHEME:

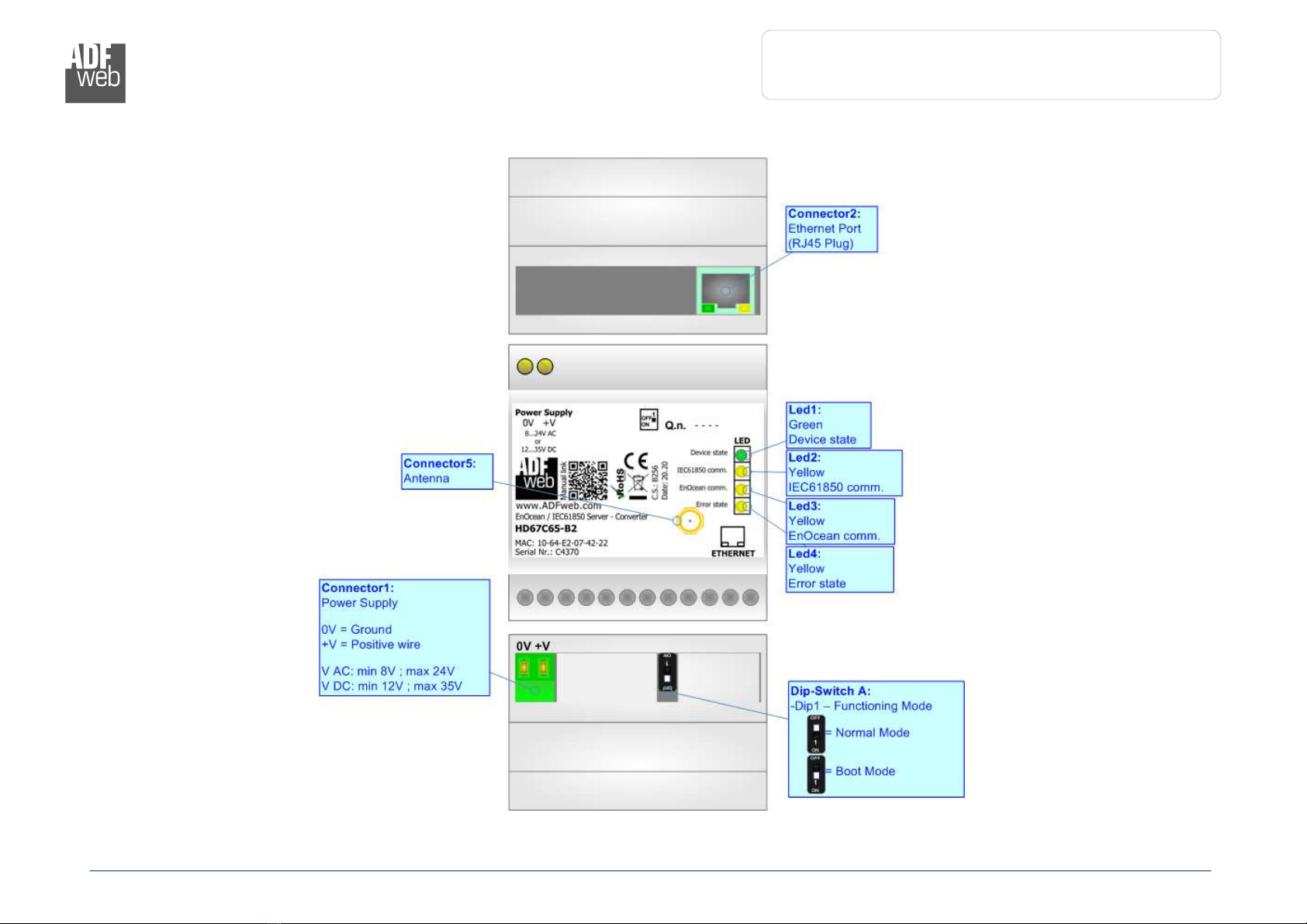

Figure 1: Connection scheme for HD67C65-B

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EnOcean

IEC

61850

erver

Document code: MN67C65_ENG Revision 1. Page 6 of 27

CHARACTERISTICS:

The HD67C65-B2 is a EnOcean / IEC6185 Server Converter.

It allows the following characteristics:

Electrical isolation between Ethernet and Power Supply;

Mountable on 35mm Rail DIN;

Wide power supply input range: 18…35V DC and 8…24V AC;

Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].

CONFIGURATION:

You need Compositor SW67C65 software on your PC in order to perform the following:

Define the parameter of IEC6185 line;

Define the parameter of EnOcean line;

Define the list of IEC6185 variables available for the Client;

Update the device.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EnOcean

IEC

61850

erver

Document code: MN67C65_ENG Revision 1. Page 7 of 27

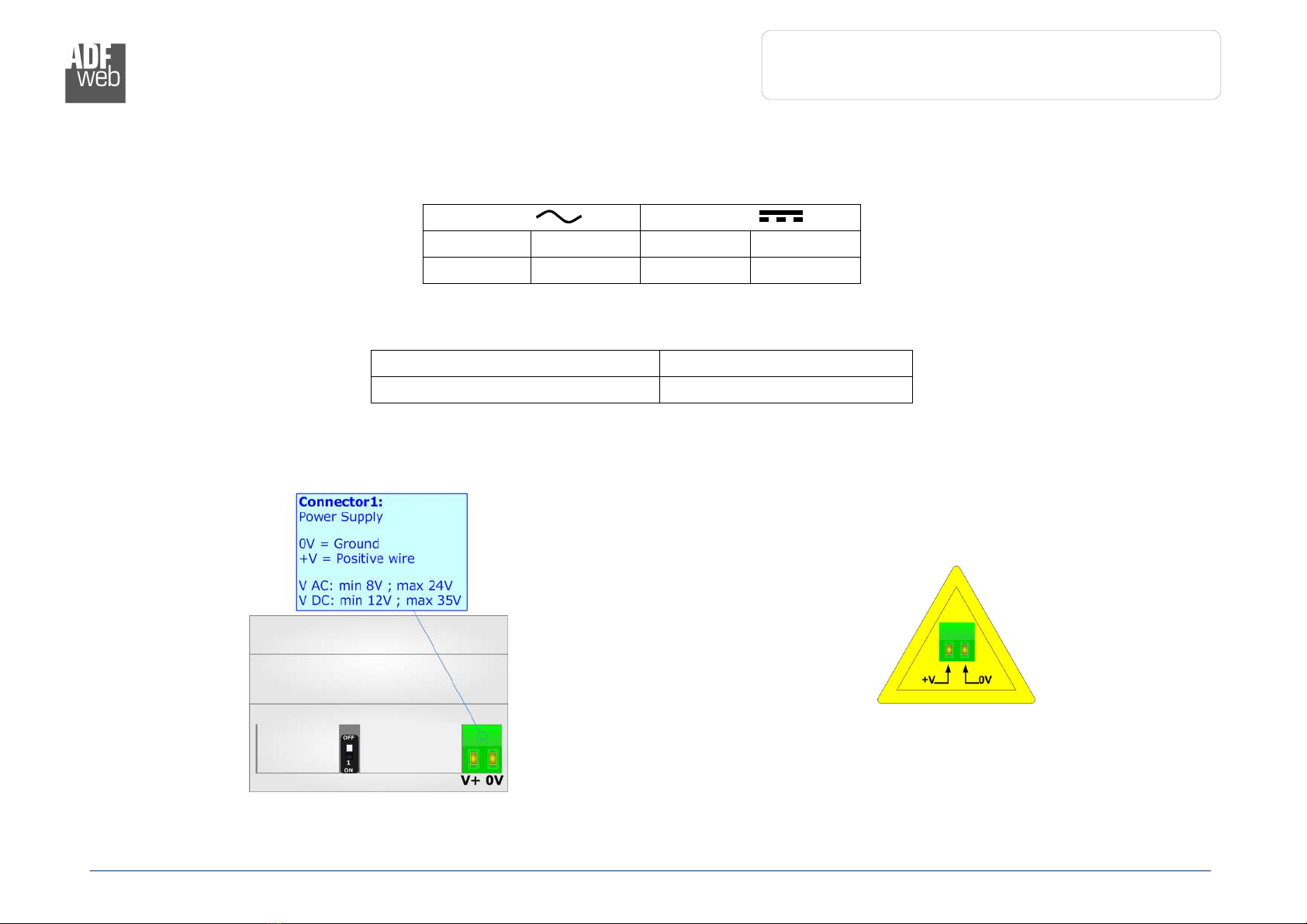

POWER SUPPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67C65-B2 3.5

HD67C65-B2

Caution: Not reverse the po arity power

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EnOcean

IEC

61850

erver

Document code: MN67C65_ENG Revision 1. Page 8 of 27

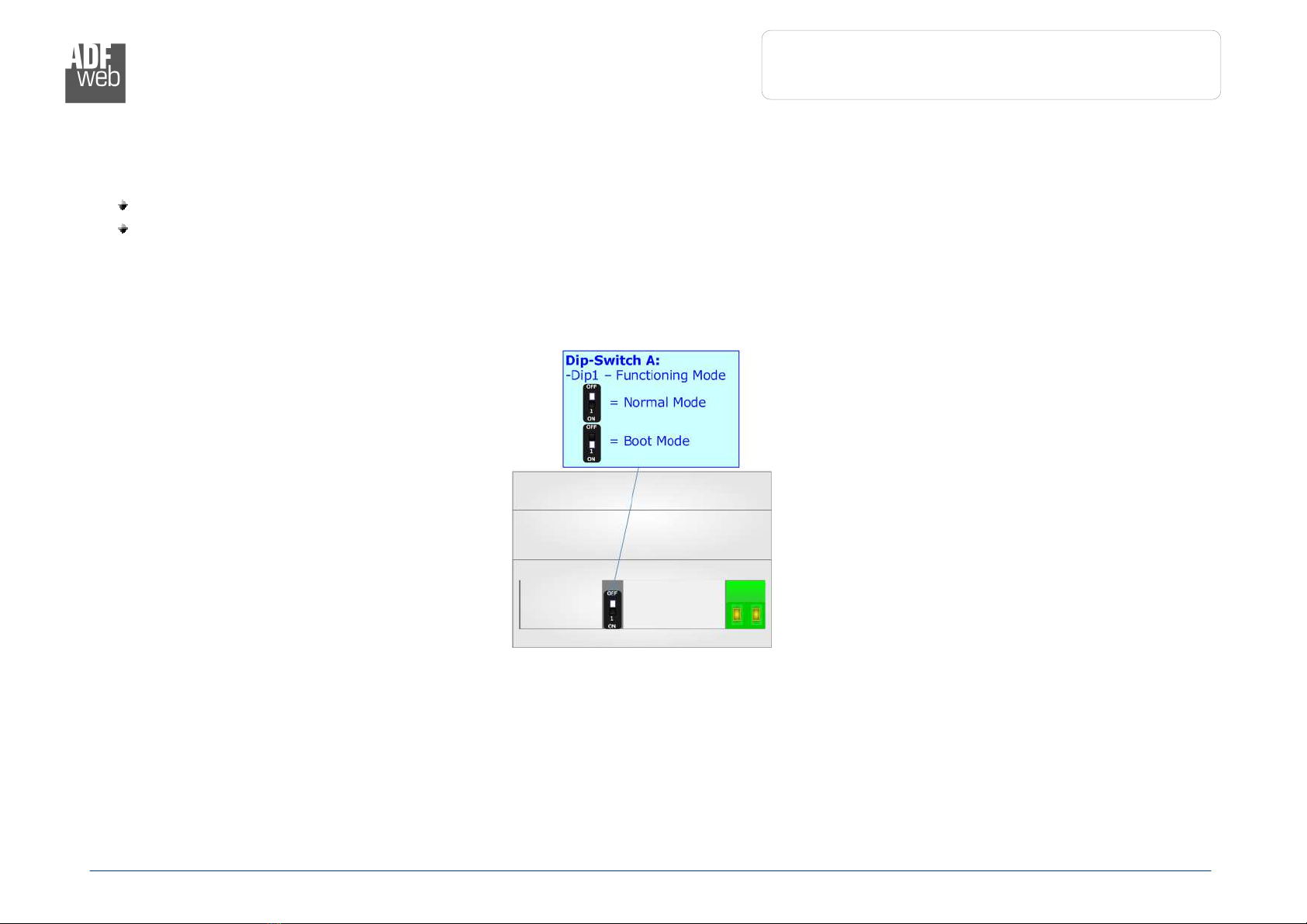

FUNCTION MODES:

The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EnOcean

IEC

61850

erver

Document code: MN67C65_ENG Revision 1. Page 9 of 27

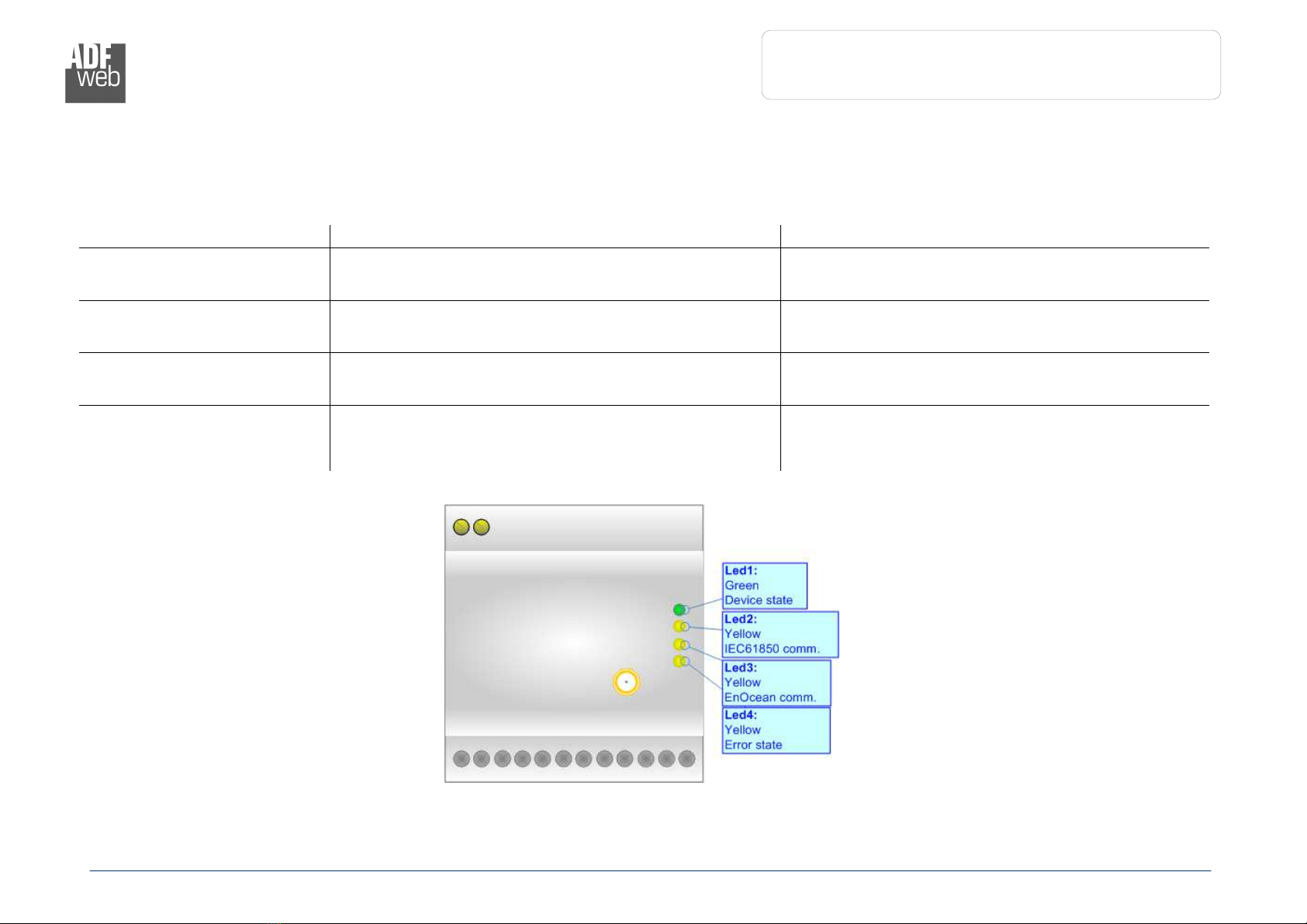

LEDS:

The device has got four LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Norma Mode Boot Mode

1: Device State (green) Blinks slowly (~1Hz) B inks quick y: Boot state

B inks very s ow y (~0.5Hz): update in progress

2: IEC6185 communication

(yellow) Blinks when IEC6185 communication is running B inks quick y: Boot state

B inks very s ow y (~0.5Hz): update in progress

3: EnOcean communication

(yellow) Blinks when EnOcean data is received B inks quick y: Boot state

B inks very s ow y (~0.5Hz): update in progress

4: Error state (yellow) ON: An error in the communication busses occurs

OFF: No errors are present

B inks quick y: Boot state

B inks very s ow y (~0.5Hz): update in progress

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EnOcean

IEC

61850

erver

Document code: MN67C65_ENG Revision 1. Page 1 of 27

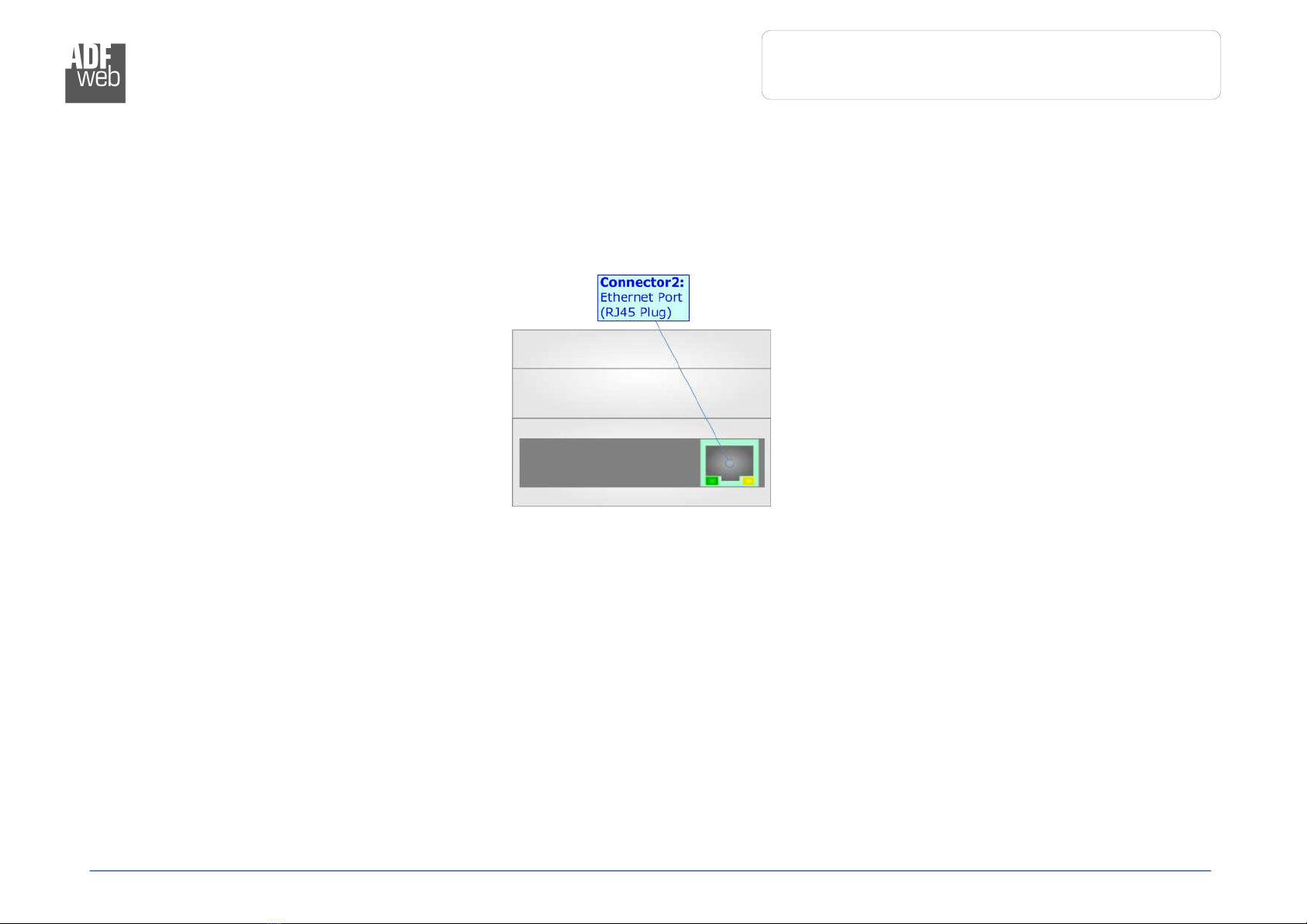

ETHERNET:

The Ethernet port is used for programming the device and for IEC6185 communication.

The Ethernet connection must be made using Connector2 of HD67C65-B2 with at least a Category 5E cable. The maximum length of the

cable should not exceed 1 m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 1 Mbps. To connect the

device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable.
