ADF Web HD67E11-A1 Manuale utente

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Slave / DMX

Document code: MN67E11_ENG Revision 1.001 Pa e 1 of 27

User Manual

Revision 1.001

En lish

EtherCAT / DMX - Converter

(Order Code: HD67E11-A1)

For Website information:

www.adfweb.com?Product=HD67E11

For Price information:

www.adfweb.com?Price=HD67E11-A1

Benefits and Main Features:

Very easy to confi ure

Triple Electrical isolation

Temperature ran e: -40°C/+85°C (-40°F/+185°F)

For other EtherCAT Slave products see also the followin link:

Converter EtherCAT Slave to

www.adfweb.com?Product=HD67E00 (Serial)

www.adfweb.com?Product=HD67E01 (Modbus Master)

www.adfweb.com?Product=HD67E02 (Modbus Slave)

www.adfweb.com?Product=HD67E03 (Modbus TC Master)

www.adfweb.com?Product=HD67E04 (DMX TC Slave)

www.adfweb.com?Product=HD67E05 (BACnet Master)

www.adfweb.com?Product=HD67E06 (BACnet Slave)

www.adfweb.com?Product=HD67E07 (CAN)

www.adfweb.com?Product=HD67E08 (CANopen)

www.adfweb.com?Product=HD67E09 (DeviceNet Master)

www.adfweb.com?Product=HD67E10 (DeviceNet Slave)

www.adfweb.com?Product=HD67E12 (Ethernet)

www.adfweb.com?Product=HD67E14 (IEC61850 Client)

www.adfweb.com?Product=HD67E15 (IEC61850 Server)

www.adfweb.com?Product=HD67E16 (J1939)

www.adfweb.com?Product=HD67E17 (MQTT)

www.adfweb.com?Product=HD67E18 (NMEA0183)

www.adfweb.com?Product=HD67E19 (NMEA2000)

www.adfweb.com?Product=HD67E20 (O C UA Client)

www.adfweb.com?Product=HD67E21 (O C UA Server)

www.adfweb.com?Product=HD67E22 ( ROFINET Master)

www.adfweb.com?Product=HD67E23 ( ROFINET Slave)

www.adfweb.com?Product=HD67E24 (SNM Manager)

www.adfweb.com?Product=HD67E25 (SNM Agent)

www.adfweb.com?Product=HD67E26 (EtherNet/I Master)

www.adfweb.com?Product=HD67E27 (EtherNet/I Slave)

www.adfweb.com?Product=HD67E28 (S7comm Client)

www.adfweb.com?Product=HD67879 (IO-Link Master)

User Manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Slave / DMX

Document code: MN67E11_ENG Revision 1.001 Pa e 2 of 27

INDEX:

Pa e

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

ETHERCAT 10

RS485 11

ETHERNET 12

USE OF COMPOSITOR SW67E11 13

NEW CONFIGURATION / OPEN CONFIGURATION 14

SOFTWARE OPTIONS 15

SET COMMUNICATION 17

ETHERCAT SET GROUP 19

ETHERCAT SET ACCESS 20

DMX DEFAULT VALUE 21

ETHERCAT ESI FILE 21

UPDATE DEVICE 22

MECHANICAL DIMENSIONS 24

ORDERING INFORMATIONS 25

ACCESSORIES 25

DISCLAIMER 26

OTHER REGULATIONS AND STANDARDS 26

WARRANTIES AND TECHNICAL SUPPORT 27

RETURN POLICY 27

U DATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the followin document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top ri ht-hand corner of each pa e of this document.

With this “Document Code” o to web pa e www.adfweb.com/download/

and search for the correspondin code on the pa e. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the ri ht to chan e information in this manual about

our product without warnin .

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belon to their respective

owners.

Revision

Date Author Chapter

Description

1.000 18/09/2020

Ff All First Release

1.001 12/04/2023

Ln All Revision

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Slave / DMX

Document code: MN67E11_ENG Revision 1.001 Pa e 3 of 27

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device, le al and

safety re ulation are required for each individual application. The same applies also when usin accessories.

NTENDED

Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the followin symbol:

This symbol indicates that non-observance of the safety instructions is a dan er for people that could lead to serious injury or

death and / or the possibility of dama e.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or ive us a call if you need it.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Slave / DMX

Document code: MN67E11_ENG Revision 1.001 Pa e 4 of 27

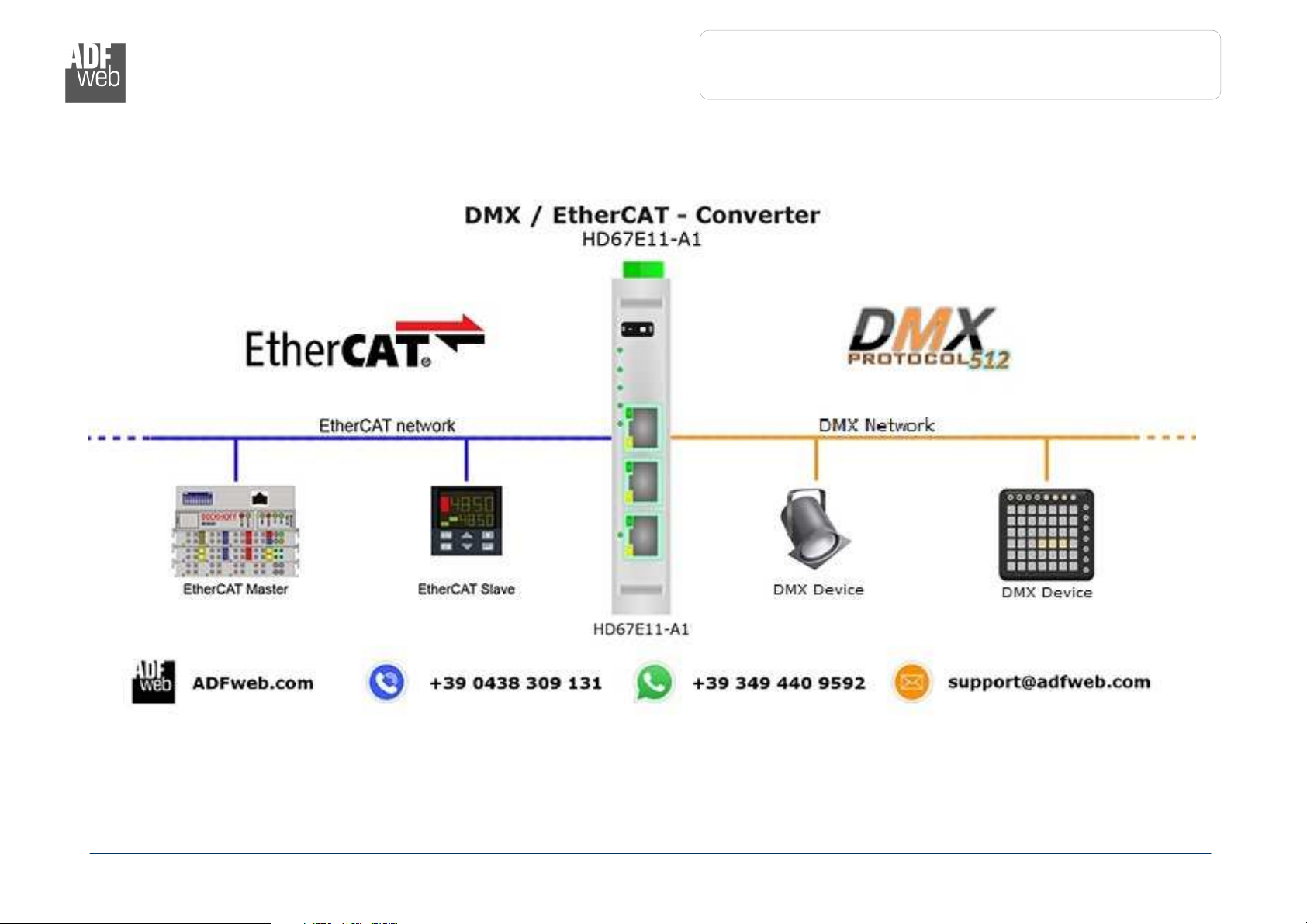

EXAM LE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Slave / DMX

Document code: MN67E11_ENG Revision 1.001 Pa e 5 of 27

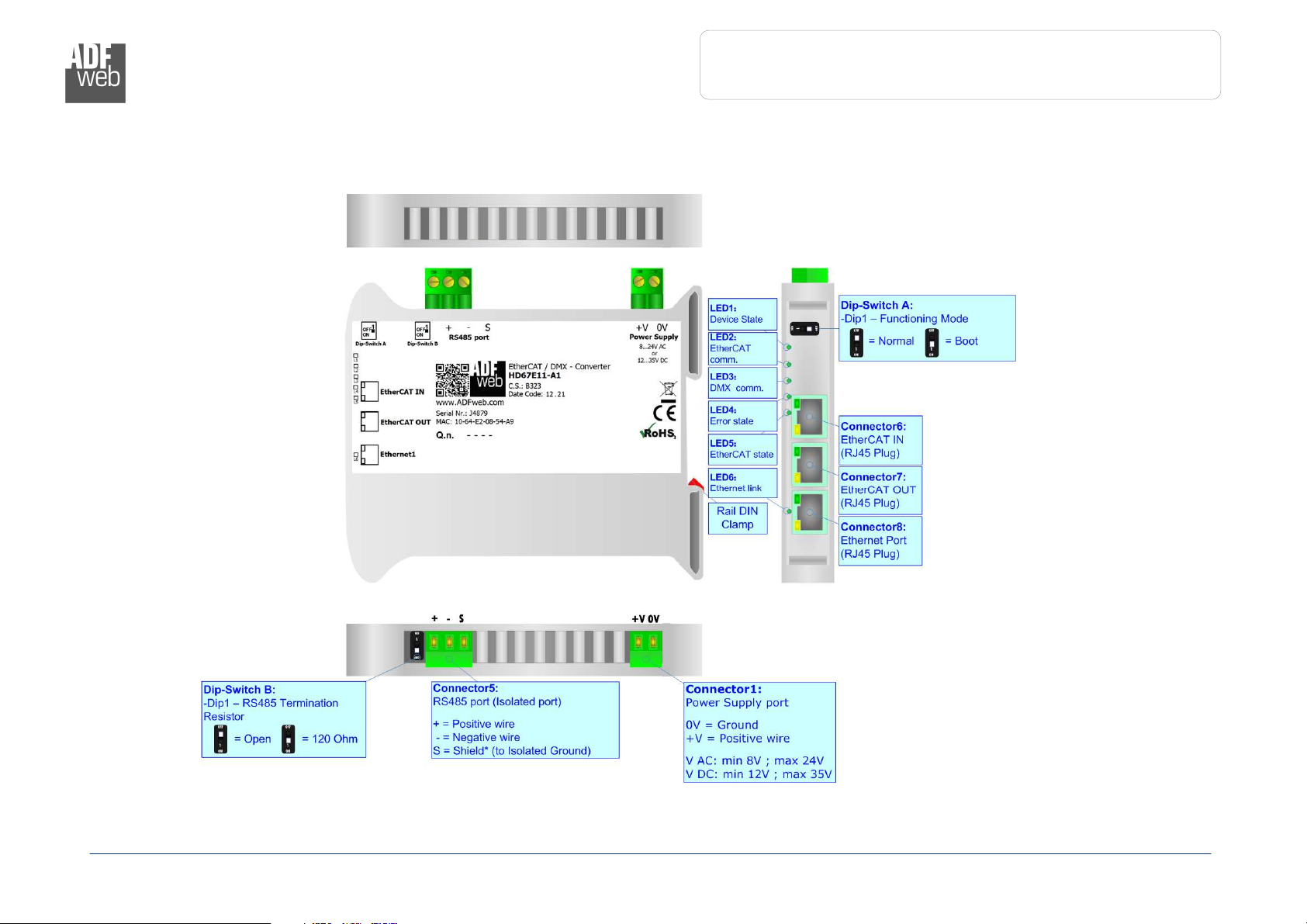

CONNECTION SCHEME

Figure 1b: Connection scheme for HD67E11-A1

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Slave / DMX

Document code: MN67E11_ENG Revision 1.001 Pa e 6 of 27

CHARACTERISTICS:

The HD67E11-A1 are EtherCAT / DMX - Converters.

It allows for the followin characteristics:

Isolation between EtherCAT – DMX – Power Supply;

Two-directional information between EtherCAT bus and DMX bus;

Mountable on 35mm Rail DIN;

Wide power supply input ran e: 8…24V AC or 12…35V DC;

Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].

CONFIGURATION:

You need Compositor SW67E11 software on your PC in order to perform the followin :

Define the parameters of EtherCAT line;

Define the parameters of DMX line;

Define EtherCAT variables to read and write;

Export the ESI file for confi uration of EtherCAT Master;

Update the device.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Slave / DMX

Document code: MN67E11_ENG Revision 1.001 Pa e 7 of 27

OWER SU LY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67E11-A1 3.5

HD67E11-A1

Caution:

Do n

ot reverse the polarity power

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Slave / DMX

Document code: MN67E11_ENG Revision 1.001 Pa e 8 of 27

FUNCTION MODES:

The device has ot two function modes dependin on the position of the ‘Dip1 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal workin of the device.

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploadin the Project and/or Firmware.

For the operations to follow for the updatin , see ‘UPDATE DEVICE’ section.

Accordin to the functionin mode, the LEDs will have specific functions, see ‘LEDS’ section.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

EtherCAT Slave / DMX

Document code: MN67E11_ENG Revision 1.001 Pa e 9 of 27

LEDS:

The device has ot seven LEDs that are used to ive information about the functionin status.

The various meanin s of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: Device State ( reen) Blinks slowly (~1Hz) Blinks quickly: Boot state
