ADTRAN SR700ac Manuale utente

/ Gateway User Manual

Model: SR700ac

Release 1.3 September 2019

Firmware Version: 2.6.2.3

501 SE Columbia Shores Boulevard, Suite 500

Vancouver, Washington 98661 USA

+1 360 859 1780 / smartrg.com

Table of Contents

Welcome! 3

Purpose & Scope 3

Intended Audience 3

Getting Assistance 3

Disclaimer 4

Getting Familiar with your Gateway 5

LED Status Indicators 5

Connections 6

DSL 6

SIM 6

WAN 7

LAN 7

USB 7

POWER 7

External Buttons 7

WPS Button 7

WiFi or WLAN Button 8

Reset Button 8

Installing your SR700ac Gateway 9

Logging into your Gateway's UI 10

Device Info 11

Summary 11

WAN 11

Statistics 12

LAN 12

WAN Service 13

xTM 14

xDSL 16

References 19

Route 19

ARP 20

DHCP 21

DHCPv6 21

VPN 22

CPU & Memory 22

Advanced Setup 24

Layer2 Interface 24

ATM Interface 24

PTM Interface 27

ETH Interface 28

WAN Service 30

PPP over Ethernet 30

IP over Ethernet 38

Bridging 45

LAN 49

IPv6 Autoconfig 52

Ethernet Config 54

NAT 56

Virtual Servers 56

Port Triggering 58

DMZ Host 59

Security 61

IP Filtering - Outgoing 61

IP Filtering - Incoming 62

MAC Filtering 64

Add a MAC Filtering Rule 65

Parental Control 66

Time Restriction 66

URL Filter 67

Quality Of Service 68

QoS Config 68

Supported DSCP Values 69

QoS Queue Config 70

WLAN Queue 71

QoS Classification 72

QoS Port Shaping 75

Routing 76

Default Gateway 76

Static Route 76

Policy Routing 77

RIP (Routing Information Protocol) 78

DNS 80

DNS Server 80

Dynamic DNS 81

Static DNS 82

DSL 83

UPnP 84

DNS Proxy 85

Interface Grouping 86

IP Tunnel 87

IPv6inIPv4 87

IPv4inIPv6 88

IPSec 89

Advanced IKE Settings 91

Certificate 92

Local 92

Trusted CA 94

Multicast 95

LTE WAN Service 98

Status Information 98

Network Settings 99

Wired WAN Monitor 100

Notifications 101

Wireless 104

Basic 104

Security 106

Open & Shared Authentication 108

802.1X Authentication 109

WPA2 & Mixed WPA2/WPA Authentication 110

WPA2-PSK & Mixed WPA2/WPA-PSK Authentic-

ation 111

MAC Filter 113

Wireless Bridge 114

Advanced 115

Station Info 120

Wifi Insight 120

Site Survey 122

Channel Statistics 123

Metrics 123

Diagnostics 125

Ethernet OAM 126

Ping Host 128

Trace Route to Host 129

Management 130

Table of Contents

Settings 130

Backup 130

Update 131

Restore Default 132

System Log 133

Security Log 135

SNMP Agent 136

Management Server 137

TR-069 Client 137

STUN Config 140

Internet Time 142

Access Control 143

Accounts 143

Add an Account 143

Modify or Delete an Account 144

Default Passwords 145

Services 145

Passwords 147

Access List 148

Logout Timer 149

Update Software 149

Base Router 150

Cellular Modem 150

Reboot 151

Logging Out 152

Appendix: Compliance Statements 153

FCC Interference Statement 153

FCC Radiation Exposure Statement 153

FCC - PART 68 154

Ringer Equivalency Number Statement 154

IC CS-03 statement 154

Canada Statement 155

5GHz 155

Revision History 156

Welcome!

Thank you for purchasing this SmartRG product.

SmartRG offers solutions that simplify the complex Internet ecosystem. Our solutions include hardware, software, applications,

enhanced network insights, and security delivered via a future-proof operating system. Based in the USA, SmartRG provides local,

proactive software development and customer support. We proudly offer the best, most innovative broadband gateways available.

Learn more at www.SmartRG.com.

Purpose & Scope

This User Manual provides SmartRG customers with installation, configuration and monitoring information for their SR700ac gateway.

Intended Audience

The information in this document is intended for Network Architects, NOC Administrators, Field Service Technicians and other net-

working professionals responsible for deploying and managing broadband access networks. Readers of this manual are assumed to

have a basic understanding of computer operating systems, networking concepts and telecommunications.

Getting Assistance

Frequently asked questions are provided at the bottom of the Subscribers page of the SmartRG Web site.

Subscribers: If you require further help with this product, please contact your service provider.

Service providers: if you require further help with this product, please open a support request.

The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, trans-

lated into any language, or transmitted in any form or by any means, electronic, mechanical, magnetic, optical, chemical, pho-

tocopying, manual, or otherwise, without the prior written permission of SmartRG, Inc.

Disclaimer

SmartRG does not assume any liability arising out of the application or use of any products, or software described herein. Neither

does it convey any license under its patent rights nor patent rights of others. SmartRG further reserves the right to make changes to

any products described herein without notice. This publication is subject to change without notice.

Any trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective

owners.

Getting Familiar with your Gateway

This section contains a quick description of the Gateway's lights, ports, and buttons. SmartRG produces several models that vary

slightly in capabilities (See Appendix B for details) but the basic scheme of lights, ports and buttons represented in this section

exists on each model.

LED Status Indicators

The LEDs on the SR700ac can help you better understand the current state of

your gateway.

Legend: Green Green blinking Red Red blinking

LED Action Explanation

All LEDs except those

listed below

Connection enabled.

Data being transferred.

DSL & WAN Not lit Connection dropped; attempting resynchronization.

POWER Device has power and is ready to use.

Power up test failure.

Note: This LED flashes red briefly on startup; this is normal.

INET Gateway online.

Data being transferred.

Connection dropped; attempting resynchronization.

Not lit IP connection failed.

WPS WPS setup procedure in progress.

WPS connection completed.

No partner found for pairing.

Session overlap detected. Possible security risk.

Connections

Below is a generic representation of a SmartRG gateway, Your specific model may have more or fewer ports and controls. Refer to

the Quick Start Guide enclosed with your gateway for specifics regarding installation of your particular model.

POWERWANDSL 1 2 3 4

Reset

SIM

123

The ports depicted in this example are described below.

DSL

The grey RJ12 port labeled DSL is specifically intended for connection to an internet provider via a DSL (Digital Subscriber Line) ser-

vice. The center pair carries the first DSL line. For models like the SR550n equipped with two DSL ports and bonded DSL capability,

the outer pair carries the second line.

SIM

The SIM slot allows you to use a standard SIM (15 x 25mm) card to create an LTE connection for your gateway.

WAN

A stand-alone RJ45 port labeled WAN enables your SmartRG gateway to be hard-wired to another network device with a RJ45/Eth-

ernet output such as a cable, fiber, or DSL modem.

For models with a stand-alone, RJ45, WAN port and a DSL port, the WAN port can be re-purposed to function as an additional LAN

port when your internet connection is via DSL.

For instructions to enable this SmartPortTM feature, see the Ethernet Configuration section in this manual.

LAN

The four (yellow) RJ45 ports across the back of your gateway labeled LAN1, LAN2, LAN3, LAN4 are the means to connect client

devices such as computers and printers to your gateway.

On some models, one of these four ports may be labeled as WAN indicating SmartPortTM support. SmartPort allows a LAN port to be

re-purposed to function as an Ethernet WAN port (described above). When this port is serving as a LAN port, the corresponding LED

on the face of the unit is labeled "WAN"

For instructions to enable this SmartPortTM feature, see the Ethernet Configuration section in this manual.

USB

The two USB ports provide +5 DC volts of power. In addition, you can use these ports to configure a USB Mobile interface for your gate-

way.

POWER

Use only the power supply included with your gateway. Intended for indoor use only.

External Buttons

SmartRG gateways provide push-button controls on the exterior for critical features. These buttons provide a convenient way to trig-

ger WPS mode, toggle the WiFi radio on and off, or reset the gateway. Their presence and locations vary by model.

WPS Button

The WPS button triggers WPS (Wi-Fi Protected Setup™) mode. WPS is a standard means for creating a secure connection between

your gateway and various wireless client devices. It is designed to simplify the pairing process between devices.

This button is located on the top of the gateway. If you have client devices that support WPS, use this button to automatically con-

figure wireless security for your network.

WPS configures one client device at a time. You can repeat the steps as necessary for each additional WPS-compliant device you

wish to connect.

For specific instructions, refer to the Quick Start Guide included with your gateway. Also see the "Basic" section of this manual.

WiFi or WLAN Button

The button labeled WiFi or WLAN (depending on model) toggles the WiFi radio on and off. The WLAN LED indicator on the gateway dis-

plays the current state of the Wi-Fi radio. This button is located on the top of the gateway.

To activate the Wi-Fi radio, press and hold the WiFi (WLAN) button for 3-5 seconds and then release. Expect a 1-3 second delay

before the WiFi (WLAN) LED turns on. Repeat this step to deactivate the Wi-Fi radio.

Reset Button

The Reset button is a small hole in the gateway's enclosure with the actual button mounted behind the surface. This style of push-

button prevents the gateway from being inadvertently reset during handling. Reset must be actuated with a paper clip or similar

implement. This button is located on the back of the gateway.

This pin-hole sized reset button has three functions. The duration for which the button is held dictates which function is carried

out.

Hold Duration Effect

Less than 4 seconds Performs a modem reset that is equivalent to the Reboot function in the gateway software.

4 - 12 seconds Performs the software equivalent to the Restore Defaults function in the gateway software.

12 or more seconds Changes the POWER LED to red and the gateway enters CFE mode which is a state associated with performing

firmware updates via Internet browser.

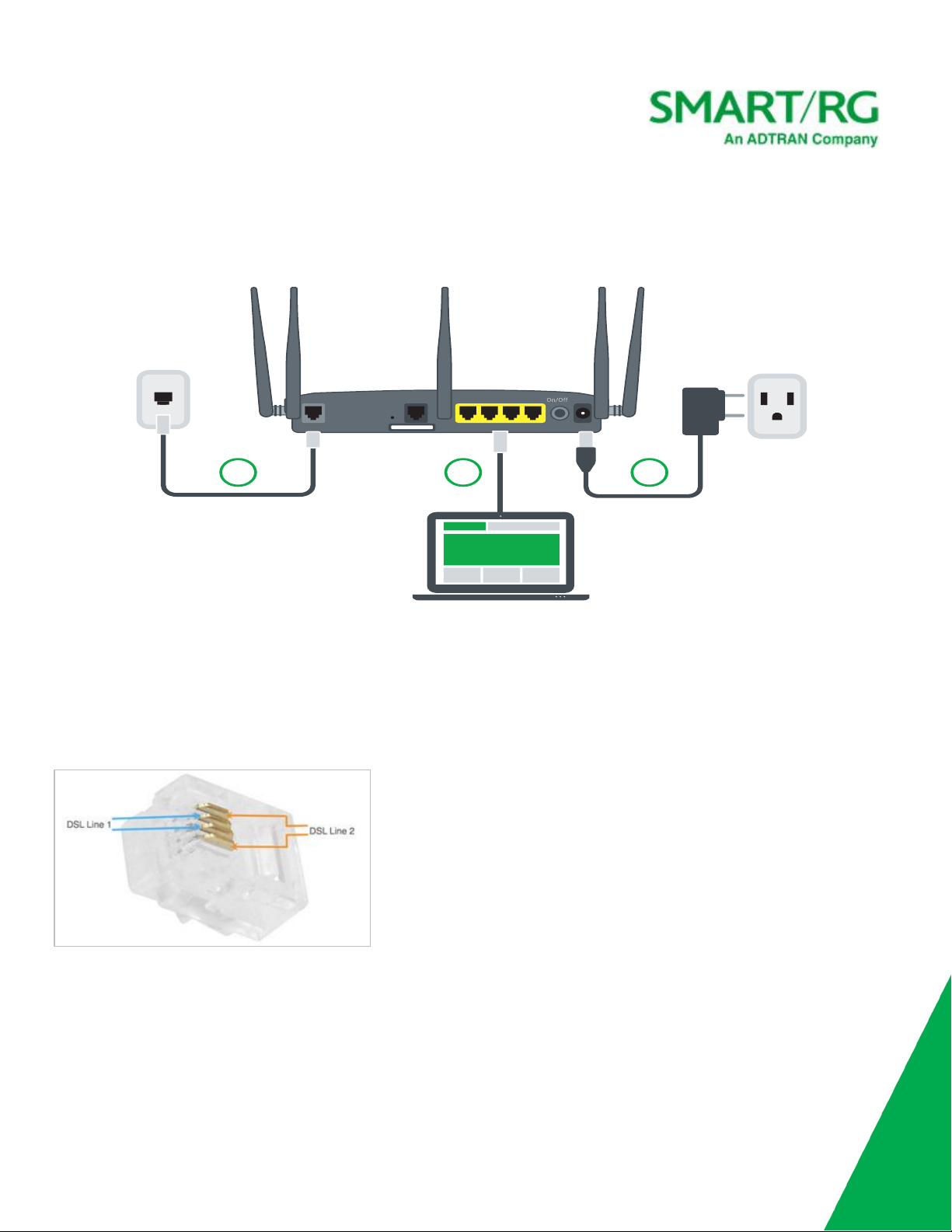

Installing your SR700ac Gateway

1. Connect one end of the phone cable to the DSL port on the gateway and connect the other end to the phone jack on the

wall installed by your provider.

2. Connect one end of the Ethernet cable to a LAN port on the gateway and connect the other end to your computer.

3. Plug the power adapter to the wall outlet and then connect the other end of it to the Power port of the gateway. Turn on

the unit by pressing the On/Off button on the back of the gateway.

Your gateway is now automatically being set up to connect to the Internet. This process may take a few minutes to complete before

you can begin using your Internet applications (browser, email, etc.). If you are unable to connect to the Internet, verify that all

cable connections are in place and the gateway’s power is turned on.
