MX410 and MX412

DS0/DS1 Bandwidth

Management Devices

For more than 20 years ADTRAN has

successfully provided network access

solutions optimizing cost, performance,

and business success. ADTRAN’s

award-vvwinning customer service

and technologically advanced

products are perfectly suited

for wireless carrier networks

from the MSC/MTSO to hub

and cell sites.

ADTRAN Solutions for Wireless Carriers

The MX4 Series

At-a-Glance

■All-in-one cell-site 1/0 grooming,

network optimization, and remote

management

■DCS and groom DS0s at any

point in the backhaul network for

supporting multiple base station

technologies

■Ethernet access for LAN

Extension, Terminal Sever for

monitoring power plant and other

cell-site equipment, E911 connec-

tivity, and alarm inputs

■Complete cell site device

management with performance

monitoring and reporting

■Reduces dropped calls and

network costs by knowing what’s

going on at cell-sites

■Carrier-class solution with envi-

ronmentally hardened chassis,

support for +/-24VDC or -48V DC,

and battery backup

MX410 Multiplexer

MX412 Multiplexer

MX410 and MX412

DS0/DS1 Bandwidth Management Devices

DTRAN®offers a wide variety of products that allow wireless

service providers to cost-effectively expand their reach

and services, to meet a growing list of customer needs. The

MX4 Series addresses the need for efﬁcient bandwidth utilization.

They both deliver full DS0 control to service locations, allowing

full utilization of DS1 bandwidth. Up to 12 full T1s of bandwidth

are provided and are accessible at any point along the DS1 path.

Single Platform Solution

ADTRAN’s MX4 Series offers an innovative,

single platform solution for complete band-

width utilization and remote management.

■Drop and insert up to 24 DS0 signals from

any DS1 interface on the terminal side

■Supports transport of digital and analog

radio data

■Integrated CSU/DSU functionality

Economical Design

The MX4 Series costs less than half the price

of other early generation remote management

and bandwidth utilization products.

■Practical and efﬁcient DS1 networking

■DS0 grooming allows for bandwidth

allocation for special services such

as E911 through a V.35 port

■Functional T1s may be groomed for

maximum bandwidth efﬁciency

■FXS port available on the MX412

Space Saving Chassis

ADTRAN’s MX4 Series is packaged in a

1RU, 19-inch chassis with an optional

23-inch adapter.

■Environmentally hardened

■Operational temperature:

-40º C to 65º C

with a storage temperature of

-40ºC to 85º C

■Battery backup

■Backhaul radio management

■Supports +24 VDC or -48 VDC

FormoreinformationaboutADTRAN’s

MX410andMX412,visit

www.adtran.com/mx410

Evolve and Grow Your Wireless Network with ADTRAN

ADTRAN’s wireless solutions enable service delivery for current

and future network requirements including TDM, ATM, Ethernet,

and IP/MPLS. ADTRAN service delivery options for wireless access

are cost-effective, manageable, and reliable. ADTRAN understands

the challenges that impact delivery of services to cell sites and the

demand for new applications by customers. These solutions meet

this demand and reduce subscriber churn by delivering advanced

services while reducing overall equipment costs.

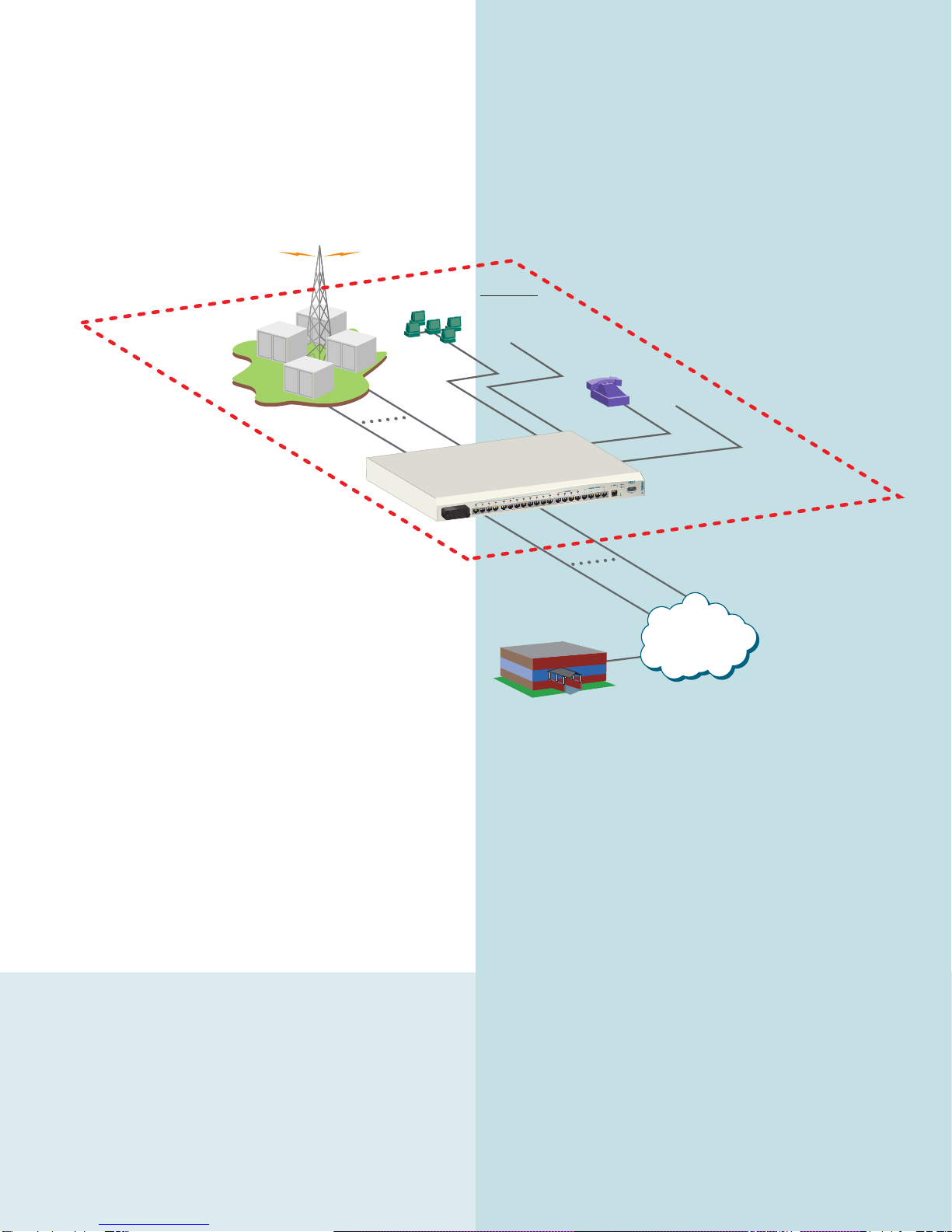

Complete Remote Management

and Bandwidth Utilization

MX410/412

4 x 10/100

N x T1

LAN Extension

FXS

Cell site

CDMA

AMPS

EV-DO

GSM

E911

4 x RS232

V.35

Remote

Managment

Alarm

HVAC

Microwave Radio

Battery Backup

MTSO

Leased T1

The ADTRAN MX410 and MX412 provide

all-in-one solutions for bandwidth and remote

management of hub/cell site resources.
