AdvanPOS ABOX-110 Series Manuale utente

www.advanpos.com

ABOX-110 Series

Compact POS Box System

User Manual

Ver 3.0_2010/01/04

Before installing and operating the unit, please read this

user manual thoroughly and retain for reference.

How to Use This Manual

This manual contains information to set up and use the ABOX-110. In addition, instructions are included for

added hardware, upgrades, software, and optional items.

Chapter 1 An introduction to what you find in the ABOX-110 and an overview of product specifications,

appearance, and interface.

Chapter 2 Detailed installation information for the base unit and upgrades, including the HDD, main

memory, and Compact Flash.

Chapter 3 Mounting procedures for optional devices, such as a wall mount kit, H-2120 and H-2150.

Chapter 4 AMB-6410 main board diagrams, locations of jumpers, and connectors.

Chapter 5 Installation instructions for the Intel chip set driver, video driver, audio, LAN, AdvanPOS

system and OPOS drivers.

WARNING! Text set off in this manner indicates that failure to follow directions could result

in bodily harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result

in damage to equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

Federal Communications Commission (FCC) Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there

is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and the receiver.

•Connect the equipment to an outlet on a circuit different from that to which the receiver is

connected.

•Consult the dealer or an experienced radio/TV technician for help.

NOTE: Shielded interconnect cables and shielded AC power cables must be employed

with this equipment to insure compliance with pertinent RF emission limits

governing this device. Changes or modifications not expressly approved by the

system’s manufacturer could void the user’s authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired

operation.

The information in this guide is subject to change without prior notice.

The manufacturer shall not be liable for technical or editorial errors or omissions contained herein, nor for

incidental or consequential damages resulting from the furnishing, performance, or use of this material.

This manual contains information protected by copyright. No part of this manual may be photocopied or

reproduced in any form without prior written consent from the manufacturer.

The software described in this guide is furnished under a license agreement or nondisclosure agreement.

The software may be used or copied only in accordance with the terms of the agreement.

Product names mentioned herein may be trademarks and/or registered trademarks of their respective

companies.

First Edition January 2010

Patents and Trademarks

AdvanPOS trademark

Certificate No.: 01328466 (ROC patent)

Patent pending (European Union, Mainland China and USA)

Precautions

1. Please read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from the AC outlet before cleaning. Do not use liquid or spray detergent

for cleaning. Use only a moistened sheet or cloth.

4. For pluggable equipment, the socket outlet should be installed near the equipment and should be

easily accessible.

5. Avoid humidity and moisture.

6. Install equipment on a stable surface.

7. Do not leave this equipment running in an enclosed or non-air-circulated environment, nor store in

temperatures above 60°C. Such conditions may damage the equipment.

8. Ventilation openings on the unit are for air circulation and protect the equipment from overheating.

DO NOT COVER THE OPENINGS.

9. Check the voltage of the power source before connecting the equipment to the power outlet.

10. Place the power cord so that it will not be stepped on. Do not place anything over the power cord.

The power cord must be rated for the product and for the voltage and current marked on the

product’s electrical ratings label. The voltage and current rating of the cord should be greater than

the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not used for a long time, disconnect the equipment from the power outlet to

avoid damage.

13. Never allow any liquid into ventilation openings. This could cause fire or electrical shock.

14. Never open the equipment. For safety reasons, qualified service personnel should only open the

equipment.

15. If one of the following situations may arise, get the equipment checked by qualified service

personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well or you cannot get it work according to the user manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of damage.

WARNING! Not intended for outdoor use.

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with same

type, and discard used batteries according to manufacturer's instructions.

Contents

Chapter 1 Introduction....................................................................................................................1

Features..................................................................................................................................................... 1

Specifications.............................................................................................................................................. 1

Package Contents........................................................................................................................................ 2

Base System............................................................................................................................................... 3

Dimensions................................................................................................................................................. 4

ABOX-110 Connector Panel.......................................................................................................................... 5

ABOX-110-S Connector Panel....................................................................................................................... 5

Chapter 2 Standard Hardware and Upgrades..................................................................................6

Precautions................................................................................................................................................. 6

Removing System Box Cover........................................................................................................................ 7

Clearing CMOS............................................................................................................................................ 8

Compact Flash Card Installation ................................................................................................................... 9

Memory Installation....................................................................................................................................11

Removing and Replacing the SATA Hard Disk...............................................................................................13

Chapter 3 Optional Components and Peripherals..........................................................................15

Wall Mount Kit Installation..........................................................................................................................15

H-2120 Pole-type Monitor Installation..........................................................................................................17

H-2150 Pole-type Monitor Installation..........................................................................................................18

Chapter 4 AMB-6410 Main Board Configuration............................................................................19

Jumper and Connector Locations.................................................................................................................19

Connector Allocation...................................................................................................................................19

Connector Pin Assignments.........................................................................................................................20

Jumper Settings.........................................................................................................................................23

Chapter 5 Software Setup..............................................................................................................25

Driver Software List....................................................................................................................................25

Intel Chipset Driver Installation...................................................................................................................26

Intel Graphics Driver Installation .................................................................................................................27

Audio Driver Installation .............................................................................................................................28

Ethernet Driver Installation.........................................................................................................................29

AdvanPOS System Driver Installation (required for Cash Drawer)...................................................................30

OPOS CCO Driver Installation......................................................................................................................31

AdvanPOS OPOS Driver Installation.............................................................................................................33

Appendix A. Sample C++ Cash Drawer Code for Windows ............................................................................34

Appendix B. Sample Visual Basic Cash Drawer Code for Windows..................................................................36

Chapter 1 Introduction

Features

•Fanless operation

•Robust aluminum housing

•Supports VGA, 2-CH audio and gigabit LAN

•5 x COM, 7 x USB, 1 x CF II

•RoHS compliant

Specifications

ABOX-110 System Configuration

CPU Intel®AtomTM Z510 1.1GHz/Z530 1.6GHz

System Chipset Intel System Control Hub US15W

System Memory Supports maximum 1 x 2GB SO-DIMM DDR2 SDRAM (up to 2GB)

Video Memory Supports Intel DVMT, shared system memory up to 254MB

Compact Flash Supports 1 x Compact Flash Card Type II

HDD 1 x internal 2.5 inch 80GB SATA hard disk drive (up to 160GB)

Power 1 x external 60W 12VDC power adapter (100~240VAC, 50~60Hz, 5.0A)

OS Support Windows®XP Pro Embedded / WEPOS®/ Windows®POS Ready 2009 /

Linux®

I/O Ports

USB Ports Supports 7 USB 2.0 ports for future expansion

Front x 1, Rear x 6

ABOX-110 5 external: COM1, COM2, COM5, COM6 D-sub pin 9 with +5V/+12V and

COM4

Serial Ports ABOX-110-S 3 external: COM1, COM2, COM5

3 internal: COM3, COM4 for AdvanBUS LVDS port, COM6 reserved

Parallel Port 1 x bi-directional parallel port (D-SUB25)

VGA Port 1 x VGA port (D-SUB15)

Cash Drawer Port 1 x 12V RJ11 connector (maximum 2 drawers)

LAN Port 1 x Giga LAN (10/100/1000Mbps Base-T), RJ45 connector

Audio Port 1 x Line-out, 1 x Mic-in

Mechanics and Environment

Construction Aluminum enclosure

Dimensions 235(L) x 163.5(W) x 64(H) mm

Housing Color Red/Black and Black

Net Gross Weight 2.5 Kg

Operating Temperature 0 °C ~ 40 °C

EMI/Safety CE, FCC, RoHS

Package Contents

The following items come standard with the ABOX-110:

POS System

Power Adaptor

Utility and Main

Board Chipset

Driver CD

AC Power Cord

Wall Mount Kit

and Mounting

Accessories

(optional)

Options for ABOX-110-S

•Model H-2120 LVDS Output Monitor 1024 x768 250 nits with Touch

•Model H-2150 LVDS Output Monitor 1024 x 768 250 nits (expandable functions as below)

•Touch panel (COM type)

•Magnetic Stripe Reader (MSR) Module: triple track*

•2-in-1 Module (Magnetic Stripe Reader + Fingerprint Reader) *

•2-in-1 Module (Magnetic Stripe Reader + I-Button Reader) *

•3-in-1 Module (Magnetic Stripe Reader + I-Button Reader + IC Card Reader) *

•Wireless Module: WiFi 802.11b/g or Bluetooth 2.0

•Radio Frequency Identification (RFID) Module: internal 13.56MHz

•VFD Customer Display: 9 cm height, 2 lines 20 characters each (rear mount type)

* Available in front or side swipe formats.

Base System

Before you begin, take a few moments to become familiar with the ABOX-110. Exterior I/O ports may vary

according to model versions.

USB Port

Heat Dissipation Design Housing

Power Indicato

Power SW

12VDC In HDD Ba

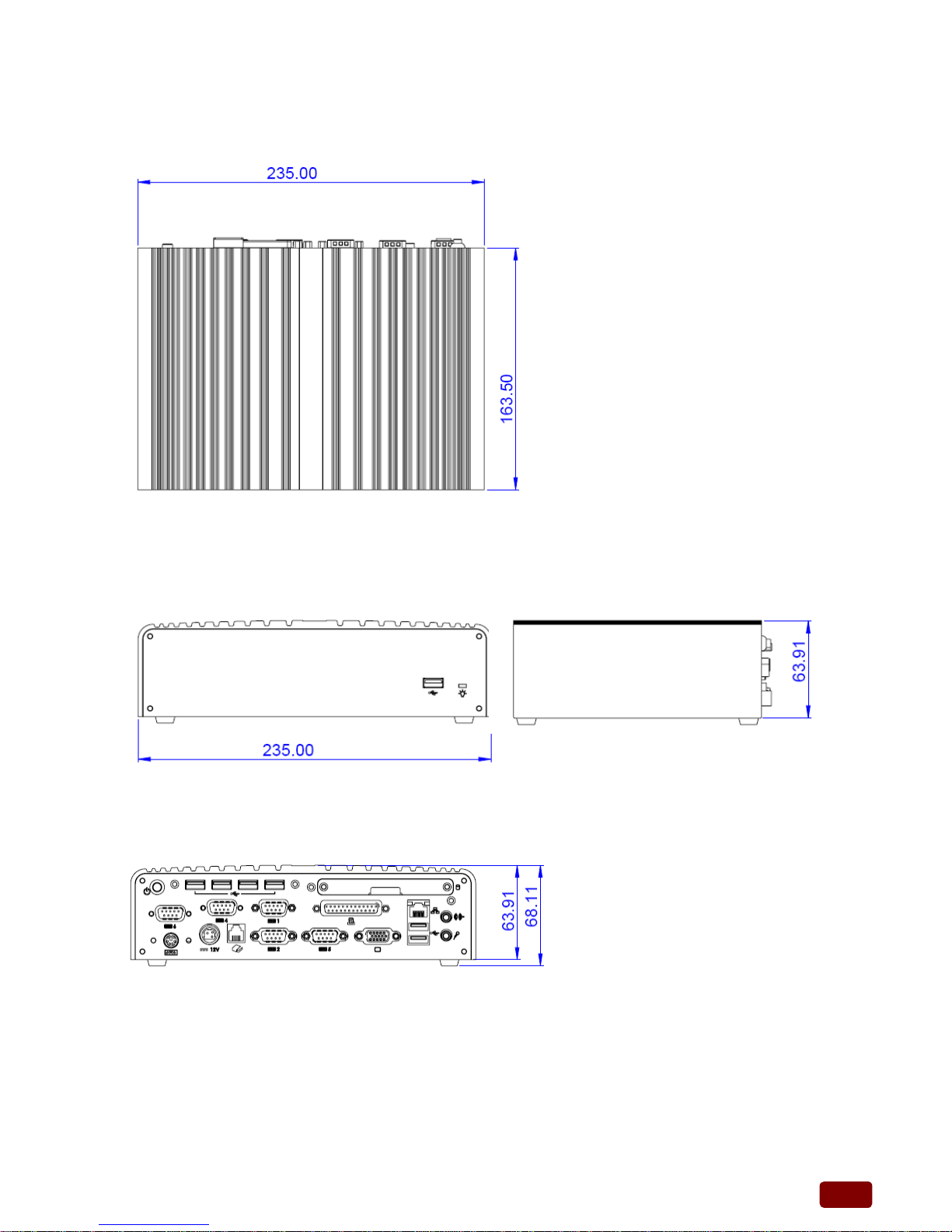

Dimensions

(Unit: mm)
