Advantech DVP-7612HE Manuale utente

User Manual

MODEL NAME: DVP-7612HE

TABLE OF CONTENTS

PRODUCT INTRODUCTION .................................................................................................................. 3

1.1. P

RODUCT

RIEF

.................................................................................................................................. 3

1.2. S

PECIFICATION

.................................................................................................................................... 3

HARDWARE INSTALLATION............................................................................................................... 5

2.1. P

ACKAGE

ONTENTS

........................................................................................................................... 5

2.2. C

ONNECTION

IAGRAM

....................................................................................................................... 5

2.3. P

RECAUTION

....................................................................................................................................... 5

2.4. MINICARD/MINIPCI............................................................................................................................ 6

SOFTWARE INSTALLATION ................................................................................................................ 7

3.1. S

UPPORT

....................................................................................................................................... 7

3.2. D

RIVER

NSTALLATION

........................................................................................................................ 7

2/7

1. PRODUCT INTRODUCTION

1.1. Product Brief

DVP-7612HE is a high-quality, high-performance capture device which is specially

designed for high-definition video capture applications. It supports up to 1 channel of high-

definition, 1200p60 video from HDMI or VGA or YPbPr source and a pair of selectable L/R

audio source. With hardware support, DVP-7612HE can record live video from high-

definition signal sources into H.264 files.

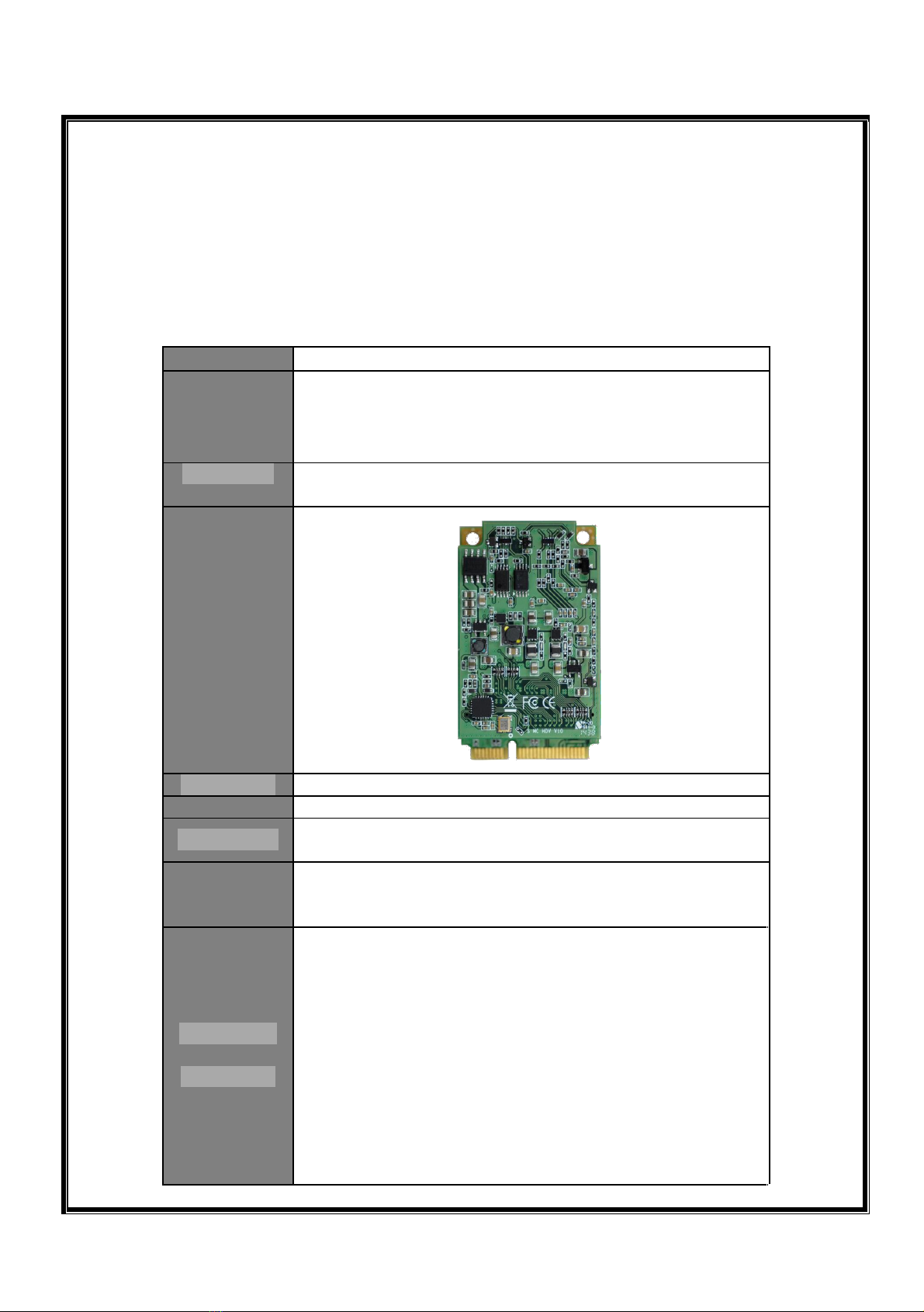

1.2. Specification

Model

DVP-7612HE

1920×1200p@60/50fps in →1920×1200p@60/50fps

Max. FPS

out

1920×1080p@60/50fps in →1920×1080p@60/50fps

out

Recording

Hardware Compression, Real-Time Mode

Mode

Product


Dimension

30×50.95 ( mm )

Interface

Minicard ( PCIe×1 )

Video Input

1×HDMI, 1×DVI-I, 1×YPbPr

( through on-board wafer connection )

Display

Video

YV12, NV12, YUY2, RGB24, RGB32

Format

1920×1200p@60/50fps

1920×1200p@30/25/24fps

1920×1080p@60/50fps

1920×1080p@30/25/24fps

Video RAW

1920×1080i@60/50fps

1280×720p@60/50fps

Data

1280×1024p@60fps

Resolution

1280×960p@60fps

1024×768p@60fps

800×600p@60fps

640×480p@60fps

720×480p@60fps

3/7

720×576p@50fps

720×480i@60fps

720×576i@50fps

Recording

Video

H.264 ( Hardware Compression )

Format

1920×1200p@60/50fps

1920×1200p@30/25/24fps

1920×1080p@60/50fps

1920×1080p@30/25/24fps

1920×1080i@60/50fps

1280×720p@60/50fps

Recording

1280×1024p@60fps

Video

1280×960p@60fps

Resolution

1024×768p@60fps

800×600p@60fps

640×480p@60fps

720×480p@60fps

720×576p@50fps

720×480i@60fps

720×576i@50fps

Audio Input

1×HDMI Embedded Audio

Audio L/R ( Through wafer connector )

Audio

Stereo / 16-bit / 32000 ~ 48000Hz

Format

Multiple

∞

Cards

Support API : DirectShow, V4L2, FFmpeg, Gstreamer

SDK

Support Language : C++, C#, .NET, Visual Basic, Qt,

Delphi

4/7

2. HARDWARE INSTALLATION

2.1. Package Contents

Item

Amount

DVP-7612HE

2.2. Connection Diagram

Figure below is the connection diagram for supported signal and interface.

Signal Connection diagram

2.3. Precaution

Before proceed, make sure touch a safely grounded object or metal object before touching

the device.

Wrist strap

Please follow below chapter for installation operations

5/7

2.4. MiniCard/MiniPCI

Turn off PC/notebook and remove power cord from AC plug/sockets on the wall.



Remove notebook battery.



After make sure the system is fully shut down, open the chassis.



Unpack the device package and make sure don’t touch any electrical and

semiconductor components on the device, especially ICs on board.



For MiniCard/MiniPCI, please make sure the installation direction and the connectors on the

device are connected.

MiniCard

MiniPCI

Install MiniCard/MiniPCI card to available motherboard MiniCard/MiniPCI slot and fasten

the screw on the device and back plate.



Close the chassis and connect signal source to the device.



Turn on the system.

6/7

3. SOFTWARE INSTALLATION

3.1. Support OS

Windows based system

Windows XP

Support

Windows Vista

Support

Windows 7

Support

Windows 8/8.1

Support

Windows 10

Support

Linux based system

Linux 2.6.14 or Higher

Support

3.2. Driver Installation

After install the device and reboot the PC/notebook, the “Windows Found New

Hardware Wizard” will appear and detect the device. Please click “Cancel” to exit the

Wizard, and implement installation program to install the device driver and application.

Please click on the driver and follow the instruction to start the installation.



While the installation is completed, user may check the device driver is installed

correctly by following steps



Start



Control Panel



System



Device Manager



And user can find device from the device manager dialog (see below figure, device

number will different by channel numbers).

DVP Series

7/7
