HK624010FB

User manual Ceramic glass hob

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Safety information 2

Installation instructions 3

Product description 6

Operating instructions 7

On and Off 7

Automatic Switch Off 7

The heat setting 7

Switching the outer ring on and off 7

The child safety device 7

Helpful hints and tips 8

Care and cleaning 9

What to do if… 10

Environment concerns 10

Packaging material 11

GREAT BRITAIN & IRELAND - Guarantee/

Customer Service 11

Subject to change without notice

Safety information

For your safety and correct operation of the appliance, read this manual carefully before

installation and use. Always keep these instructions with the appliance even if you move

or sell it. Users must fully know the operation and safety features of the appliance.

General safety

WARNING!

Persons (including children) with reduced physical sensory, mental capabilities or lack of

experience and knowledge must not use the appliance. They must have supervision or

instruction for the operation of the appliance by a person responsible for their safety.

Child safety

• Only adults can use this appliance. Children must get supervision to make sure that they

do not play with the appliance.

• Keep all packaging away from children. There is a risk of suffocation.

• Keep children away from the appliance when it is on.

WARNING!

Start the child safety device to prevent small children and pets from an accidental activation

of the appliance.

2Contents

Safety during operation

• Remove all packaging, stickers and layers from the appliance before the first use.

• Set the cooking zones to "off" after each use.

• Risk of burns! Do not put cutlery or saucepan lids on the cooking surface, as they can

become hot.

WARNING!

Fire danger! Overheated fats and oils can ignite very quickly.

Correct operation

• Always monitor the appliance during operation.

• Only use the appliance for domestic cooking tasks!

• Do not use the appliance as a work or a storage surface.

• Do not put or keep very flammable liquids and materials, or fusible objects (made of

plastic or aluminium) on or near the appliance.

• Be careful when you connect the appliance to the near sockets. Do not let electricity

bonds touch the appliance or hot cookware. Do not let electricity bonds tangle.

WARNING!

If there is a crack on the surface, disconnect power supply to prevent the electric

shock.

Installation instructions

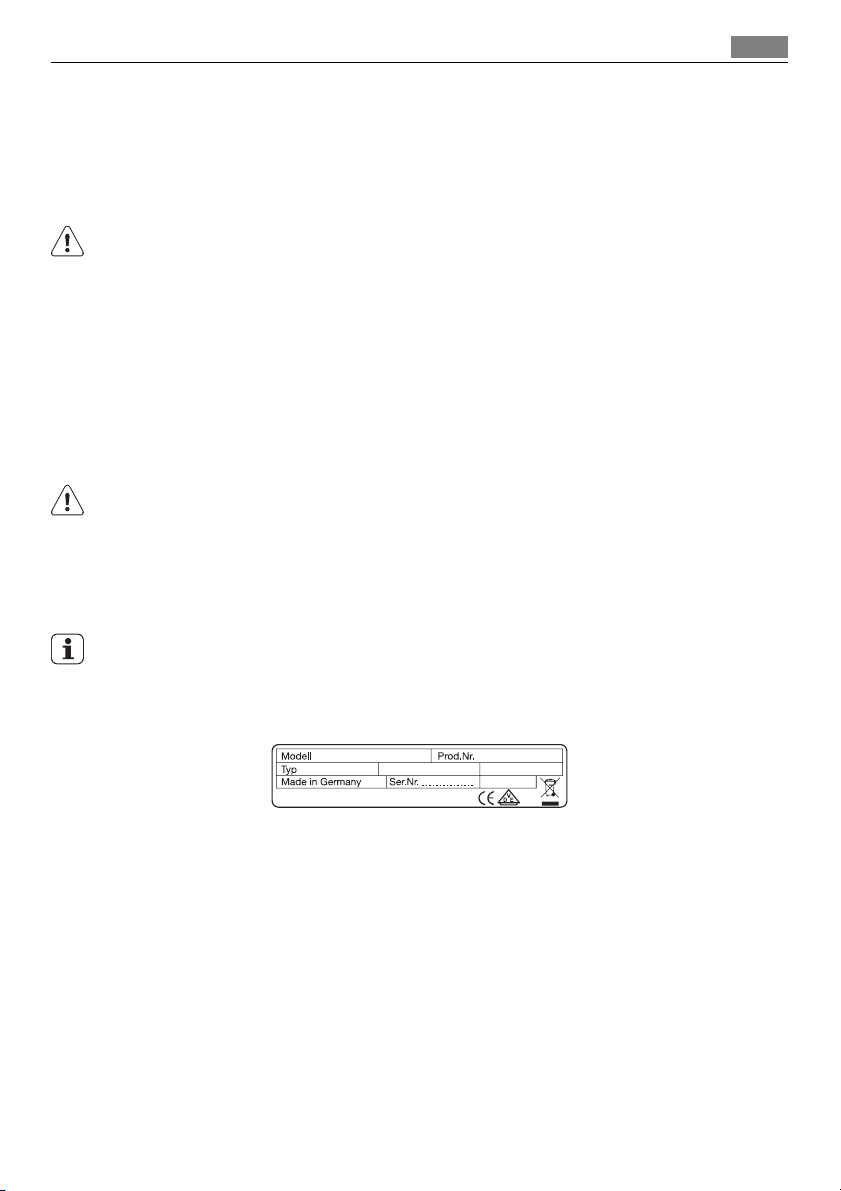

Before the installation , note down this data from the rating plate:

• Model description (Modell)................

• Product number (Prod. Nr.) ............. ....

• Serial number (Ser. Nr.) ...............

You find the rating plate of the appliance on its lower casing.

HK624010FB 949 593 383 00

58 HAD 03 AO

220-240 V 50-60-Hz

6,4 kW

AEG-ELECTROLUX

Installation instructions 3

Safety instructions

WARNING!

You must read these!

Make sure that the appliance is not damaged because of transportation. Do not connect a

damaged appliance. If it is necessary, speak to the supplier.

Only an authorised service technician can install, connect or repair this appliance. Use only

original spare parts.

Only use built-in appliances after you assemble the appliance into correct built-in units

and work surfaces that align to the standards.

Do not change the specifications or modify this product. Risk of injury and damage to the

appliance.

Fully obey the laws, ordinances, directives and standards in force in the country where you

use the appliance (safety regulations, recycling regulations, electrical safety rules etc.)!

Keep the minimum distances to other appliances and units!

Install anti-shock protection, for example install the drawers only with a protective floor

directly below the appliance!

Protect the cut surfaces of the worktop against moisture with a correct sealant!

Seal the appliance to the work top with no space left with a correct sealant!

Protect the bottom of the appliance from steam and moisture, e.g. from a dishwasher or

oven!

Do not install the appliance adjacent to doors and below windows! If not, hot cookware

can be hit off the hob when you open doors or windows.

WARNING!

Risk of injury from electrical current. Carefully obey the instructions for electrical connec-

tions.

• The electrical mains terminal is live.

• Make electrical mains terminal free of voltage.

• Install correctly to give anti-shock protection.

• Loose and incorrect plug and socket connections can make the terminal become too hot.

• A qualified electrician must install the clamping connections correctly.

• Use a strain relief clamp on cable.

• Use the correct mains cable of type H05BB-F Tmax 90°C (or higher) for a single-phase

or two-phase connection.

• Replace the damaged mains cable with a special cable (type H05BB-F Tmax 90°C; or

higher). Speak your local Service Force Centre.

The appliance must have the electrical installation which lets you disconnect the appliance

from the mains at all poles with a contact opening width of minimum 3 mm.

You must have correct isolation devices: line protecting cut-outs, fuses (screw type fuses

removed from the holder), earth leakage trips and contactors.

4Installation instructions

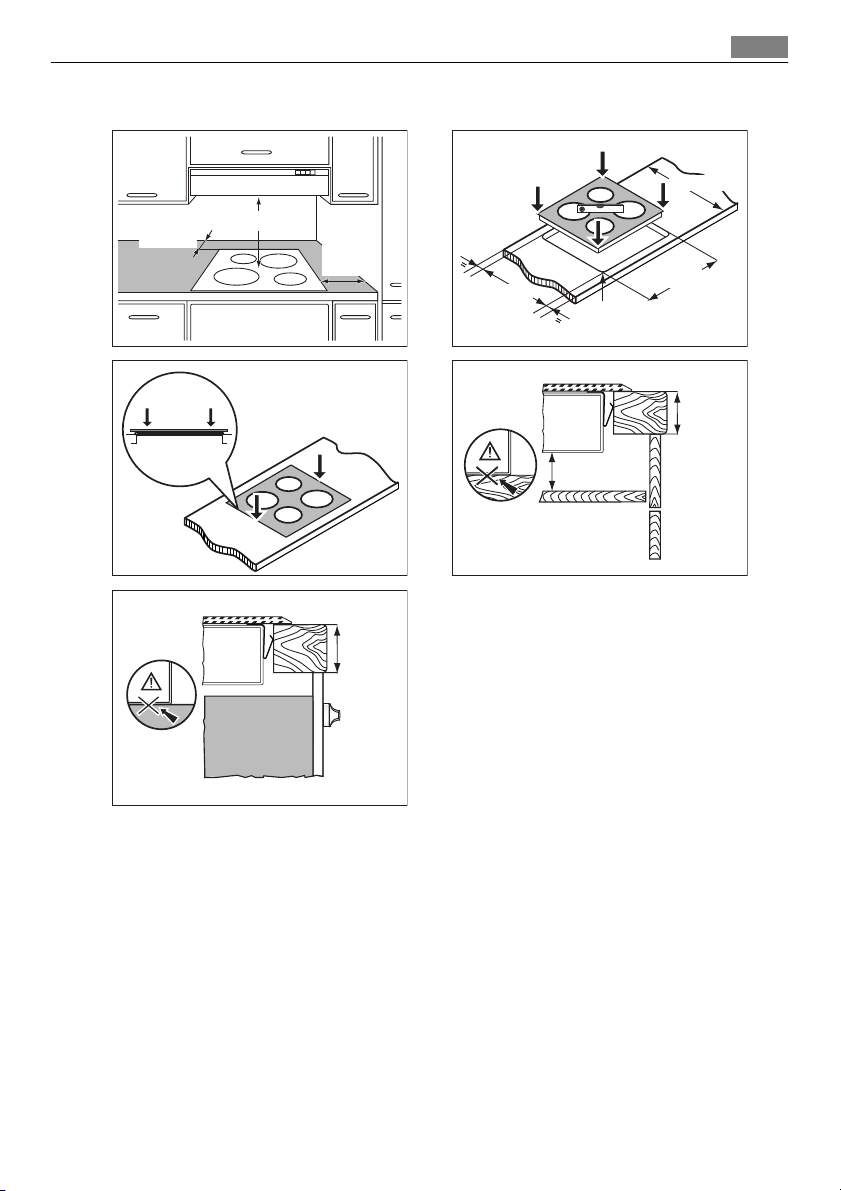

Assembly

min. 500 mm

min.

50 mm

min.

50 mm

600 mm

560+1 mm

490+1 mm

min.

25 mm

min.

20 mm

min.

30 mm

Installation instructions 5

Product description

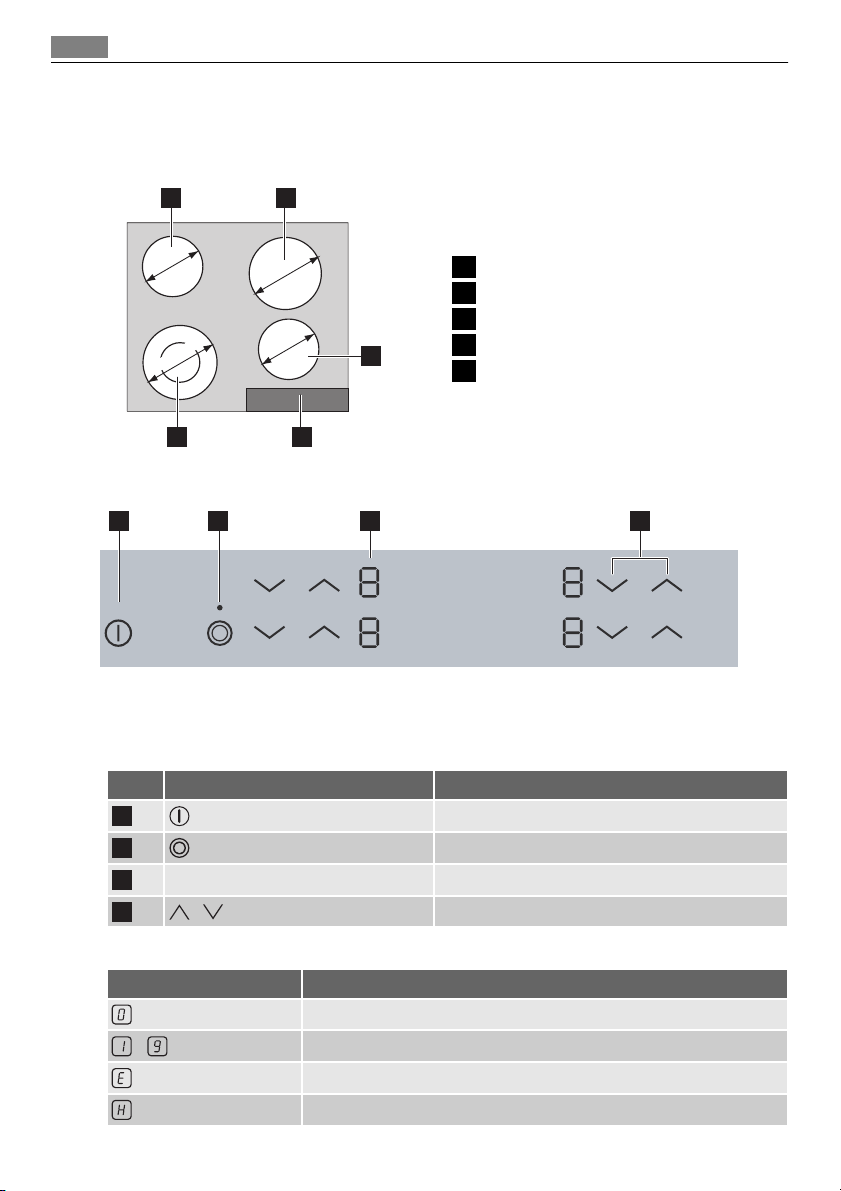

Cooking surface layout

145 mm

120/210 mm

180 mm

1 2

1Single cooking zone 1200 W

2Single cooking zone 1800 W

3Single cooking zone 1200 W

4Control panel

5Double cooking zone 750/2200 W

Control panel layout

1 2 3 4

Use the sensor fields to operate the appliance. Displays and indicators tell which

functions operate.

sensor field function

starts and stops the hob

starts and stops the outer ring

heat setting display shows the heat setting or functions which are on

/ increases or decreases the heat settings

Heat setting displays

Display Description

The cooking zone is off

- The cooking zone operates

There is a malfunction

A cooking zone is still hot (residual heat)

6Product description

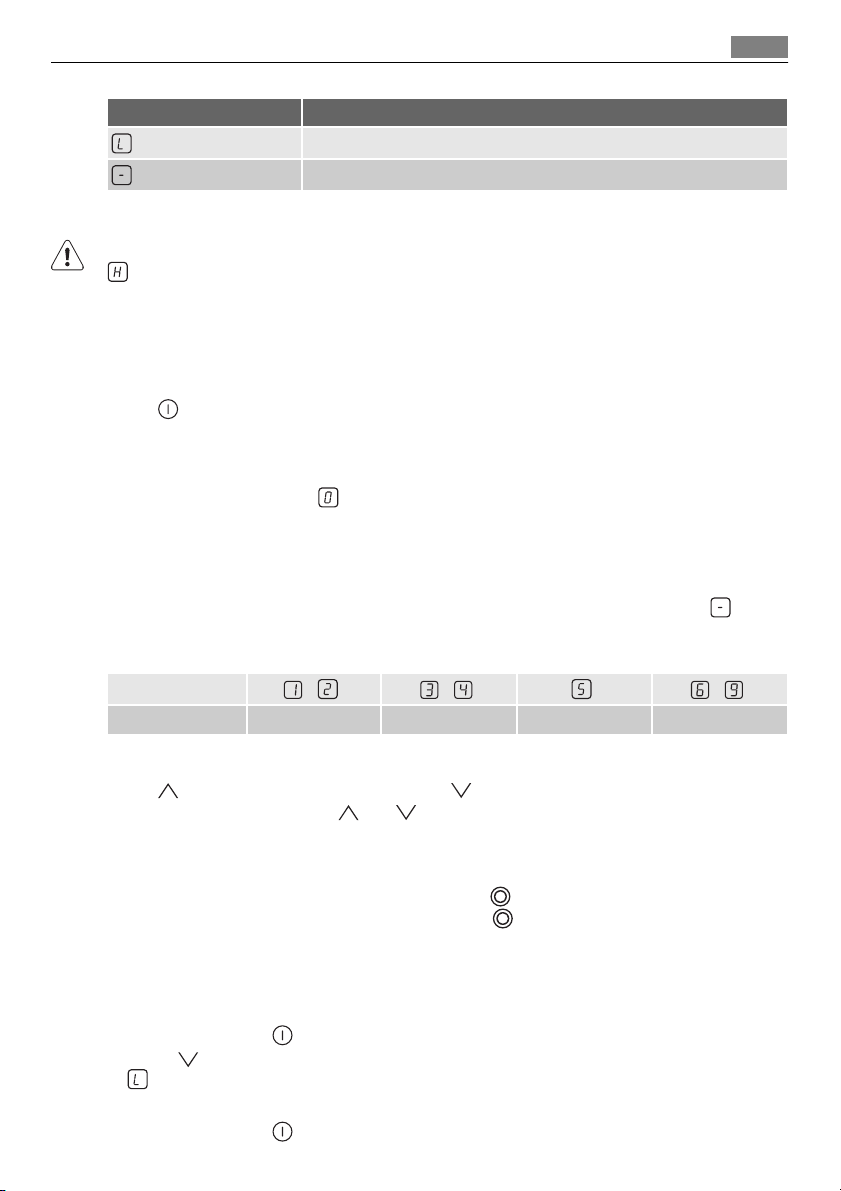

Display Description

Lock/Child safety device is on

The automatic switch off is active

Residual heat indicator

WARNING!

Risk of burns from residual heat!

Operating instructions

On and Off

Touch for 1 second to start or stop the appliance.

Automatic Switch Off

The function stops the hob automatically if:

• all cooking zones are off .

• you do not set the heat setting after you start the hob.

• you cover a sensor field with an object (a pan, a cloth, etc.) for longer than 10 seconds.

The sound operates some time and the hob stops. Remove the object or clean the control

panel.

• you do not stop a cooking zone or change the heat setting. After some time comes

on and the hob stops. See the table.

Automatic Switch Off times

Heat setting - - -

Stops after 6 hours 5 hours 4 hours 1.5 hours

The heat setting

Touch to increase the heat setting. Touch to decrease the heat setting. The display

shows the heat setting. Touch and at the same time to switch off the cooking zone.

Switching the outer ring on and off

You can match the effective heating surface to the size of the cookware.

To switch on the outer ring touch the sensor field . The indicator comes on.

To switch off the outer ring touch the sensor field again. The indicator goes out.

The child safety device

This function prevents an accidental operation of the hob.

Starting the child safety device

•Start the hob with . Do not set the heat settings .

•Touch of the two front cooking zones at the same time for 4 seconds. The symbol

comes on. Switch off the appliance.

Switching off the child safety device

•Start the hob with . Do not set the heat settings .

Operating instructions 7

•Touch of the two front cooking zones at the same time for 4 seconds. The symbol

comes on. Switch off the appliance.

Overriding the child safety device for one cooking session

• Start the hob with . The symbol comes on.

•Touch of the two front cooking zones at the same time for 4 seconds. The symbol

comes on. Set the heat setting in less than 10 seconds. You can operate the hob.

When you stop the hob with , the child safety device operates again.

Helpful hints and tips

Cookware

• The bottom of the cookware must be as thick and flat as possible.

• Cookware made of enamelled steel and with aluminium or copper bottoms can cause

discoloration on glass ceramic surface.

Energy saving

• If possible, always put the lids on the cookware.

• Put cookware on a cooking zone before you start it.

• Stop the cooking zones before the end of the cooking time to use residual heat.

• The bottom of pans and cooking zones must have the same dimension.

Examples of cooking applications

The data in the table is for guidance only.

Heat

setting

Use to: Time Hints

1Keep cooked foods warm as re-

quired

Cover

1-2 Hollandaise sauce, melt: butter, choco-

late, gelatine

5-25

min

Mix occasionally

1-2 Solidify: fluffy omelettes, baked eggs 10-40

min

Cook with a lid on

2-3 Simmer rice and milkbased dishes, heat-

ing up ready-cooked meals

25-50

min

Add at least twice as much liquid as

rice, stir milk dishes part way

through

3-4 Steam vegetables, fish, meat 20-45

min

Add a few tablespoons of liquid

4-5 Steam potatoes 20-60

min

Use max. ¼ l water for 750 g of po-

tatoes

4-5 Cook larger quantities of food, stews

and soups

60-150

min

Up to 3 l liquid plus ingredients

8Helpful hints and tips

Heat

setting

Use to: Time Hints

6-7 Gentle fry: escalope, veal cordon bleu,

cutlets, rissoles, sausages, liver, roux,

eggs, pancakes, doughnuts

as re-

quired

Turn halfway through

7-8 Heavy fry, hash browns, loin steaks,

steaks

5-15

min

Turn halfway through

9Boil large quantities of water, cook pasta, sear meat (goulash, pot roast), deep fry chips

Information on acrylamides

According to the newest scientific knowledge, if you brown food (specially the one which

contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at

the lowest temperatures and do not brown food too much.

Care and cleaning

Clean the appliance after each use.

Always use cookware with clean bottom.

WARNING!

Sharp objects and abrasive cleaning agents will damage the appliance.

For your safety, do not clean the appliance with steam blasters or high-pressure cleaners.

Scratches or dark stains on the glass ceramic have no effect on how the appliance operates.

Removing the dirt:

1. – Remove immediately: melting plastic, plastic foil, and food containing sugar. Use

a special glass ceramic scraper. Put the scraper on the glass ceramic surface at an

acute angle and slide the blade on the surface.

–Stop the appliance and let it cool down before you clean: limescale rings, water

rings, fat stains, shiny metallic discolorations. Use a special cleaner for glass ceramic

or stainless steel.

2. Clean the appliance with a damp cloth and some detergent.

3. At the end rub the appliance dry with a clean cloth.

Care and cleaning 9

What to do if…

Problem Possible cause and remedy

You cannot start the appliance

or operate it.

• You touched 2 or more sensor fields at the same time. Only

touch one sensor field.

• There is water or fat stains on the control panel. Clean the

control panel

•The child safety device operates . Stop the function. See

the section “Child safety device”.

• Start the appliance again and set the heat setting within 10

seconds.

The residual heat indicator does

not come on.

The cooking zone is not hot because it operated only for a short

time. If the cooking zone must be hot, speak to the after sales

service.

You cannot switch on the outer

ring.

Switch on the inner ring first.

The appliance stops. You covered . Uncover the sensor field.

comes on. • The automatic switch-off operates. Stop the appliance and

start it again.

Overheating protection for the cooking zone operates. Stop the

cooking zone and start it again.

and a number come on. There is an error in the appliance.

Disconnect the appliance from the electrical supply for some

time. Disconnect the fuse from the electrical system of the house.

Connect again. If comes on again, speak to the after sales

service.

If you tried the above solutions and cannot repair the problem, speak to your dealer or the

Customer Care Department. Give the data from the rating plate, three-digit-letter code for

the glass ceramic (it is in the corner of the cooking surface) and an error message that

comes on.

If you operated the appliance incorrectly, the servicing by a customer service technician or

dealer will not be free of charge, even during the warranty period. The instructions about

the customer service and conditions of guarantee are in the guarantee booklet.

Environment concerns

The symbol on the product or on its packaging indicates that this product may not be

treated as household waste. Instead it should be taken to the appropriate collection point

for the recycling of electrical and electronic equipment. By ensuring this product is disposed

of correctly, you will help prevent potential negative consequences for the environment

and human health, which could otherwise be caused by inappropriate waste handling of

this product. For more detailed information about recycling of this product, please contact

your local council, your household waste disposal service or the shop where you purchased

the product.

10 What to do if…

Indice

Altri manuali AEG Electrolux Piano cottura

AEG Electrolux

AEG Electrolux HK764070FB Manuale utente

AEG Electrolux

AEG Electrolux 88101KF-N Manuale utente

AEG Electrolux

AEG Electrolux 320TDGM Manuale tecnico

AEG Electrolux

AEG Electrolux 6130M Manuale utente

AEG Electrolux

AEG Electrolux 64500G-M Manuale utente

AEG Electrolux

AEG Electrolux 76301K-MN Manuale utente

AEG Electrolux

AEG Electrolux 66301K-MN and Manuale utente

AEG Electrolux

AEG Electrolux 79331KF-N Manuale utente

AEG Electrolux

AEG Electrolux 76301KFE-N Manuale utente

AEG Electrolux

AEG Electrolux 24" HK654070XB Manuale utente

AEG Electrolux

AEG Electrolux 79301 KF-N Manuale utente

AEG Electrolux

AEG Electrolux 78001KF-N Manuale utente

AEG Electrolux

AEG Electrolux 79903G Manuale utente

AEG Electrolux

AEG Electrolux U30280 35772G Manuale utente

AEG Electrolux

AEG Electrolux 34942 G Manuale utente

AEG Electrolux

AEG Electrolux U30130 21602 G Manuale utente

AEG Electrolux

AEG Electrolux 96901KFE-N Manuale utente

AEG Electrolux

AEG Electrolux 68002K-MN Manuale utente

AEG Electrolux

AEG Electrolux 95852 G Manuale utente

AEG Electrolux

AEG Electrolux FM 6520K-an Manuale utente

AEG Electrolux

AEG Electrolux 88031KF-N Manuale utente

AEG Electrolux

AEG Electrolux 79850 G Manuale utente

AEG Electrolux

AEG Electrolux 88101K-MN Manuale utente

AEG Electrolux

AEG Electrolux 78001KF-MN Manuale utente

Manuali Piano cottura popolari di altre marche

Siemens

Siemens EX875KYV1E Scheda tecnica

AEG

AEG CERAMIC HOB 6010 K Manuale utente

VALERA

VALERA CT 70A Manuale utente

Zanussi

Zanussi ZGF 6420 Manuale utente

Gaggenau

Gaggenau CI 273 Manuale utente

G3 Ferrari

G3 Ferrari Energy Manuale utente

Pkm

Pkm IN4B Manuale utente

Award

Award H903BG Manuale utente

Zanussi

Zanussi VCH 5005 RZ Manuale utente

Miele

Miele KM 523 Manuale utente

Hotpoint

Hotpoint IS67V8CCXT/E Manuale utente

AEG

AEG HK854870XB Manuale utente

Cookology

Cookology SEP600BK Manuale utente

Bauknecht

Bauknecht Hob Manuale utente

Zanussi

Zanussi ZGM 782 Manuale utente

dipo INDUCTION

dipo INDUCTION DIBK218S Manuale utente

Miele

Miele KM 5987 Manuale utente

Miele

Miele KM 360 G Manuale utente
