User manual Fridge-Freezer

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Safety information 2

Children and vulnerable people safety

General safety 3

Daily Use 4

Care and cleaning 4

Installation 4

Service 5

Control panel 5

Switching on 6

Switching off 6

Temperature indicators 6

Temperature regulation 6

COOLMATIC function 7

Holiday function 7

FROSTMATIC function 7

High temperature alarm 8

First use 8

Cleaning the interior 8

Daily use 8

Storage of frozen food 8

Thawing 8

Movable shelves 9

Bottle rack 9

Vegetable Drawer 9

Positioning the door shelves 10

Removal of freezing baskets from the

freezer 10

Helpful hints and tips 11

Normal Operating Sounds 11

Hints for energy saving 11

Hints for fresh food refrigeration 11

Hints for refrigeration 11

Hints for freezing 11

Hints for storage of frozen food 12

Care and cleaning 12

Periodic cleaning 12

Defrosting of the refrigerator 13

Defrosting of the freezer 13

What to do if… 13

Replacing the lamp 15

Closing the door 15

Technical data 15

Installation 16

Positioning 16

Location 16

Electrical Connection 16

Rear spacers 18

Levelling 18

Removing the shelf holders 18

Door reversibility 18

Environmental concerns 21

Subject to change without notice

Safety information

In the interest of your safety and to ensure the correct use, before installing and first using

the appliance, read this user manual carefully, including its hints and warnings. To avoid

unnecessary mistakes and accidents, it is important to ensure that all people using the

2Contents

appliance are thoroughly familiar with its operation and safety features. Save these in-

structions and make sure that they remain with the appliance if it is moved or sold, so that

everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the

manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection

cable (as close to the appliance as you can) and remove the door to prevent playing

children to suffer electric shock or to close themselves into it.

• If this appliance featuring magnetic door seals is to replace an older appliance having a

spring lock (latch) on the door or lid, be sure to make that spring lock unusable before

you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

CAUTION!

Keep ventilation openings clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household

as explained in this instruction booklet.

• Do not use a mechanical device or any artificial means to speed up the thawing process.

• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating

appliances, unless they are approved for this purpose by the manufacturer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the ap-

pliance, a natural gas with a high level of environmental compatibility, which is never-

theless flammable.

During transportation and installation of the appliance, be certain that none of the

components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

– avoid open flames and sources of ignition

– thoroughly ventilate the room in which the appliance is situated

Safety information 3

• It is dangerous to alter the specifications or modify this product in any way. Any damage

to the cord may cause a short-circuit, fire and/or electric shock.

WARNING!

Any electrical component (power cord, plug, compressor) must be replaced by a certified

service agent or qualified service personnel.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed or damaged by the back of the

appliance. A squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do not insert the power plug. There is a risk of

electric shock or fire.

6. You must not operate the appliance without the lamp cover

of interior lighting.

• This appliance is heavy. Care should be taken when moving it.

• Do not remove nor touch items from the freezer compartment if your hands are damp/

wet, as this could cause skin abrasions or frost/freezer burns.

• Avoid prolonged exposure of the appliance to direct sunlight.

Daily Use

• Do not put hot pot on the plastic parts in the appliance.

• Do not store flammable gas and liquid in the appliance, because they may explode.

•Do not place food products directly against the air outlet on the rear wall.

• Frozen food must not be re-frozen once it has been thawed out.

• Store pre-packed frozen food in accordance with the frozen food manufacturer's in-

structions.

• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer

to relevant instructions.

• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure

on the container, which may cause it to explode, resulting in damage to the appliance.

• Ice lollies can cause frost burns if consumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the

mains socket.

• Do not clean the appliance with metal objects.

• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean

the drain. If the drain is blocked, water will collect in the bottom of the appliance.

Installation

For electrical connection carefully follow the instructions given in specific paragraphs.

1) If the lamp cover is foreseen

2) If the appliance is Frost Free

4Safety information

• Unpack the appliance and check if there are damages on it. Do not connect the appliance

if it is damaged. Report possible damages immediately to the place you bought it. In that

case retain packing.

• It is advisable to wait at least four hours before connecting the appliance to allow the

oil to flow back in the compressor.

• Adequate air circulation should be around the appliance, lacking this leads to overheat-

ing. To achieve sufficient ventilation follow the instructions relevant to installation.

• Wherever possible the back of the product should be against a wall to avoid touching

or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.

•Connect to potable water supply only.

Service

• Any electrical work required to do the servicing of the appliance should be carried out

by a qualified electrician or competent person.

• This product must be serviced by an authorized Service Centre, and only genuine spare

parts must be used.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its

refrigerant circuit or insulation materials. The appliance shall not be discarded together

with the urban refuse and rubbish. The insulation foam contains flammable gases: the

appliance shall be disposed according to the applicable regulations to obtain from your

local authorities. Avoid damaging the cooling unit, especially at the rear near the heat

exchanger. The materials used on this appliance marked by the symbol are recyclable.

Control panel

65 7 84321 1514131211910

1ON/OFF switch

2Fridge temperature regulator, + button

3Fridge temperature indicator

4Fridge temperature regulator, - button

5COOLMATIC button

6COOLMATIC indicator

7Fridge compartment indicator

3) If a water connection is foreseen

Control panel 5

8Freezer compartment indicator

9FROSTMATIC indicator

10 FROSTMATIC button

11 Freezer temperature regulator, + button

12 Freezer temperature indicator

13 Freezer temperature regulator, - button

14 Alarm reset button

15 Alarm indicator

Switching on

1. Insert the plug into the mains socket.

2. Set ON/OFF switch to ON.

3. The alarm indicator light flashes since the temperature is reached.

The acoustic alarm sounds.

4. Press the alarm reset button to reset the alarm.

Switching off

To switch the entire appliance off:

1. Set ON/OFF switch to OFF.

2. Disconnect the mains plug from the mains socket.

Temperature indicators

The temperature indicators show several information:

• During normal operation, the temperature currently present in the fridge (ACTUAL tem-

perature) is displayed.

• In the freezer the warmest temperature is displayed (ACTUAL temperature). When fully

filled, the warmest zone is normally located at the top in the front area of the freezer.

Depending upon how the section is filled, the temperatures are lower in other areas of

the freezer.

• When the temperature is being adjusted a flashing display indicates the fridge temper-

ature currently set (DESIRED temperature).

When changing the temperature setting wait about 24 hours until the temperature display

has stabilised.

If there is a fault in the appliance the temperature indicator shows:

• a square or a letter in the temperature indicator of the fridge for a fault in the fridge

• a square or a letter in the temperature indicator of the freezer for a fault in the freezer.

Temperature regulation

To operate the appliance, proceed as follows:

1. Set the required temperature by pressing the corresponding temperature regulator. The

temperature indicator will immediately show the changed setting (DESIRED tempera-

ture) and the temperature indicator flashes.

2. Each time the temperature regulator is pressed the DESIRED temperature is adjusted

by 1 °C. The DESIRED temperature must be reached within 24 hours.

3. Once the required temperature has been set, after a short period (approx. 5 sec.) the

temperature indicator will show again the current ACTUAL temperature inside the cor-

6Control panel

responding compartment. The temperature indicator will change from flashing to con-

tinuous illumination.

For a correct storage of the food the following temperatures should be set:

• +5 °C in the fridge

• -18 °C in the freezer.

When the setting is changed, the compressor does not start immediately if automatic

defrosting is currently taking place. As the storage temperature within the fridge is reached

quickly you can store food immediately after switching on.

COOLMATIC function

The COOLMATIC function is suited for quick cooling of large quantities of goods in the

refrigerator.

To activate the function, do these steps:

1. Press the COOLMATIC button.

2. The COOLMATIC indicator switches on.

The COOLMATIC function now provides for intensive cooling. A DESIRED temperature of

+2°C is automatically selected.

The COOLMATIC function is ended automatically after a period of 6 hours.

You can deactivate the function at any time:

1. Press the COOLMATIC button.

2. The COOLMATIC indicator switches off.

Holiday function

This function allows you to keep the refrigerator shut and empty during a long holiday

period (e.g. the summer holidays) without the formation of a bad smell.

The fridge compartment must be empty when the holiday function is on.

To activate the function:

1. press continuously the temperature regulator (+ button) until the letter "H" (Holiday)

appears on the temperature indicator. The Holiday function sets the temperature ap-

prox +15°C. The refrigerator is in the energy-saving mode.

To deactivate the function:

1. set the required temperature by pressing the fridge temperature regulator.

FROSTMATIC function

The FROSTMATIC function accelerates the freezing of fresh food and, at the same time,

protects foodstuffs already stored from undesirable warming.

To activate the function, do these steps:

1. Press the FROSTMATIC button.

2. The FROSTMATIC indicator switches on.

The FROSTMATIC function is ended automatically after a period of 52 hours.

You can deactivate the function at any time:

1. Press the FROSTMATIC button.

2. The FROSTMATIC indicator switches off.

Control panel 7

High temperature alarm

In the event of an abnormal temperature rise inside the freezer (e.g. power cut) alarm

indicator light will start to flash and a buzzer will sound.

Push the alarm reset button to stop the buzzer sound, while the alarm indicator light will

continue to flash.

The buzzer will stop automatically when the temperature has returned to normal while the

alarm indicator light will continue to flash.

Press the alarm reset button. The alarm indicator light goes out and at the same time the

freezer temperature indicator show for about 5 seconds the warmest temperature reached

in the freezer compartment.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories

with lukewarm water and some neutral soap so as to remove the typical smell of a brand-

new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

Daily use

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the

compartment let the appliance run at least 2 hours on the higher settings.

In the event of accidental defrosting, for example due to a power failure, if the power has

been off for longer than the value shown in the technical characteristics chart under "rising

time", the defrosted food must be consumed quickly or cooked immediately and then re-

frozen (after cooling).

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator com-

partment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking

will take longer.

8First use

Movable shelves

The walls of the refrigerator are equipped with a

series of runners so that the shelves can be posi-

tioned as desired.

Bottle rack

Place the bottles (with the opening facing front)

in the pre-positioned shelf.

If the shelf is positioned horizontally, place only

closed bottles.

This bottle holder shelf can be tilted in order to

store previously opened bottles. To obtain this re-

sult, pull the shelf up so it can rotate upwards and

be placed on the next higher level.

Vegetable Drawer

The drawer is suitable for storing fruit and vege-

tables.

There is a separator inside the drawer that can be

placed in different positions to allow for the sub-

division best suited to personal needs.

There is a grille (if foreseen) on the bottom of the

drawer to separate the fruit and vegetables from

any humidity that may form on the bottom sur-

face.

All parts inside the drawer can be removed for

cleaning purposes

Daily use 9

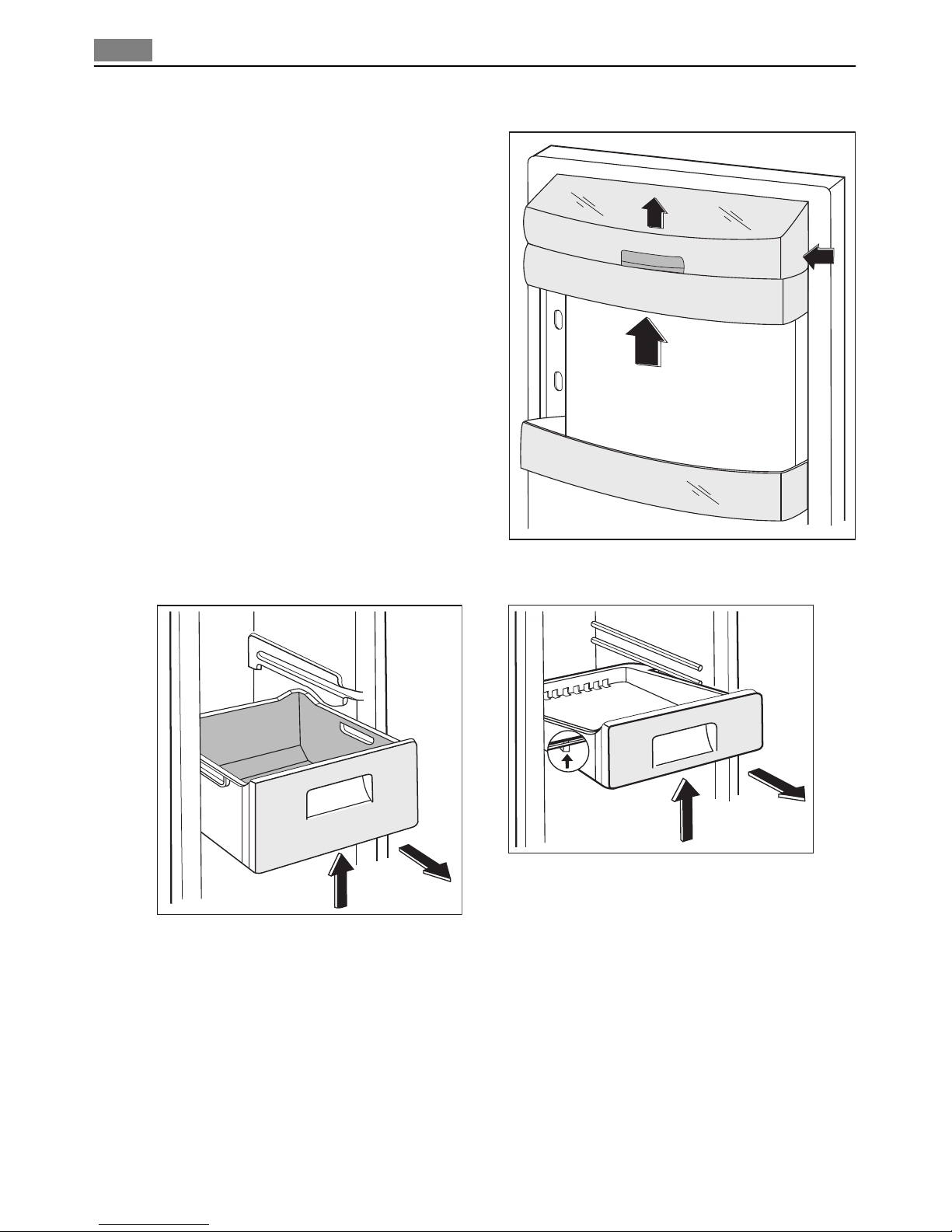

Positioning the door shelves

To permit storage of food packages of vari-

ous sizes, the door shelves can be placed at

different heights.

To make these adjustments proceed as fol-

lows:

gradually pull the shelf in the direction of the

arrows until it comes free, then reposition as

required.

Removal of freezing baskets from the freezer

The freezing baskets have a limit stop to prevent their accidental removal or falling out.

At the time of its removal from the freezer, pull the basket towards yourself and, upon

reaching the end point, remove the basket by tilting its front upwards.

At the time of putting it back, slightly lift the front of the basket to insert it into the

freezer. Once you are over the end points, push the baskets back in their position.

10 Daily use

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali AEG Electrolux Frigorifero

AEG Electrolux

AEG Electrolux S73000DSW0 Manuale utente

AEG Electrolux

AEG Electrolux ER 6422 T Manuale utente

AEG Electrolux

AEG Electrolux REFRIGERATION Manuale utente

AEG Electrolux

AEG Electrolux S17TK58 Manuale utente

AEG Electrolux

AEG Electrolux ER7326C-1 Manuale utente

AEG Electrolux

AEG Electrolux ER6427T Guida rapida

AEG Electrolux

AEG Electrolux PWE9038-M Manuale utente

AEG Electrolux

AEG Electrolux U29348 S 75400 KG Manuale utente

AEG Electrolux

AEG Electrolux SANTO 75428-2 DT Manuale utente

AEG Electrolux

AEG Electrolux SU 960436 Manuale utente

AEG Electrolux

AEG Electrolux ER 8133 I Manuale utente

AEG Electrolux

AEG Electrolux S75340KG2 Manuale utente

AEG Electrolux

AEG Electrolux ER6933I Guida rapida

AEG Electrolux

AEG Electrolux SANTO K 9 12 40-7i Manuale utente

AEG Electrolux

AEG Electrolux ER 1720 U Guida rapida

AEG Electrolux

AEG Electrolux Santo C 7 18 40-6i Manuale utente

AEG Electrolux

AEG Electrolux SANTO 80368-5 KGL Manuale utente

AEG Electrolux

AEG Electrolux S163TK48 Manuale utente

AEG Electrolux

AEG Electrolux ER 8020 B Guida rapida

AEG Electrolux

AEG Electrolux S71700TSW0 Manuale utente

AEG Electrolux

AEG Electrolux SANTO 7380KG Manuale utente

AEG Electrolux

AEG Electrolux ER 7335 I Guida rapida

AEG Electrolux

AEG Electrolux S86348KG1 Manuale utente

AEG Electrolux

AEG Electrolux S 75408 KG Manuale utente

Manuali Frigorifero popolari di altre marche

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuale utente

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuale utente

Sharp

Sharp SJ-BA31IEXW2-EU Manuale utente

CORBERO

CORBERO CC2300MCW Manuale utente

KitchenAid

KitchenAid 2205264 Manuale utente

Stengel

Stengel KU 1101 A++ Manuale utente

NEFF

NEFF KI181 Series Manuale utente

Hoshizaki

Hoshizaki Reach-In Manuale utente

Amana

Amana ASD2524VES00 Manuale utente

BOMANN

BOMANN KGC 213 Manuale utente

Danby

Danby DAR044A1SLDD Istruzioni per il montaggio

Samsung

Samsung RF323TE Manuale utente

Beko

Beko CSA31022 Manuale utente

IKEA

IKEA FROSTIG C 185 E Manuale utente

Electrolux

Electrolux ER 6821 D Manuale utente

True

True TS-28 Manuale utente

Frigidaire

Frigidaire FSC23R5DW9 Manuale utente

Beko

Beko LSP4579W Manuale utente
