AEG PERFEKT GLIDE 30 Manuale utente
PERFEKT GLIDE 36
36” Built-in Telescopic Range Hood
Specifications are subject to change without notice
V1.2
PERFEKT GLIDE 30
30” Built-in Telescopic Range Hood
•D: 11” x W: 353/8”
•D: 279mm x W: 899mm

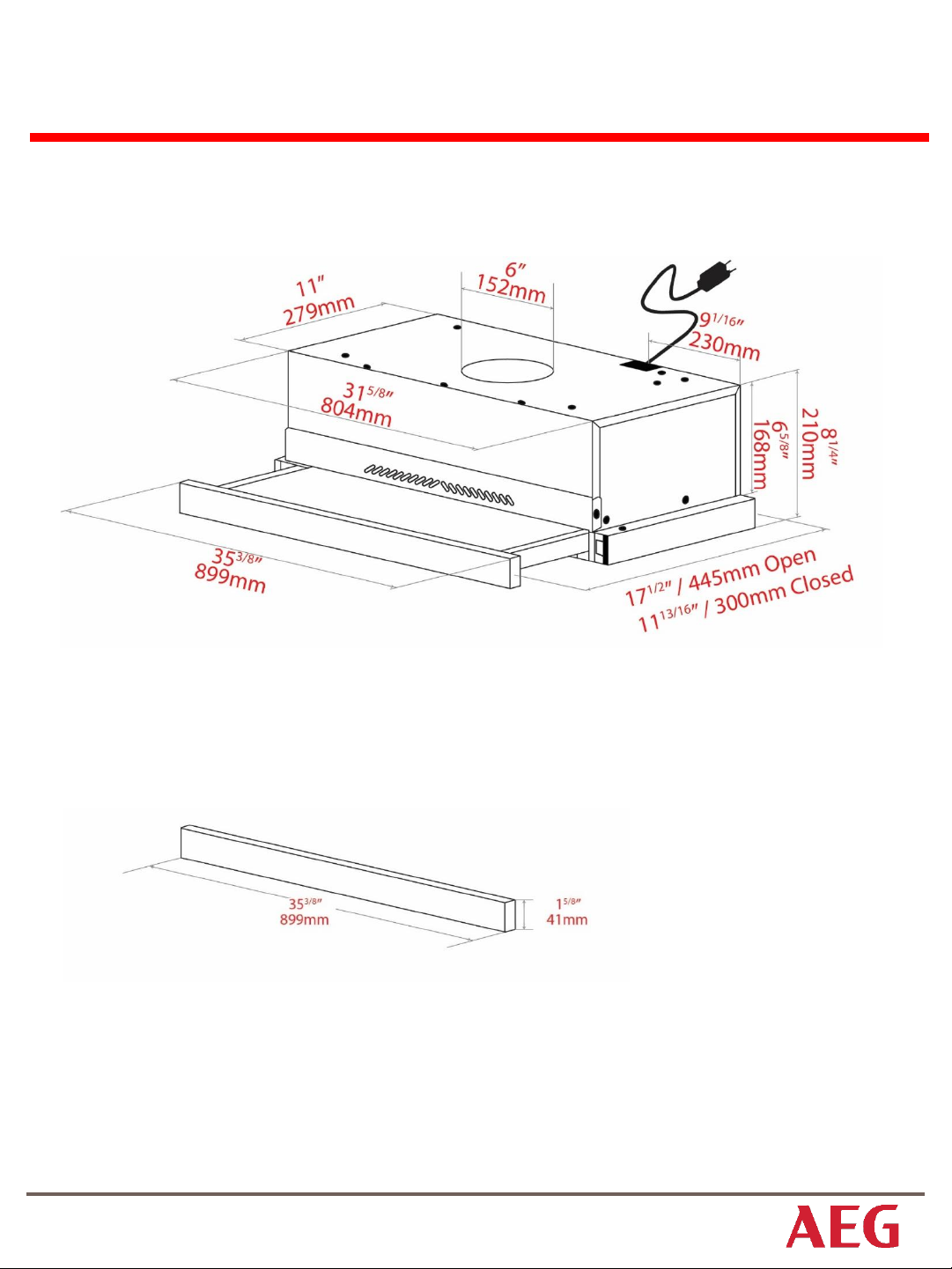

RANGE HOOD DIMENSIONS
•6” Duct Adapter Included
DUCT SIZE
RANGE HOOD FEATURES

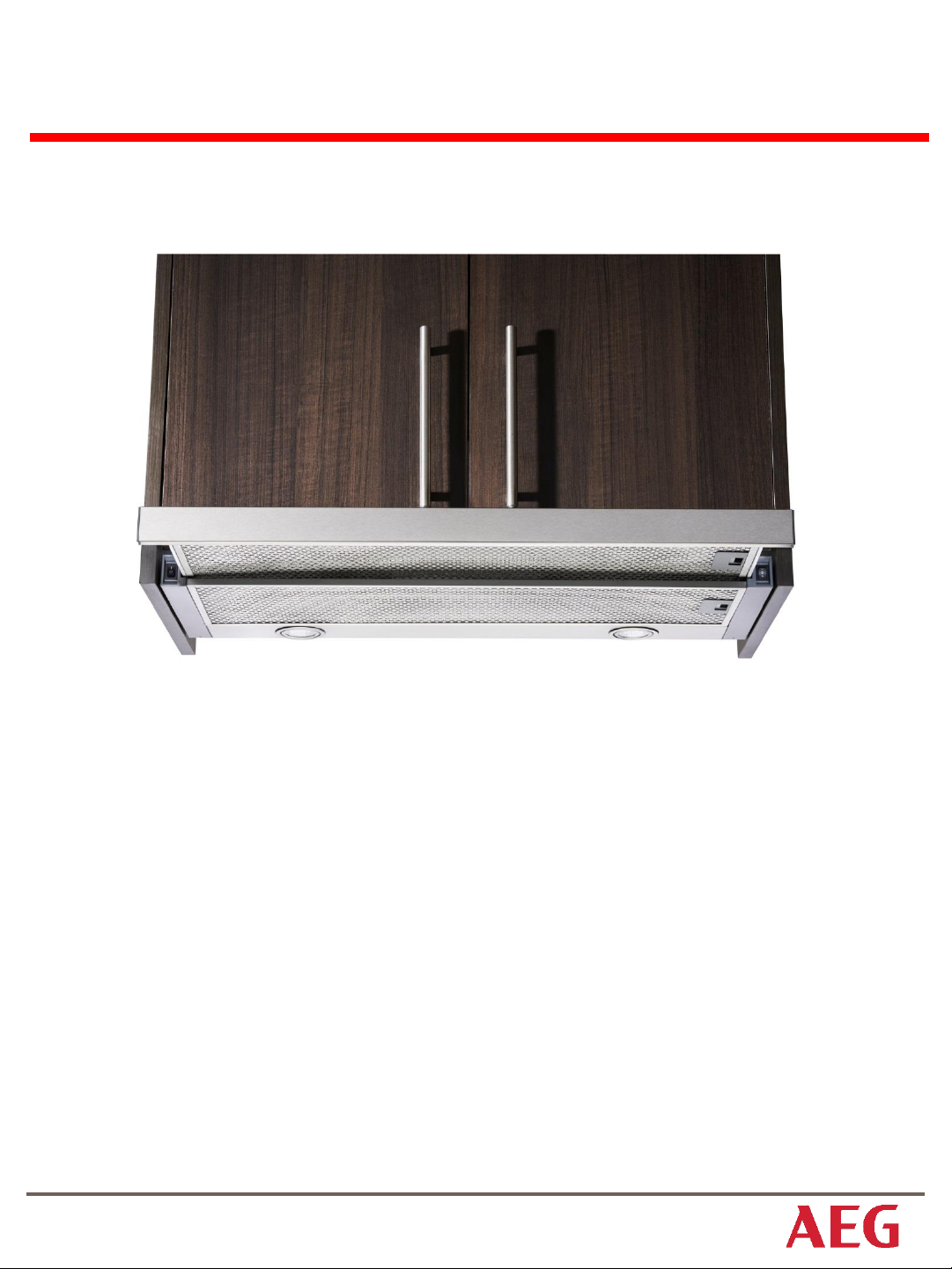

•36” (90cm) stainless steel built-in glide-out range hood
•LED lighting
•2 speed adjustment
•2 x dishwasher safe honey comb filters
•Electronic push buttons
•Quiet (7 sones/56dB) 300 CFM motor
•115 Volt, 60Hz, 15AMP
•AEG Range Hoods are supplied with a Canadian
cord and plug
•Electrical cord located 65/16” (160mm) from the
top right corner of the unit at the rear
ELECTRICAL REQUIREMENTS
Specifications are subject to change without notice
V1.2
Specifications
PERFEKT GLIDE 36
D: 11” x W: 353/8”
D: 279mm x W: 899mm
RANGE HOOD DIMENSIONS
FRONT PANEL - DUCTED
Specifications are subject to change without notice
V1.2
Specifications
PERFEKT GLIDE 36
CABINET BOX DESIGN
FRONT VIEW SIDE VIEW
357/16”
900mm
61/2”
165mm
Specifications are subject to change without notice
V1.2
Specifications
PERFEKT GLIDE 36

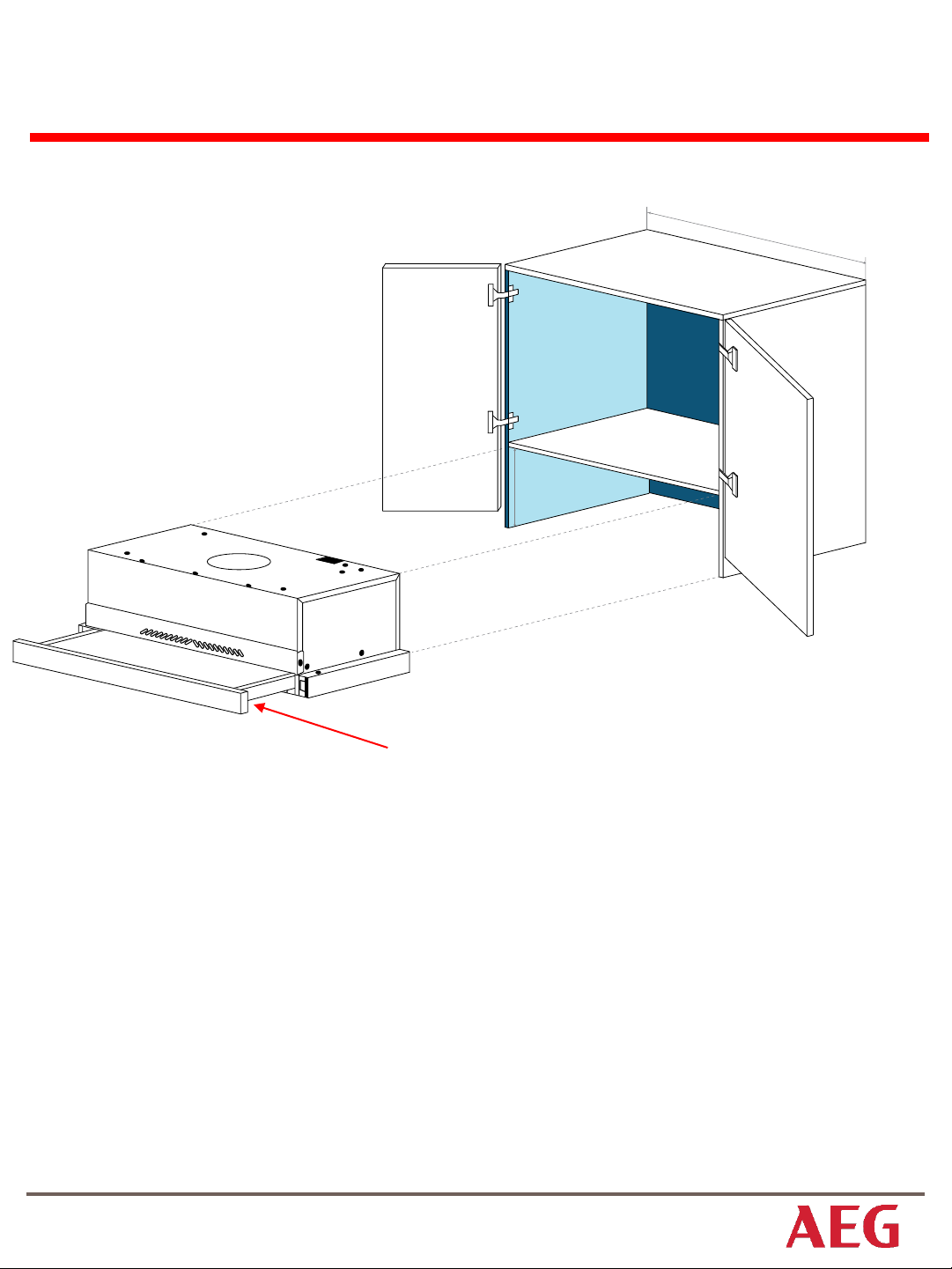

•1. Pull the visor forward
•2. Remove the 4 screws holding the visor to the panel
•3. Install the matching front panel using the 4 screws
*Custom panel provided by customer*
NOTE: Removing the front stainless steel trim
357/16”
900mm
*Outside Cabinet Measurements*
61/2”
165mm
Specifications are subject to change without notice
V1.2
Specifications
PERFEKT GLIDE 36

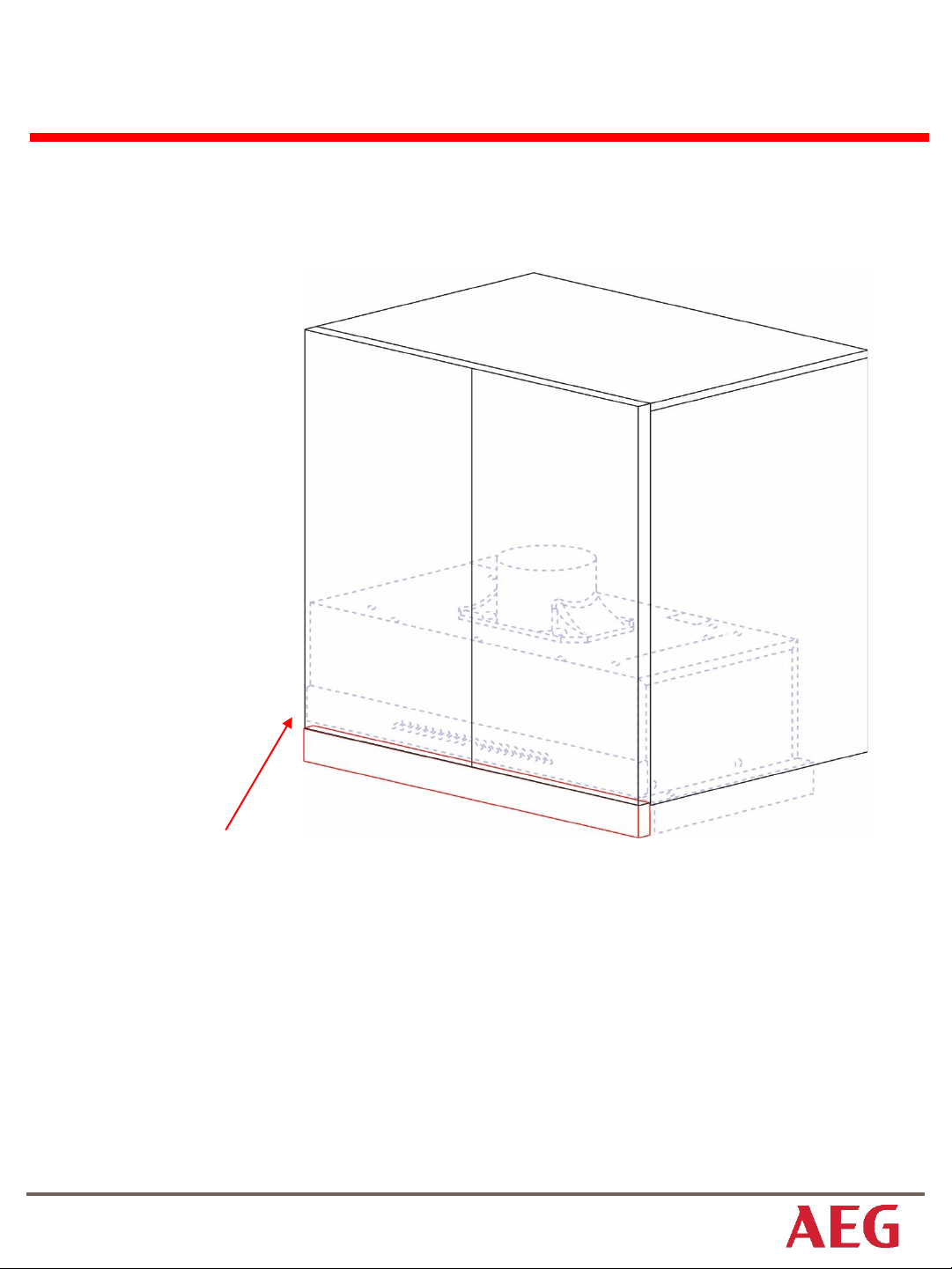

•Ensure that the cabinet door panel is
lengthened to accommodate the
smaller sized Range Hood Front
Panel
NOTE: Cabinet Door Panel Height
AEG Appliances are designed and manufactured to the highest standards.
Each appliance is covered by a comprehensive 2-year parts and labour warranty.
Refer to product warranty policy for complete terms and conditions.
AEG appliances are imported and distributed in North America by
Euro-Line Appliances Inc.Formore information, please visit one of our showroomsor
www.euro-line-appliances.com /www.elawest.com
871 Cranberry Court
Oakville, ON L6L 6J7 Canada
905 829 3980
1 800 421 6332
2912 West 4th Avenue
Vancouver, BC V6K 1R2 Canada
604 235 3980
1 855 ELA WEST (352 9378)
marketing@euro-line-appliances.com
B742
FOR PARTS ANDSERVICE
Euro-Parts & Service
39822 Belgrave Road, Belgrave, ON. N0G 1E0
18006788352 (Canada) •18005614614 (U.S.)
www.euro-parts.ca •parts@euro-parts.ca • service@euro-parts.ca
