NeoV™ Optical Glass - e most

trusted hard glass protection available.

Only on AG Neovo displays

An elegant 22” Full HD display

tted with NeoVTM Optical Glass for

professional dental environments.

Featuring NeoVTM Optical Glass and neat white metal housing,

the DR-22 is able to withstand cleaning agents for easy hygiene

maintenance. On top of LED-backlit Full HD resolution and AIP

technology for clear image details, it comes with illuminator mode

that allows convenient X-ray lm viewing. e DC 24V medical

grade power supply assures not only safety but stable image

presentation in professional dental environments.

> LED-backlit technology with high FHD 1920 x 1080 resolution

> NeoV™ Optical Glass

> AIP technology: PIP; Built-in Image Enhancer

> Durable metal casing

> Touch sensor control keys to prevent vandalism

> Versatile inputs: VGA, DVI, HDMI, S-Video, CVBS (RCA x 2), Audio in

> Built-in speakers (1.5W x2)

> Swi 3 ms response time

> Illuminator mode for easy X-ray lm viewing

> DC 24V medical grade power adaptor allows longer distance connection

> Optional handle allows for easy movement of display

> EN60601-1 and IEC60601-1 medical certication

> Equipotential Terminal safety standard

> EcoSmart Sensor for low watt power consumption

> Auto-adjustment for optimal settings

> Kensington®security socket

> VESA standard mount

DR-22

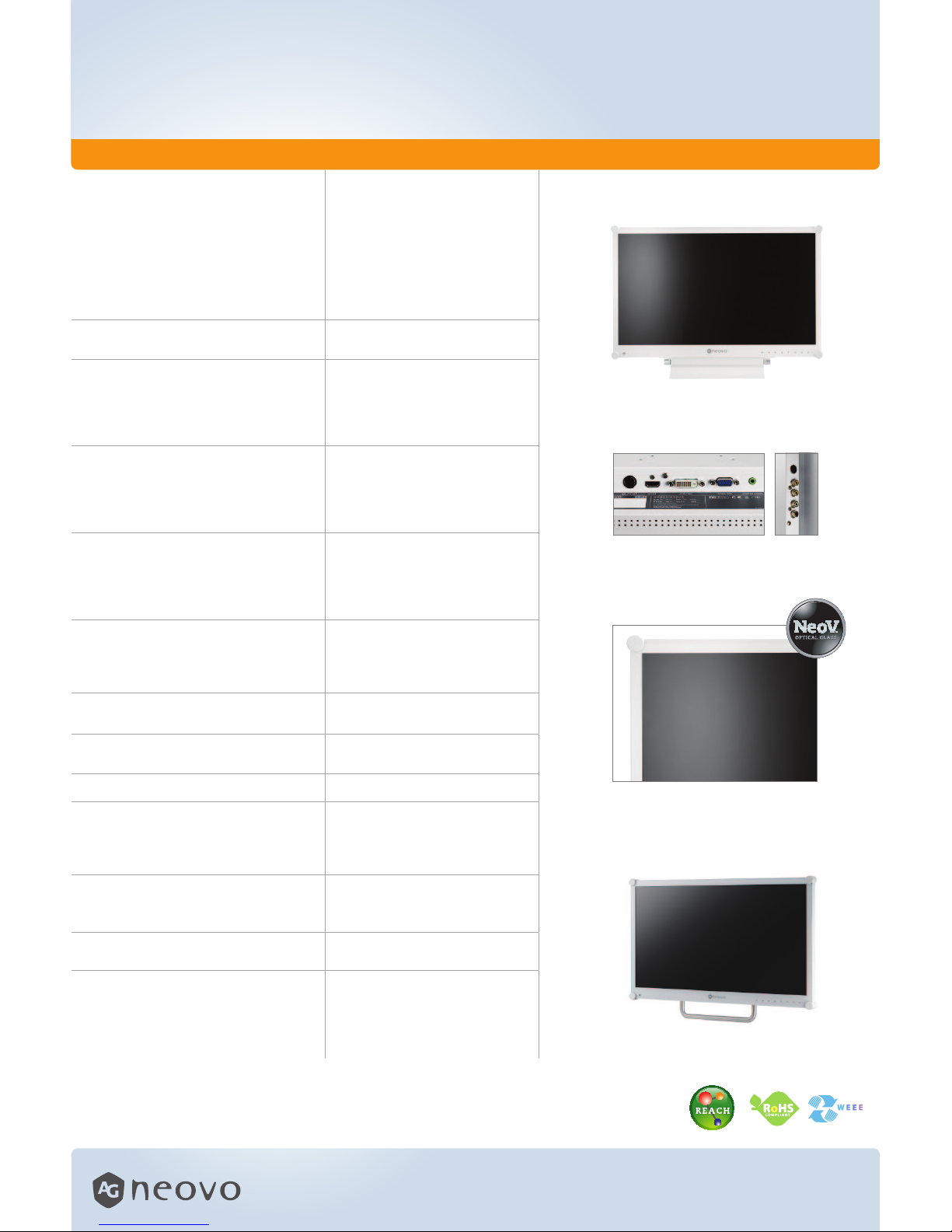

Specications DR-22

All specications are subject to change without prior notice.

All other trademarks are the property of their respective owners.

P/C: DR2200, Version 1.1, 20140121

Panel Panel Type

Panel Size

Max. Resolution

Pixel Pitch

Brightness

Contrast Ratio

Viewing Angle (H/V)

Display Colour

Response Time

LED-backlit TFT LCD

21.5”

FHD 1920 x 1080

0.2482 mm

250 cd/m2 (Typical)

2,000,000 : 1 (DCR)

170°/160° (Typical)

16.7M

3 ms (GTG)

Frequency (H/V) H: 30 kHz - 82 kHz

V: 56 Hz - 75 Hz

Input VGA

DVI

CVBS

S-Video

HDMI

15-Pin D-Sub

24-Pin DVI-D

RCA x 2

4-Pin mini DIN

HDMI

Audio Audio In

Speaker

1 x stereo audio in for PC (audio

jack, 3.5 Ø)

1 x stereo audio in for CVBS or

S-Video (RCA)

1.5W x 2

Power Power Supply

Power Requirements

Consumption

External

DC 24V

<25W (On)

<3W (Active Off)

<1W (Off)

NeoV™

Optical Glass

Thickness

Reection Rate

Transmission Rate

Coating Hardness

3.0 mm (0.12”)

< 1%

> 96%

Operating

Conditions

Temperature

Humidity

0°C ~ 40°C (32°F~104°F)

10%~90% (No condensation)

Storage

Conditions

Temperature

Humidity

-20°C ~ 60°C (-4°F~140°F)

5%~95% (No condensation)

Mounting VESA FPMPMI Yes (100 x 100mm & 75 x 75mm)

Dimensions Product

(W x H x D)

Packaging

(W x H x D)

513 x 369 x 155 mm

(20.2” x 14.5” x 6.1”)

602 x 476 x 212 mm

(23.7” x 18.7” x 8.3”)

Weight (net) w/o base

w base

Packaging Weight

6.3 kg (13.9 lbs)

6.9 kg (15.2 lbs)

9.0 kg (19.8 lbs)

Regulation

Approval

Certications &

Compliance

FCC, CE, RoHS, WEEE, REACH,

GOST-R

Accessories Supplied

Optional

CD ROM (user manual), power

cord, power adaptor 5m, 15-Pin

D-Sub cable, audio cable

Display handle (HDL-02), X-ray lm

positioner

DR-22

Analogue, DVI, S-Video, CVBS and HDMI inputs for

video device or PC data feeds

Convenient handle allows for easy movement

Strong metal design for increased durability

NeoV™ Optical Glass protects against scratches, impacts

and other physical damage
