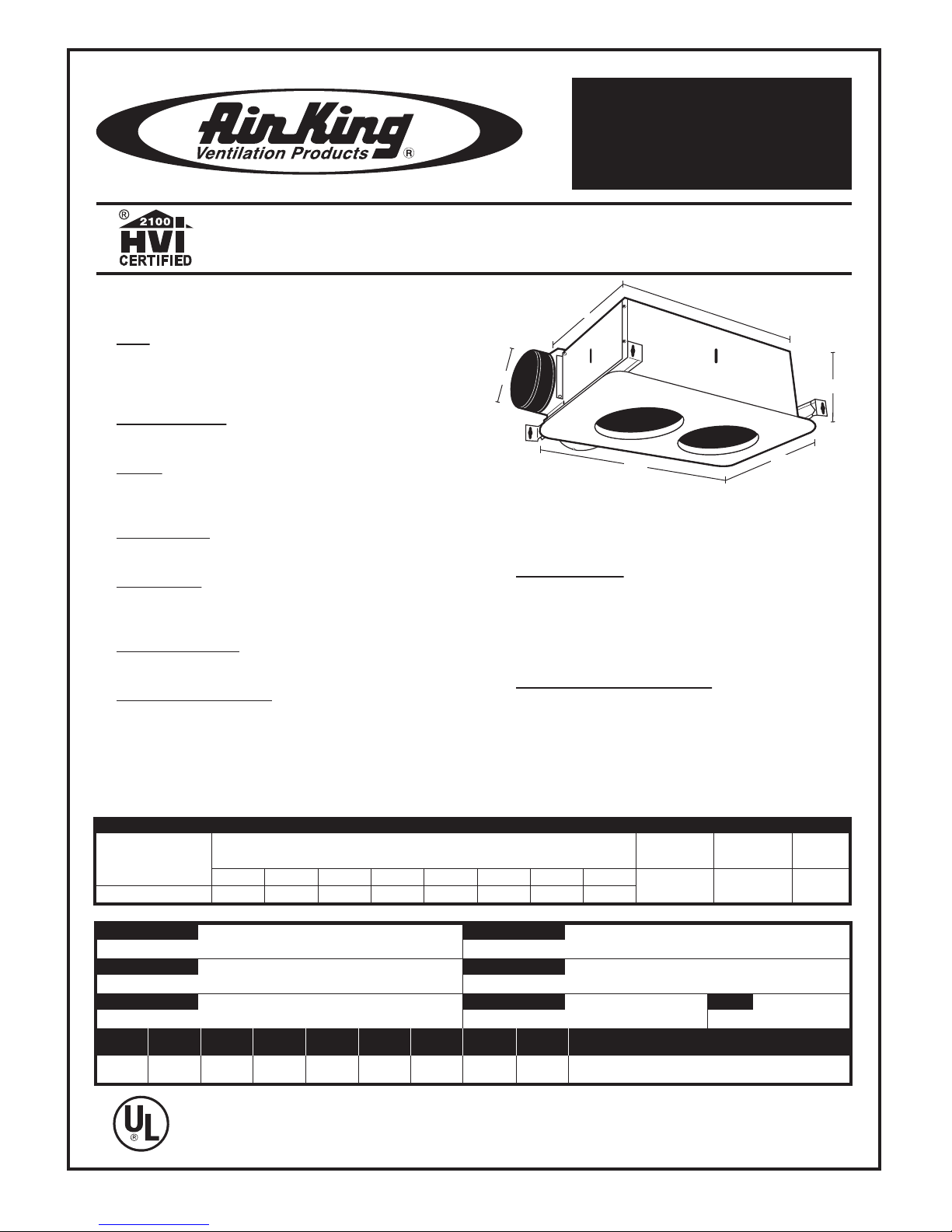

SPECIFICATIONS

HEATER WITH EXHAUST FAN

AK927

Specifications subject to change without notice.

CUS

• Grill

White, polymeric grill (flame retardant ABS UL rated 94-5V)

secured in place with torsion springs; easily removed if

neccessary, dimensions - 161/2" x 10".

• Blower Wheel

One piece polymeric wheel, 37/8"diameter, 21/2"wide with 21 fins.

• Motor

Heavy duty, plug in 2 pole motor. Life time lubrication, thermally

protected. Rated 120 volts, 60 hz., 0.90 amps.

• Fan Housing

23 gauge galvanized steel housing. Dimensions 137/8" x 8" x 57/8".

• Duct Collar

Plastic collar for 4" duct connection, comes complete with built in

non-metallic back draft damper for quiet operation.

• Ventilating Area

For bathrooms up to 70 sq. ft.

• Lamping Information

2 - 250 watt maximum, type R40 bulb, medium base, 850 Btu. with

shaped aluminum socket housing with porcelain socket.

(lamp not included)

• Unit Mounting

The housing will mount in ceilings with at least 6" of

clearance and through drywall thickness up to 3/4", with a

rough-in opening of 137/8" x 8". Rated for ceilings insulated

to R-40. The housing will mount between 16" on center

joists, using the 4 supplied housing mounting rails.

• Single Pack Shipping Info

Box Dim: 18" x 111/2" x 73/4"

UPC: 0-8316227011-5

Shipping Weight: 9 lbs.

PERFORMANCE

HVI Sones Fan Speed Power

Static Pressure (inches of w.g.) @ .1 SP RPM Watts

0 0.05 0.1 0.125 0.15 0.2 0.25 0.3

Air Flow - CFM

CUL/HVI - TYPE IC RATED

PROJECT

LOCATION

CONTRACTOR

ARCHITECT

ENGINEER

SUBMITTED BY DATE

FAN MODEL CFM IN RPM WATTS AMPS SONES QTY OPTIONAL EQUIPMENT

NUMBER NUMBER W.G. & REMARKS

57/8"

137/8"

10"

161/2"

Updated 1-11

U.S.: 820 Lincoln Avenue

West Chester, Pennsylvania 19380-4466

Tel: (610) 692-7400 • 877-304-3785

Fax: (610) 696-8048

Canada: 8 Edvac Drive

Brampton, Ontario L6S 5P2

Tel: (905) 456-2033

Fax: (905) 456-1015

70 CFM/3.5 Sones @ 0.10" SP., 120 Volts, 4.6 amps, 60 hz.
