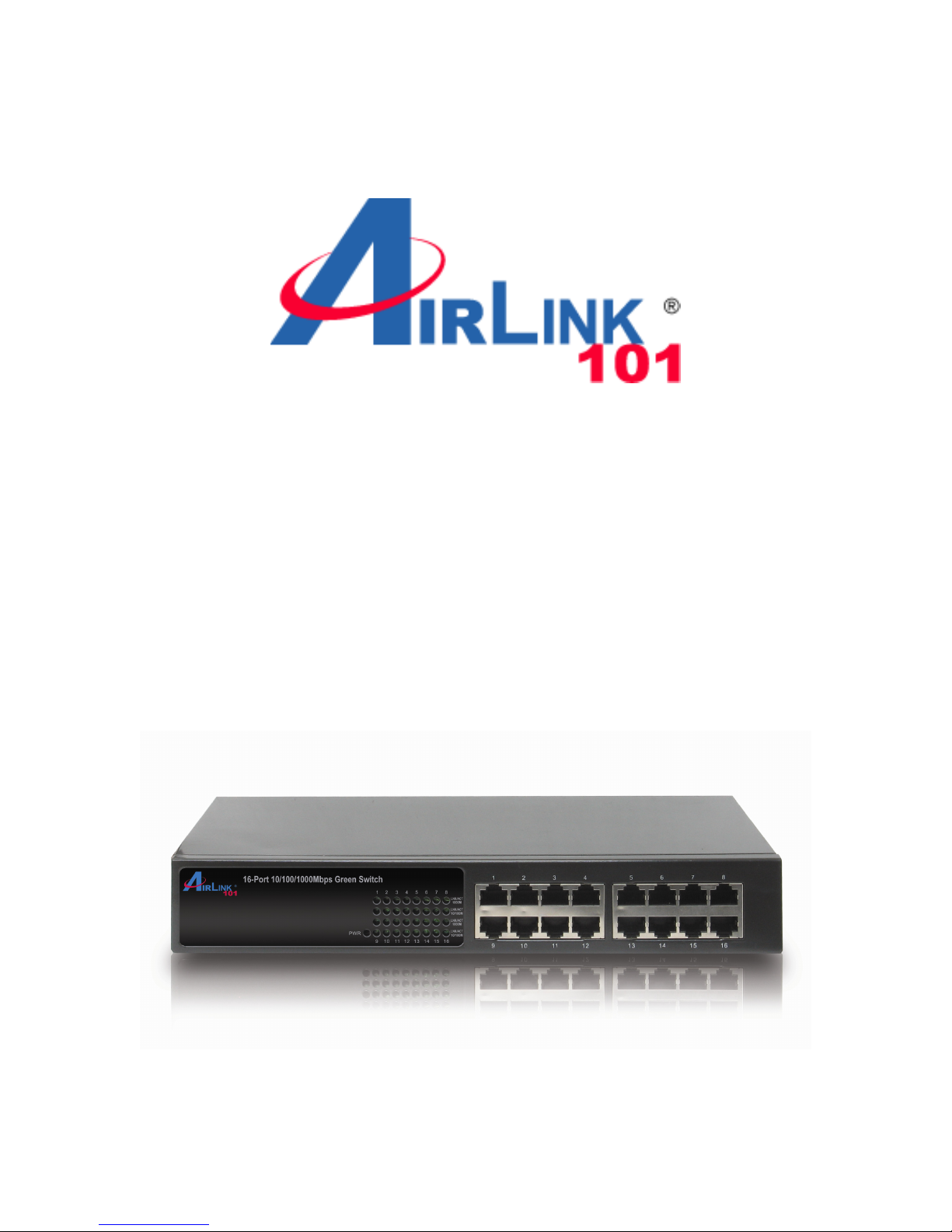

Quick Installation Guide
16-Port 10/100/1000Mbps
Green Switch
Model# AGSW1600
Ver. 1A
1
Trademarks
Copyright © 2011 Airlink101®
Airlink101® is a registered trademark. All other trademarks
belong to their respective proprietors.
Copyright Statement
No part of this publication may be reproduced in any form or
by any means or used to make any derivative such as
translation, transformation, or adaptation without permission
from Phoebe Micro, Inc.
Preface
FCC Warning
This device has been tested and found to comply with limits
for Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the user’s
manual, may cause interference in which case the user will
be required to correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the
user may be required to take adequate measures.
2
Congratulations on your purchase of the 16-Port
10/100/1000Mbps Green Switch! It is an easy-installed
network switch which helps you to extend your network
structure quickly and reliably. The 16-Port 10/100/1000Mbps
Green Switch is designed for energy saving, easy installation
and high performance in an environment where network
traffic and the number of users increase continuously. You
can add other Ethernet devices like computers, IP cameras,
and Network Attached Storage (NAS) onto your network
quickly and easily. The Green EEE (Energy Efficient Ethernet)
technology of AGSW1600 automatically reduces the power
usage when a connected port is detected inactive (idle or
cable-unplugged) and intelligently allocates less power for a
port that connects with an Ethernet cable shorter than 20m
(66 ft)*.
Before you begin the installation, please check the items of
your package:
Package Contents:
•16-Port 10/100/1000Mbps Green Switch
•Power Cord
•Quick Installation Guide
•Brackets and Screws
Introduction
3
Hardware Description
1.1 Hardware Interface
•16-Port 10/100/1000Mbps auto-negotiation RJ45 Ports
•All ports support auto MDI/MDIX, no need to use
cross-over cables
1.2 Panel
1.2.1 Front Panel
The front panel of the Switch consists of LED indicators, and
16 10/100/1000Mbps ports. The figure below shows the front
panel of the Switch.
Figure 1-1 Front Panel view of the Switch
•10/100/1000Mbps Ports (Port 1~16): These ports support
10/100/1000Mbps, and can operate in Half/Full Duplex
transfer modes. These ports also support automatic
MDI/MDI-X crossover detection, giving true “plug and
play” capability.
•LED Indicators: Comprehensive LED indicators display
the status of the Switch and the network (see Section
1.2.3).
Section 1
4
1.2.2 Rear Panel
Figure 1-2 Rear Panel view of the Switch
•AC Power Connector: Supports AC 100~240V, 50~60Hz.
NOTICE:
Do not cover or put anything on or surrounding the Switch
while the Switch is operating.
1.2.3 LED indicators information
The front panel LEDs provide instant status feedback and
help monitoring and troubleshooting when needed.
Figure 1-3 Front Panel view of the Switch
5
•POWER: Power Indicator
Status
LED Color Solid Blinking Off
POWER Green
The Switch is
power-on N/A No power
•Port 1~16 10/100/1000Mbps Status LEDs
Status
LED Color Solid Blinking Off
LINK/
ACT
10/100M
Green
The
respective
port is
successfully
connected to
the
10/100Mbps
Ethernet
network
The port is
transmitting or
receiving data
at
10/100Mbps
No link
Status
LED Color Solid Blinking Off
LINK/
ACT
1000M
Blue
The
respective
port is
connected to
the 1000Mbps
Ethernet
network
The port is
transmitting or
receiving data
at above
100Mbps
No link
6
Installing the Switch
The site where you place the Switch may greatly affect its
performance.
2.1 Installation
Please follow the guidelines below to install the Switch:
•Please install the Switch in a fairly cool and dry place.
Please refer to the Technical Specifications for the
acceptable temperature and humidity operating
ranges.
•Please install the Switch on a sturdy, level surface that
can support its weight.
•When connecting the power cord to the Switch and the
power outlet, the distance should be no more than
182cm.
•Please leave at least 10cm (about 4 inches) of space
at the front and rear of the Switch for ventilation.
2.2 Desktop or Shelf Installation
When installing the Switch on the desktop or shelf, please
attach the rubber feet to the Switch. Peel off the protective
paper on the pads and attach them to the bottom of the
Switch (one at each corner).
Section 2
7
2.3 Rack Installation
The Switch is rack-mountable and can be installed on an EIA
11-inch equipment rack. To do this, first install the mounting
brackets on the Switch’s side panels (one on each side),
secure them with the included screws, and then use the
screws provided with the equipment rack to mount the
Switch.
2.4 Power on the Switch
The Switch has a universal power supply ranging from 100V
to 240V AC, 50 ~ 60Hz power source. The AC power
connector is located at the rear of the unit. The switch’s
power supply will adjust to the local power source
automatically.
8
Connecting the Switch
This section describes how to connect the Switch to your
10/100/1000Mbps Ethernet network.
Your network device (i.e. computer, switch, IP Camera, VoIP)
can be connected to any port of the Switch via a two-pair
UTP Category 5 Cable. If the LED indicators do not light up
after making a proper connection, check your network device,
the cable, the Switch conditions and connections.
Section 3
9
Troubleshooting
1. Power LED is not lit
•Check if the power adapter is properly connected to the
power outlet. Make sure the power jack is firmly plugged
into the power socket of the switch.
2. Link/Activity is not lit when connect to 10/100/1000Mbps
device
•Check the power switch of the network device attached to
the switch; make sure it is turned ON.
•Check the network cable; make sure it is properly
connected to the switch and the network device.
•Check the network cable; make sure the UTP cables
comply with the specifications described in Section 2.
Section 4
