Wireless –G IP Camera

5400CA

English

Declaration of Conformity

We, Manufacturer/Importer

OvisLink Corp. 5F., NO.6, Lane 130, Min-Chuan RD., Hsin-Tien City, Taipei County,

Taiwan Declare that the product Wireless 802.11g IP Camera

WL-5400CAM is in conformity with

In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive

Clause Description

■EN 300 328 V1.4.1

:2003-04

■EN 301 489-1 V1.3.1

:2001-09

■EN 301 489-17 V1.2.1

:2002-08

■EN 55022: 1998 A1

: 2000/A2:2003

■EN 61000-3-2:2000

■EN 61000-3-3:1995/ A1

:2001

■EN55024:1998/ A1

:2001/A2:2003

■EN60950-1:2001

■CE marking

Manufacturer/Importer

Signature：

Name ：____Albert Yeh

Postion / Title ：Vice Presdient

Date ：2005/8/1

Electromagnetic compatibility and Radio spectrum Malters

(ERM); Wideband transmission equipment operating in the

2.4GHz ISM band And using spread spectrum modulation

techniques;

Part 1：Technical Characteristics and test

conditions Part2：Harmonized EN overing Essential

requirements under article 3.2 of the R&TTE Directive

Electromagnetic compatibility and Radio spectrum Matters

(ERM); Electromagnetic compatibility(EMC) standard for

radio equipment and

Services; Part 17：Specific conditions for wideband data

and HIPERLAN equipment

Limits and methods of measurement of radio

disturbance characteristics of information technology

equipment

Disturbances in supply systems caused by household

appliances and similar electrical equipment "Harmonics"

Disturbances in supply systems caused by household

appliances and similar electrical equipment "Voltage

fluctuations"

information Technology equipment-Immunity

characteristics-Limits and Methods of measurement

Safety for information technology equipment including

electrical business equipment

English

Wireless –G IP Camera

5400CA

English

Note on the FCC standard

This equipment has been tested and found to comply with the limits for a

Class B digital device pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interferences when the equipment is operating in a commercial area. This

equipment generates uses and may radiate radiofrequency energy, and if

not installed in accordance with the user guide, may cause interference in

the transmission of radio communications. If operating in a residential area,

it is probable this equipment will cause harmful interference, in which case

the user will be required to try to correct this interference using his own

means.

Note on CE Marking

This is a Class B product. In a residential area this product may cause

radio interference, in which case the user can be required to take the

appropriate measures. OvisLink Corp. hereby declares that

WL-5400CAM meets the basic requisites of directive 99/05/CE, and is

therefore liable for the accuracy of these data:

OvisLink Corp.

5F, No.6 Lane 130,

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: +886-2-2218-6888

Warranties

This product has undergone various quality controls to ensure proper

operation.

This product is covered by a two-year warranty for countries inside

European Union. For other countries, the warranty period is one year

only. In the event of any manufacturing fault or breakdown, it will be repair

by OvisLink Corp. Please contact your supplier for details on the

procedure to follow. This warranty shall not be applicable in the event of

damage caused by improper use of the product, accidents, faulty handling

or manipulation nor any future incompatibility with third party products.

English

Wireless –G IP Camera

5400CA

English

Hardware Installation

English

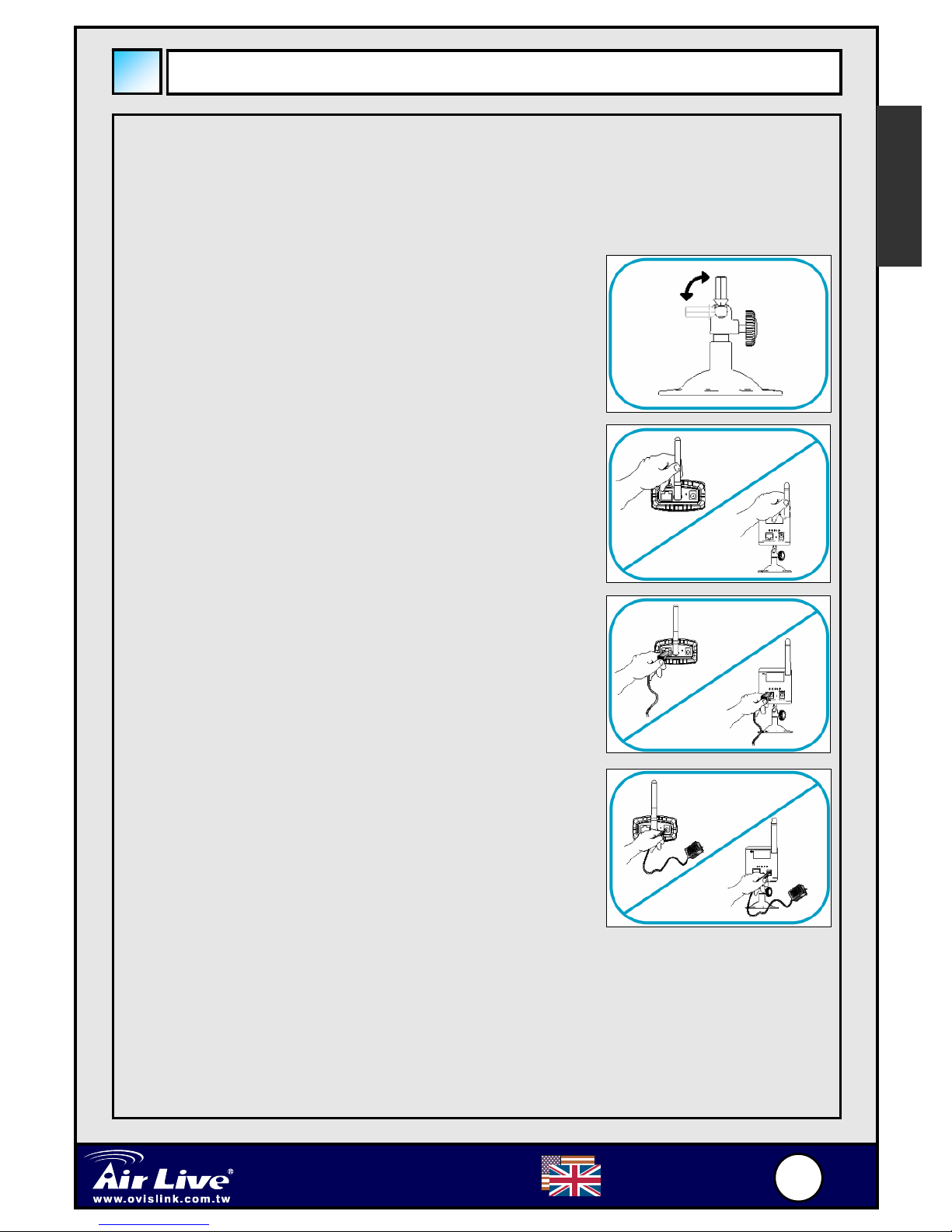

Attaching the Camera Stand

The Wireless Internet Camera comes with a

camera stand, which has a swivel ball screw

head that can be attached to the camera’s screw

hole on the top/bottom panel. Attach the

camera stand to the camera and station it for

your application.

Installing the Antenna

Please screw the antenna on SMA female

connector located on rear panel of the camera.

Adjust the antenna position by means of the

swivel head of the antenna for best possible

reception.

Connecting the Ethernet Cable

Connect an Ethernet cable to the network cable

connector located on the camera’s rear panel,

and then connects it to the network.

Connecting the Power Supply

Connect the external power supply to the DC

power input connector located on the camera’s

rear panel, and then connects it to your wall

outlet. (Tip: You can confirm the power source is

supplied from the Power LED on the camera.)

Wireless –G IP Camera

5400CA

English

Running the Setup Wizard

The Setup Wizard is a convenient tool that will guide you through

the installation of your camera easily and quickly. After

connecting the camera to your computer, you can install the Setup

Wizard and complete the configuration now.

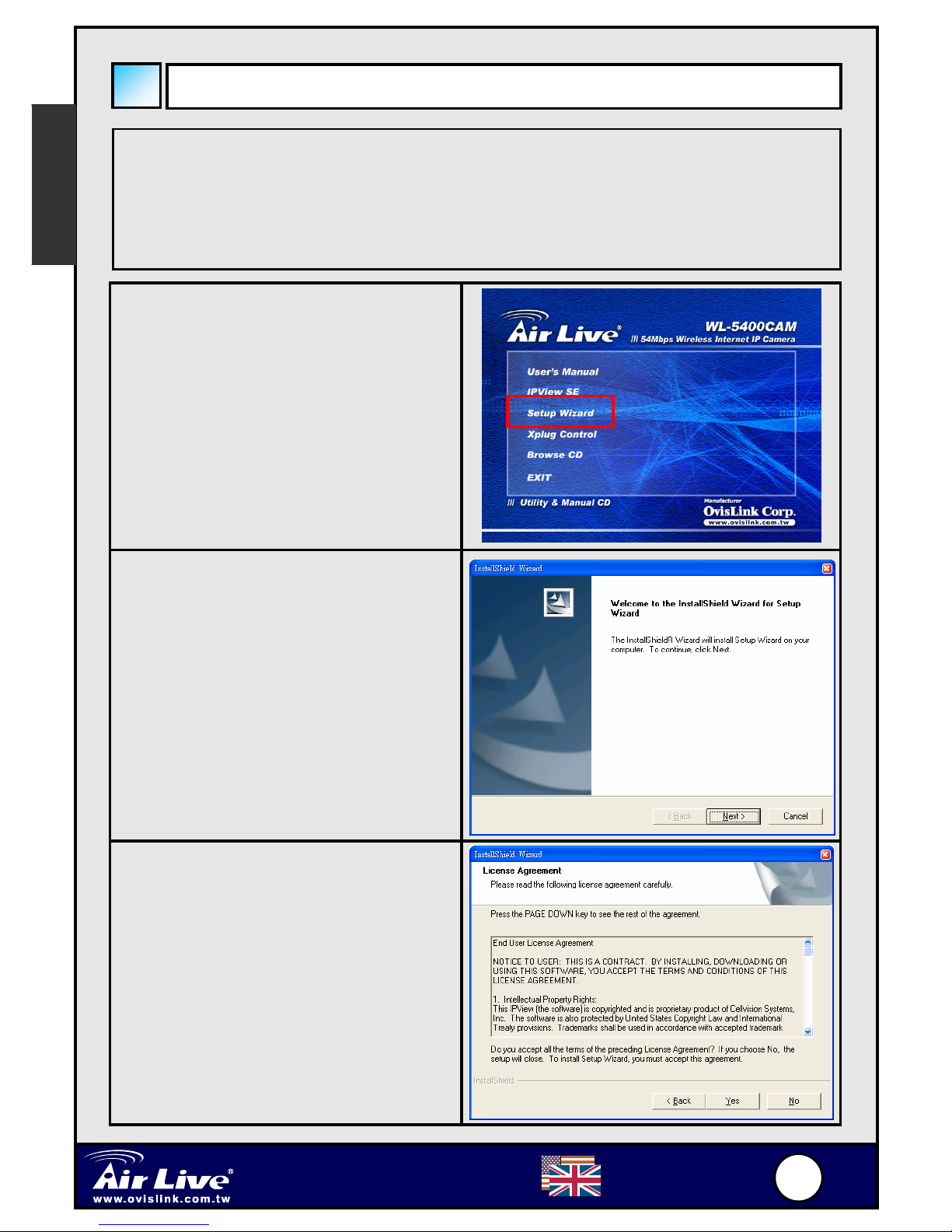

1. Insert the Installation

CD-ROM into your

CD-ROM drive.

Click Install Wizard.

2. Click Next.

3. Click Yes.

English

Wireless –G IP Camera

5400CA

English

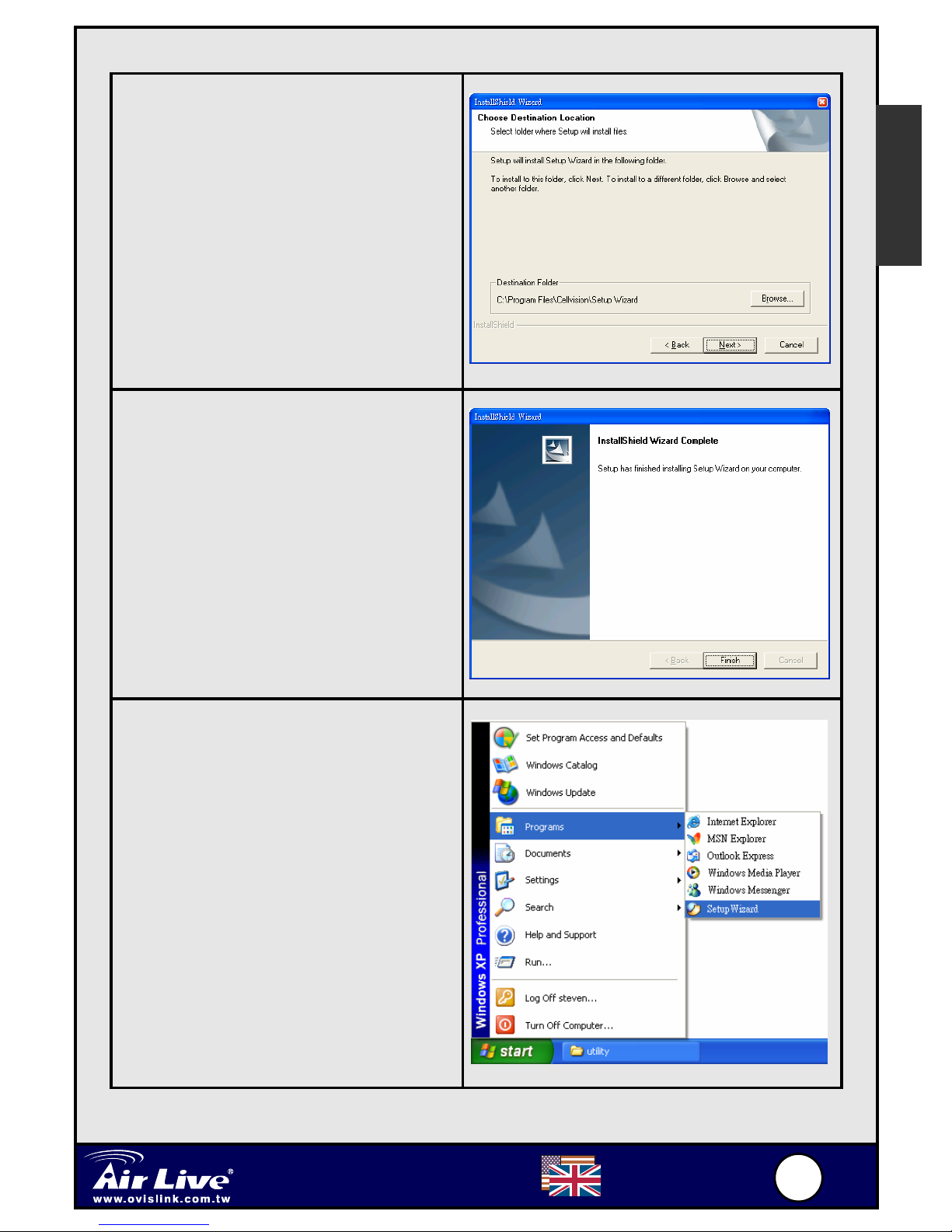

4. Click Next.

5. Click Finish.

To run the Setup Wizard, click

Start -> Programs -> Setup

Wizard.

English

Wireless –G IP Camera

5400CA

English

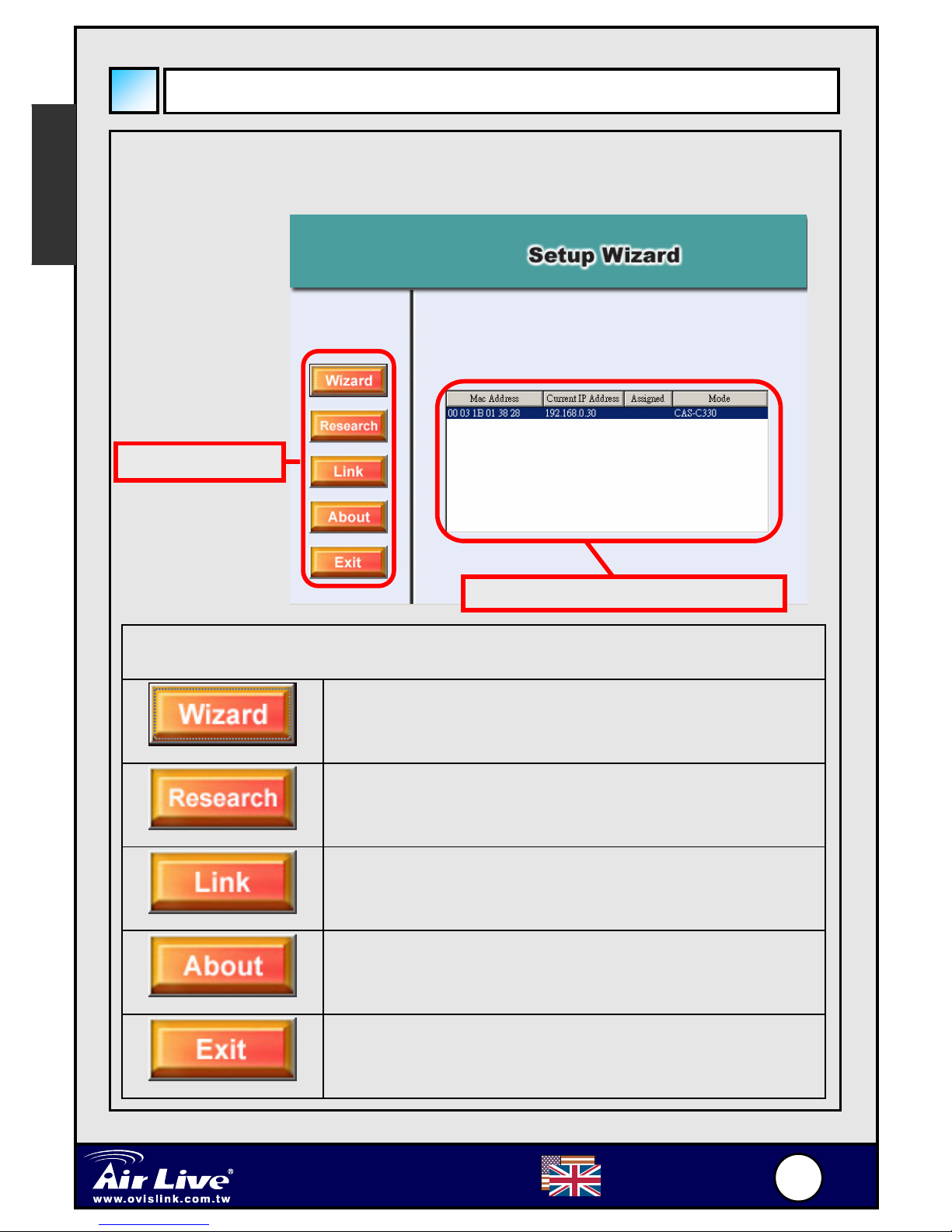

Using the Setup Wizard

When you launch the Setup Wizard, the main window will appear

as shown, and the connected camera will be displayed in the list.

The components on the Setup Wizard:

Click Wizard to begin configuring the selected

camera.

Click Research allows you to search the

connected camera again.

Click Link to launch the web browser and view

the images.

Click About to show the general information of

the selected camera.

Click Exit to close the Setup Wizard.

Control buttons

The connected camera list

English

Wireless –G IP Camera

5400CA

English

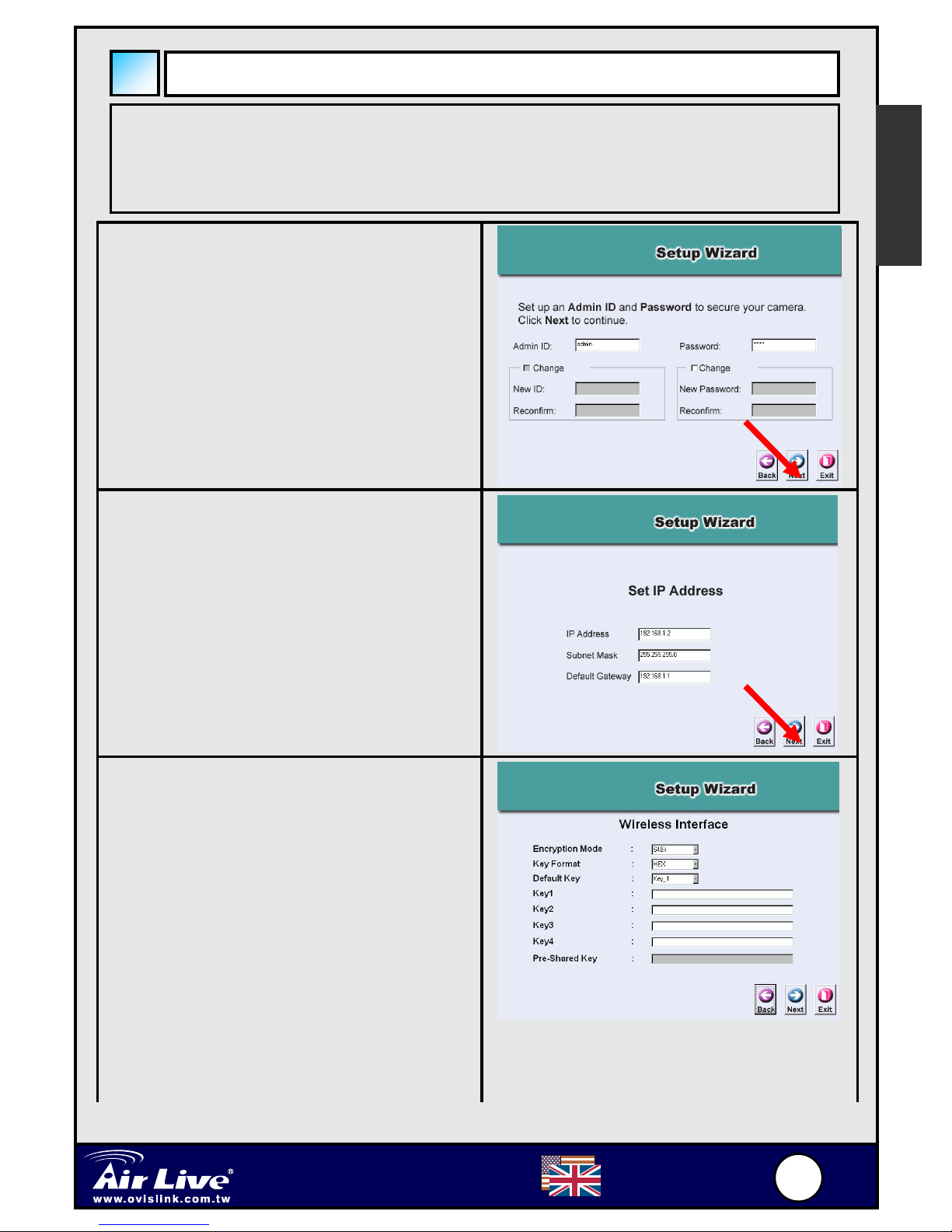

Changing the Admin ID and Password

By default settings, the Admin ID and Password set to blank. For security

purpose, you are recommended to setup the Admin ID and Password

immediately.

Click Wizard. The dialog window

appears as shown, asking you to enter

the Admin ID and Password. If

required, select the Change options

and enter the new Admin ID and

Password. The default Admin ID and

password is blank, you can click Next.

The settings of IP Address, Subnet

Mask and Default Gateway must

correspond with your camera and

networking settings. Please check

with your network administrator for

correct settings.

Click Next.

This step is for wireless model only. If

you want to use wireless function,

select the Enable option. Then, you

have to set up the related settings in

the following fields of the screen,

including Connection Mode, Network

Name (SSID), Wireless Channel,

Security Mode, and Authentication.

If you enable the Security Mode, you

have to set up the configuration in the

following window.

English

Wireless –G IP Camera

5400CA

English

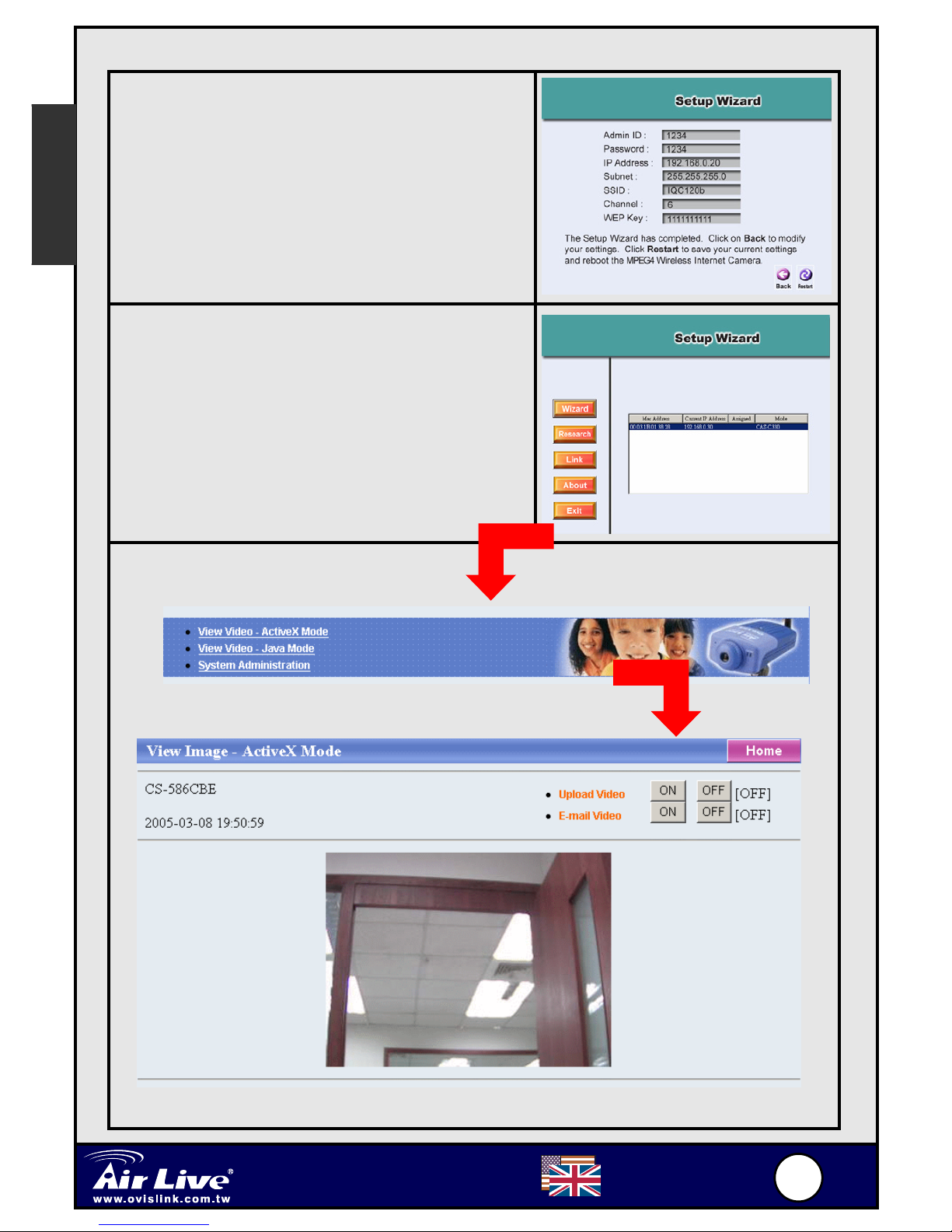

This window displays the settings you set

up. For any change, click Back to modify

your settings. Otherwise, click Restart to

save and apply the settings.

The configuration is completed, and you

will return to the main window. Click Link

to launch the web browser and view the

images

English

Polski

Wireless –G IP Camera

5400CA

Instalacja sprzętu

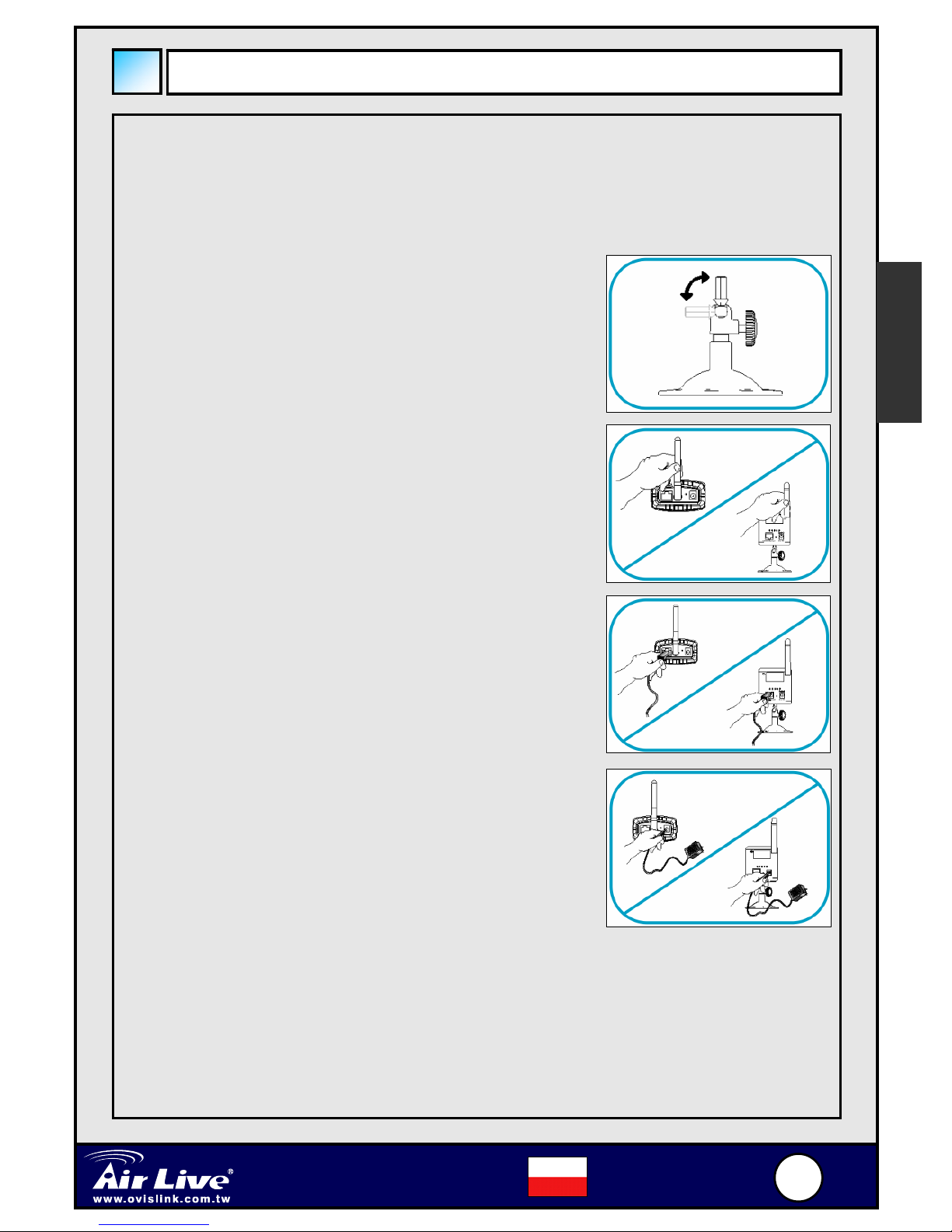

Mocowanie statywu Kamery

Kamera internetowa dostarczana jest wraz ze

statywem, posiadającym obracaną, kulkową

główkę, która można przymocowaćdo otworu na

górnej/dolnej powierzchni kamery. Przymocuj

kamerędo statywu i dostosuj do swoich

wymagań.

Instalowanie Anteny

Przykręć antentędo żeńskiego złącza SMA

ulokowanego na tylnej ścianie kamery. Należy

dobrze ułożyćantene poprzez obracanie okrągłą

główka anteny dla uzyskania najlepszego

możliwego odbioru.

Podłączanie kabla ethernetowego

(dla modeli bezprzewodowych) Podłącz kabel

ethernetowy do wejścia ethernetowego

umiejscowionego na tylnej ścianie kamery a

następnie podłącz go do sieci..

Podłączanie zasilacza sieciowego

Podłącz zewnętrzne źródło zasilania do wejścia

zasilacza umiejscowionego na tylnej ścianie

kamery, a następnie podłącz go do gniazdka

zasilania.

(Wskazówka: Potwierdzeniem prawidłowego

podłączenia do źródła zasilania będzie zapalenie

siędiody LED zasilania).

Polski
