AirLive WH-5420CPE Manuale utente

Quick Setup Guide

Hi-Powered Wireless Outdoor CPE

WH-5420CPE

English

Česky

Deutsch

Español

Ελληνικός

Français

................

..................

...............

............

................

Italiano

Magyar

Polski

Português

Русский

Slovensky

...............

................

.................

..............

.............

............

Table of Contents

List of Languages

WH-5420CPE

English

Declaration of Conformity

We, Manufacturer/Importer

OvisLink Corp.

5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan

Declare that the product

Hi-Powered Wireless Outdoor CPE

AirLive WH-5420CPE

is in conformity with

In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive

Clause Description

EN 300 328 V1.7.1 (2006-10)

Electromagnetic compatibility and Radio spectrum Malters (ERM); wideband transmission equipment operating in the

2.4GHz ISM band and using spread spectrum modulation techniques; Part 1：technical characteristics and test

conditions Part2：Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

EN 301 489-1 v1.6.1 (2005-09)

EN 301 489-17 V1.2.1 (2002-08)

Electromagnetic compatibility and Radio spectrum Matters (ERM); Electromagnetic compatibility(EMC) standard for

radio equipment and Services; Part 17：Specific conditions for wideband data and HIPERLAN equipment

EN 50383:2002

Basic standard for the calculation and measurement of electromagnetic field strength and SAR related to human

exposure from radio base stations and fixed terminal stations for wireless telecommunication systems (110 MHz –40

GHz).

■EN 60950-1:2001/A11:2004

Safety for information technology equipment including electrical business equipment

■CE marking

Manufacturer/Importer

Signature：

Name ：Albert Yeh

Position/ Title : Vice President

Date：2008/10/1

English

WH-5420CPE

English

Note on the FCC standard

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferences

when the equipment is operating in a commercial area. This equipment generates, uses and may radiate radio

frequency energy, and if not installed in accordance with the user guide, may cause interference in the

transmission of radio communications. If operating in a residential area, it is probable this equipment will cause

harmful interference, in which case the user will be required to try to correct this interference using his own

means.

Note on CE Marking

This is a Class B product. In a residential area this product may cause radio interference, in which case the user

can be required to take the appropriate measures. OvisLink Corp. hereby declares that AirLive WHA-5420CPE

meets the basic requisites of directive 99/05/CE, and is therefore liable for the accuracy of these data:

OvisLink Corp.

5F, No.6 Lane 130,

Min-Chuan Rd, Hsin-Tien City,

Taipei, Taiwan

TEL: +886-2-2218-6888

Warranties

This product has undergone various quality controls to ensure proper operation.

This product is covered by a two-year warranty for countries inside European Union. For other countries, the

warranty period is one year only. In the event of any manufacturing fault or breakdown, it will be repaired by

OvisLink Corp. Please contact your supplier for details on the procedure to follow. This warranty shall not be

applicable in the event of damage caused by improper use of the product, accidents, faulty handling or

manipulation nor any future incompatibility with third party products.

English

WH-5420CPE

English

Important Information



The AP mode’s default IP address is 192.168.100.252



The default is set to AP mode.



The default Subnet Mask is 255.255.255.0



The default SSID is airlive



The default DHCP client is Disabled

Hardware Installation

English

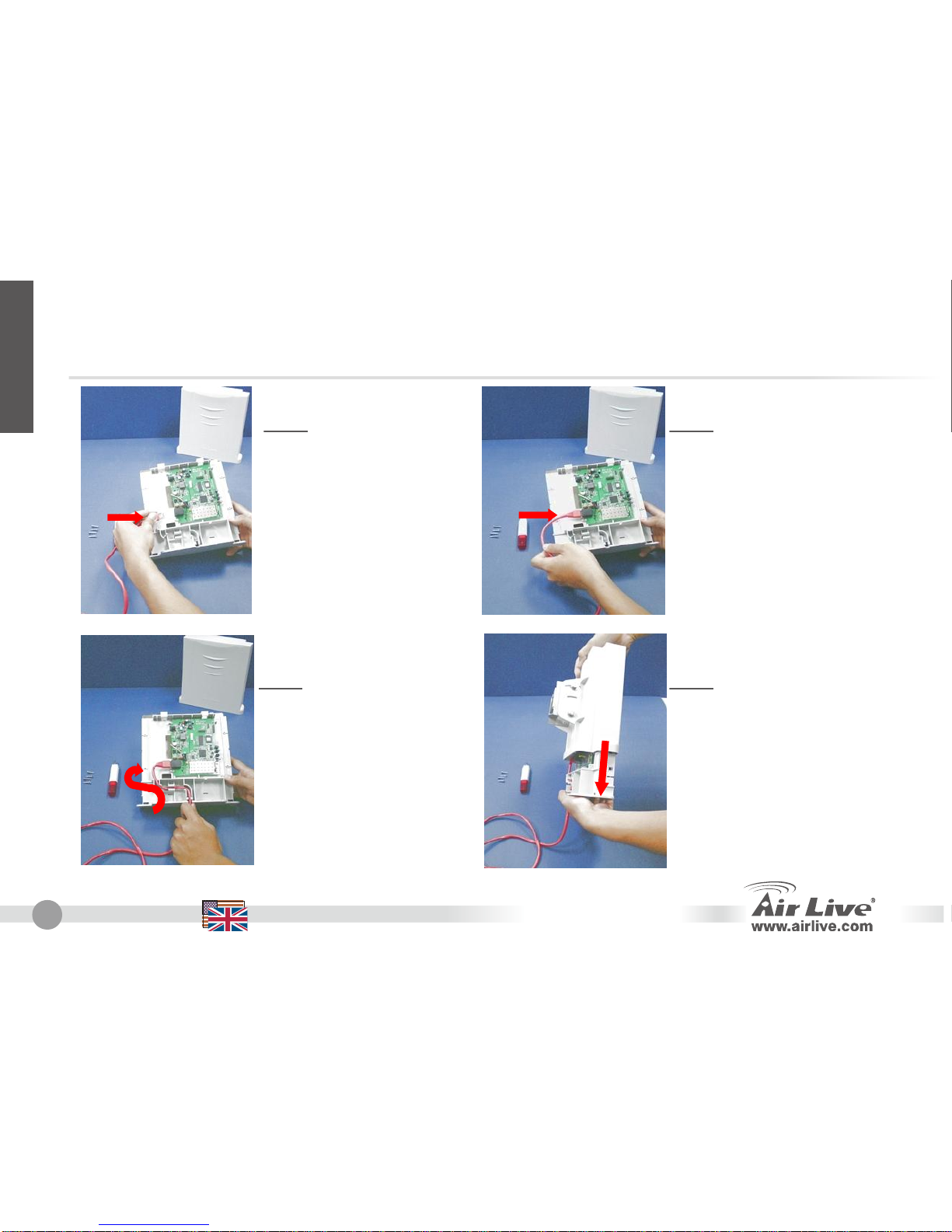

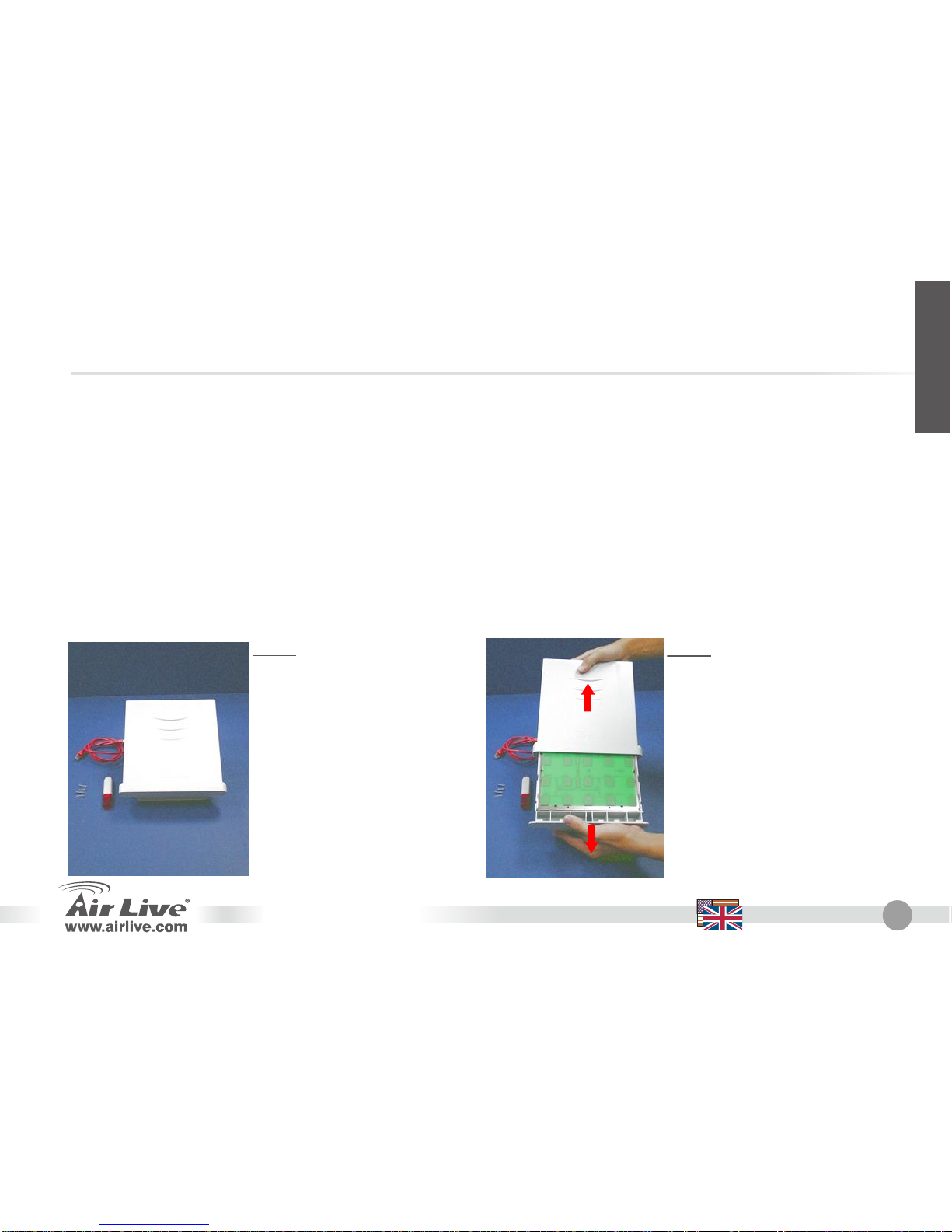

Step 1: A scroll driver and Ethernet

Cable, four screws and

WH-5420CPE main unit

Step 2: Open the housing of

WH-5420CPE

English

Step 3: Turn the WH-5420CPE

to another side, the RJ-45 jack

is at the middle of LEFT side of

main board.

Step 4: Plug one side of RJ-45

cable into the Ethernet port.

Step 5: Put the Ethernet cable

along the module, till the exit (at

the bottom of Housing).

Step 6: Make sure that the other

side of Ethernet cable is out of

housing. Close the housing.

WH-5420CPE

English

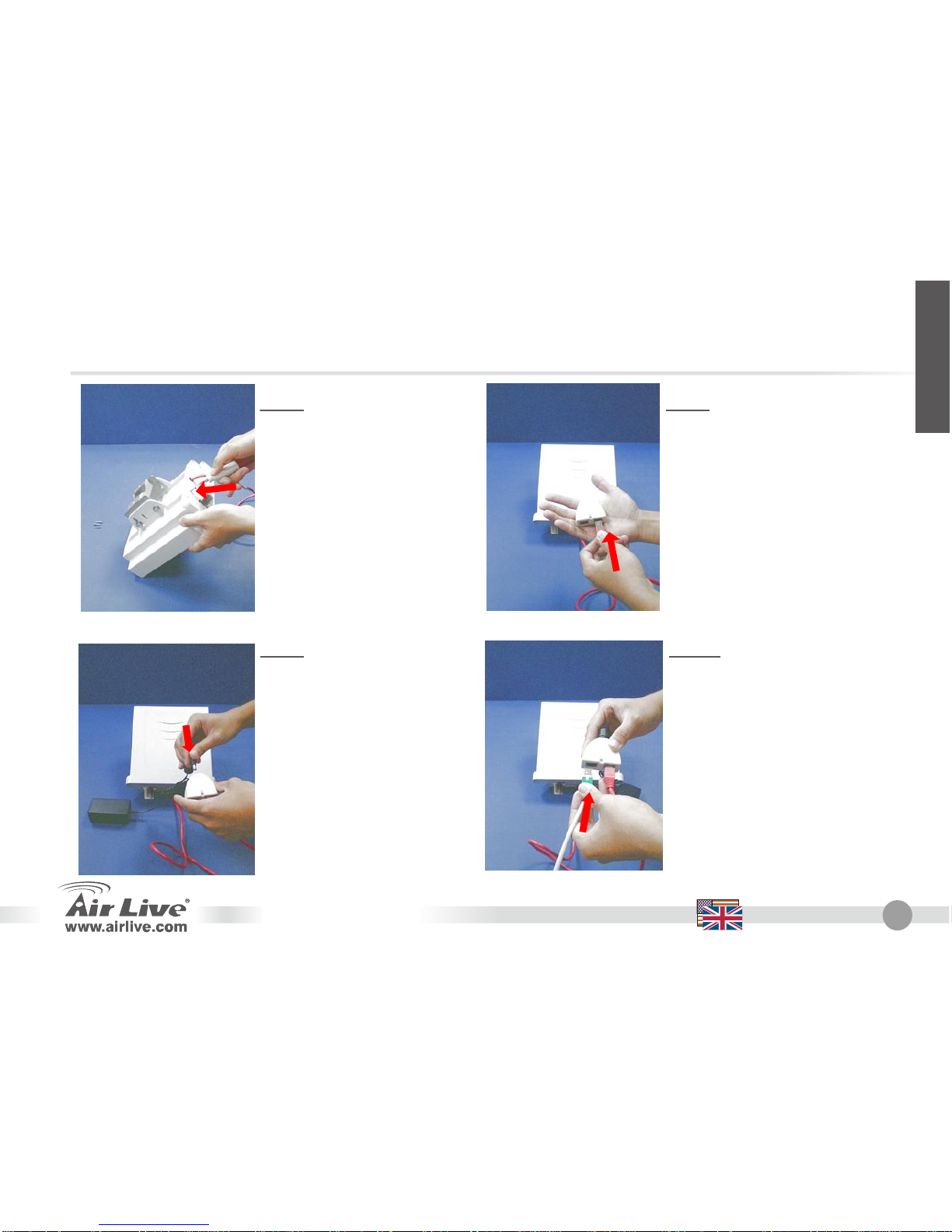

Step 7: Scroll up 4 screws well.

Be careful, this is very important;

it could protect your device

against the water.

Step 8: Plug Ethernet cable to

the PoE “P + DATA OUT” jack

of the injector.

Step 9: Plug the power cord of

adaptor into the injector “POWER

IN” port.

Step 10: Plug the LAN Ethernet

cable to the port “DATA IN” of the

injector.

WH-5420CPE

English

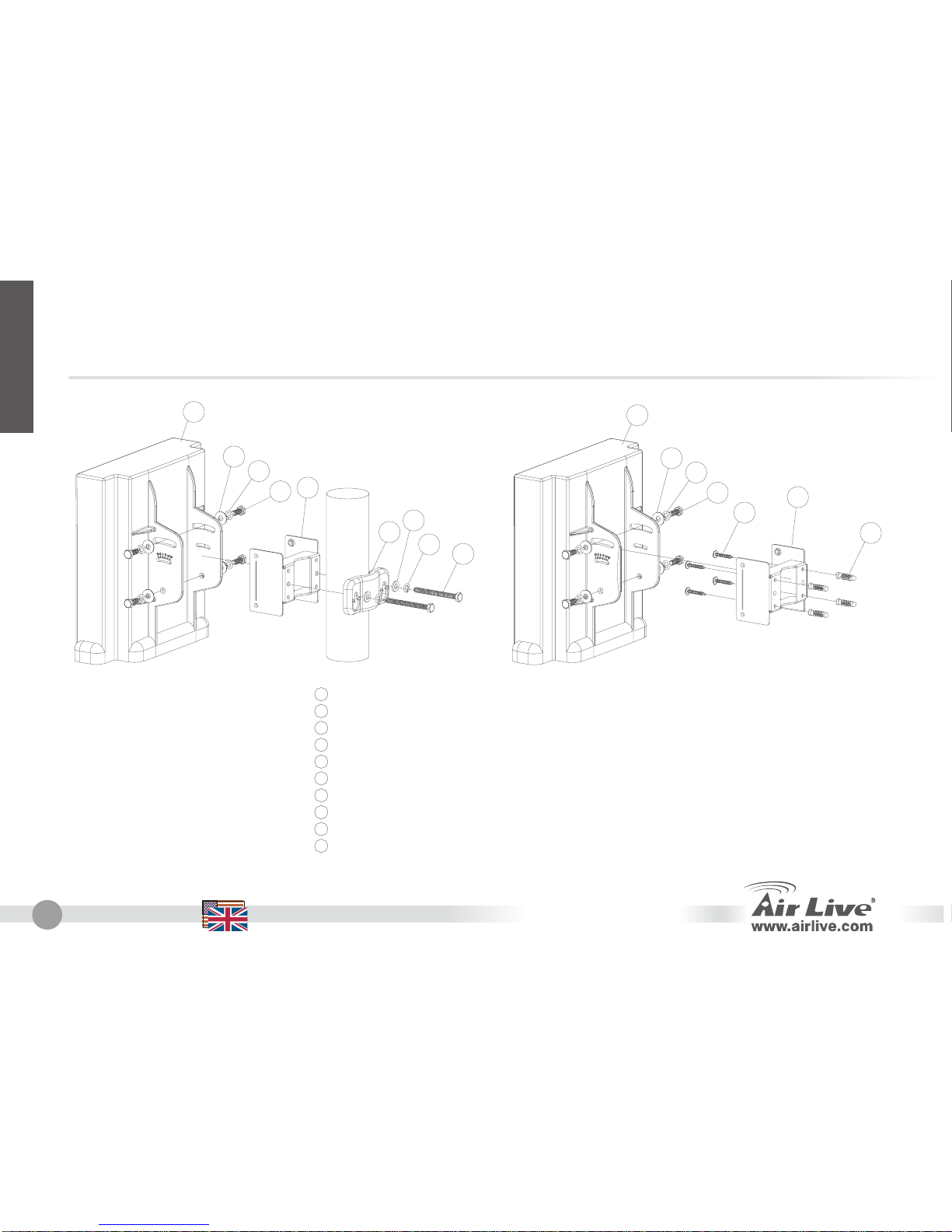

235

Pole mount

910

2345

Wall mount

M-Shaped mounting - 1 pc

Lock frame - 1 pc

M6-60 screw - 2 pcs

M6 S/W - 6 pcs

M6-16 screw - 4 pcs

M6 washer(f16mm) - 4 pcs

Antenna body - 1pc

M6 washer(f12mm) - 2 pcs

5"/32-16 screw - 4 pcs

Plastic anchor - 4 pcs

English

WH-5420CPE

English

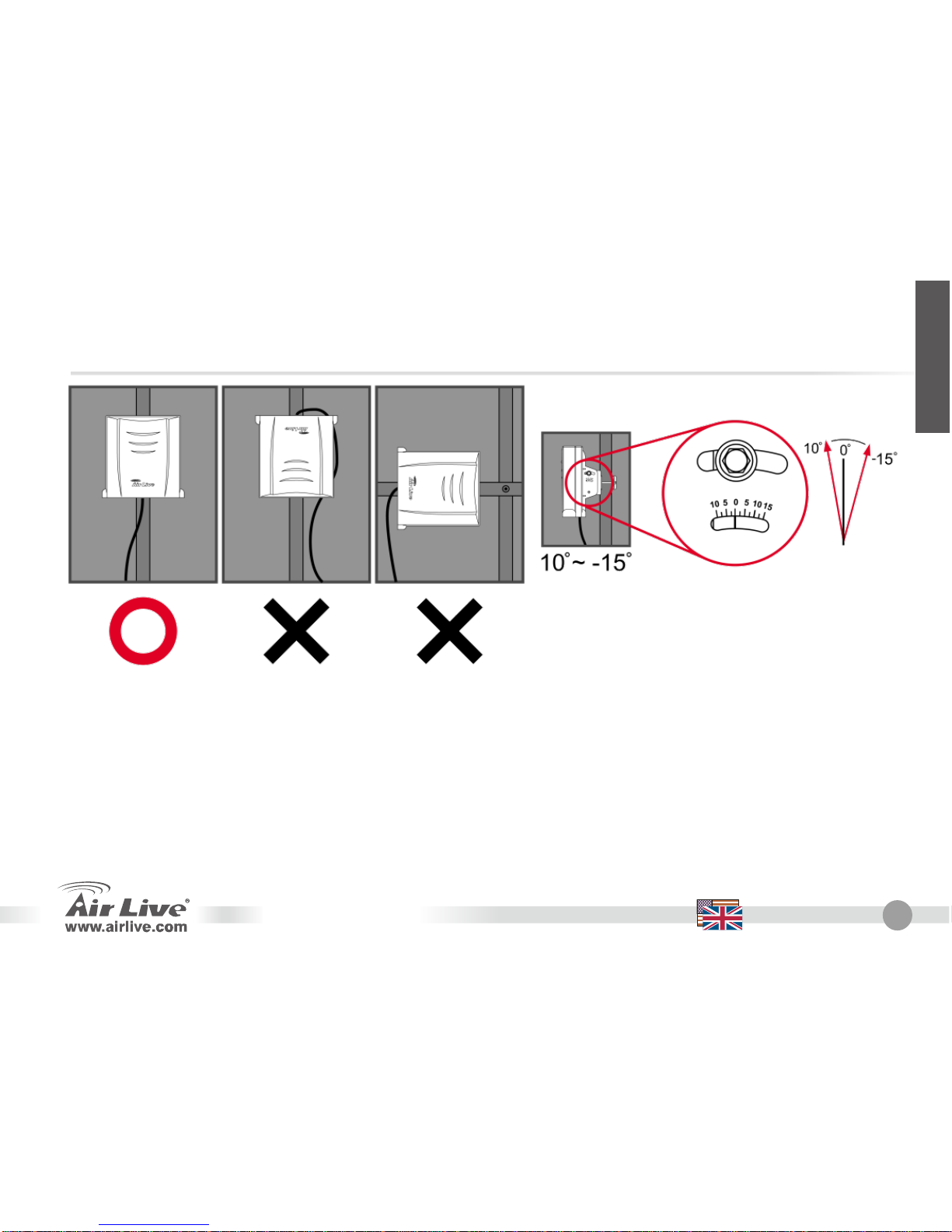

Installation Position



Please install the CPE in the UP RIGHT position only



This device is rain proof when it is installed in upright

position. Please do not put the CPE into water

because it is not waterproof.



Pleasedo not tilt the CPE more than 15

degree angle from vertical

English

WH-5420CPE

English

Configuration Steps



Please install your network cards first before the AP



Screw-in the antenna (clockwise) into the Antenna connector



Connect the power and LAN cable to the back



Use your wireless card to do a site survey, the default SSID is “airlive”



If you need to change AP’s configuration, please follow the procedure below:

The AP mode’s default IP address is 192.168.100.252. Please make sure your computer IP is in

the same subnet as the AP (i.e. 192.168.100.x)

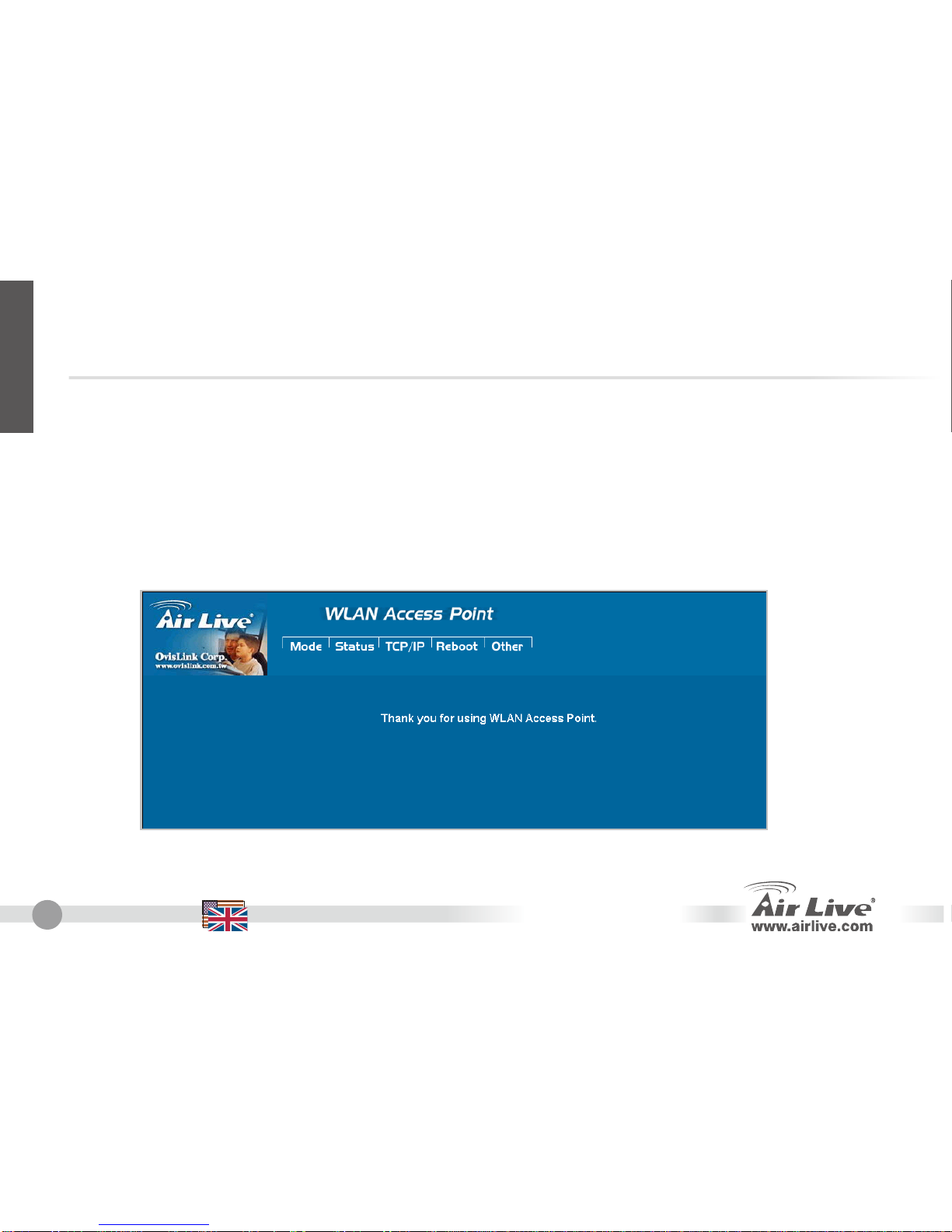

Open the web browser and enter 192.168.100.252.

English
