Airtraq A-390 Manuale utente
A-390 WI-FI CAMERA
Getting Started
Please read full Instructions for Use
February 2022
2. ‘Airtraq Cam’ App for PC/Mac :
•Needed for the initial set up and to download and
delete recorded videos from the A390 to the PC.
•Free download from www.Airtraq.com/downloads/
A390 Camera System.
3. ‘Airtraq Cam’ App for iOS (Apple) and Android:
•Needed on each mobile device to connect Wi-Fi to A390.
•Free download from Apple Store or Google Play
1. A390 Wi-Fi Camera :
•Records .avi video format to
internal memory
•Built in Wi-Fi for remote
viewing
•Use provided AC Charger.
•Use provided Docking Base. USB-C cable is
also available.
•Operating Time:
•120 min.
•80 min (Wi-Fi on).
•Full charging cycle = 110 min.
•Camera will not power on unless remaining
battery level is at least 10 min.
Battery Charge

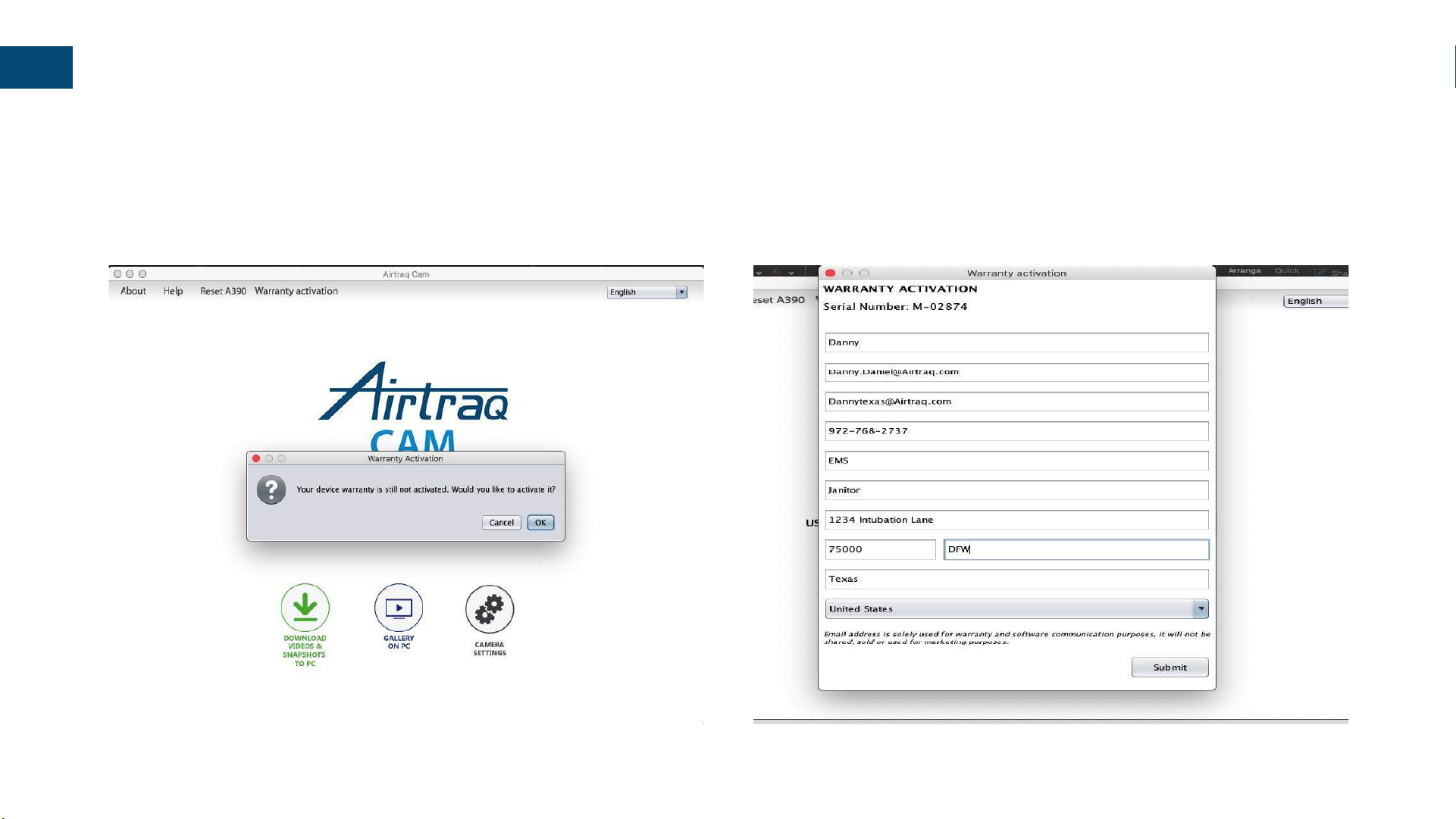

•Upon first connection, register activate your new A390’s warranty
A-390 Initial Set Up
•Update Software, if required.
•Select Language
•Set Cam Id
•Date & Time Auto-Sync
•Create / Change Wi-Fi Password
•Set Auto-Recording On/Off
•Set maximum video recording
time for auto recording.
•Once parameters are entered,
save by clicking on
A-390 Initial Set Up
A-390 Attach to Airtraq
blade
•Place onto Airtraq until it is fully
inserted. A390´s screen shall be in the
opposite direction of Airtraq blade´s
tip.
•Friction keeps A-390 securely
attached to Airtraq.
•A-390 automatically turns on (in 4
secs) in ‘Live Video’ mode.
•Wi-Fi on/off remembers last setting
Menu, Header, Icons
LIVE VIDEO MAIN MENU
Wi-Fi Device ID Rec Counter Battery Level
Disabled
Disabled
•To power on, either:
•Insert A-390 onto Airtraq blade
•Manually press Power On pin
•To turn off press on main menu.
•Automatic shut down, if no user
action, after:
•30 min if inserted onto Airtraq.
•5 min if not inserted onto Airtraq.
Turn on and automatic shut down

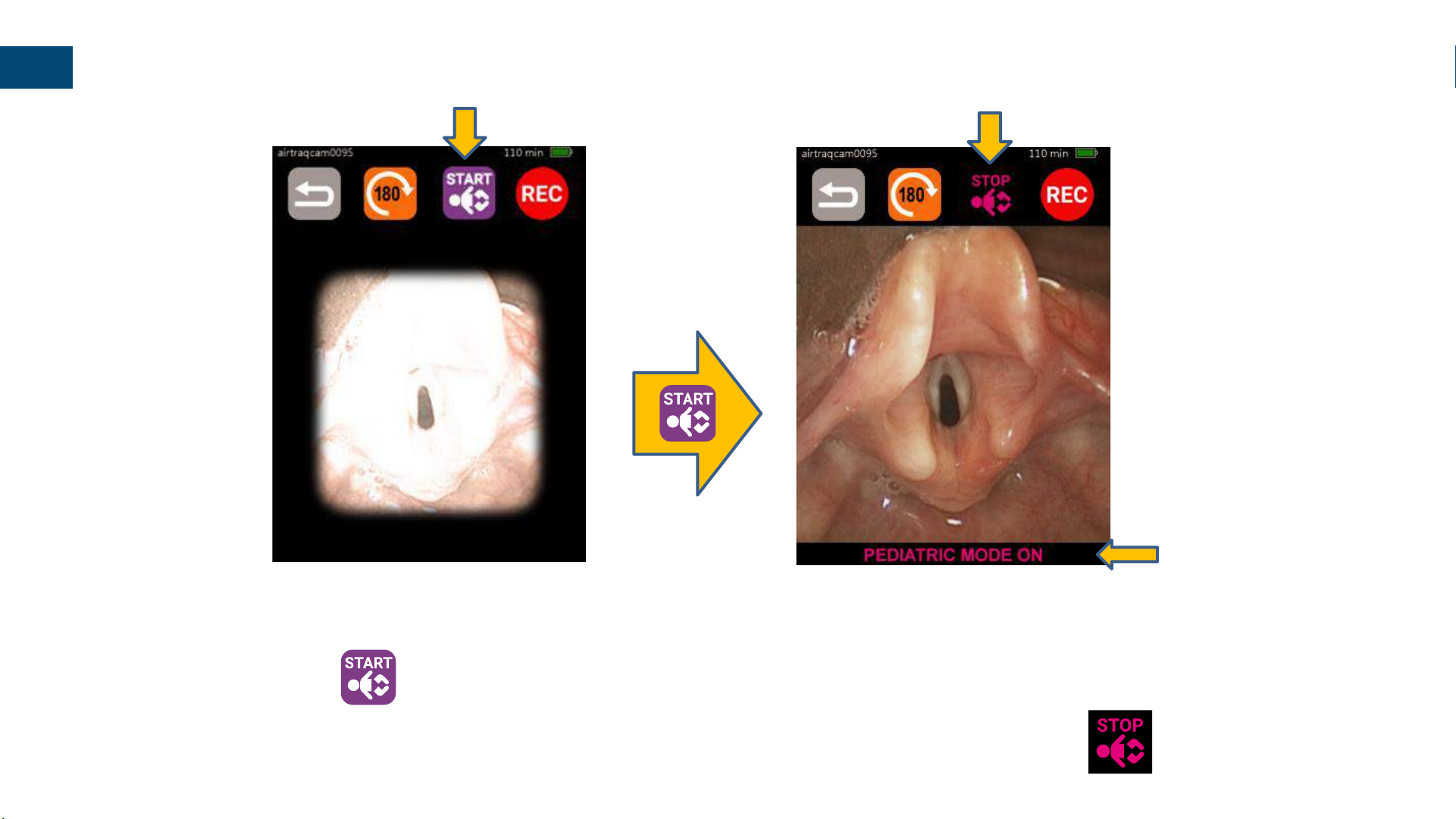

Pediatric mode
When using an Infant or
Pediatric Airtraq always
press
It adjusts light and zooms
image.
When ‘Pediatric’ mode is on:
•A confirmation message is
displayed on the lower area
of the screen.
•Icon changes to
