SERVICE MANUAL

DATA

BASIC CD MECHANISM : DA-23LN

COMPACT DISC PLAYER

XP-V410

XP-V411

XP-V412

S/M Code No. 09-003-342-6S2

MODEL CODE : 86HR8-0117(B)

SUPPLEMENT

• This model has two types of CD mechanism, DA23L and DA23LN,

and they are not compatible.

• Note : For model using DA23LN CD mechanism specifications

label indication is different. Refer to illustration on page 2.

If requiring the other information, see Service Manual of the XP-V410 (TYPE:Y1,YJ1)/

XP-V411(TYPE:AEZ1,AHRJ1)/XP-V412 (TYPE:AK1,AEZ1,AEZ1B)(S/M Code No. 09-003-342-6R1).

XP-V410 (TYPE:YJ)/XP-V411(TYPE:AHR,AHC,AHA,ALH)/XP-V416 (TYPE:ALH)

(S/M Code No. 09-003-342-6N1).

XP-V412 (TYPE:AEZ1)(S/M Code No. 09-003-342-6S1)

XP-V416 (TYPE:AHAB)(S/M Code No. 09-003-342-6N2).

XP-V416C

Y1(S)YJ1(LT) YJ(S)

AEZ1(L,S) AHR(LL)

AHRJ1(S,LT) AHC(S)

AHA(S)ALH(S)

AK1(S) AEZ1B(S,G)

ALH(S) AHAB(S)

AEZ1(S,L)

-2-

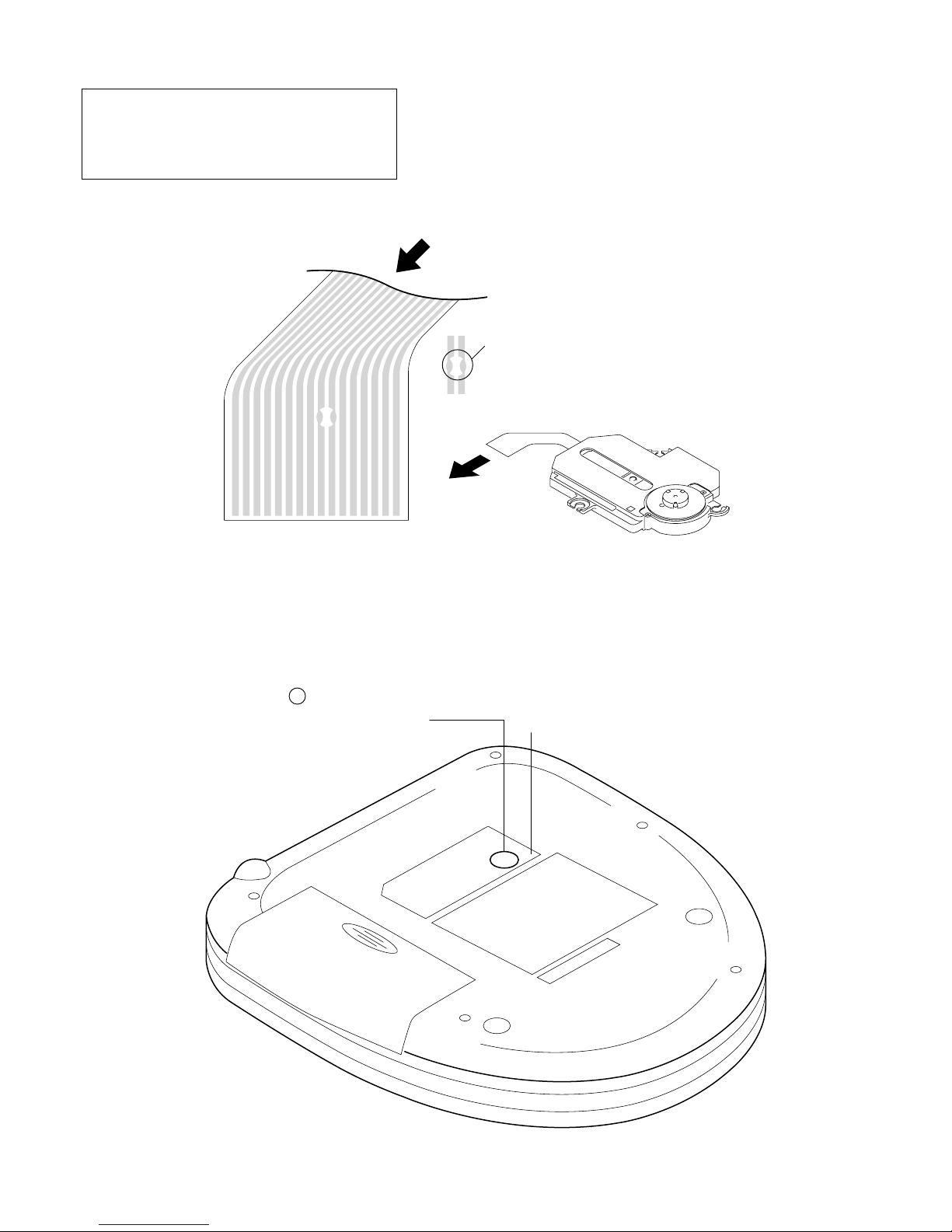

Precaution to replace Optical block

(SF-P200L)

1) After the connection, remove solder shown in the right

figure.

Body or clothes electrostatic potential could ruin

laser diode in the optical block. Be sure ground

body and workbench, and use care the clothes

do not touch the diode.

PICK UP ASSY

SF-P200L

:SOLDER

116 10 9

A

Specifications

label at bottom

of set

Presence of A at lower

Right corner of label indicates

model is using DA23LN CD

mechanism

-3-

ELECTRICAL MAIN PARTS LIST

MAIN C.B

Ref. No.

IC301

CD Mechanism

DA23L

8A-HCH-602-010

C-IC, MN101C439-AD

DA23LN

8A-HCH-603-010

C-IC, MN101C439-AE

-4-

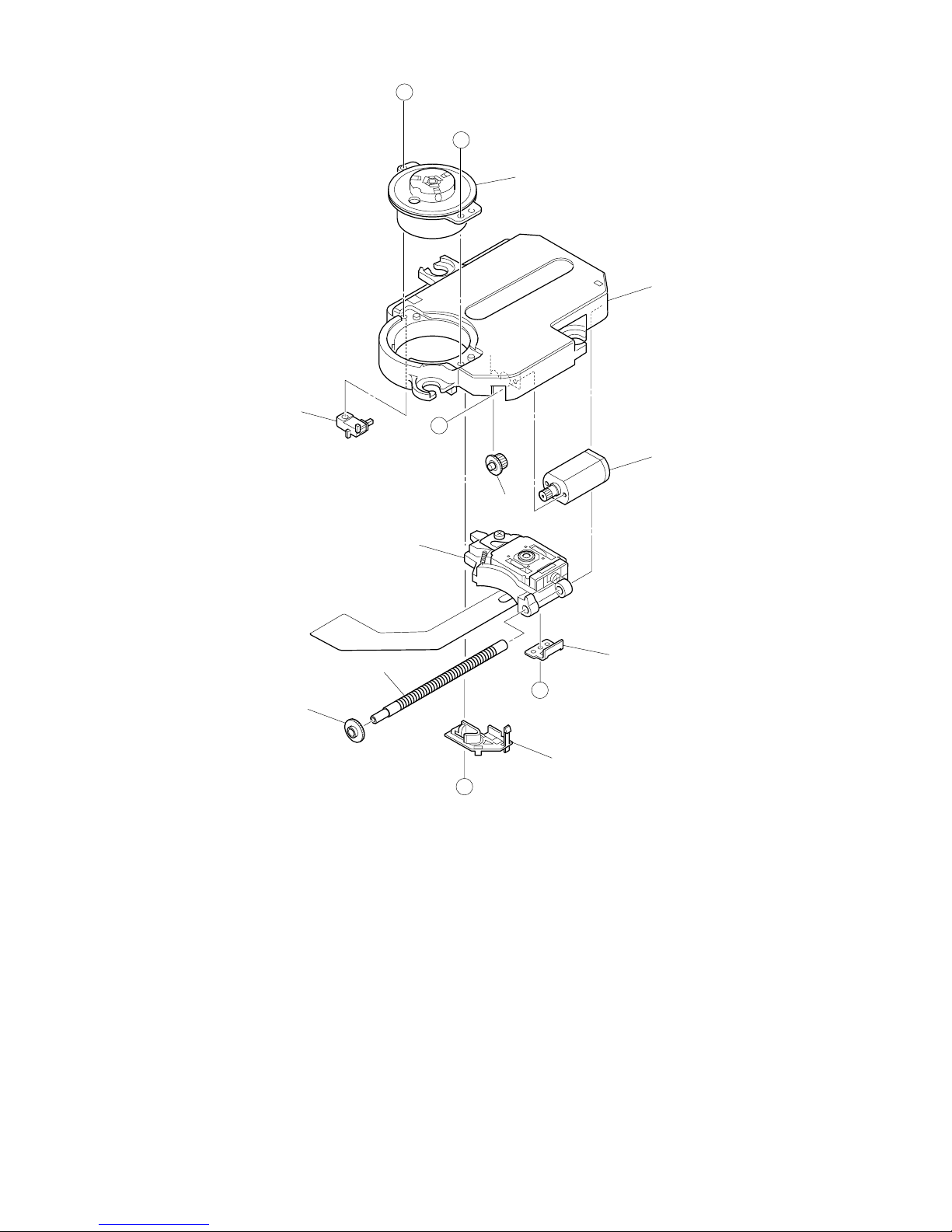

CD MECHANISM EXPLODED VIEW 1/1

2

4

5

9

3

1

87

10

D

D

A

C

B

6

REF. NO PART NO. KANRI DESCRIPTION

NO.

CD MECHANISM PARTS LIST 1/1

1 S0-A41-A20-604 PICKUP ASSY LASER P200L

2 S0-M10-A10-800 MOTOR SPINDLE ASSY

3 S0-M10-A10-900 MOTOR SLED ASSY

4 S2-311-A12-200 CHASSIS

5 S2-511-A23-200 GEAR MIDDLE

6 S2-511-A23-100 GEAR,SCREW

7 S2-511-A23-400 GEAR,RACK

8 S2-511-A07-901 SPINDLE SCREW

9 S4-S13-A00-200 SW,LEAF

10 S2-451-A18-100 HOLDER GEAR

A SS-EXE-A04-000 SCR PAN PCS 1.4-2.2

B SS-GXE-A00-301 SPECIAL SCREW M1.7-6.0

C SS-EXE-A14-100 SPECIAL SCREW

D SS-GXE-A00-202 SPECIAL SCREW M1.7-4.0

2–11, IKENOHATA 1–CHOME, TAITO-KU, TOKYO 110-8710, JAPAN TEL:03 (3827) 3111

737004 Printed in Singapore
