ZEBRA invento
Positioning chair
User manual
TM
zebra invento
ATTENTION!
Manufacturer takes responsibility for proper usage of the device only when the product was
purchased from qualified Akces-MED Ltd. employee or at specialized medical store!
Akces-MED Ltd. reserve the right to introduce technical and trading changes in the content
of the instruction without warning.
5°C
70%
45%
35°C
Product marked with the CE sign is Class I medical device, of rule 1, consistent with the requirements of
Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017 on medical
devices.
Akces-MED Ltd. Company introduced quality management system ISO 13485 regarding production,
sales and service.
The system is certified by SGS.
Contents
5. How to use chair.....................................................................................................................................................................9
5.3 Chest supports...........................................................................................................................................................12
4. Size table...................................................................................................................................................................................8
5.4 4-point safety vest....................................................................................................................................................13
5.1 Headrest.........................................................................................................................................................................9
5.2 Backrest........................................................................................................................................................................10
2. Indications and contraindications for use.....................................................................................................................5
1. The purpose of user manual...............................................................................................................................................5
3. General characteristic of chair...........................................................................................................................................7
8. Terms of warranty................................................................................................................................................................27
9. Maintenance and cleaning...............................................................................................................................................27
6.3 Sitting position..........................................................................................................................................................21
7. Safety rules............................................................................................................................................................................25
10. Labelling..............................................................................................................................................................................31
6.4 How to use vests........................................................................................................................................................22
Introduction.................................................................................................................................................................................4
6. The use of chair....................................................................................................................................................................20
5.7 Pelvic supports...........................................................................................................................................................16
6.2 Preparation of the chair..........................................................................................................................................20
5.9 Armrests.......................................................................................................................................................................17
5.6 Tilt-in space adjustment.........................................................................................................................................15
5.10 Footrests....................................................................................................................................................................18
6.1 Preparation of the user............................................................................................................................................20
5.8 Abduction block........................................................................................................................................................17
5.5 Seat - depth adjustment.........................................................................................................................................14
TM
zebra invento
TM
zebra invento
Introduction
4
ZEBRA Invento™ is a positioning chair designed for children and adolescents who need support in
the process of sitting independently or in adopting and maintaining a sitting position.
The device combines the function of a seat and a lying position, which combined with the smooth
adjustment of tilt-in-space function, supports the rehabilitation process. Adjustable headrest,
footrests, chest and pelvic supports help maintain a correct lying, semi-lying or sitting position.
The functionality of ZEBRA Invento™ makes the positioning chair
meet all the expectations of even the most demanding users,
significantly increasing everyday comfort, convenience and safety.
Akces-MED Ltd.: ph. +48 17 864 04 70
e-mail: expor[email protected]
If you have any questions or remarks, do not hesitate to contact with us:
Remember to read this user manual carefully. You will find not only useful information but also
guidelines regarding safe and effective use of the product.
Medical consultant: mobile +48 516 183 883
Before using the product, user is obliged to familiarize himself/herself with user manual.
Remember that complying with guidelines is highly important. It assures safety and extends durability
as well as aesthetics of the device.
ATTENTION!
1. The purpose of user manual
Before using the ZEBRA Invento™ for the first time, the user (or caregiver) is obliged to familiarize
himself/herself with the user manual.
This user manual should be kept in an easily accessible place. The manual is intended for people who
look after disabled users, as well as for doctors and physiotherapists handling the device.
The instruction manual contains basic information necessary to properly prepare the device before
use, use the device, maintain and clean the device.
ATTENTION!
2. Indications and contraindications for use
TM
zebra invento
5
These medical devices are intended for people with orthopedic, neurological and cardiological diseases
and for people after surgery, with musculoskeletal dysfunctions, who have not acquired the ability to sit
independently or who have difficulties in adopting and maintaining the sitting position.
Both for flaccid people with reduced muscle tone and for people with spasticity. The device can also be
really useful for people who require long-term relief of one or both lower limbs. It is an irreplaceable aid
in the rehabilitation process, both in terms of movement and social integration. The device is great help
during everyday activities such as rehabilitation but also during playing, studying or having meals. The
selection of the appropriate size of the device depends on medical indications and anatomical
parameters, regardless of the age of the user.
źMeningocele.
źGenetic disorders.
źDemyelinating disease (e.g. multiple sclerosis - SM).
źDegeneration and neurological diseases.
źBrain and spinal cord injuries with lower limbs paralysis and weakness, balance and motor
coordination disorders with different etiology
źMuscles diseases with weakness and paralysis (dystrophy, myasthenia gravis, myositis).
The device is recommended for people in the following cases:
źCerebral palsy – various types and forms.
źAfter head and spinal cord injuries and spine trauma with paralysis and paresis.
źOther condition connected with muscles weakness, paralysis and musculoskeletal disorders.
TM
zebra invento
źPulmonary embolism.
źFresh postoperative wounds or non-healing wounds in the back area, pelvic girdle area, hip joints
and thighs.
źUsers with mental disorders should not be left in the device without the supervision of a caregiver.
źUntreated deep vein thrombosis.
źHemodynamic instability.
źUnstable fractures with specific orthopedic recommendations, including spine fractures.
źRecent myocardial infarction in the last 24 hours.
źSevere arthritis of the cervical spine.
źIdentified brain dysfunction when sitting upright.
źDeep sedation.
źCritical condition of the user.
Contraindications:
źParalysis.
6
2. Indications and contraindications for use
TM
zebra invento

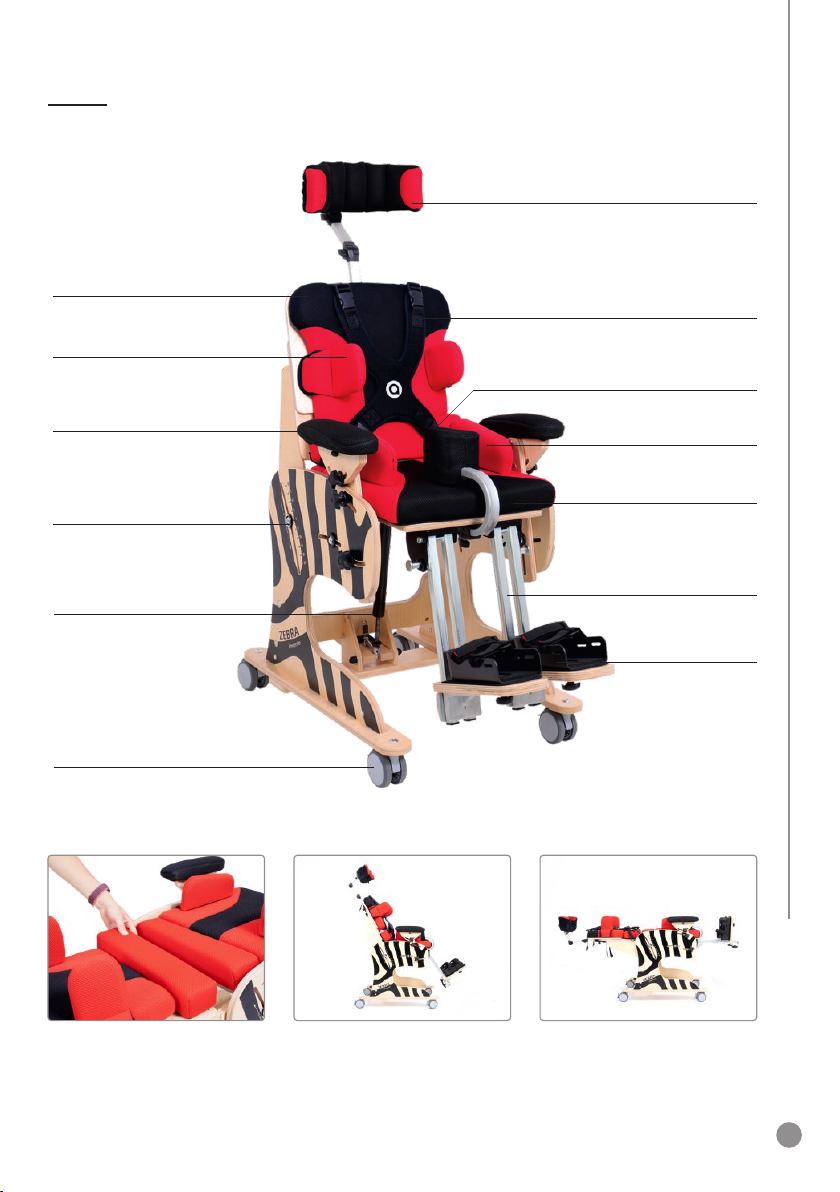

3. General characteristic of chair
TM
HexagonPro HEADREST
4-POINT SAFETY VEST
ADJUSTABLE ARMRESTS
ADJUSTABLE PELVIC
SUPPORTS
SEAT
ADJUSTABLE ABDUCTION BLOCK
SEPARATELY ADJUSTABLE
FOOTRESTS
FOOT STABILIZERS
WITH SAFETY STRAPS
FRAME WITH CASTORS AND BRAKES
TILT-IN SPACE ADJUSTMENT
ADJUSTABLE BACKREST
ADJUSTABLE CHEST SUPPORTS
TABLE OF SEAT TILT-ANGLE
FILLER CUSHIONS LYING POSITION
7
TILT-IN SPACE ADJUSTMENT

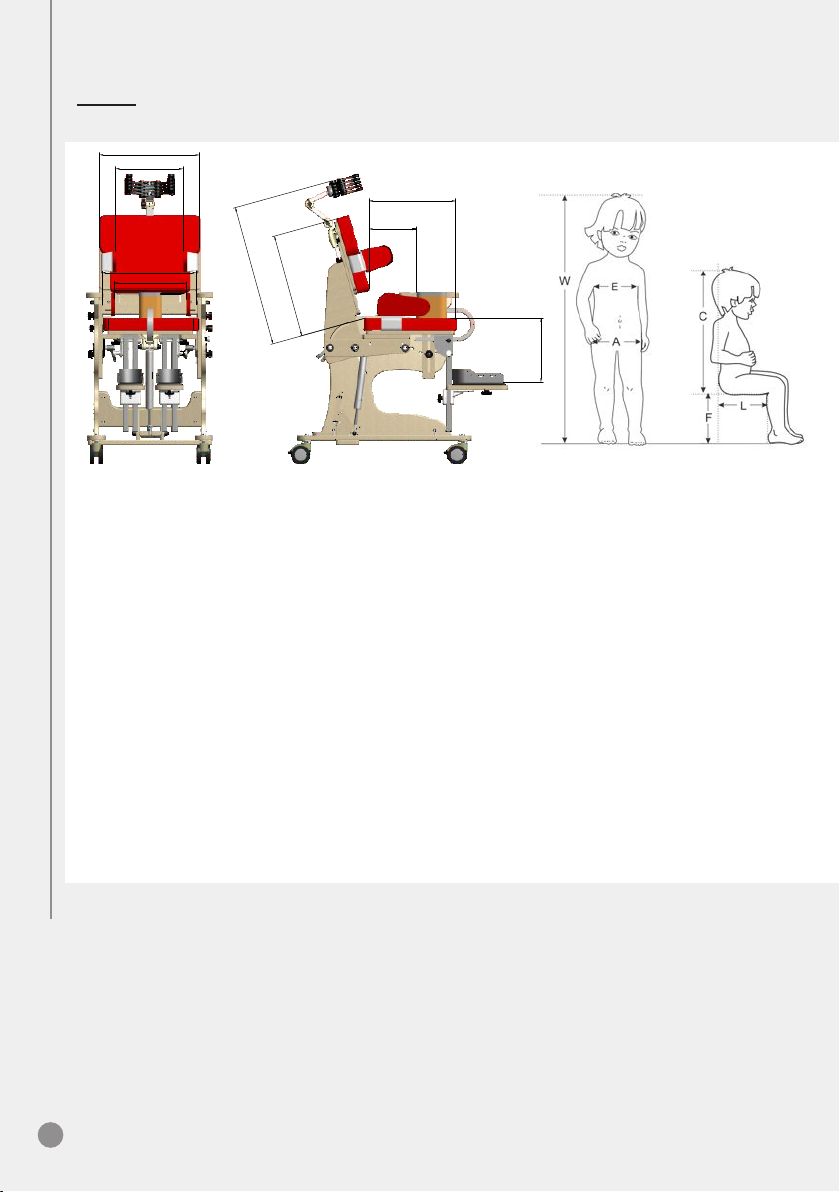

4. Size table
A
L1
L
E1
E
F
Symbols
C1
W
A1
C
Measurement
indicative user height*
seat width
seat tilt angle
footrest length
footrests tilt angle
backrest width with supports
footer length
backrest height without headrest
seat depth
max user weight
seat depth to the abduction block
seat width with supports
backrest height with headrest
backrest width
backrest tilt angle
o
[ ]
[cm]
[cm]
[cm]
[cm]
[cm]
o
[ ]
[kg]
[cm]
[cm]
o
[ ]
[cm]
Unit
[cm]
[cm]
[cm]
80 - 130
42 - 67
-20 - +25
19
38
90 - 180
45
18 - 26
40
90 - 180
5 - 20
32 - 42
18 - 30
Size 2
18 - 30
15 - 37
height
weight
Product dimensions and weight
width
length
Unit
[cm]
[cm]
[cm]
[kg]
83
90
Size 2
23
52
8
TM
zebra invento
* This measurement cannot be the main parameter while choosing the product size.
Note: Measurement tolerance range is +/- 1 cm / ½ in.
E
E1
A
A1
L
L1
C
C1
F
5. How to use chair
9
TM
zebra invento

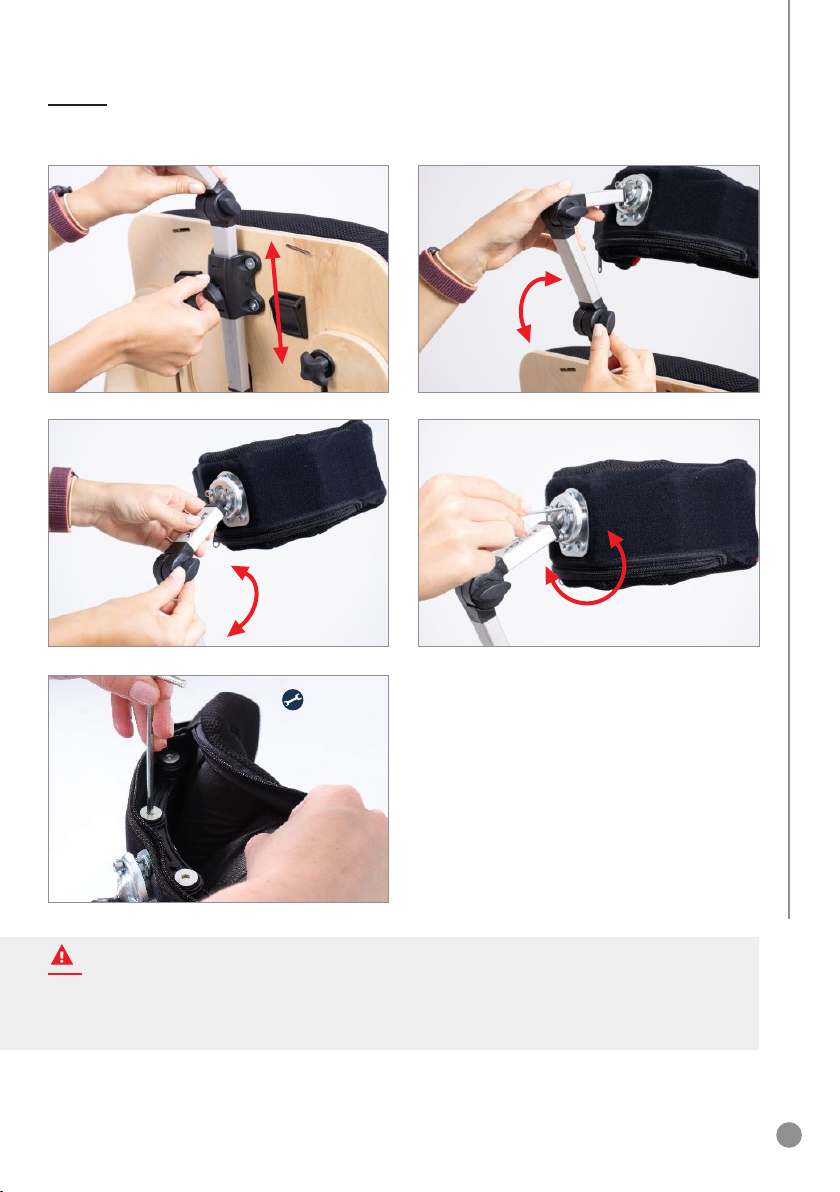

5.1 Headrest
ATTENTION!
Before using the product, make sure that all adjustment knobs are correctly and firmly tightened, and
that the position of the headrest does not change under load.
hex key 4
10
TM
zebra invento
5. How to use chair
5.2 Backrest
INFORMATION!

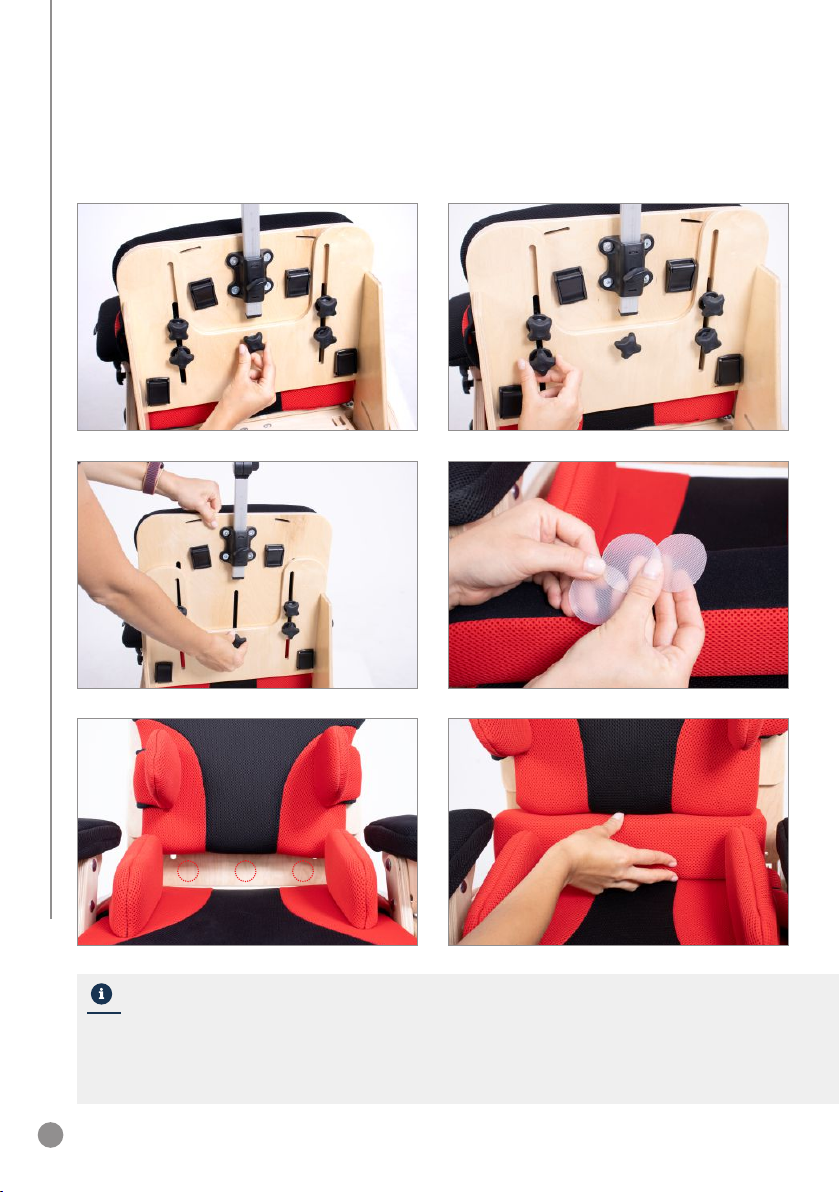

Cushions are included with which to fill the space created when the backrest is extended. Glue the
attached tack patches on the wooden piece, at equal distances from each other, and then arrange the
additional cushion.
HEIGHT ADJUSTMENT
