Alcatel-Lucent OmniSwitch 6400 Series Manuale utente

OmniSwitch 6400 Series

Getting Started Guide

060235-10, Rev. A

August 2008

Warning. Only personnel knowledgeable in basic electrical and mechanical procedures should install or maintain this

equipment.

Lithium Batteries Caution. There is a danger of explosion if the Lithium battery in your chassis is incorrectly replaced.

Replace the battery only with the same or equivalent type of battery recommended by the manufacturer. Dispose of used

batteries according to the manufacturer’s instructions. The manufacturer’s instructions are as follows:

The features and specifications described in this guide are subject to change without notice.

the express written permission of Alcatel-Lucent.

Alcatel-Lucent®and the Alcatel-Lucent logo are registered trademarks of Alcatel-Lucent. Xylan®, OmniSwitch®,

OmniStack®, and Alcatel-Lucent OmniVista®are registered trademarks of Alcatel-Lucent.

OmniAccess™, Omni Switch/Router™, PolicyView™, RouterView™, SwitchManager™, VoiceView™, WebView™,

X-Cell™, X-Vision™, and the Xylan logo are trademarks of Alcatel-Lucent.

This OmniSwitch product contains components which may be covered by one or more of the following U.S. Patents:

• U.S. Patent No. 6,339,830

• U.S. Patent No. 6,070,243

• U.S. Patent No. 6,061,368

• U.S. Patent No. 5,394,402

• U.S. Patent No. 6,047,024

• U.S. Patent No. 6,314,106

• U.S. Patent No. 6,542,507

• U.S. Patent No. 6,874,090

Return the module with the Lithium battery to Alcatel-Lucent. The Lithium

battery will be replaced at Alcatel-Lucent’s factory.

Alcatel-Lucent

26801 West Agoura Road

Calabasas, CA 91301

(818) 880-3500 FAX (818) 880-3505

US Customer Support: (800) 995-2696

International Customer Support: (818) 878-4507

Internet: service.esd.alcatel-lucent.com

August 2008 iii

OmniSwitch 6400 Series. . . . . . . . . . . . . . . 1

Related Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Unpacking Instructions . . . . . . . . . . . . . . . . . 3

Items Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Unpacking the Chassis . . . . . . . . . . . . . . . . . . . . . . . 3

Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . 4

Connections and Cabling . . . . . . . . . . . . . . 5

Connecting the Serial Cable . . . . . . . . . . . . . . . . . . . 5

Serial Connection Default Settings . . . . . . . . . . . . . 5

Booting OmniSwitch 6400 Series

Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Booting the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Your First Login Session. . . . . . . . . . . . . . . . 7

Logging in to the Switch . . . . . . . . . . . . . . . . . . . . . 7

Assigning an IP Address to the Switch . . . . . . . . . . 8

Unlocking Session Types . . . . . . . . . . . . . . . . . . . . . 9

Changing the Login Password . . . . . . . . . . . . . . . . 10

Setting the System Time Zone . . . . . . . . . . . . . . . . 11

Setting the Date and Time . . . . . . . . . . . . . . . . . . . 11

Setting Optional System

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Viewing and Saving Changes . . . . . . . . . . . . . . . . . 12

Using WebView. . . . . . . . . . . . . . . . . . . . . . . . . . 13

Browser Compatibility . . . . . . . . . . . . . . . . . . . . . . 13

Logging In to WebView . . . . . . . . . . . . . . . . . . . . . 13

Navigating WebView . . . . . . . . . . . . . . . . . . . . . . . 14

Online Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Additional Information . . . . . . . . . . . . . . . . . . . . . . 16

Troubleshooting WebView . . . . . . . . . . . . . . . . . . . 17

Table of Contents

iv August 2008

August 2008 OmniSwitch 6400 Series 1

OmniSwitch 6400 Series

The Alcatel-Lucent OmniSwitch 6400 Series is a family of

fixed configuration, Gigabit Ethernet, stackable LAN switches

with advanced Layer 2 and basic routing capabilities.

Refer to the Product Documentation Card for instructions on

downloading additional hardware and software OmniSwitch

documentation.

2 OmniSwitch 6400 Series August 2008

Related Documentation

The following are the titles and descriptions of all the

OmniSwitch 6400 Series user documentation available for

download. Refer to the included Product Documentation Card

for instructions:

•OmniSwitch 6400 Series Getting Started Guide

Describes the hardware and software procedures for

getting an OmniSwitch 6400 Series switch up and

running.

•OmniSwitch 6400 Series Hardware Users Guide

Complete technical specifications and procedures for

all OmniSwitch 6400 Series hardware, including

chassis, power supplies, fans, combo ports, optional

backup power supplies, etc.

•OmniSwitch CLI Reference Guide

Complete reference to all CLI commands supported on

the OmniSwitch 6400 Series. Includes syntax

definitions, default values, examples, usage

guidelines, and CLI-to-MIB variable mappings.

•OmniSwitch AOS Release 6 Switch Management Guide

Includes procedures for readying a switch for

integration into a network. Topics include the software

directory architecture, image rollback protections,

authenticated switch access, managing switch files,

system configuration, using SNMP, and using web

management software (WebView).

•OmniSwitch AOS Release 6 Network Configuration

Guide

Includes network configuration procedures and

descriptive information on all the major software

features and protocols included in the base software

package. Chapters cover Layer 2 information (Ether-

net and VLAN configuration), Layer 3 information

(static routes), security options (authenticated

VLANs), Quality of Service (QoS), and link

aggregation.

•OmniSwitch AOS Release 6 Advanced Routing

Configuration Guide

Includes network configuration procedures and

descriptive information on all the software features and

protocols included in the advanced routing software

package. Chapters cover multicast routing (DVMRP

and PIM-SM) and OSPF.

•OmniSwitch Transceivers Guide

Includes information on Small Form Factor Pluggable

(SFPs) and 10 Gbps Small Form Factor Pluggables

(XFPs) transceivers.

August 2008 Unpacking Instructions 3

Items Included

Your OmniSwitch 6400 Series switch order includes the

following items:

•OmniSwitch 6400 Series chassis

•Power supply and power supply tray

•Rack mount flanges with attachment screws (rack

mount flanges may be pre-installed on some orders)

•Power cord (country-specific) and power cord bracket

•Product Documentation Card

•DB9 to RJ-45 serial adapter and console cable

Depending on the items ordered for your specific network

requirements, the following optional items may also be

included:

•SFPs/XFPs (per order)

•Backup power supply components and cables

(per order)

Unpacking the Chassis

To protect your OmniSwitch chassis and hardware compo-

nents from electrostatic discharge (ESD) and physical damage,

read all unpacking recommendations and instructions care-

fully before beginning.

Recommendations

•Unpack your OmniSwitch chassis as close as possible

to the location where it will be installed.

•Depending on your order, Small Form-Factor Plugga-

bles (SFPs) and backup power supply components may

be packaged separately. In order to greatly reduce

exposure to electrostatic discharge (ESD) and physical

damage, do not unpack these items until they are ready

to be installed.

Instructions

1Carefully cut the tape along the seam at the top of the

box containing the chassis.

2Lift the box’s top flaps. Remove any smaller boxes or

pouches that are enclosed and set them aside.

Unpacking Instructions

4 Unpacking Instructions August 2008

3Lift the chassis out of the packaging.

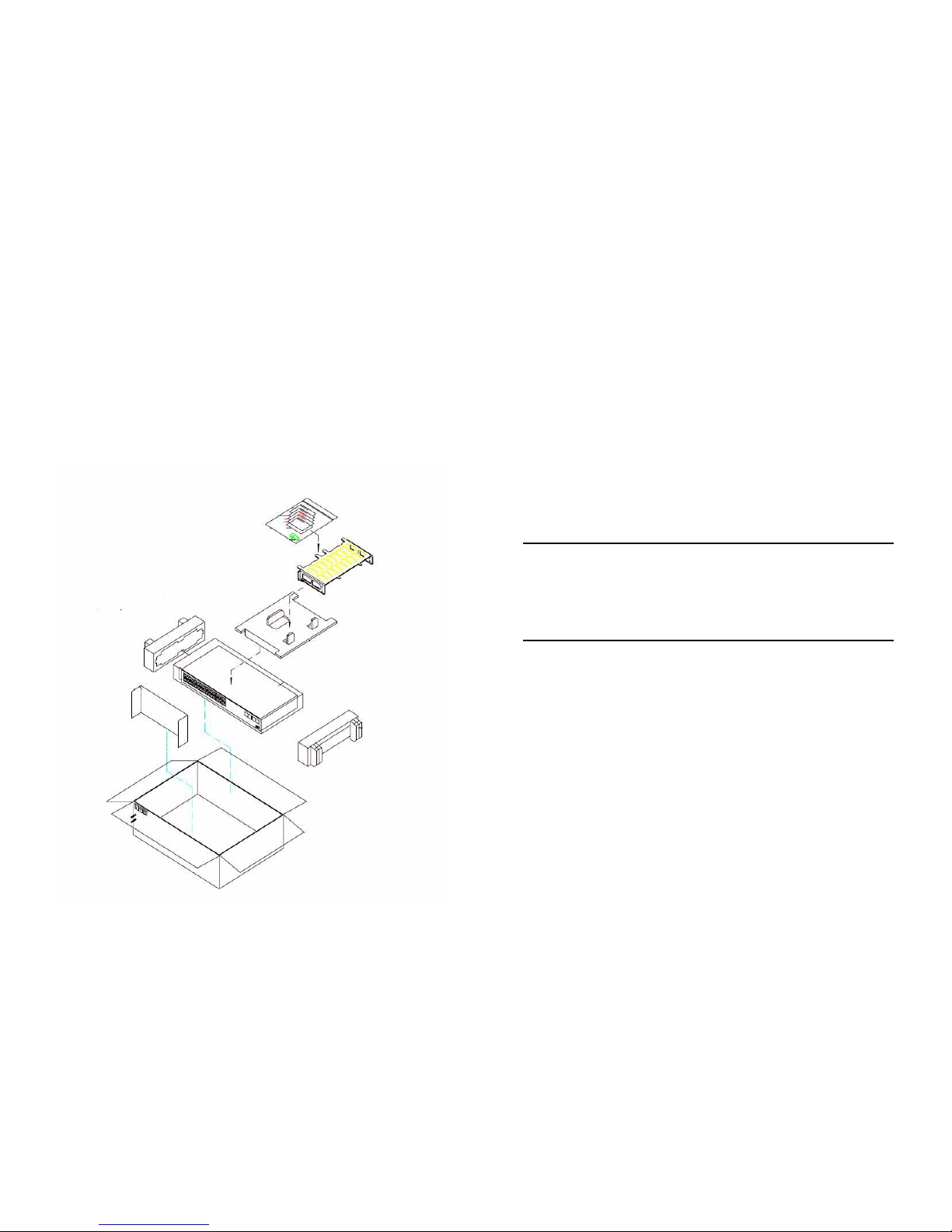

4Carefully remove any foam pads and protective plastic

from the switch chassis as in the example diagram.

5Once all OmniSwitch 6400 Series switches have been

removed from their packaging, continue to “Installation

Options.”

Installation Options

Depending on the model, there are three basic ways in which

the OmniSwitch 6400 Series switches can be installed:

•Rack-mount installation

•Tabletop installation

Note: For detailed, step-by-step instructions on install-

ing and mounting OmniSwitch 6400 hardware and

power supplies along with environmental and safety

considerations, please refer to the OmniSwitch 6400

Hardware Users Guide.

August 2008 Connections and Cabling 5

Once your switch is properly set up and all the required hard-

ware components are installed, you should connect all network

and management cables required for your network applica-

tions. Connections may include:

•RJ-45 cable connection to the console port

•Single mode or multimode fiber cables to combo port

SFPs as required by your network

•Ethernet cables to 10/100/1000 Ethernet ports as

required by your network

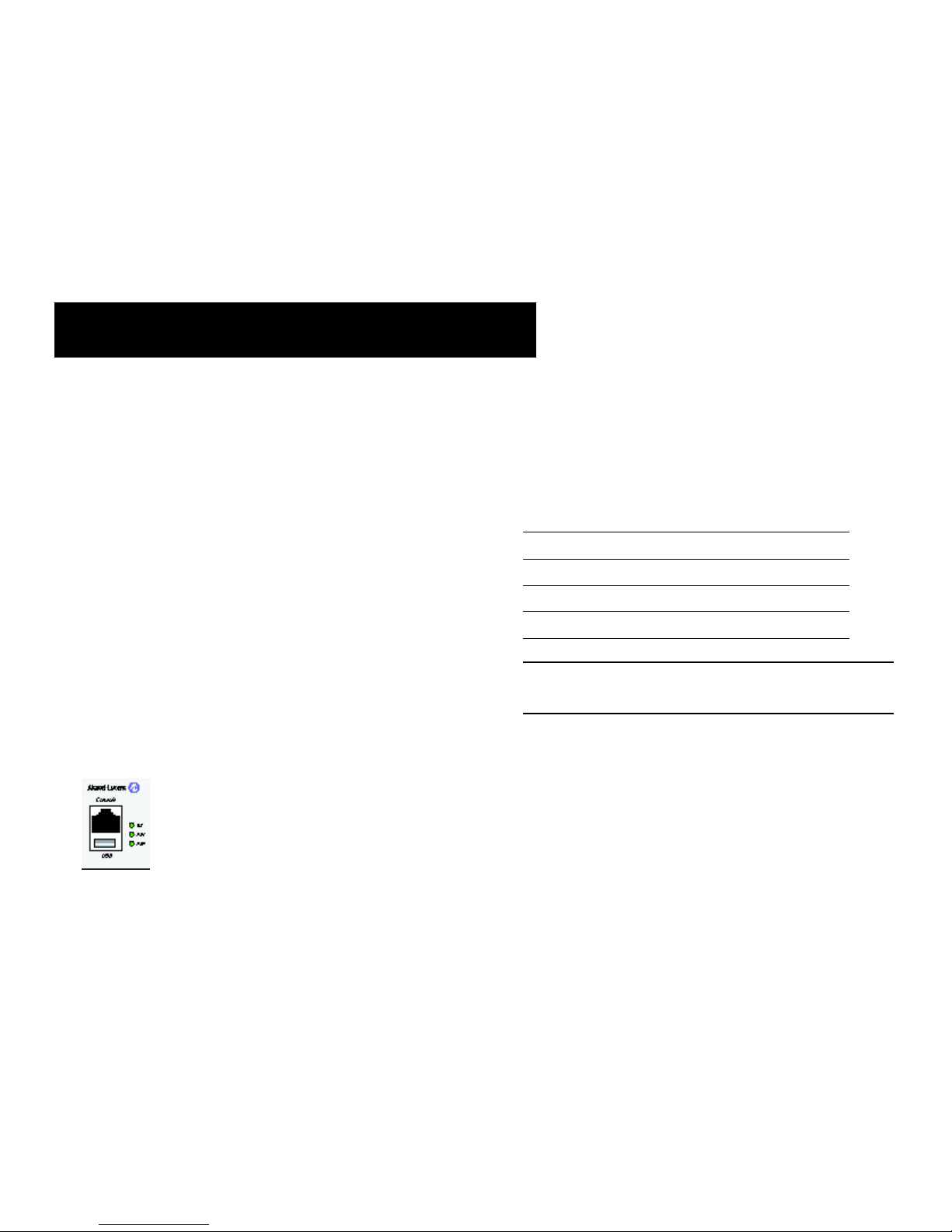

Connecting the Serial Cable

The console port, located on the chassis front panel, provides a

serial connection to the switch and is required when logging

into the switch for the first time. By default, this RJ-45

connector provides a DTE console connection.

1Locate the console port on the front of

the switch.

2Connect the supplied console cable to

the console port.

3Connect the supplied console cable to the supplied DB-

9 to RJ-45 adapter.

4Connect the adapter to the PC or terminal with the

default settings below.

Serial Connection Default Settings

The default settings for the serial connection are as follows:

Note. For information on modifying these settings, refer to

the OmniSwitch 6400 Series Hardware Users Guide.

Connections and Cabling

baud rate 9600

parity none

data bits (word size) 8

stop bits 1

6 Booting OmniSwitch 6400 Series Switches August 2008

Booting A Standalone Switch

The OmniSwitch 6400 Series switch does not use an on/off

switch. The power cord is the switch’s only connect/discon-

nect device. The power connector socket is located on the

switch’s back panel or external power supply. For more infor-

mation, refer to the OmniSwitch 6400 Series Hardware Users

Guide.

To boot the switch, plug the power cord (provided) into the

power connector socket or external power supply at the

switch’s rear panel. Next, plug the power cord into an easily-

accessible power source, such as a grounded AC outlet or an

Uninterruptible Power Supply (UPS).

The switch immediately begins the boot process. Allow a few

moments for the switch to boot completely, then verify the

status of all LEDs on the switch’s front panel. A successful

boot displays the following LED states:

If any of the LED states differ from the states shown in the

table, refer to the OmniSwitch 6400 Series Hardware Users

Guide for more information. Contact Alcatel-Lucent Customer

Support if the unexpected LED state persists.

Booting OmniSwitch 6400

Series Switches

LED States

OK Solid green

PWR Solid green

PRI Solid green

Altri manuali per OmniSwitch 6400 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Alcatel-Lucent Interruttore

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 2220 Istruzioni per l'installazione

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6350 Manuale di installazione

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6350 Manuale di installazione

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6350 Manuale di installazione

Alcatel-Lucent

Alcatel-Lucent 7210 SAS-T Manuale utente

Alcatel-Lucent

Alcatel-Lucent OmniSwitch AOS Release 7 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 Manuale utente

Alcatel-Lucent

Alcatel-Lucent OmniSwitch AOS Release 7 Manuale utente

Alcatel-Lucent

Alcatel-Lucent LambdaUnite 1675 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7210 SAS E OS Manuale utente

Alcatel-Lucent

Alcatel-Lucent 1850 Manuale utente

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6850 Series Manuale di installazione

Alcatel-Lucent

Alcatel-Lucent 1850 TSS-3 Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7210 Manuale utente

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6850 Series Manuale utente

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6800 Series Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7210 Manuale utente

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6465 Manuale di installazione

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6855-24 Manuale di installazione

Alcatel-Lucent

Alcatel-Lucent LambdaUnite 1675 Manuale utente

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6560 Series Manuale di installazione

Alcatel-Lucent

Alcatel-Lucent OmniSwitch 6250-M Manuale di installazione

Alcatel-Lucent

Alcatel-Lucent 7210 SAS-D Manuale utente

Alcatel-Lucent

Alcatel-Lucent 1850 TSS-3 Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente

Cabletron Systems

Cabletron Systems GIGAswitch GSR-16 Manuale utente
