Alcatel OmniAccess 6000 OAW-LC-2G24F Installation Instructions 1

Alcatel OmniAccess 6000

OAW-LC-2G24F

Installation Instructions

These instructions explain how to install an Alcatel 6000 Wireless

LAN switch line card (OAW-LC-2G24FE). The Alcatel 6000 Line

Card has 24 Fast Ethernet (FE) ports and two Gigabit Ethernet

(GE) ports.

The FE ports provide 10/100 Mbps Ethernet connections to APs

and wired LAN segments. No power or serial connectivity is

provided by the ports on this line card.

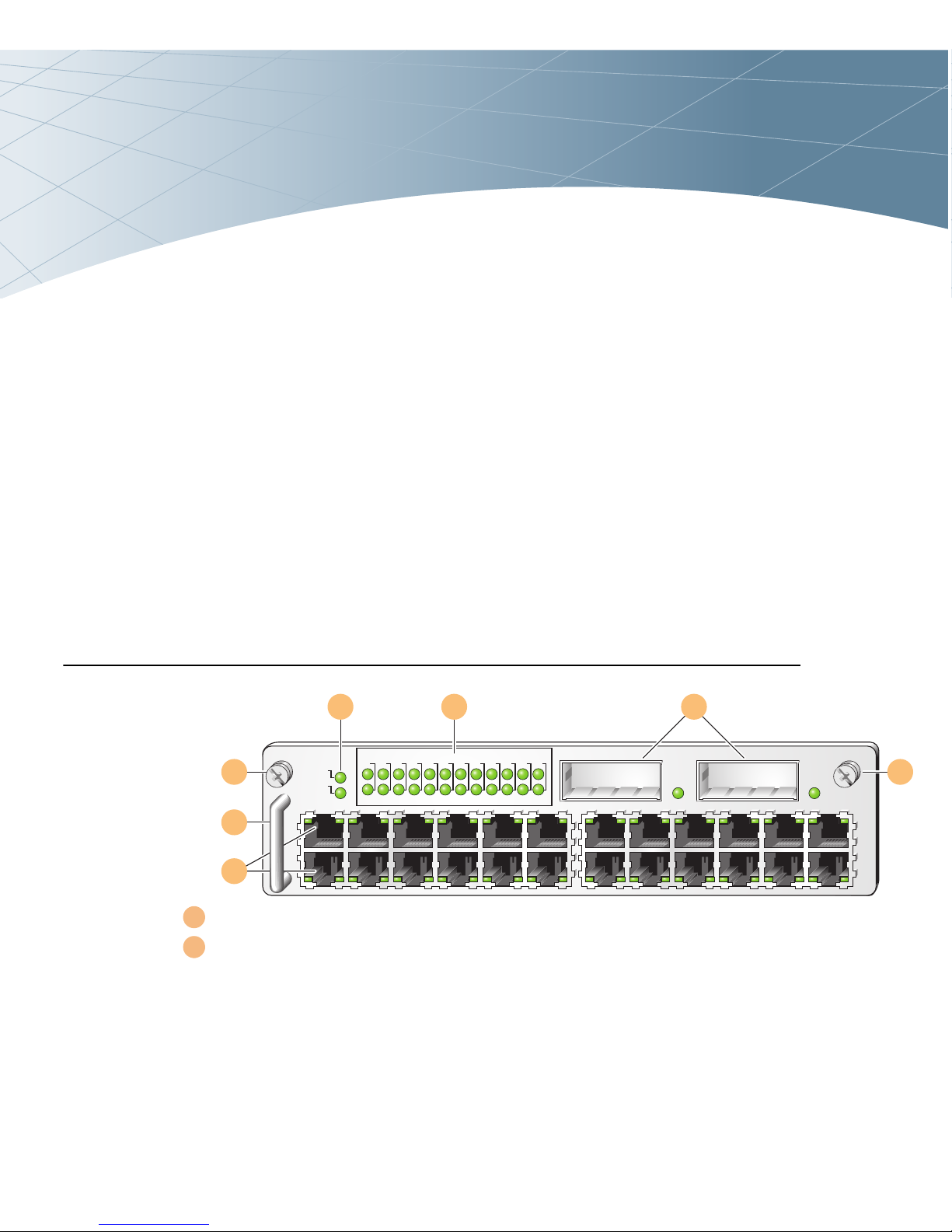

Physical Description

Module Fastening Screws

Module Handle

POWER

STATUS

LNK/

ACT

LNK/

ACT

LNK/

ACT

POE 10 12

ACCESS POINT STATUS

0 2 4 6 810121416182022

1 3 5 7 911131517192123

0 2 4 6 8 10 121416182022

24 25

1 3 5 7 9 11 131517192123

4 5

OmniAccess 6000 LC-2G24F Installation Notes: Installation Guide

2Part 031658-00 May 2005

This handle is used for removing or inserting the module into the switch

chassis.

24 FE Ports

These ports are used to connect APs and wired LAN segments to the Alcatel

Wireless LAN Switch. These ports provide 10/100 Mbps Ethernet connectivity,

and in some cases, power and serial connectivity as well. See “Port and Cable

Specifications” for more information.

LNK/ACT LED

Each FE port has its own LNK/ACT LED, located at the left side of the port.

During operation, these LEDs provide the following status information:

Module Indicator LEDs

Power LED

This LED lights green when the line card is properly installed and the system is

powered up.

Status LED

During operation, the Status LED provides the following information:

CAUTION—Do not use the line card handle to lift or move the Alcatel

Wireless LAN Switch. Serious damage could result.

TABLE 1 FE LNK/ACT LED

Status Description

Off No Ethernet link on the port.

Green An Ethernet link has been established on the port, but no

data is currently being transmitted or received.

Flashing

Green

The port is transmitting or receiving data. The flashing

rate is proportional to your network activity.

Amber The Ethernet link on the port is encountering errors.

TABLE 2 Line Card Status LED

Status Description

Off The line card is powered off or initializing.

Green The line card is operating properly.

Amber The line card is being initialized.

Red The line card has failed.

Alcatel OmniAccess 6000 OAW-LC-2G24F Installation Instructions 3

Access Point Status LEDs

Each LED represents the status of APs connected to a specific port on the

switch. During operation, the LEDs provide the following information:

The LED states listed above are listed in order of precedence (highest to

lowest). If more than one AP is connected to the port, the state with the

highest precedence is displayed.

2 GE ports

Each GE port has its own LNK/ACT LED, located to the right of the port.

During operation, these LEDs provide the following status information:

TABLE 3 Line Card AP Status LED

Status Description

Red (solid) An AP on this port has failed (highest precedence).

Red (flashing) An air monitor on this port has detected an unsecured AP.

The AP is attached to your network but is not listed in the

switch security policies. If security policies are enabled,

clients are not granted access to your network through the

unsecured AP.

Green

(flashing)

An air monitor on this port has detected interference. The

interfering device (AP or other radio source) has been

detected by your valid APs, but has no wired presence on

your network.

Amber (solid) Load balancing is enabled on this port or an AP has reached

the maximum number of clients it is configured to support.

Green (solid) All detected APs on this port are operating as expected.

Off No AP is detected on the port (lowest precedence)

TABLE 4 GE LNK/ACT LED

Status Description

Off No Ethernet link on the port.

Green An Ethernet link has been established on the port, but no

data is currently being transmitted or received.

Flashing

Green

The port is transmitting or receiving data. The flashing rate is

proportional to your network activity.

Amber The Ethernet link on the port is encountering errors.

OmniAccess 6000 LC-2G24F Installation Notes: Installation Guide

4Part 031658-00 May 2005

Inserting a Line Card

The line card is hot-swappable and can be inserted into the Alcatel Wireless

LAN Switch chassis while system power is on or off. However, removing a line

card on a live switch is service affecting and all traffic processing will stop until

the replacement line card is installed and operating.

Make sure you understand the procedure and all precautions.

Before beginning, read the entire procedure. Make sure you understand all the

precautions in these installation instructions.

Prepare the slot.

The first line card should be installed in Slot 2 of the Alcatel Wireless LAN

Switch chassis. A second optional line card can be installed in Slot 3, and a

third in Slot 1. A line card cannot be installed in Slot 0.

If you are replacing a previously installed module, first see “Removing a Line

Card”.

To install a module in a previously empty bay, remove the blank cover plate

first. To do this, use a #2 Phillips or cross-head screwdriver to loosen both of

the fastening screws on the blank cover place. The screws loosen with

counter-clockwise rotation, but are captive and cannot be fully removed.

Carefully insert the line card into the chassis slot.

Hold the line card by the handle. Align the rear of the card with the guide-rails

in the chassis slot and gently slide the module toward the backplane. Do not

force the module; it should slide in easily most of the way.

CAUTION—This procedure should be performed only by a trained

technician.

CAUTION—Be sure to exercise proper Electrostatic Discharge (ESD) pre-

cautions when handling components.

CAUTION—If installing a line card in Slot 1, make sure that the fastening

screws for the module in the slot above it are fully secured. If the

module in Slot 3 is loose, it could interfere with the new module

insertion and possibly damage the components.

Alcatel OmniAccess 6000 OAW-LC-2G24F Installation Instructions 5

Engage the line card.

There may be moderate resistance when the line card meets the connectors in

the backplane. Press firmly so that the connectors at the back of the module

engage with the backplane, but do not use excessive force.

If the system is powered up, the module’s Power LED will light up green if the

line card is inserted properly.

Secure the line card.

Use a #2 Phillips or cross-head screwdriver to push in the captive fastening

screws and turn them clockwise until moderate resistance is felt. Do not

over-tighten.

Connect the appropriate network cables.

Removing a Line Card

The line card is hot-swappable and can be inserted into the Alcatel Wireless

LAN Switch chassis while system power is on or off. However, removing a

line card on a live switch is service affecting and all traffic processing will stop

until the replacement line card is installed and operating.

Make sure you understand the procedure and all precautions.

Before beginning, read the entire procedure. Make sure you understand all the

precautions in these installation instructions.

Disconnect all cables attached to the line card.

Loosen the module’s fastening screws.

At the front of the Alcatel Wireless LAN Switch, use a #2 Phillips or

cross-head screwdriver to loosen both of the fastening screws on the

faceplate of the installed line card. The screws loosen with counter-clockwise

rotation, but are captive and cannot be fully removed.

Remove the line card.

CAUTION—This procedure should be performed only by a trained

technician.

CAUTION—If removing a line card from Slot 1, make sure that the

fastening screws for the module in the slot above it are fully secured.

If the module in Slot 3 is loose, it could interfere with the module

removal and possibly damage the components.

OmniAccess 6000 LC-2G24F Installation Notes: Installation Guide

6Part 031658-00 May 2005

Grasp the module handle firmly and draw the line card forward from its slot.

There may be moderate resistance as the module comes free from its

connections with the chassis backplane, but do not use excessive force. Once

disengaged from the backplane, the line card should easily slide out the rest of

the way.

Cover blank slots.

For safety considerations, as well as to promote proper airflow for cooling and

to prevent dust from entering the switch chassis, cover any unoccupied slot

with a blank cover plate.

Port and Cable Specifications

FE Port

The FE port provides a 10/100 Mbps Ethernet connection. The RJ-45 female

connector port pin-outs are shown below:

The port accepts a 4- or 8-conductor Category 5 UTP Ethernet cable with an

RJ-45 male connector. A straight-through cable is required for connection to a

network port. A crossover cable is required for connection to a management

workstation.

For cables that run through plenums or air-handling spaces as described in

NEC (2002) Article 300.22(C), the cable should be suitable under NEC Article

800.50 and marked accordingly for use in plenums and air-handling spaces

with regard to smoke propagation, such as CL2-P, CL3-P, MPP or CMP. Be sure

to install cables in accordance with all applicable local regulations and

practices.

10/100 Mbps Ethernet RJ-45 Female

Pin-Out

*POE optional

**Serial optional

Serial TxD** (POE positive*)

Serial TGND** (POE positive*)

Serial RxD** (POE negative*)

Serial RGND** (POE negative*)

ETH Rx+ (POE negative*)

ETH Rx– (POE negative*)

ETH Tx+ (POE positive*)

ETH Tx– (POE positive*)

Direction

Input

Output

Alcatel OmniAccess 6000 OAW-LC-2G24F Installation Instructions 7

Contacting Alcatel

Web Site

Telephone Numbers

zMain Site http://www.alcatel.com

zSupport http://www.alcatel.com/enterprise

zMain US/Canada (800) 995-2612

zMain Outside US (818) 880-3500

OmniAccess 6000 LC-2G24F Installation Notes: Installation Guide

8Part 031658-00 May 2005
