Alico Optima AP24 Manuale utente

Wireless Network Equipment (WNE)

Freedom Series: Models AP24, BR24, CP24

Configuration Types: 24-SB-07M, 24-LB-15O, 24-LB-20S

Freedom Series: Models AP58, BR58, CP58

Configuration Types: 58-LB-09M, 58-LB-15O, 58-LB-17S, 58-LB-32D

Instruction Manual (v3)

Alico Systems Inc

2461 W. 205th Street, Suite B105

Torrance, California 90501-1464

Telephone: 310-781-9500

www.alicosystems.com

Notices

FCC Notice:

Part 15 Notice:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment.

Class B Digital Device:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

Consult the dealer or an experienced radio/TV technician for help.

Scope:

This equipment is intended to be installed by professional trained installers familiar with the appropriate

FCC Regulations and Local Building Codes. The equipment is designed to be installed on a pole or as a

wall mount unit. While the unit is in operation the WNE antenna shall be at least 20 cms away from all

persons.

Setup Instructions:

Package Contains:

1. AP24/AP58 Access Point-Bridge-CPE

2. Power over Ethernet Injector

3. 48VDC Power Supply

4. AC power cord

5. RJ45 Feed-Through Assembly

6. CD Containing the “WinBox” application software to provision the AP24/AP58 Access Point

- Bridge and a PDF version of this “Startup Instructions for AP24/AP58”

What You Need to Get Started:

•You need to provide 2 straight patch segments of CAT-5e Ethernet cable with RJ45 connectors

on each end. You may also need a crossover cable to configure the AP24/AP58 if you are

connecting directly to a PC.

•The first CAT-5e patch cable will be used to connect the AP24/AP58 to the POE module. This

cable needs to have RJ45 connectors preferably with no boots. Having a boot on the RJ45 cable

on the AP24/AP58 side may prevent you to properly install the Feed-Through Assembly. See

instructions on the next slide.

•CAUTION DO NOT USE A CROSS OVER CABLE BETWEEN THE AP24/AP58 AND THE

POE MODULE. YOU WILL PERMANENTLY DAMAGE THE AP24/AP58.

•The second CAT-5e patch cable will be used to connect the POE module to your Switch/Router.

If you are connecting the POE module directly to your PC for setup you need to use a crossover

cable. The total length for both CAT-5e cable segments must not exceed 300 feet (~90 meters).

•The options to setup the AP24/AP58 would be to connect your PC directly to the POE module

(using a crossover cable), through a switch (using a patch cable) or wireless. To connect using the

wireless IF set your PC/Laptop SSID to AP24/AP58 and click on connect. Once connected you

can follow the instructions shown on following pages using the WinBox.

•The AP24/AP58 is shipped with a default private address 192.168.0.239. You can change this IP

address or setup multiple IP addresses for the AP24/AP58.

•In order to get started quickly the AP24/AP58 is shipped with an internal bridge setup (called

“bridge1”) between the Wireless LAN Port and the Ethernet Port. This “bridge1 is setup with the

default IP address 192.168.0.239. You can also setup the unit in the router mode if needed to get

full routing, DHCP server, capabilities etc. The Wireless LAN is setup in the infrastructure AP

mode with a SSID of “AP24” (or AP58).

WNE Wiring Diagram

The wireless network equipment is powered by a 48 VDC Power over Ethernet power supply/injector

module. The following steps should be accomplished to power the WNE:

1. Install the WNE enclosure either on a pole or to a wall.

2. Follow the instructions in the next section to assemble the Ethernet weatherproof cable feed

through assembly.

3. Connect one end of a patch (straight through) CAT 5e Ethernet cable to the AP24/58 through

the Feed through assembly.

4. Connect the other end of the CAT5e cable to the power and data port of the Power Over

Ethernet Module.

5. Locate the LAN Switch in your wiring closet and connect a patch (straight through) CAT 5e

cable from the IN/DATA port of the Power over Ethernet module to a LAN Switch port.

6. Last connect the 48VDC power supply to the Power Over Ethernet injector. Using the

supplied AC power cord connect the power supply to the AC. The unit operates on 110/240

VAC, 50/60 Hz.

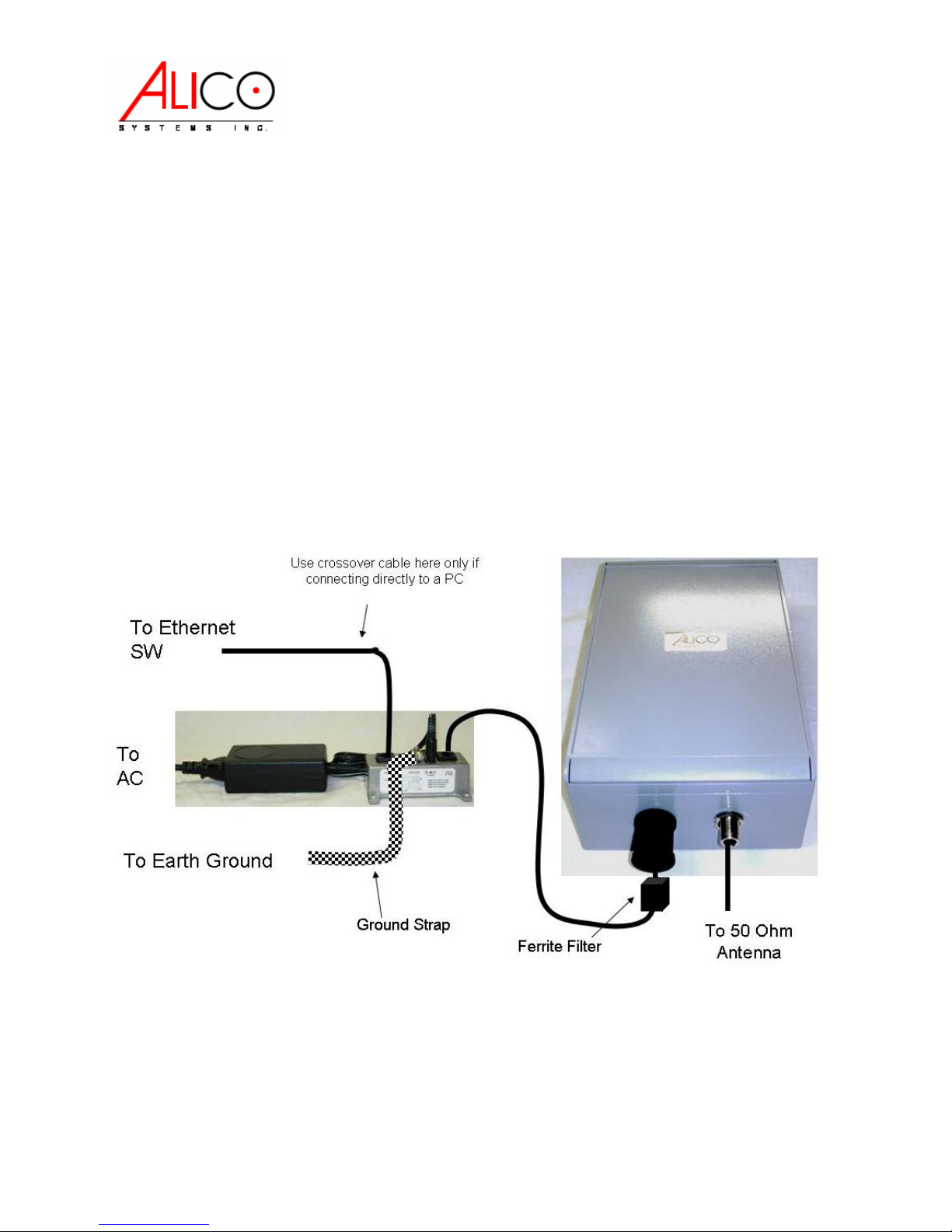

ure 1 Connection Dia

Antenna Installation Requirements:

The installer shall ensure that the following antenna gains are not exceeded when installing the Alico

Wireless Networking Equipment with an external antenna.

Freedom Series Antenna Certifications:

The Alico Systems Freedom Series Access Points, Bridges and CPEs are FCC certified with the

following antenna configurations.

1. 2.4 GHz Frequency Band (2400 to 2483.5 MHz) Freedom Series Models AP24, BR24, CP24

Antenna Type Type Designation Maximum Antenna Gain (dBi)

Mobile Omni 24-SB-07M 7

Omni 24-LB-15O 15

Flat Panel 24-AE-19F 19

Sector 24-LB-20S 20

2. 5.8 GHz Frequency Band (5725 to 5850 MHz) Freedom Series Models AP58, BR58, CP58

Antenna Type Type Designation Maximum Antenna Gain (dBi)

Mobile Omni 58-SB-09M 9

Omni 58-LB-15O 15

Sector 58-LB-17S 17

Flat Panel 58-AE-26F 26

Dish 58-LB-32D 32

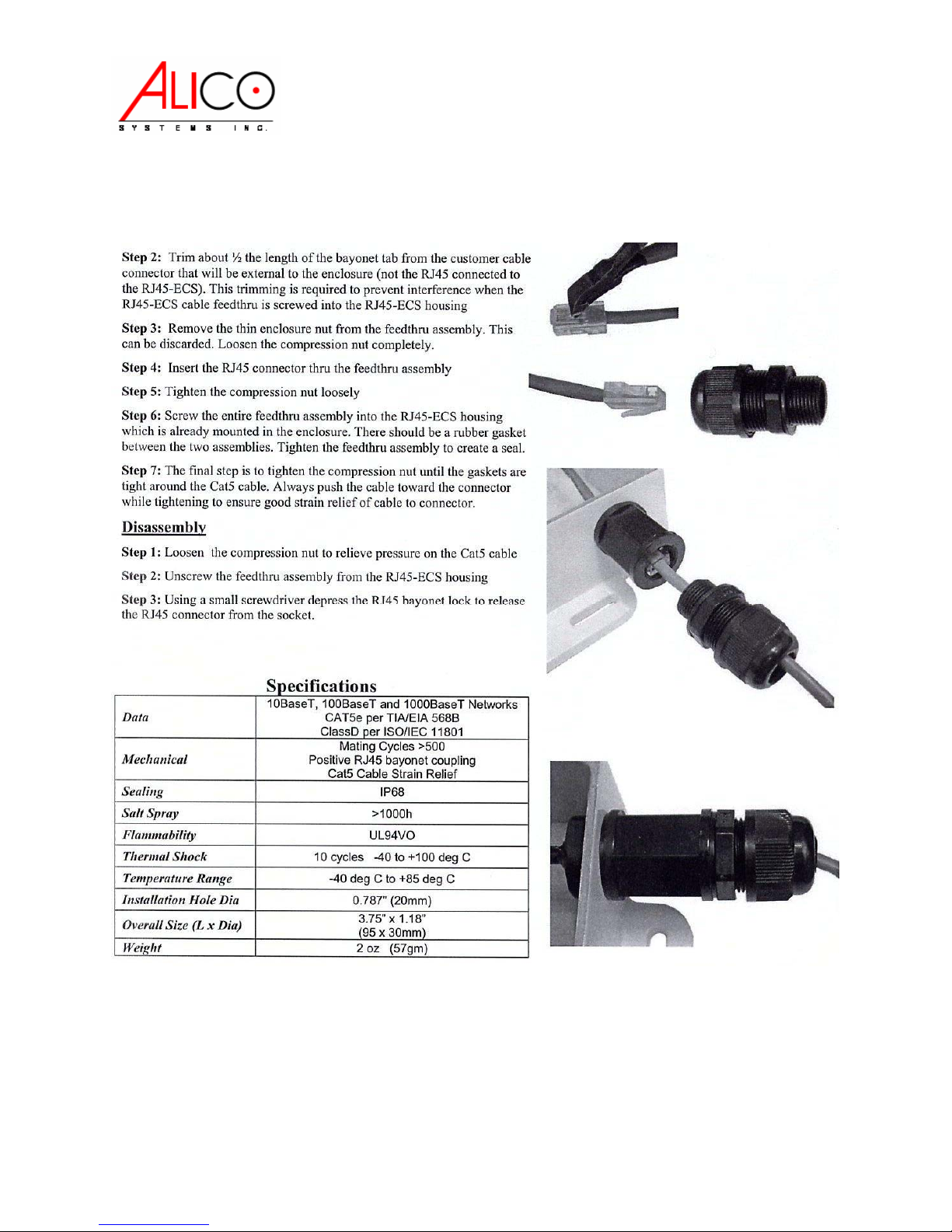

Cable Feed-through Assembly

Step 1: Use a Cat 5/6 cable with a open RJ45 connector without a boot.

•Do not tighten compression gasket until you are finalizing the installation. The gasket should only

be fully tightened once. Thorough inspection of the compression fitting should be done if it is re-

used.

•After assembly, we recommend completely wrapping the Feed-Through-Assembly using

waterproof outdoor electrical tape as a secondary water barrier.

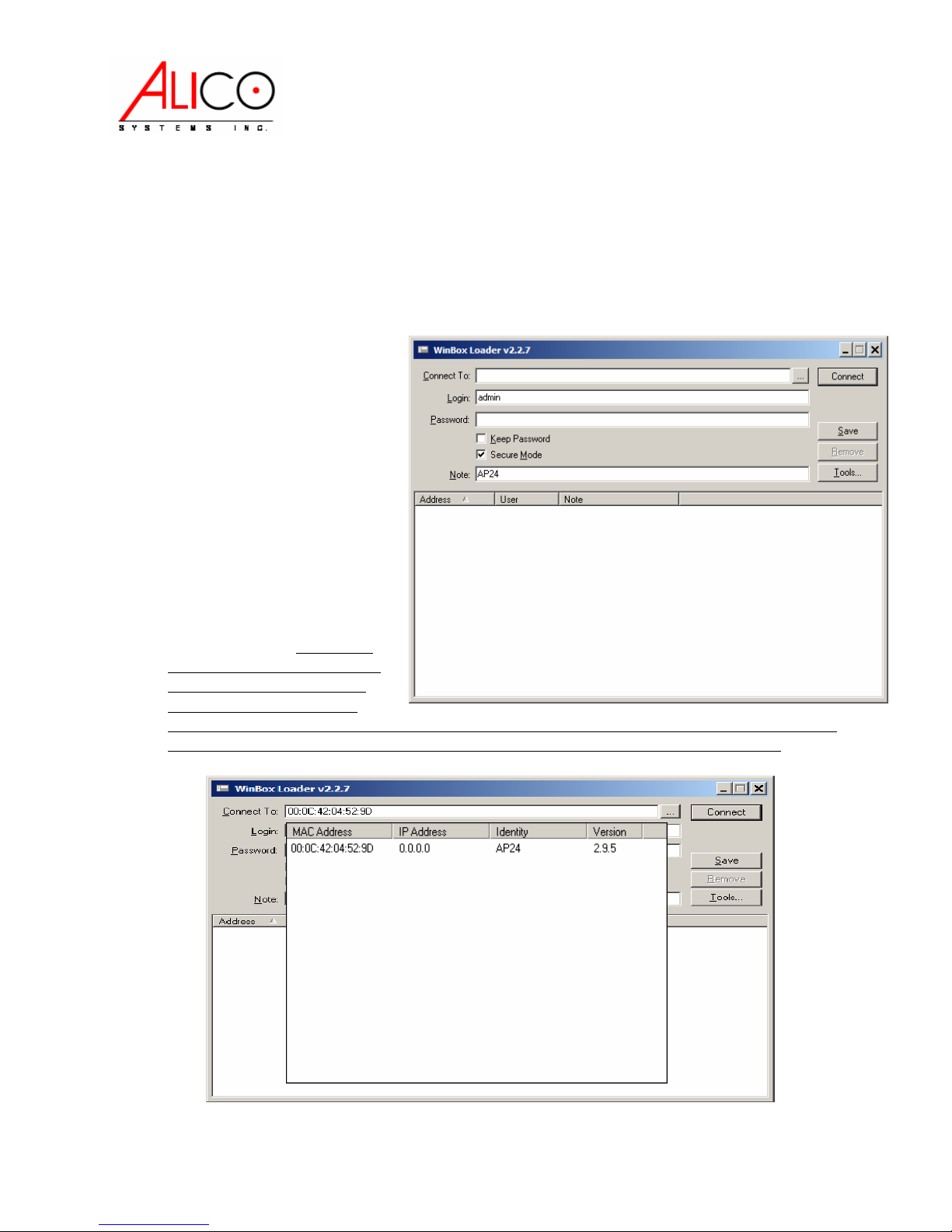

Starting Winbox Using the MAC Address

Note: In order to connect using the MAC address your PC must be on different subnet than

the default AP24/AP58 IP address 192.168.0.239

1. Copy the WinBox application from the CD to a convenient folder on your PC

2. Double click on the WinBox application

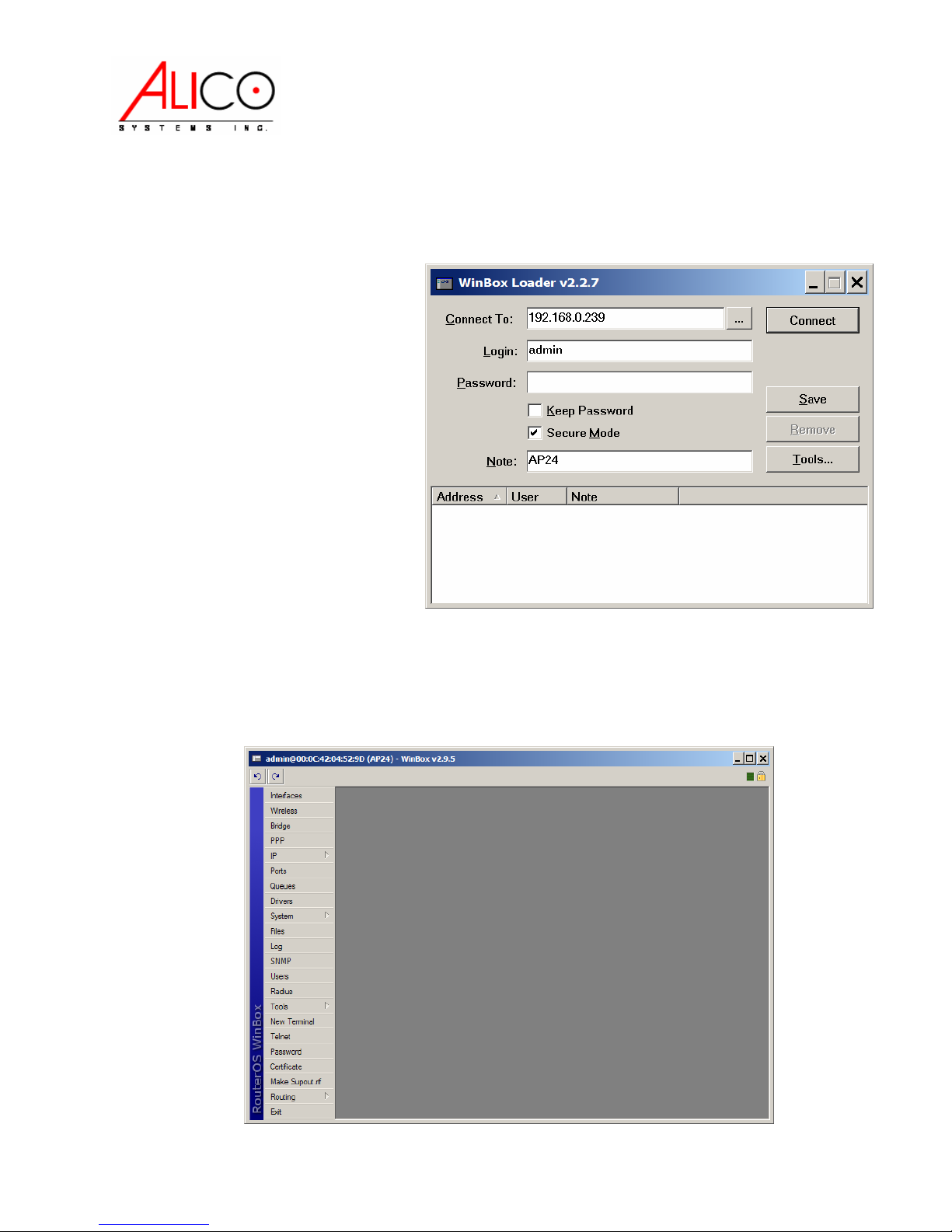

3. The WinBox screen shown below will appear

4. Click on the square button “…” to the left of the “Connect” button.

5. Select the AP24/AP58 line.

6. Press the Connect button.

7. Login as “admin”

8. Password: (blank) CAUTION

DO NOT SET A PASSWORD

AND LOSE IT AS IT WILL

REQUIRE SHIPMENT OF

UNIT BACK TO THE FACTORY FOR PASSWORD RESET; PASSWORD SHOULD BE SET

AFTER SETUP IS COMPLETE AND PROPERLY LOGGED INTO YOUR RECORDS

Starting Winbox Using IP Address

1. If your PC is setup on the same subnet as the default AP24/AP58 IP address 192.168.0.239 then

you must use the IP address to login. Using a MAC address will not work.

2. To log in to the WinBox enter the IP address 192.168.0.239 in the Connect To field

3. Click on the connect button to log

in.

4. Used admin as login name and

leave the password blank.

5. You can change this as you wish or

add your own to the list if these do

not conflict with your network.

6. When using the IP address to login

make sure you only have one

interface enabled on your PC

which is the one being used to

connect to the AP24/AP58.

Try out the different buttons on the left to see all the available options;

•Ether1 and wlan1 are the ports that are active for the AP24/AP58.

•Ether2, ether3 and serial ports are not used on the AP24/AP58 even though they appear on some

of the menus.

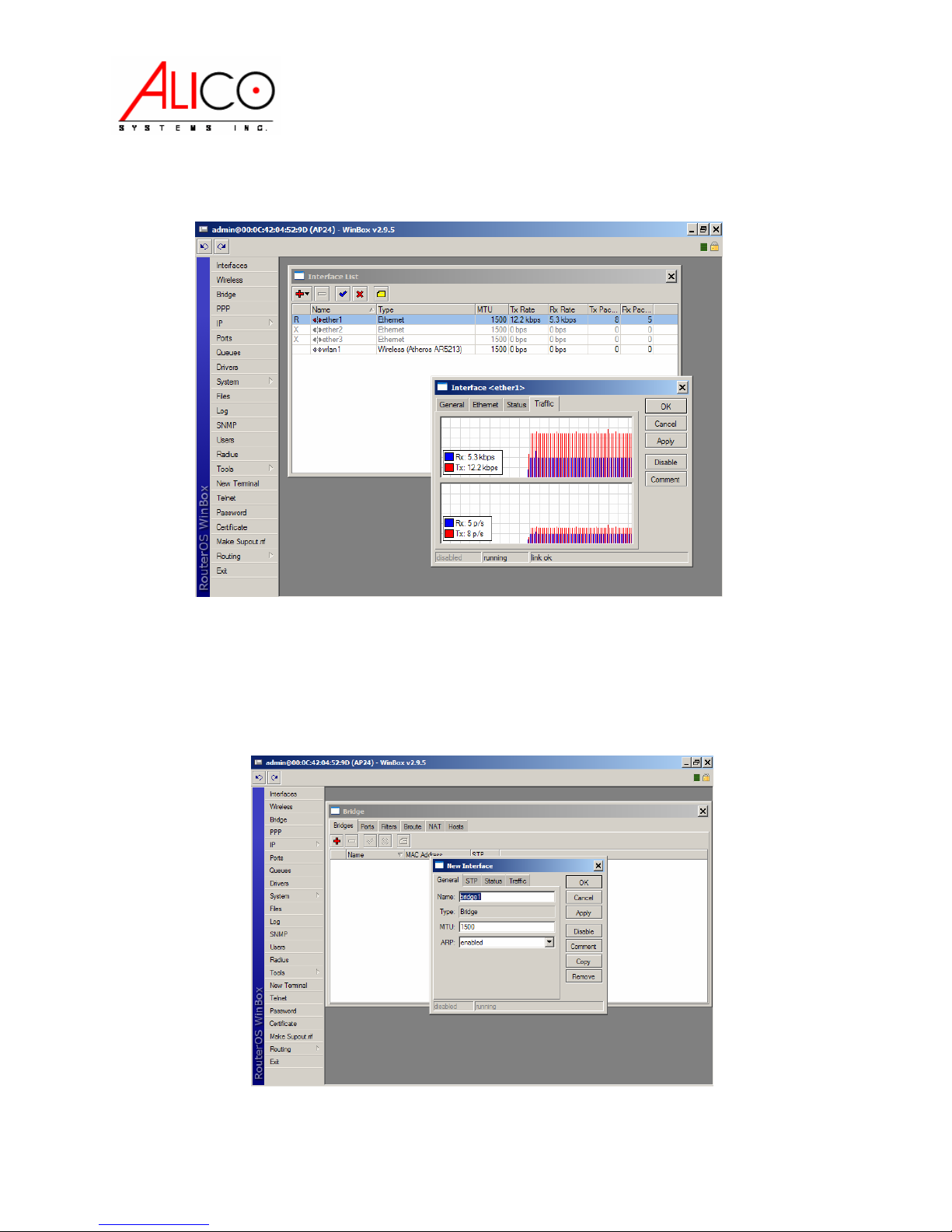

Looking at Interfaces

1. Click on the “Interfaces”’ button on the left column

2. Double click on the “ether1” interface to see the illustrated traffic pattern

Setting Up the Bridge (already setup)

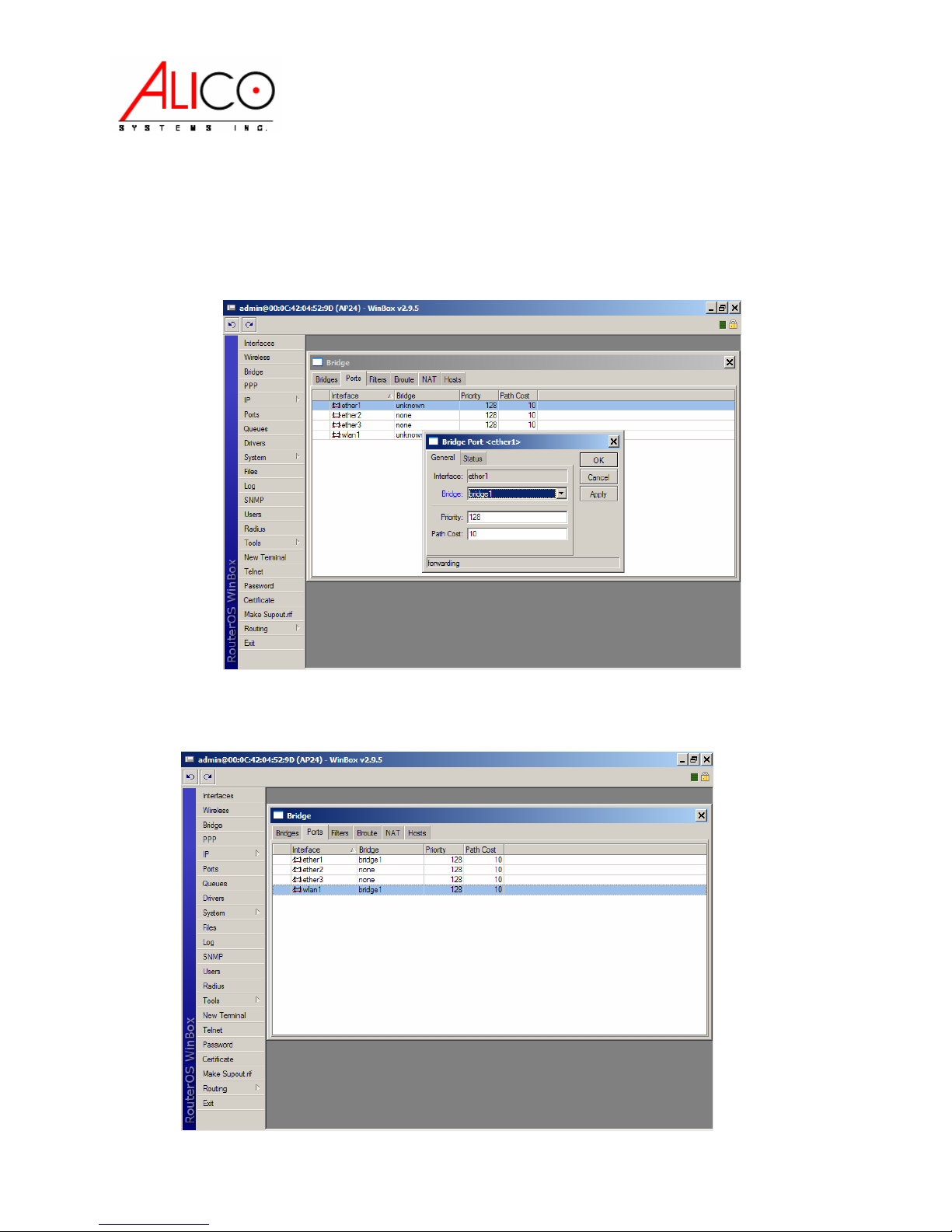

1. Click the “Bridge” button on the left column of WinBox

2. Click on the “+” button

3. Default bridge name is “bridge1”

4. click OK

Bridging the ether1 and wlan1 Ports

1. On the Bridge window click on the “Ports” tab

2. Double click on the “ether1” line

3. Select “bridge1” on the Bridge Port <ether1> window

4. Click OK

5. Double click on the “wlan1” line

6. Select “bridge1” on the Bridge Port <wlan1> window

7. Click OK

Bride1 Operating

You now have an operating bridge inside the AP24/AP58, close “Bridge” window.
