Alliance Laundry Systems 907003062 Manuale utente

Installation

www.comlaundry.com

Part No. 70420801R8EN

November 2011

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Tumble Dryers

120 Pound Capacity

170 Pound Capacity

Starting Serial No. 0907003062

Refer to Page 5 for Model Identification

TMB1268

TMB1268C

70420801 (EN) 1

Installation must conform with local codes or, in the absence of local codes, with:

In the U.S.A., installation must conform to the latest edition of the American National Standard Z223.1/

NFPA 54 “National Fuel Gas Code” and Standard ANSI/NFPA 70 “National Electric Code.”

In Canada, installation must comply with Standards CAN/CSA-B149.1 or Natural Gas and Propane

Installation Code and CSA C22.1, latest edition, Canadian Electric Code, Part I.

In Australia and New Zealand, installation must comply with the Gas Installations Standard AS/NZS 5601

Part 1: General Installations.

IMPORTANT: Information must be obtained from a local gas supplier on instructions to be followed if the

user smells gas. These instructions must be posted in a prominent location. Step-by-step instructions of the

above safety information must be posted in a prominent location near the tumble dryer for customer use.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

• WHAT TO DO IF YOU SMELL GAS:

– Do not try to light any appliance.

– Do not touch any electrical switch; do not use any phone in your building.

– Clear the room, building or area of all occupants.

– Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s

instructions.

– If you cannot reach your gas supplier, call the fire department.

• Installation and service must be performed by a qualified installer, service agency or the gas

supplier.

W052

FOR YOUR SAFETY, the information in this manual must be followed to minimize the risk

of fire or explosion or to prevent property damage, personal injury or death.

W033

WARNING

270420801 (EN)

The following information applies to the state of Massachusetts, USA.

This appliance can only be installed by a Massachusetts licensed plumber or gas fitter.

This appliance must be installed with a 36 inch (91 cm) long flexible gas connector.

A "T-Handle" type gas shut-off valve must be installed in the gas supply line to this appliance.

This appliance must not be installed in a bedroom or bathroom.

• Installation of unit must be performed by a qualified installer.

• Install tumble dryer according to manufacturer’s instructions and local codes.

• DO NOT install a tumble dryer with flexible plastic venting materials. If flexible metal (foil

type) duct is installed, it must be of a specific type identified by the appliance manufacturer

as suitable for use with tumble dryer. Refer to section on connecting exhaust system.

Flexible venting materials are known to collapse, be easily crushed, and trap lint. These

conditions will obstruct tumble dryer airflow and increase the risk of fire.

W752R1

•

WARNING

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or

any other appliance.

W053

70420801 (EN) 3

means without the expressed written consent of the publisher.

Table of

Contents

Introduction......................................................................................... 5

Model Identification ............................................................................. 5

Customer Service.................................................................................. 5

Wiring Diagram Location..................................................................... 5

Serial Plate Location............................................................................. 6

Safety Information.............................................................................. 7

Important Safety Instructions ............................................................... 8

Specifications and Dimensions........................................................... 10

120 Pound Tumble Dryer Dimensions and

Exhaust Outlet Locations ................................................................... 11

170 Pound Tumble Dryer Dimensions and

Exhaust Outlet Locations ................................................................... 12

Electric and Gas Connection Locations for Gas Models...................... 13

Electric and Steam Connection Locations for Steam Models .............. 14

Electric Connection Location for Electric Models ............................... 15

Installation........................................................................................... 16

Pre-Installation Inspection .................................................................... 16

Location Requirements......................................................................... 16

Position and Level the Tumble Dryer................................................... 18

Before Placing Tumble Dryer into Service .......................................... 18

Required for CE Models Only.............................................................. 19

Installing CE Gas Drying Tumble Dryers ............................................ 20

General Information......................................................................... 20

Basic Configuration ......................................................................... 22

Specific Conversion Procedures ...................................................... 23

Exhaust Requirements ....................................................................... 25

Layout ................................................................................................... 25

Make-Up Air......................................................................................... 25

Venting ................................................................................................. 25

Individual Venting ........................................................................... 27

Manifold Venting............................................................................. 27

Gas Requirements............................................................................... 31

Gas Supply Pipe Sizing and Looping ................................................... 33

High Altitude Orifice Sizing................................................................. 35

Electrical Requirements..................................................................... 36

Grounding Instructions ......................................................................... 36

For CE Models Only........................................................................ 37

Service/Ground Location...................................................................... 38

To Connect Electrical Service to the Tumble Dryer........................ 40

Jumper Configuration Instructions ....................................................... 41

Ferrite Ring Installation........................................................................ 41

Electrical Requirements........................................................................ 42

470420801 (EN)

Steam Requirements........................................................................... 43

Piping Recommendations ..................................................................... 43

Installing Steam Trap and Making Condensate

Return Connections ............................................................................ 44

Thermal Oil Prep .................................................................................. 44

120 Pound Tumble Dryers.................................................................... 45

170 Pound Tumble Dryers.................................................................... 46

Adjustments......................................................................................... 47

Gas Burner Air Shutter ......................................................................... 47

Airflow Switch...................................................................................... 48

Loading Door Strike ............................................................................. 48

Loading Door Switch............................................................................ 48

Belt Drive.............................................................................................. 49

Removing Tumble Dryer from Service............................................. 50

70420801 (EN)

Introduction

Model Identification

Information in this manual is applicable to these models.

Includes models with the following control suffixes:

Customer Service

If literature or replacement parts are required, contact

the source from which the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

For technical assistance, call (920) 748-3121.

Wiring Diagram Location

The wiring diagram is located in the junction or

contactor box.

The wiring diagram part number is in the lower

portion of the electrical data on the serial plate.

Gas Steam/Thermal Oil Electric

120 Pound

DR120G2-BA120L

DR120G2-BA120N

DR120G2-BT120L

DR120G2-BT120N

DR120G2-BU120L

DR120G2-BU120N

CA120L

CA120N

CT120L

CT120N

CU120L

CU120N

HA120L

HA120N

HT120L

HT120N

HU120L

HU120N

IT120L

IT120N

SA120L

SA120N

ST120L

ST120N

SU120L

SU120N

UA120L

UA120N

UT120L

UT120N

UU120L

UU120N

XT120L

XT120N

XU120L

XU120N

YT120L

YT120N

DR120S2-BT120S

DR120S2-BT120T

DR120S2-BU120S

DR120S2-BU120T

CT120S

CT120T

CU120S

CU120T

HT120S

HT120T

HU120S

HU120T

IT120S

IT120T

ST120S

ST120T

SU120S

SU120T

UT120S

UT120T

UU120S

UU120T

XT120S

XT120T

XU120S

XU120T

YT120S

YT120T

YU120S

YU120T

DR120E2-BT120E

DR120E2-BU120E

CT120E

CU120E

HT120E

HU120E

IT120E

ST120E

SU120E

UT120E

UU120E

YU120E

170 Pound

DR170G2-BA170L

DR170G2-BA170N

DR170G2-BT170L

DR170G2-BT170N

DR170G2-BU170L

DR170G2-BU170N

CA170L

CA170N

CT170L

CT170N

CU170L

CU170N

HA170L

HA170N

HT170L

HT170N

HU170L

HU170N

IT170L

IT170N

SA170L

SA170N

ST170L

ST170N

SU170L

SU170N

UA170L

UA170N

UT170L

UT170N

UU170L

UU170N

XT170L

XT170N

XU170L

XU170N

YT170L

YT170N

DR170S2-BT170S

DR170S2-BT170T

DR170S2-BU170S

DR170S2-BU170T

CT170S

CT170T

CU170S

CU170T

HT170S

HT170T

HU170S

HU170T

IT170S

IT170T

ST170S

ST170T

SU170S

SU170T

UT170S

UT170T

UU170S

UU170T

XT170S

XT170T

XU170S

XU170T

YT170S

YT170T

Not Applicable

R3 – reversing DX4 OPL RE – reversing OPL Micro RQ – reversing dual digital timer

RD – reversing DMP OPL RM – reversing OPL Micro RU – reversing UniLinc OPL

Introduction

70420801 (EN)

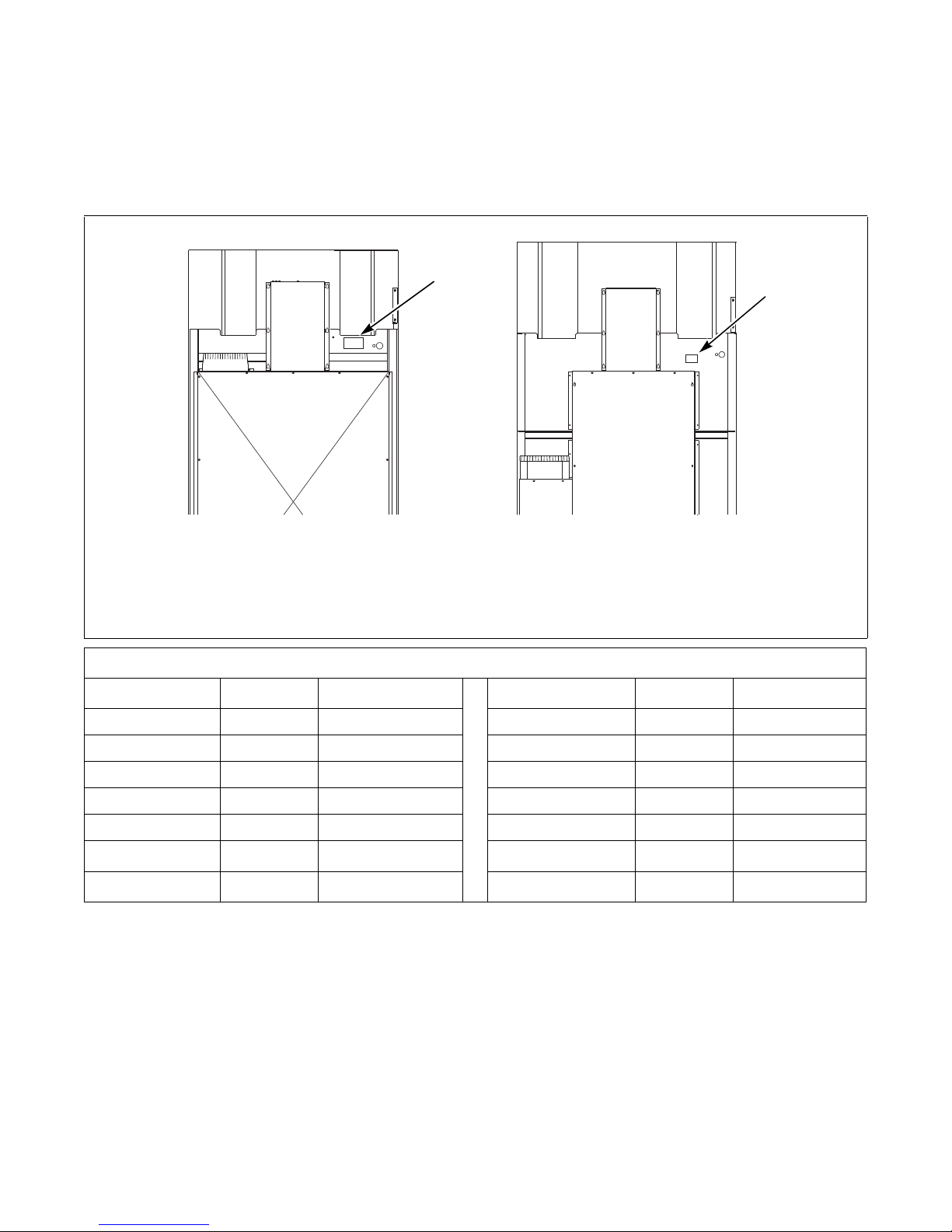

Serial Plate Location

When calling or writing for information about your

product, be sure to mention model and serial numbers.

Model and serial numbers are located on the serial

plate as shown.

TMB2288N

1Serial Plate

Conversion Table

Multiply By To Obtain Multiply By To Obtain

Btu 0.252 kCal Pounds/sq. inch 0.06895 Bars

Btu 1055 Joules Pounds/sq. inch 0.070 kg/sq. cm

Inch 25.4 Millimeters Pounds (lbs.) 0.454 Kilograms

Inches W.C. 0.036 Pounds/sq. inch Boiler Horsepower 33,479 Btu/hr.

Inches W.C. 0.249 kPa Boiler Horsepower 34.5 lbs. steam/hr.

lb./inch2(psi) 6.895 kPa CFM 0.471 liters/second

ft.328.32 Liters kW 3414 Btu/hr.

TMB2288N

120 POUND Tumble Dryer

170 POUND Tumble Dryer

70420801 (EN)

Safety Information

Precautionary statements (“DANGER,” “WARNING,”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

NOTE: The WARNINGS and IMPORTANT

instructions appearing in this manual are not

meant to cover all possible conditions and

situations that may occur. It must be understood

that common sense, caution and carefulness are

factors which CANNOT be built into this tumble

dryer. These factors MUST BE supplied by the

person(s) installing, maintaining or operating the

tumble dryer.

Always contact your dealer, distributor, service agent

or the manufacturer on any problems or conditions you

do not understand.

DANGER – Indicates an imminently

hazardous situation that, if not avoided,

will cause severe personal injury or

death.

DANGER

WARNING – Indicates a hazardous

situation that, if not avoided, could cause

severe personal injury or death.

WARNING

CAUTION – Indicates a hazardous

situation that, if not avoided, may cause

minor or moderate personal injury or

property damage.

CAUTION

Failure to install, maintain, and/or operate

this machine according to manufacturer’s

instructions may result in conditions which

can produce serious injury, death and/or

property damage.

W051R1

WARNING

Safety Information

70420801 (EN)

Save These Instructions

Important Safety Instructions

1. Read all instructions before using the tumble

dryer.

2. Refer to the Grounding Instructions for the

proper grounding of the tumble dryer.

3. Do not dry articles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, dry cleaning solvents, other flammable

or explosive substances as they give off vapors

that could ignite or explode.

4. Do not allow children on or in the tumble dryer.

This appliance is not intended for use by young

children or infirm persons without supervision.

Young children should be supervised to ensure

that they do not play with the appliance.

5. Before the tumble dryer is removed from service

or discarded, remove the door to the drying

compartment and the door to the lint

compartment.

6. Do not reach into the tumble dryer if the cylinder

is revolving.

7. Do not install or store the tumble dryer where it

will be exposed to water and/or weather.

8. Do not tamper with the controls.

9. Do not repair or replace any part of the tumble

dryer, or attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that you understand and have the

skills to carry out.

10. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

11. To reduce the risk of fire, DO NOT DRY plastics

or articles containing foam rubber or similarly

textured rubberlike materials.

12. Always clean the lint filter daily.

13. Keep area around the exhaust opening and

adjacent surrounding area free from the

accumulation of lint, dust and dirt.

14. The interior of the tumble dryer and the exhaust

duct should be cleaned periodically by qualified

service personnel.

15. If not installed, operated and maintained in

accordance with the manufacturer’s instructions

or if there is damage to or mishandling of this

product’s components, use of this product could

expose you to substances in the fuel or from fuel

combustion which can cause death or serious

illness and which are known to the State of

California to cause cancer, birth defects or other

reproductive harm.

16. Tumble dryer will not operate with the loading

door open. DO NOT bypass the door safety

switch to permit the tumble dryer to operate with

the door open. The cylinder will stop rotating

when the door is opened. Do not use the tumble

dryer if the cylinder does not stop rotating when

the door is opened or starts rotating without

pressing or turning the START mechanism.

Remove the tumble dryer from use and call for

service.

17. Tumble dryer will not operate with lint panel

open. DO NOT bypass lint panel safety switch to

permit tumble dryer to operate with the lint panel

open.

18. Do not put articles soiled with vegetable or

cooking oil in the tumble dryer, as these oils may

not be removed during washing. Due to the

remaining oil, the fabric may catch on fire by

itself.

19. To reduce the risk of fire, DO NOT put clothes

which have traces of any flammable substances

such as machine oil, flammable chemicals,

thinner, etc. or anything containing wax or

chemicals such as in mops and cleaning cloths, or

anything dry-cleaned at home with dry-cleaning

solvent in the tumble dryer.

20. Use the tumble dryer only for its intended

purpose, drying fabrics.

21. ALWAYS disconnect the electrical power to the

tumble dryer before servicing. Disconnect power

by shutting off appropriate breaker or fuse.

Hazardous Voltage. Can cause shock, burn

or cause death. Allow machine power to

remain off for two minutes prior to working

in and around AC inverter drive.

W359

WARNING

Questo manuale è adatto per i seguenti modelli

145

Indice

Altri manuali Alliance Laundry Systems Asciugatrice

Alliance Laundry Systems

Alliance Laundry Systems 512685R2 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems BDEBCAGS173TN01 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TR3003WN Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen DF7000WG Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems LES33 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HA025E Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 512906 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 120 Pound Capacity Manuale di installazione e funzionamento

Alliance Laundry Systems

Alliance Laundry Systems DRY725C_SVG Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers none Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems DRY722C-SVG Guida

Alliance Laundry Systems

Alliance Laundry Systems ADE3SRGS173CW01 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems Drying Tumblers none Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity Manuale

Alliance Laundry Systems

Alliance Laundry Systems 513006R3 Guida

Alliance Laundry Systems

Alliance Laundry Systems DV6010WE Guida

Alliance Laundry Systems

Alliance Laundry Systems BDEE6BGS173CW01 Istruzioni operative

Alliance Laundry Systems

Alliance Laundry Systems 25 Pound Capacity Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems continuity Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems LES33A F4562 Series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems Stacked Drying Tumbler Manuale operativo

Alliance Laundry Systems

Alliance Laundry Systems CHD25G2-CA025L Manuale del proprietario

Manuali Asciugatrice popolari di altre marche

Bosch

Bosch WTA79200GB Manuale utente

Amana

Amana W10233410A Manuale utente

Miele

Miele TWH 780 WP Manuale utente

Asko

Asko T760 Manuale utente

Bosch

Bosch Logixx 10 WTB76556GB Scheda tecnica

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manuale di istruzioni

Electrolux

Electrolux EW2H328R2 Manuale utente

Beko

Beko DS8433RX1M Manuale utente

Dawlance

Dawlance Spinner DS 6000 C Manuale utente

Electrolux

Electrolux TP5080TW Manuale utente

AEG

AEG TR838P4OB Manuale utente

Indesit

Indesit IDV 75 Manuale utente

Infiniton

Infiniton SD-DG85C Manuale utente

BOMANN

BOMANN WT 5019 Manuale utente

Asko

Asko T793C Manuale utente

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuale utente

Frigidaire

Frigidaire CAQE7077KW0 Manuale del proprietario

Bosch

Bosch WTX8HKM9SN Manuale utente
