Alliance Laundry Systems 100 Manuale utente

www.comlaundry.com

Installation

Washer-Extractors

Cabinet Freestanding

Refer to Page 6 for Model Identification

CFD19C

CFD20C

100, 135, 165 and 200 Models

CFD20C

33, 40, 55 and 75 Models

Part No. 9001000R13

July 2010

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

18, 25 and 35 Models

CFD15C

means without the expressed written consent of the publisher.

9001000 1

Table of

Contents

Safety Information.............................................................................. 2

Explanation of Safety Messages........................................................... 2

Important Safety Instructions ............................................................... 2

Safety Decals........................................................................................ 4

Operator Safety..................................................................................... 5

Introduction......................................................................................... 6

Model Identification ............................................................................. 6

Nameplate Location.............................................................................. 8

Replacement Parts ................................................................................ 8

Customer Service.................................................................................. 8

Specifications and Dimensions........................................................... 10

Installation........................................................................................... 25

Dimensional Clearances................................................................... 25

Machine Foundation ........................................................................ 26

Mechanical Installation......................................................................... 27

Frame Dimensions and Mounting Bolt Location............................. 27

Mounting Bolt Installation (If Required).............................................. 41

Removing the Transport Brackets........................................................ 42

Drain Connection.................................................................................. 44

Water Connection................................................................................. 46

Electrical Installation............................................................................ 47

Electrical Connection............................................................................ 50

Remote Liquid Supply Connection ...................................................... 50

Chemical Injection Supply System.................................................. 50

Steam Requirements (Steam Heat Option Only).................................. 51

Supply Programming Table............................................................. 52

Supply Relay Configuration (No Wiring)........................................ 52

Primary 220 Volt Remote Liquid Supply Connection..................... 52

Out-of-Balance Switch ......................................................................... 54

Automatic Lubricator............................................................................ 54

Control Function Test........................................................................... 55

Safety Information

Explanation of Safety Messages

Precautionarystatements(“DANGER,” “WARNING,”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

NOTE: The word “NOTE” is used to communicate

installation, operation, maintenance or servicing

information that is important but not hazard

related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual for the proper

grounding of the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, kerosene, waxes, cooking oils, dry-

cleaning solvents, or other flammable or

explosive substances as they give off vapors that

could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas

is flammable, do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions: W023

WARNING

Safety Information

9001000

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power

source.

13. Use washer only for its intended purpose,

washing textiles.

14. Never wash machine parts or automotive parts in

the machine. This could result in serious damage

to the basket.

15. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

16. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required.

17. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc., or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

18. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

19. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a

qualified service person.

20. If the supply cord is damaged, it must be replaced

by a special cord or assembly available from the

manufacturer or its service agent.

21. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

22. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT bypass

the loading door switch by permitting the washer

to operate with the loading door open.

23. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

24. Always follow the fabric care instructions

supplied by the textile manufacturer.

25. Never operate the washer with any guards and/or

panels removed.

26. DO NOT operate the washer with missing or

broken parts.

27. DO NOT bypass any safety devices.

28. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

Safety Information

9001000

IMPORTANT: Ensure that the recommended

clearances for inspection and maintenance

are provided. Never allow the inspection and

maintenance space to be blocked.

Safety Decals

Safety decals appear at crucial locations on the

machine. Failure to maintain legible safety decals

could result in injury to the operator or service

technician.

To provide personal safety and keep the machine in

proper working order, follow all maintenance and

safety procedures presented in this manual. If

questions regarding safety arise, contact the

manufacturer immediately.

Use manufacturer-authorized spare parts to avoid

safety hazards.

This machine must be installed, adjusted,

and serviced by qualified electrical

maintenance personnel familiar with the

construction and operation of this type of

machinery. They must also be familiar

with the potential hazards involved.

Failure to observe this warning may result

in personal injury and/or equipment

damage, and may void the warranty. SW004

WARNING

Install the machine on a level floor of

sufficient strength. Failure to do so may

result in conditions which can produce

serious injury, death and/or property

damage. W703

WARNING

Be careful around the open door,

particularly when loading from a level

below the door. Impact with door edges

can cause personal injury. SW025

CAUTION

Never touch internal or external steam

pipes, connections, or components.

These surfaces can be extremely hot and

will cause severe burns. The steam must

be turned off and the pipe, connections,

and components allowed to cool before

the pipe can be touched. SW014

WARNING

Safety Information

9001000

Operator Safety

To ensure the safety of machine operators, the

following maintenance checks must be performed

daily:

1. Prior to operating the machine, verify that all

warning signs are present and legible. Missing or

illegible signs must be replaced immediately.

Make certain that spares are available.

2. Check door interlock before starting operation of

the machine:

a. Attempt to start the machine with the door

open. The machine should not start with the

door open.

b. Close the door without locking it and attempt

to start the machine. The machine should not

start with the door unlocked.

c. Close and lock the door and start a cycle.

Attempt to open the door while the cycle is in

progress. The door should not open.

If the door lock and interlock are not functioning

properly, call a service technician.

3. Do not attempt to operate the machine if any of

the following conditions are present:

a. The door does not remain securely locked

during the entire cycle.

b. Excessively high water level is evident.

c. Machine is not connected to a properly

grounded circuit.

Do not bypass any safety devices in the machine.

NEVER insert hands or objects into

basket until it has completely stopped.

Doing so could result in serious injury.

SW012

WARNING

Never operate the machine with a

bypassed or disconnected balance

system. Operating the machine with

severe out-of-balance loads could result

in personal injury and serious equipment

damage. SW039

WARNING

Introduction

Model Identification

Information in this manual is applicable to these

models:

HX18PVQM6 SX18PVPA7 UX18PVNA6 HX18PVQU6 SX18PVQU6 UX18PVNU6

HX18PVQM7 SX18PVQM6 UX18PVNA7 HX18PVXU6 SX18PVXU6 UX18PVPU6

HX18PVXM6 SX18PVQM7 UX18PVPA6 UX18PVQU6

HX18PVXM7 SX18PVXM6 UX18PVPA7 UX18PVXU6

SX18PVXM7 UX18PVQA6

UX18PVQA7

UX18PVQM6

UX18PVQM7

UX18PVXA6

UX18PVXA7

UX18PVXM6

UX18PVXM7

HX25PVQM6 SX25PVQM6 UX25PVNA6 HX25PVQU6 SX25PVQU6 UX25PVNU6

HX25PVQM7 SX25PVQM7 UX25PVNA7 HX25PVXU6 SX25PVXU6 UX25PVPU6

HX25PVXM6 SX25PVXM6 UX25PVPA6 UX25PVQU6

HX25PVXM7 SX25PVXM7 UX25PVPA7 UX25PVXU6

UX25PVQA6

UX25PVQA7

UX25PVQM6

UX25PVQM7

UX25PVXA6

UX25PVXA7

UX25PVXM6

UX25PVXM7

UX33PVNA7

UX33PVPA7

UX33PVQA7

UX33PVQM7

UX33PVXA7

UX33PVXM7

HX35PVQM6 SX35PVQM6 UX35PVNA6 HX35PVQU6 SX35PVQU6 UX35PVNU6

HX35PVQM7 SX35PVQM7 UX35PVNA7 HX35PVXU6 SX35PVXU6 UX35PVPU6

HX35PVXM6 SX35PVXM6 UX35PVPA6 UX35PVQU6

HX35PVXM7 SX35PVXM7 UX35PVPA7 UX35PVXU6

SX35PVNM7 UX35PVQA6

UX35PVQA7

UX35PVQM6

UX35PVQM7

UX35PVXA6

UX35PVXA7

UX35PVXM6

UX35PVXM7

continued

Introduction

9001000

continued

UX40PVNA7

UX40PVPA7

UX40PVQA7

UX40PVQM7

UX40PVXA7

UX40PVXM7

HX55PVNU6 SX55PVNU6 UX55PVNU6

HX55PVNU7 SX55PVNU7 UX55PVNU7

HX55PVQU6 SX55PVPU6 UX55PVPU6

HX55PVQU7 SX55PVPU7 UX55PVPU7

HX55PVXU6 SX55PVQU6 UX55PVQU6

HX55PVXU7 SX55PVQU7 UX55PVQU7

SX55PVXU6 UX55PVXU6

SX55PVXU7 UX55PVXU7

HX75PVNU6 SX75PVNU6 UX75PVNU6

HX75PVNU7 SX75PVNU7 UX75PVNU7

HX75PVPU7 SX75PVPU7 UX75PVPU6

HX75PVQU6 SX75PVQU6 UX75PVPU7

HX75PVQU7 SX75PVQU7 UX75PVQU6

UX75PVQU7

100

HX100PVNU6 SX100PVNU6 UX100PVNU6

HX100PVNU7 SX100PVNU7 UX100PVNU7

HX100PVPU7 SX100PVPU7 UX100PVPU6

HX100PVQU6 SX100PVQU6 UX100PVPU7

HX100PVQU7 SX100PVQU7 UX100PVQU6

UX100PVQU7

135

HX135PVNU6 SX135PVNU6 UX135PVNU6

HX135PVNU7 SX135PVNU7 UX135PVNU7

HX135PVPU7 SX135PVPU7 UX135PVPU6

HX135PVQU6 SX135PVQU6 UX135PVPU7

HX135PVQU7 SX135PVQU7 UX135PVQU6

UX135PVQU7

165

HX165PVNU6 SX165PVNU6 UX165PVNU6

HX165PVNU7 SX165PVNU7 UX165PVNU7

HX165PVPU7 SX165PVPU7 UX165PVPU6

HX165PVQU6 SX165PVQU6 UX165PVPU7

HX165PVQU7 SX165PVQU7 UX165PVQU6

UX165PVQU7

200

HX200PVNU7 SX200PVNU7 UX200PVNU7

HX200PVPU7 SX200PVPU7 UX200PVPU7

HX200PVQU7 SX200PVQU7 UX200PVQU7

Introduction

9001000

Nameplate Location

The nameplate is located at the rear of the machine.

Always provide the machine’s serial number and

model number when ordering parts or when seeking

technical assistance.

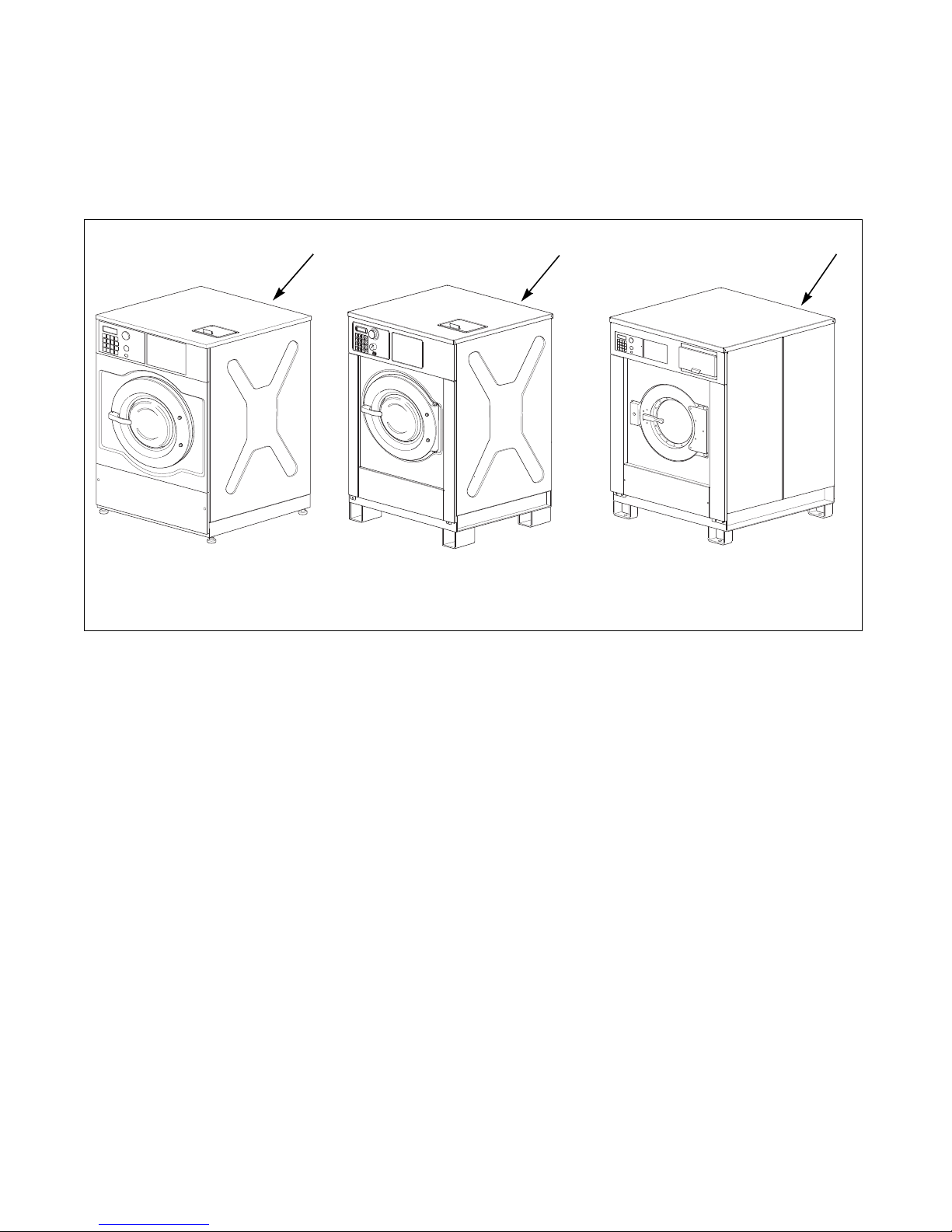

Figure 1

Replacement Parts

If literature or replacement parts are required, contact

the source from which the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

Customer Service

For technical assistance, call (920) 748-3121.

1Nameplate

CFD19C

18, 25 AND 35 MODELS

33, 40, 55 AND 75 MODELS

CFD20C

100, 135, 165 AND 200 MODELS

CFD19C CFD15C

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Alliance Laundry Systems Rondella

Alliance Laundry Systems

Alliance Laundry Systems POCKET HARDMOUNT UW50P4 Guida alla manutenzione e all'assistenza

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen FV6000WN Manuale di servizio

Alliance Laundry Systems

Alliance Laundry Systems HWFB61WN1102 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 1305 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems CTS90AWN Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HF18VNV Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HC18PC2 Guida alla risoluzione dei problemi

Alliance Laundry Systems

Alliance Laundry Systems 802734R6 Guida

Alliance Laundry Systems

Alliance Laundry Systems PHM1401C Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems F232179R5 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems TLW22C_SVG Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HCD020GD2 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems HFNBCF Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems 38900R11 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems CHM1772C Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 802749R2 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems LTS97A*N1500 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems BWNBC2PP112TW01 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems 9002062R3 Guida all'installazione

Alliance Laundry Systems

Alliance Laundry Systems TLW12C SVG Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems WFF100 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems DWA021*A Istruzioni per il montaggio

Alliance Laundry Systems

Alliance Laundry Systems HC125BYV Guida alla risoluzione dei problemi

Alliance Laundry Systems

Alliance Laundry Systems FLW1526C Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
