Alliance Laundry Systems TLW22C

User's Guide

for Topload Washers

TLW22C_SVG

Original Instructions

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

ca.speedqueen.com Part No. 203943EN

September 2016

WARNING

Failure to install, maintain, and/or operate this ma-

chine according to the manufacturer's instructions

may result in conditions which can produce bodily in-

jury and/or property damage.

W030

WARNING

For your safety and to reduce the risk of ﬁre or an ex-

plosion, do not store or use gasoline or other ﬂamma-

ble vapors and liquids in the vicinity of this or any oth-

er appliance.

W022

NOTE: The WARNING and IMPORTANT instructions ap-

pearing in this manual are not meant to cover all possi-

ble conditions and situations that may occur. It must be

understood that common sense, caution, and careful-

ness are factors which cannot be built into these wash-

ers. These factors MUST BE supplied by the person(s)

installing, maintaining, or operating the washer.

Always contact the distributor, service agent, or the manufacturer

about any problems or conditions you do not understand.

Read all instructions before using washer.

©Copyright, Alliance Laundry Systems LLC -

DO NOT COPY or TRANSMIT

3 Part No. 203943EN

Product Registration

New owners of Alliance Laundry Systems equipment are encour-

aged to register their appliance to insure proper limited warranty

coverage. Register online at

ca.speedqueen.com/warranty

or con-

tact your dealer to register your appliance. All information will be

kept conﬁdential and will not be distributed to other parties.

Product Registration

©Copyright, Alliance Laundry Systems LLC -

DO NOT COPY or TRANSMIT

4 Part No. 203943EN

Table of Contents

Safety Information............................................................................. 6

Explanation of Safety Messages................................................................. 6

Important Safety Instructions....................................................................6

Operation......................................................................................... 8

Before Washing........................................................................................8

Loading the Washer.................................................................................. 8

Operating Your Washer...................................................................... 11

Determine Proper Cycle............................................................................11

Heavy Duty/Permanent Press Cycle.........................................................11

Normal Eco Cycle................................................................................ 11

Handwash/Delicate Cycle......................................................................11

Soak/Prewash Cycle.............................................................................11

Extra Rinse....................................................................................... 11

To Wash Clothes.....................................................................................11

Timer...................................................................................................12

Manual Soaking......................................................................................12

Optional Features.................................................................................. 12

Clothing Care...................................................................................14

Clothing Concerns.................................................................................. 14

Maintenance................................................................................... 16

Cold Weather Care..................................................................................16

Care of Your Washer................................................................................16

Replacing Hoses.....................................................................................16

Filter Screens........................................................................................16

Vacations and Extended Non-Use.............................................................. 16

Preventative Maintenance........................................................................16

Reinstallation of Shipping Materials........................................................... 16

Motor Overload Protector........................................................................17

Optional Control Knob Inserts................................................................... 17

Troubleshooting............................................................................... 18

Warranty Repairs...................................................................................21

Contact Information............................................................................... 21

consent of the publisher.

©Copyright, Alliance Laundry Systems LLC -

DO NOT COPY or TRANSMIT

5 Part No. 203943EN

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING,” and “CAU-

TION”), followed by speciﬁc instructions, are found in this manual

and on machine decals. These precautions are intended for the per-

sonal safety of the operator, user, servicer, and those maintaining

the machine.

DANGER

Indicates an imminently hazardous situation that, if

not avoided, will cause severe personal injury or

death.

WARNING

Indicates a hazardous situation that, if not avoided,

could cause severe personal injury or death.

CAUTION

Indicates a hazardous situation that, if not avoided,

may cause minor or moderate personal injury or prop-

erty damage.

Additional precautionary statements (“IMPORTANT” and “NOTE”)

are followed by speciﬁc instructions.

IMPORTANT: The word “IMPORTANT” is used to inform

the reader of speciﬁc procedures where minor machine

damage will occur if the procedure is not followed.

NOTE: The word “NOTE” is used to communicate in-

stallation, operation, maintenance or servicing informa-

tion that is important but not hazard related.

Important Safety Instructions

Save These Instructions

WARNING

To reduce the risk of ﬁre, electric shock, serious injury

or death to persons when using your washer, follow

these basic precautions:

W023

• Read all instructions before using the washer.

• Install the washer according to the INSTALLATION INSTRUC-

TIONS. Refer to the EARTH/GROUND INSTRUCTIONS in the IN-

STALLATION manual for the proper earth/ground connection of

the washer. All connections for water, drain, electrical power and

earth/ground must comply with local codes and be made by li-

censed personnel when required. Do not do it yourself.

• Do not install or store the washer where it will be exposed to

water and/or weather.

• Do not add the following substances or textiles containing

traces of the following substances to the wash water: gasoline,

kerosene, waxes, cooking oils, vegetable oils, machine oils, dry-

cleaning solvents, ﬂammable chemicals, thinners or other ﬂam-

mable or explosive substances. These substances give oﬀ va-

pors that could ignite, explode or cause the fabric to catch on

ﬁre by itself.

• Under certain conditions, hydrogen gas may be produced in a

hot water system that has not been used for two weeks or

more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system

has not been used for such a period, before using a washing ma-

chine or combination washer-dryer, turn on all hot water fau-

cets and let the water ﬂow from each for several minutes. This

will release any accumulated hydrogen gas. THE GAS IS FLAM-

MABLE, DO NOT SMOKE OR USE AN OPEN FLAME DURING

THIS TIME.

• To reduce the risk of an electric shock or ﬁre, DO NOT use an ex-

tension cord or an adapter to connect the washer to the elec-

trical power source.

• Do not allow children to play on or in the washer. Close supervi-

sion of children is necessary when the washer is used near chil-

dren. This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been given

supervision or instruction concerning the use of the appliance

by a person responsible for their safety. This is a safety rule for

all appliances.

• Cleaning and user maintenance shall not be made by children

without supervision.

• Children less than three years should be kept away unless con-

tinuously supervised.

Safety Information

©Copyright, Alliance Laundry Systems LLC -

DO NOT COPY or TRANSMIT

6 Part No. 203943EN

• Do not reach into the washer if the washtub or agitator, if appli-

cable, is moving.

• Never operate the washer with any guards, panels and/or parts

removed or broken. DO NOT tamper with the controls or bypass

any safety devices.

• Use your washer only for its intended purpose, washing clothes.

Always follow the fabric care instructions supplied by the gar-

ment manufacturer.

• Always read and follow manufacturer’s instructions on pack-

ages of laundry and cleaning aids. To reduce the risk of poison-

ing or chemical burns, keep them out of the reach of children at

all times (preferably in a locked cabinet). Heed all warnings or

precautions.

• Do not use fabric softeners or products to eliminate static un-

less recommended by the manufacturer of the fabric softener

or product.

• Lid MUST BE CLOSED any time the washer is to agitate or spin.

DO NOT bypass the lid switch to permit the washer to agitate

or spin with the lid open. A brake will stop the washtub within

seconds if the lid is opened during spinning. If the washtub does

not stop when the lid is opened, remove the washer from use

and call the service person.

• Be sure water connections have a shut-oﬀ valve and that ﬁll

hose connections are tight. CLOSE the shut-oﬀ valves at the

end of each wash day.

• Keep your washer in good condition. Bumping or dropping the

washer can damage safety features. If this occurs, have your

washer checked by a qualiﬁed service person.

• Do not repair or replace any part of the washer, or aempt any

servicing unless speciﬁcally recommended in the user-mainte-

nance instructions or in published user-repair instructions that

you understand and have the skills to carry out. ALWAYS dis-

connect the washer from electrical supply before aempting

any service.

• Disconnect the power cord by grasping the plug, not the cord. If

the supply cord is damaged, it must be replaced by the manu-

facturer, its service agent or similarly qualiﬁed persons in order

to avoid a hazard.

• Before the washer is removed from service or discarded, remove

the lid or door to the washing compartment.

• Failure to install, maintain, and/or operate this washer accord-

ing to the manufacturer’s instructions may result in conditions

which can produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT SAFETY IN-

STRUCTIONS appearing in this manual are not meant to

cover all possible conditions and situations that may oc-

cur. Observe and be aware of other labels and precau-

tions that are located on the machine. They are intended

to provide instruction for safe use of the machine. Com-

mon sense, caution and care must be exercised when in-

stalling, maintaining, or operating the washer.

Always contact your dealer, distributor, service agent or the manu-

facturer about any problems or conditions you do not understand.

Safety Information

©Copyright, Alliance Laundry Systems LLC -

DO NOT COPY or TRANSMIT

7 Part No. 203943EN

Operation

Before Washing

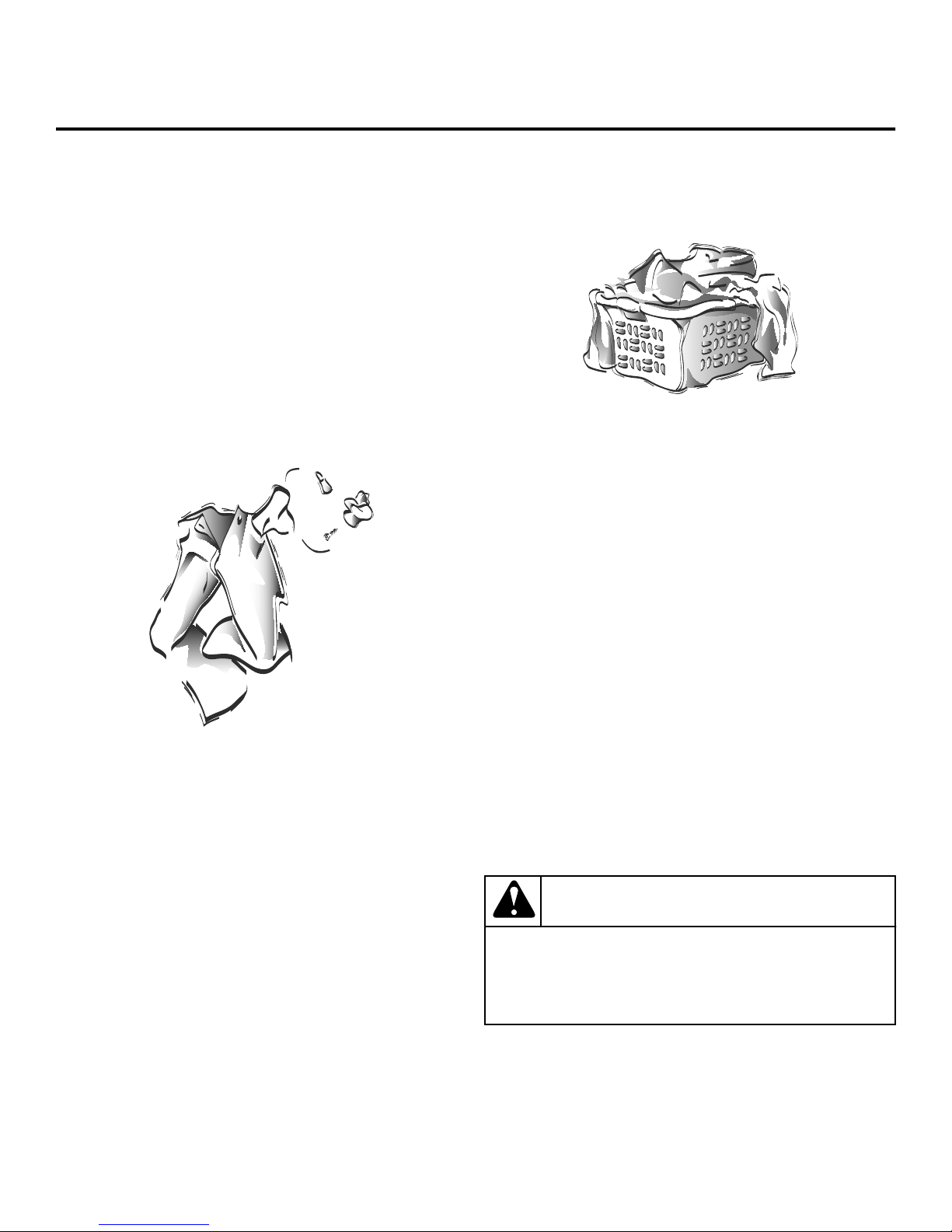

Prepare Wash Load

Empty Pockets and Cuﬀs

Make sure all pockets are empty and turn them inside out. One bob-

by pin, metal or plastic toy, nail or sharp object in a load can catch

laundry, cause tears and plug the pump. Facial tissue left in a pock-

et will produce extreme “lint”. A crayon or lipstick in a wash load may

cause stains that cannot be removed. Roll down cuﬀs and shake

out grass, sand and gravel.

Strings on clothing such as hooded sweatshirts may get caught in

or around the agitator. Remove the strings if possible or tie them

together.

TLW1990N_SVG

Mend Rips and Tears

Lile holes can become bigger in the washer. Mend holes and tears

before placing garments in the washer.

Close Zipper and Fasten Hooks

These can catch on garments in a wash load and tear them. Tie

belts and sashes so they won’t wind around clothes.

Check For Colorfastness

Squeeze a portion of garment in warm or hot sudsy water. If the

color bleeds or runs, wash the item separately in cold water.

Sort Items

Diﬀerent items use diﬀerent wash cycles and temperatures. Al-

ways follow the manufacturer’s care label.

TLW1991N_SVG

Proper sorting is easy if you follow a few guidelines:

1. Sort by Color: Separate items into loads of whites, darks, lights

and non-colorfast.

2. Sort by Fabric and Construction: Separate items into loads of

coons/linens, permanent press, synthetics/blends/poly knits,

and delicates.

3. Sort by Temperature: Separate items into loads that can be

washed in cold, warm or hot water.

4. Sort by Type and Amount of Soil: Heavily soiled clothes will need

extra treatment. Lightly soiled clothes can become dingy if

washed with heavily soiled items.

5. Sort Lint “Shedders” From Lint “Receivers”: Some fabrics at-

tract lint and should not be washed with lint-shedding loads.

Lint shedders are coons, terry towels, chenille bedspreads,

rugs and clothes that have been heavily bleached. Lint receivers

are synthetics, permanent or durable press, knits (including

socks), corduroy, and other smooth fabrics.

Pretreat

Pretreat shirt collars and cuﬀs with a pretreat product or liquid

detergent when placing them in the washer. Before washing, treat

special stains individually.

WARNING

Do not wash or dry items soiled with vegetable or

cooking oils. Some oils may remain after washing and

may cause the fabric to catch on ﬁre by itself.

W527

Loading the Washer

Load Articles

NOTE: Always add detergent ﬁrst.

Operation

©Copyright, Alliance Laundry Systems LLC -

DO NOT COPY or TRANSMIT

8 Part No. 203943EN

• Load items by the amount of space they take up, not by their

weight. Mix large and small items in a load to get the best wash-

ing results.

• Drop items loosely into the washtub. The bulk of the clothes

rather than the weight will determine load size. Do not pack

items in or wrap them around the agitator. Overloading can

cause poor cleaning, excessive wrinkling and tears.

TLW1992N_SVG

• Items should move freely through the wash water for best

cleaning results. Items should rollover, sink and then reappear.

• When washing very large items, do not ﬁll washtub as full as

with other loads.

Load Size (Water Level)

• The water level in your washer should ﬁt the size of your wash

load. Small loads will use lower water levels. There must be

enough water in the washtub to allow items to move and turn

over freely.

Wrong Water Level for Size of Load

TLW2223N_SVG

Right Water Level for Size of Load

TLW2224N_SVG

• Overloading the washtub can result in poor washing and rinsing.

• Overloading may also cause wrinkling and tearing of items as

well as increased wear to the washer’s motor.

• Reset (optional): Use RESET if agitation has started and more

water is needed for the load.

IMPORTANT: If in doubt, always use a larger load size.

Most average loads will require a water setting between

Medium and Extra Large. Failure to have the correct vol-

ume of water relative to the load will increase the inci-

dence of excessive lint.

Load Sizes

Mini 1-2 permanent press dress

shirts or 2 pillow cases or 1

lightweight dress or similar size

load

Small 3-4 permanent press dress

shirts or 1 twin sheet, 1 pillow

case or 1-2 lightweight dres-

ses

Medium 6-7 permanent press shirts or

2 twin sheets, 2 pillow cases or

8 standard bath towels, 6

wash cloths

Extra Large 8-9 shirts, 5 pair polyester

pants or 2 queen size sheets, 4

pillow cases, 2 nightgowns, 1

pair men’s pajamas or 1 queen

size bedspread

Wash Temperature

Hot

Hot water is the most eﬀective for cleaning, but it is not recom-

mended for all fabric types (read labels).

Warm

The Warm Wash is useful for providing a thorough cleaning on light

and moderately soiled clothing without damaging fabric or adding

to color fading. Warm water also reduces wrinkling. Use with non-

colorfast or dark colors, permanent press, silks, woolens, nylon, and

acrylic.

Cold

The Cold Wash is ideal for delicate items. Although its cleaning abili-

ties are not as great as with hot or warm water, it is useful for col-

ors that bleed easily and for sensitive fabrics.

All rinses use cold water. It is the most beneﬁcial for fabrics. Cold

rinses reduce wrinkling and color fading. In addition, cold rinses will

save money and energy.

NOTE: In wash temperatures colder than 16°C [60°F],

detergents do not dissolve well. This may cause ineffec-

tive cleaning, or lint and residue to form.

NOTE: Always follow manufacturer’s care labels.

Operation

©Copyright, Alliance Laundry Systems LLC -

DO NOT COPY or TRANSMIT

9 Part No. 203943EN

Wash Temperature Guide

Water Tem-

perature Use Comments

HOT • Sturdy whites

and colorfast

items

• Work clothes

• Soiled items

• Diapers

• Best cleaning for

items soiled with

oily or greasy

stains, grass, or

ink.

WARM • Light and mod-

erately soiled

items

• Non-colorfast or

dark colors

• Permanent

press

• Silks, woolens,

nylon, acrylic

• Reduces wrin-

kling in perma-

nent press fab-

rics

• Less fading

• Reduces shrink-

ing in knits

COLD • Non-colorfast

fabrics

• Extra delicate

clothing

• Saves energy

• Reduces color

fading

• Reduces wrin-

kling

• Reduces shrink-

ing

Energy

You can save energy when washing by following a few guidelines:

1. Heating water accounts for the greatest energy expense when

washing. Save on heating water by using warm or cold washes.

2. Wash full loads, but do not overload.

3. Use Soak/Prewash cycle for heavily soiled items to reduce wash

times.

4. Select a shorter wash time for lightly soiled items.

Operation

DO NOT COPY or TRANSMIT

10 Part No. 203943EN

Altri manuali per TLW22C_SVG

Indice

Lingue:

Altri manuali Alliance Laundry Systems Rondella

Alliance Laundry Systems

Alliance Laundry Systems CFD14C Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems EE1010 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems LTS87A*H Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HC18PC2 Manuale di programmazione

Alliance Laundry Systems

Alliance Laundry Systems FLW1527C Guida

Alliance Laundry Systems

Alliance Laundry Systems H264I Guida

Alliance Laundry Systems

Alliance Laundry Systems UM202 Series Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems F8437801 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems UW60TV Istruzioni operative

Alliance Laundry Systems

Alliance Laundry Systems F232139R3 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems 201932R5 Guida

Alliance Laundry Systems

Alliance Laundry Systems 1305 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems TR5000WN Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HC18MC2 Istruzioni operative

Alliance Laundry Systems

Alliance Laundry Systems IYB180J Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems TR7104WN Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems W001C Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems UW35PV Series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems AWN432SP113TW01 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems CHM1772C Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems AWN43RSN115CW01 Istruzioni operative

Alliance Laundry Systems

Alliance Laundry Systems Metered models Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems WF065B Guida alla manutenzione e all'assistenza

Alliance Laundry Systems

Alliance Laundry Systems UWL035K12 Istruzioni operative

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente

Alliance Laundry Systems TLW22C_SVG Manuale utente

Manuali Rondella popolari di altre marche
