Alliance Laundry Systems 801455R2 Manuale utente

Installation

www.comlaundry.com

Frontload Washers

FLW1522C

Part No. 801455R2

April 2012

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

Para bajar una copia de estas instrucciones

en español, visite www.comlaundry.com.

means without the expressed written consent of the publisher.

801455 1

Table of

Contents

Replacement Parts .............................................................................. 2

Installation........................................................................................... 3

Dimensions and Specifications............................................................. 3

Before You Start ................................................................................... 4

Tools ................................................................................................ 4

Electrical .......................................................................................... 4

Water................................................................................................ 4

Accessories Bag ............................................................................... 4

Installing the Washer ............................................................................ 5

Step 1: Position Washer Near Installation Area .............................. 5

Step 2: Connect Fill Hoses............................................................... 5

Step 3: Connect Drain Hose to Drain Receptacle ............................ 6

Step 4: Position and Level the Washer ............................................ 8

Step 5: Remove the Shock Sleeves and Shipping Brace ................. 9

Step 6: Wipe Out Inside of Washer Drum ....................................... 10

Step 7: (Supply Injection Models Only) Connect External

Supplies to Washer......................................................................... 10

Control Function Test ...................................................................... 11

Step 8: Plug In the Washer............................................................... 11

Step 9: Check Installation ................................................................ 11

Moving Unit to a New Location ...................................................... 11

Electrical Requirements........................................................................ 12

Grounding Instructions .................................................................... 13

Water Supply Requirements................................................................. 14

Water Temperature .......................................................................... 14

Water Pressure ................................................................................. 14

Risers................................................................................................ 14

Information for Handy Reference......................................................... 15

Installer Checklist ................................................................. Back Cover

2801455

Replacement Parts

If replacement parts are required, contact the source

from which you purchased your washer, or contact:

Alliance Laundry Systems

Shepard Street

P.O. Box 99 0

Ripon, WI 54971-0990

U.S.A.

Phone: (920) 748-3950

for the name and address of the nearest authorized

parts distributor.

801455 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Installation

Dimensions and Specifications

FLW2092N

28 in.

(71.1 cm)

2 in. (5.1 cm)

17.5 in.

(44.8 cm)

41.2 in. (104.6 cm)

14.3 in.

(36.3 cm)

29.6 in. (75.1 cm)

31.1 in. (79 cm)

26.9 in.

(68.3 cm)

MODELS WITH OLD STYLE DOOR

FLW2044N

28 in.

(71.1 cm)

2 in. (5.1 cm)

18.7 in.

(47.5 cm)

41.2 in. (104.6 cm)

14.3 in.

(36.3 cm)

29.6 in. (75.1 cm)

31.1 in. (79 cm)

26.9 in.

(68.3 cm)

MODELS WITH NEW STYLE DOOR

Installation

801455

4© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Before You Start

Tools

For most installations, the basic tools you will need

are:

Electrical

Refer to serial plate for specific electrical

requirements. For more detailed information refer to

section on Electrical Requirements.

Water

Washer needs two standard 3/4 in. (19.1 mm) water

supply faucets with a pressure between 20 and

120 pounds per square inch (138 to 827 kPa). For

more detailed information refer to section on Water

Supply Requirements.

Accessories Bag

An accessories bag has been shipped inside your

washer. It includes:

•Two fill hoses with washers and filter screens.

Refer to step 2 of Installation.

•Four rubber feet. Refer to step 4 of Installation.

•Beaded tie-down strap. Refer to step 3 of

Installation.

•Installation instructions.

•Use and Care Guide.

•Operating insert.

•Warranty bond.

•Helpful Hints insert.

•Bag for storing shipping materials.

D820I

1Wrench

2Screwdriver

3Pliers

4Socket Wrench

5Level

Figure 1

234

Installation

801455 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Installing the Washer

NOTE: If the washer is delivered on a cold day

(below freezing), or is stored in an unheated room

or area during the cold months, do not attempt to

operate it until the washer has had a chance to

warm up.

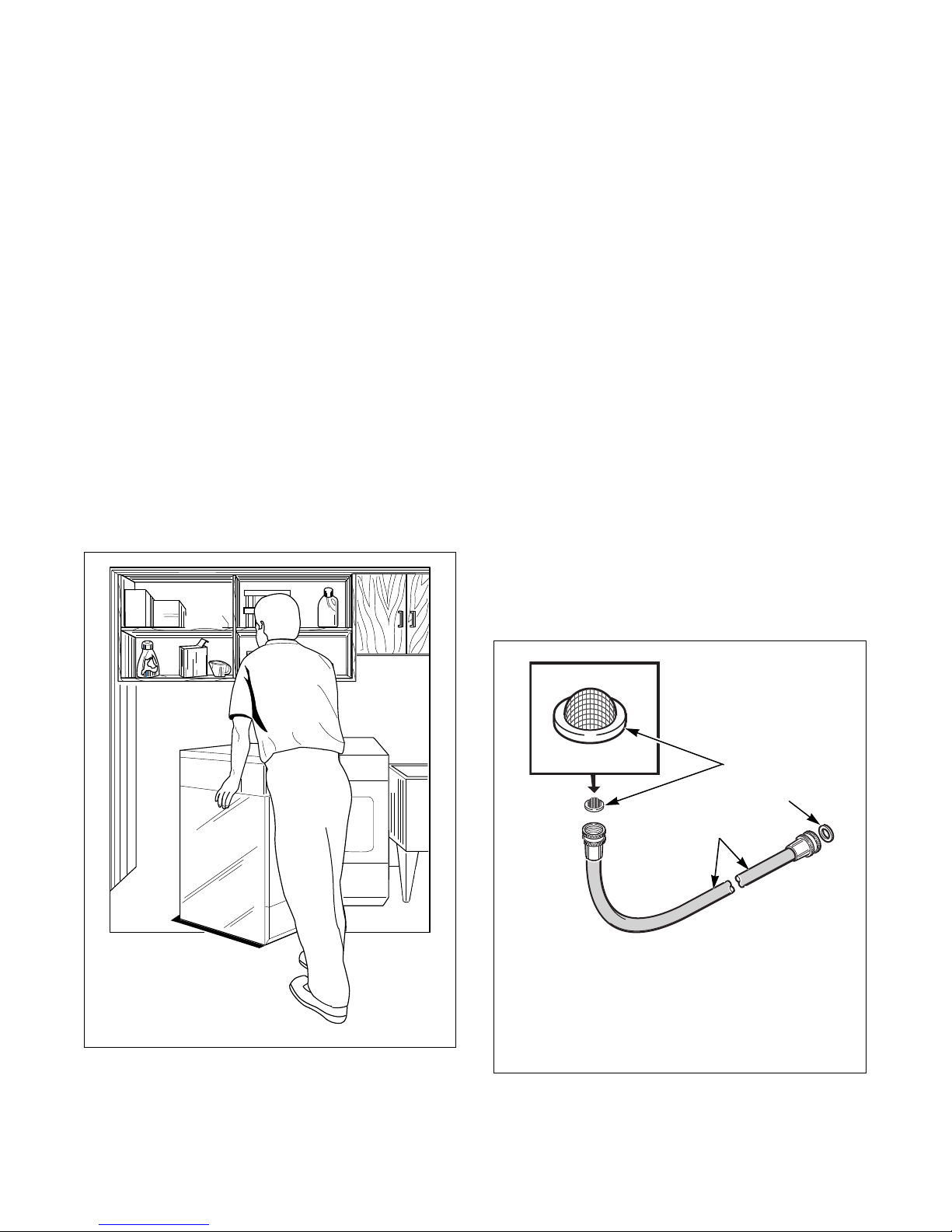

Step 1: Position Washer Near Installation

Area

IMPORTANT: Install dryer before washer. This

allows room for attaching exhaust duct.

Move washer as close to the desired area of

installation as possible.

NOTE: For best performance and to minimize

vibration or movement, install washer on a solid,

sturdy and level floor. Some floors may need to be

reinforced, especially on a second floor or over a

basement. Do not install the washer on carpeting,

soft tile, a platform or other weakly supported

structures.

Step 2: Connect Fill Hoses

NOTE: Refer to section on Water Supply

Requirements before connecting fill hoses.

Turn on the water supply faucets and flush the lines for

approximately two minutes to remove any foreign

materials that could clog the screens in the water

mixing valve.

NOTE: When installing in newly constructed or

renovated building, it is very important to flush the

lines since build-up may have occurred during

construction.

Remove the two plain rubber washers and two filter

screens from accessories bag, and install them

according to Figure 3 and Figure 4.

NOTE: Check filter screens for debris or damage

annually. Clean or replace them if necessary.

IMPORTANT: Thread hose couplings onto valve

connections finger-tight, then approximately

1/4 turn with pliers. DO NOT cross thread or

overtighten couplings.

Turn water on and check for leaks. If leaks are found,

retighten the hose couplings. Continue tightening and

rechecking until no leaks are found.

FLW702N

Figure 2

FLW702N

W520I

1Filter Screen (Screen must be facing

outward)

2Fill Hose

3Rubber Washer (Plain)

Figure 3

W520I

Installation

801455

6© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

IMPORTANT: Hoses and other natural rubber

parts deteriorate after extended use. Hoses may

develop cracks, blisters or material wear from the

temperature and constant high pressure they are

subjected to.

All hoses should be checked on a yearly basis for

any visible signs of deterioration. Any hose showing

the signs of deterioration listed above should be

replaced immediately. All hoses should be replaced

every five years.

Step 3: Connect Drain Hose to Drain

Receptacle

Remove the drain hose from its shipping position on

the rear of the washer by unhooking the hose from the

retainer clamp and by removing shipping tape.

Find the instructions, on the following pages, that are

appropriate for your type of drain receptacle

(standpipe, sink, wall, or laundry tub). Follow these

instructions to properly install the drain hose.

IMPORTANT: Drain receptacle must be capable of

handling a minimum of 1-1/4 inch (3.2 cm) outside

diameter drain hose.

Standpipe Installation

Place the drain hose into the standpipe.

Remove the beaded tie-down strap from accessories

bag and place around standpipe and drain hose and

tighten strap to hold hose to standpipe. This will

prevent the drain hose from dislodging from drain

receptacle during use.

FLW1973N

1Water Supply Faucets

2Cold Water Connection

3Hot Water Connection

4Fill Hoses

Figure 4

FLW1973N

123

WATER

MIXING

VALVE

FLW1958N

1Retainer Clamp

Figure 5

Installation

801455 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

Sink Installation

For this type of installation, use the beaded tie-down

strap (supplied in accessories bag) or use a large wire

tie (available from your local hardware store), and

secure the drain hose to the cabinet top hinge (refer to

Figure 7). This will prevent the drain hose from

dislodging during use.

Figure 7

In-the-Wall Installation

For installations of this type, the drain hose MUST be

secured to one of the fill hoses using the beaded tie-

down strap from accessories bag.

NOTE: End of drain hose must not be below 24 in.

(61 cm).

Figure 8

FLW1959N

124 in. to 36 in. (91.44 cm recommended

height)

2Standpipe 2 in. (5.08 cm) or 1-1/2 in. (4 cm)

3Beaded Tie-Down Strap

Figure 6

FLW1960N

1Drain Hose

2Tie-Down Strap (Wire tie or tape if

necessary)

FLW1959N

FLW1960N

H023I

1Drain Hose

2Tie-Down Strap (Tape if necessary)

3Fill Hoses

Installation

801455

8© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT

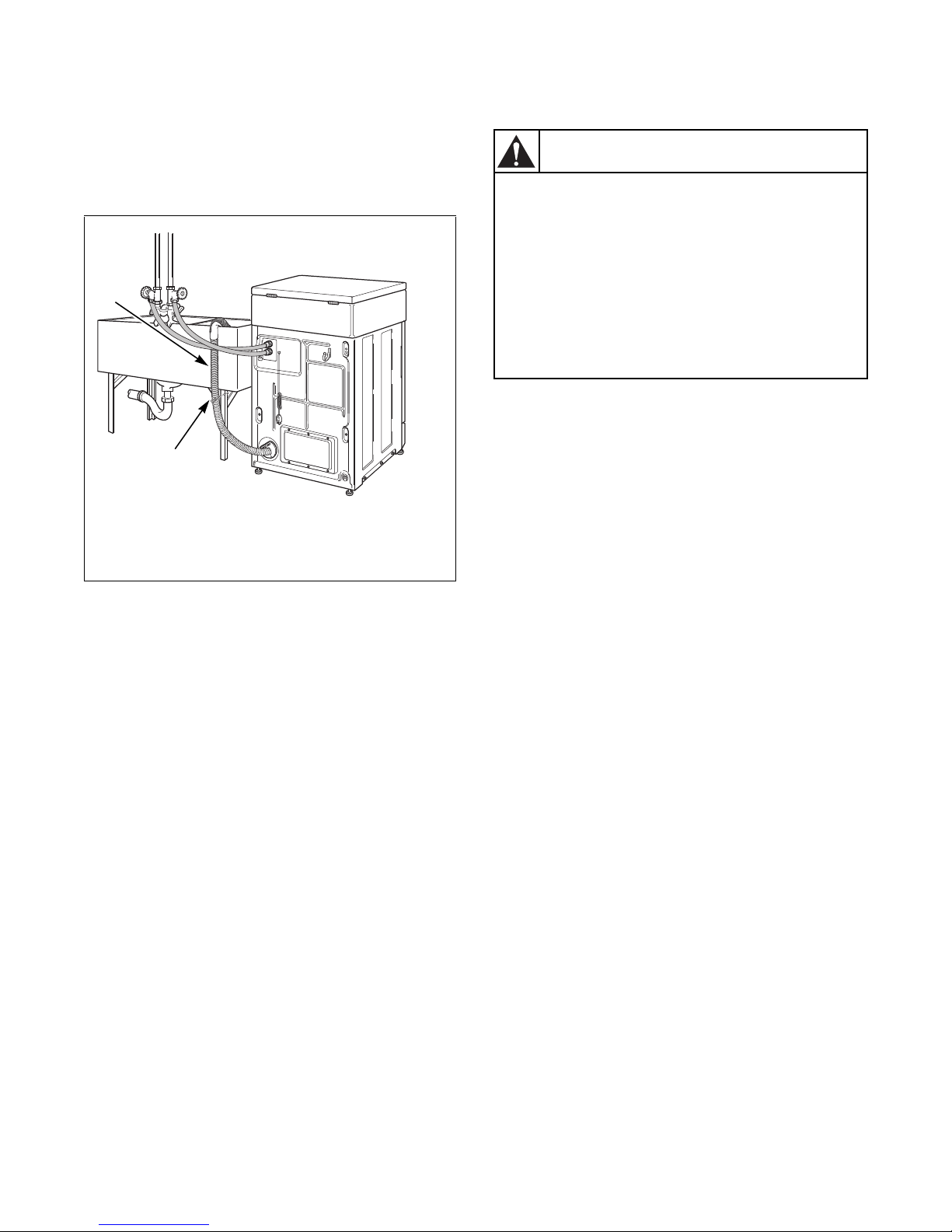

Laundry Tub Installation

For this type of installation, the drain hose MUST be

secured to the stationary tub to prevent hose from

dislodging during use. Use the beaded tie-down strap

(supplied in accessories bag) to secure hose.

Step 4: Position and Level the Washer

Place washer in position on a solid, sturdy and level

floor. Installing the washer on any type of carpeting,

soft tile, a platform or other weakly supported

structures is not recommended.

Loosen 7/8 in. locknut and adjust the front and rear

leveling legs until the washer is level from side to side

and front to back (using a level). Washer should not

rock.

NOTE: Level must rest on raised portion of top

panel. Refer to Figure 10.

Tighten the locknuts securely against the washer

base using the 7/8 in. wrench. If the locknuts are not

tight, washer will move out of position during operation.

NOTE: DO NOT slide washer across floor if the

leveling legs have been extended, as legs and base

could become damaged.

NOTE: Use of the dispenser drawer or washer door

as a handle in the transportation of the washer may

cause damage to the dispenser or door.

FLW1961N

1Drain Hose

2Tie-Down Strap (Tape if necessary)

Figure 9

FLW1961N

Washers elevated above floor level must be

anchored to that elevated surface, base or

platform. The material used to elevate the

washer should also be anchored to the floor

to ensure that the washer will not walk or

that the washer can not be physically

pulled, tipped or slid from its installed

position. Failure to do so may result in

conditions which can produce serious

injury, death and/or property damage.

W306

WARNING

Indice

Altri manuali Alliance Laundry Systems Rondella

Alliance Laundry Systems

Alliance Laundry Systems HCD020GD2 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HC18MC2 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HY125_MICRO Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems SCA020VC Istruzioni operative

Alliance Laundry Systems

Alliance Laundry Systems LTS87A*H Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 800797 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems SA025L Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems HA1000 Istruzioni per il montaggio

Alliance Laundry Systems

Alliance Laundry Systems LWS01A*C series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems LWB19A*-1109 series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems LWS02A series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems AWNE8 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washer Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TV6000WN Manuale di servizio

Alliance Laundry Systems

Alliance Laundry Systems FLW1526C Istruzioni operative originali

Alliance Laundry Systems

Alliance Laundry Systems AFBE9BSP303NN29 Istruzioni operative

Alliance Laundry Systems

Alliance Laundry Systems HX Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems BWT820*N1102 Manuale di programmazione

Alliance Laundry Systems

Alliance Laundry Systems AWNA11SP111TW01 Manuale di programmazione

Alliance Laundry Systems

Alliance Laundry Systems WB2 350B Series Guida alla manutenzione e all'assistenza

Alliance Laundry Systems

Alliance Laundry Systems HTE517xE2802 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems NX18BVPA7 Guida alla risoluzione dei problemi

Alliance Laundry Systems

Alliance Laundry Systems W001C Guida

Alliance Laundry Systems

Alliance Laundry Systems H011C Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
