Part No. F232205R5

December 2008

Troubleshooting

Washer-Extractor

Cabinet Hardmount

A and B-Control

Refer to Page 8 for Model Numbers

the expressed written consent of the publisher.

F232205 1

Table of

Contents

Section 1 – Safety Information ...............................................................2

General Safety Precautions....................................................................2

Important Safety Instructions ................................................................3

Safety Decals .........................................................................................5

Operator Safety......................................................................................6

Section 2 – Introduction ..........................................................................7

Customer Service...................................................................................7

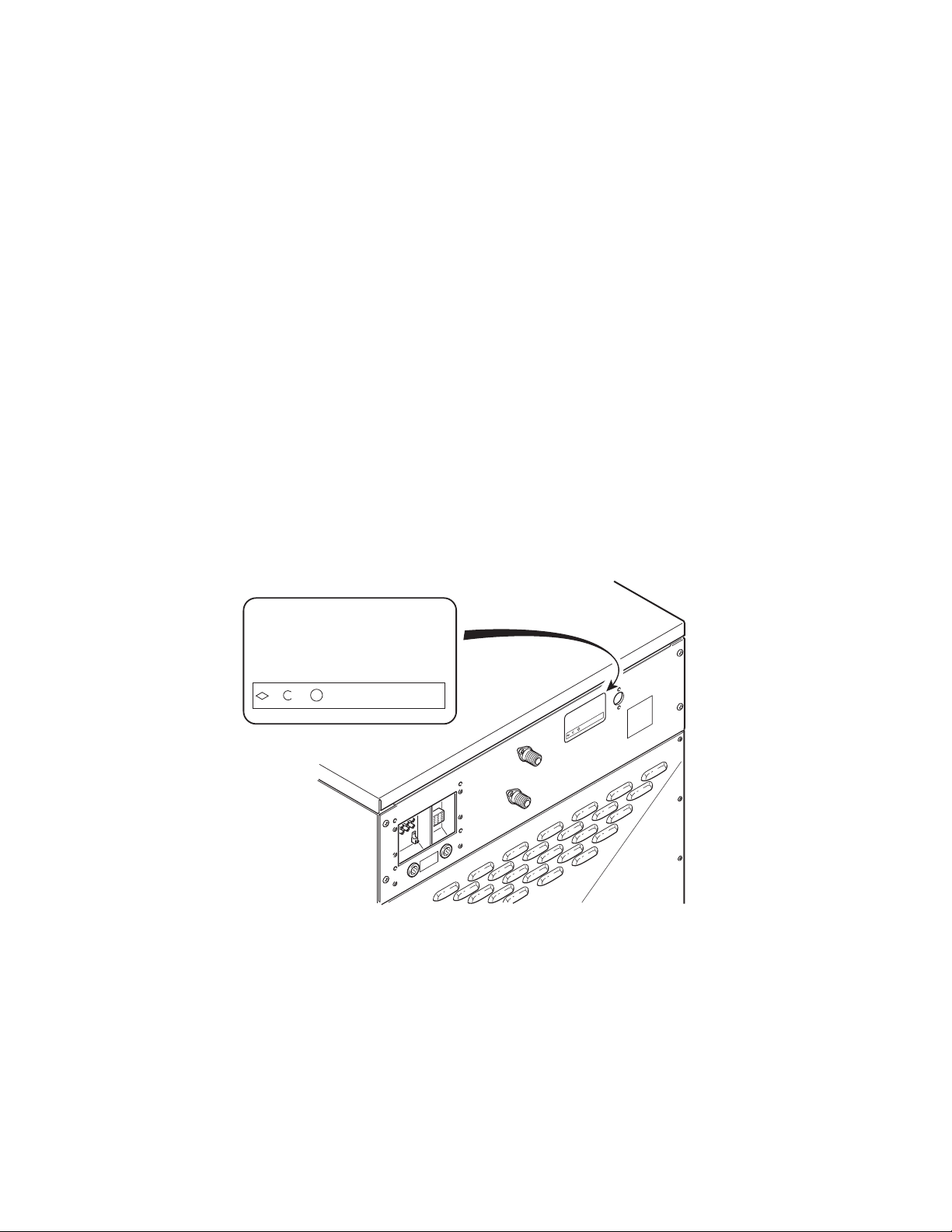

Nameplate Location...............................................................................7

Model Identification ..............................................................................8

Section 3 – Theory of Operation.............................................................9

Starting the Machine..............................................................................9

Fill..........................................................................................................9

Supply....................................................................................................9

Wash ......................................................................................................9

Drain ......................................................................................................9

Extract....................................................................................................9

Section 4 – Troubleshooting..................................................................10

1. No Hot Fill Analysis ...................................................................11

2. No Cold Fill Analysis .................................................................15

3. No Hot Supply 1 Fill Analysis....................................................19

4. No Cold Supply 1 Fill Analysis ..................................................23

5. No Supply 2 Fill Analysis...........................................................27

6. No Supply 3 Fill Analysis...........................................................31

7. Drain Valve Analysis..................................................................35

8. Compartment 2 of Supply Dispenser Not Flushing Completely 39

9. Overload Relay Tripping Repeatedly .........................................40

10. Troubleshooting and Cleaning the Coin Drop ............................41

Section 5 – Troubleshooting – B-Control Coin Models......................43

11. The Display Shows “CANt/LOC” or “SHUT/DOOR”: Flowchart

144

12. The Display Shows “CANt/LOC” or “SHUT/DOOR”: Flowchart

247

13. The Display Shows “CANt/LOC” or “SHUT/DOOR”: Flowchart

349

14. At the End of a Cycle, The Display Shows “CANt/OPEn”........51

15. In Mid-Cycle, The Display Shows “01”, the Door Unlocks and the

Display Shows “DONE”52

16. The Control Stops with “01” on the Display ..............................53

17. The Control Stops in Mid-Cycle and Will Not Advance............55

2F232205

Section 1

Safety Information

Throughout this manual and on machine decals, you will find precautionary statements (“CAUTION,”

“WARNING,” and “DANGER”) followed by specific instructions. These precautions are intended for the personal

safety of the operator, user, servicer and those maintaining the machine.

DANGER

Danger indicates the presence of a hazard that will cause severe personal injury, death or substantial property

damage if the danger is ignored.

WARNING

Warning indicates the presence of a hazard that can cause severe personal injury, death or substantial property

damage if the warning is ignored.

CAUTION

Caution indicates the presence of a hazard that will or can cause minor personal injury or property damage if the

caution is ignored.

Additional precautionary statements (“IMPORTANT” and “NOTE”) are followed by specific instructions.

IMPORTANT

The word “IMPORTANT” is used to inform the reader of specific procedures where minor machine damage will

occur if the procedure is not followed.

NOTE

The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is

important but not hazard related.

General Safety Precautions

In the interest of safety, some general precautions relating to the operation of this machine follow.

• Failure to install, maintain, and/or operate this product according to the manufacturer’s

instructions may result in conditions which can produce serious injury, death and/or property

damage.

• Do not repair or replace any part of the product or attempt any servicing unless specifically

recommended or published in this Service Manual and that you understand and have the

skills to carry out.

• Whenever ground wires are removed during servicing, these ground wires must be

reconnected to ensure that the product is properly grounded and to reduce the risk of fire,

electric shock, serious injury, or death.

W006R1

WARNING

F232205 3

Safety Information

Always contact your dealer, distributor, service agent or the manufacturer about any problems or conditions you do

not understand.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION manual (supplied with your

washer-extractor) for the proper grounding of the

washer-extractor.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in or spotted with

gasoline, kerosene, waxes, cooking oils, dry-

cleaning solvents or other flammable or explosive

substances. They give off vapors that could ignite

or explode.

4. Do not add gasoline, dry-cleaning solvents or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washer-extractor, turn on all hot water faucets and

let the water flow from each for several minutes.

This will release any accumulated hydrogen gas.

The gas is flammable. Do not smoke or use an

open flame during this time.

To reduce the risk of electric shock, fire, explosion, serious injury or death:

• Disconnect electric power to the washer-extractor before servicing.

• Never start the washer-extractor with any guards/panels removed.

• Whenever ground wires are removed during servicing, these ground wires must be

reconnected to ensure that the washer-extractor is properly grounded. W460

WARNING

Repairs that are made to your products by unqualified persons can result in hazards due to

improper assembly or adjustments subjecting you, or the inexperienced person making such

repairs, to the risk of serious injury, electrical shock, or death. W007

WARNING

If you or an unqualified person perform service on your product, you must assume the

responsibility for any personal injury or property damage which may result. The manufacturer

will not be responsible for any injury or property damage arising from improper service and/or

service procedures. W008

WARNING

To reduce the risk of fire, electric shock, serious injury or death to persons when using your

washer, follow these basic precautions: W023E

WARNING

4F232205

Safety Information

6. Do not allow children to play on or in a washer.

Close supervision of children is necessary when

the washer is used near children.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electrical shock or fire,

DO NOT use an extension cord or an adapter to

connect the washer to an electrical power source.

13. Use the washer only for its intended purpose,

washing clothes.

14. Never wash machine parts or automotive parts in

the machine. This could result in serious damage

to the basket.

15. ALWAYS disconnect the washer from its

electrical supply before attempting any service.

16. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and,

when required, be made by licensed personnel.

17. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc. or anything

containing wax or chemicals such as in mops or

cleaning cloths, must not be put into the washer.

These flammable substances may cause the fabric

to ignite.

18. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

19. Keep the washer in good condition. Bumping or

dropping the washer can damage its safety

features. If this occurs, have the washer checked

by a qualified service person.

20. If the supply cord is damaged, it must be replaced

by a special cord or assembly available from the

manufacturer or its service agent.

21. Be sure that water connections have a shut-off

valve and that fill hose connections are tight.

CLOSE the shut-off valves at the end of each

wash day.

22. The loading door MUST BE CLOSED any time

the washer is to fill, tumble or spin. DO NOT

bypass the loading door switch and permit the

washer to operate with the loading door open.

23. Always read and follow the manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings and precautions. To

reduce the risk of poisoning or chemical burns,

keep them out of the reach of children at all times

(preferably in a locked cabinet).

24. Always follow the fabric care instructions

supplied by the textile manufacturer.

25. Never operate the washer with any guards and/or

panels removed.

26. DO NOT operate the washer with missing or

broken parts.

27. DO NOT bypass any safety devices.

28. Failure to install, maintain and/or operate this

washer according to the manufacturer's

instructions may result in conditions that can

produce bodily injury and/or property damage.

NOTE: The WARNING and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining and operating the washer-

extractor.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

F232205 5

Safety Information

IMPORTANT: Ensure that the recommended

clearances for inspection and maintenance

are provided. Never allow the inspection and

maintenance space to be blocked.

Safety Decals

Safety decals appear at crucial locations on the

machine. Failure to maintain legible safety decals

could result in injury to the operator or service

technician.

To provide personal safety and keep the machine in

proper working order, follow all maintenance and

safety procedures presented in this manual. If

questions regarding safety arise, contact the

manufacturer immediately.

Use manufacturer-authorized spare parts to avoid

safety hazards.

This machine must be installed, adjusted,

and serviced by qualified electrical

maintenance personnel familiar with the

construction and operation of this type of

machinery. They must also be familiar

with the potential hazards involved.

Failure to observe this warning may result

in personal injury and/or equipment

damage, and may void the warranty. SW004

WARNING

Install the machine on a level floor of

sufficient strength. Failure to do so may

result in conditions which can produce

serious injury, death and/or property

damage. W703

WARNING

Be careful around the open door,

particularly when loading from a level

below the door. Impact with door edges

can cause personal injury. SW025

CAUTION

Never touch internal or external steam

pipes, connections, or components.

These surfaces can be extremely hot and

will cause severe burns. The steam must

be turned off and the pipe, connections,

and components allowed to cool before

the pipe can be touched. SW014

WARNING

6F232205

Safety Information

Operator Safety

To ensure the safety of machine operators, the

following maintenance checks must be performed

daily:

1. Prior to operating the machine, verify that all

warning signs are present and legible. Missing or

illegible signs must be replaced immediately.

Make certain that spares are available.

2. Check door interlock before starting operation of

the machine:

a. Attempt to start the machine with the door

open. The machine should not start with the

door open.

b. Close the door without locking it and attempt

to start the machine. The machine should not

start with the door unlocked.

c. Close and lock the door and start a cycle.

Attempt to open the door while the cycle is in

progress. The door should not open.

If the door lock and interlock are not functioning

properly, call a service technician.

3. Do not attempt to operate the machine if any of

the following conditions are present:

a. The door does not remain securely locked

during the entire cycle.

b. Excessively high water level is evident.

c. Machine is not connected to a properly

grounded circuit.

Do not bypass any safety devices in the machine.

NEVER insert hands or objects into

basket until it has completely stopped.

Doing so could result in serious injury.

SW012

WARNING

Never operate the machine with a

bypassed or disconnected balance

system. Operating the machine with

severe out-of-balance loads could result

in personal injury and serious equipment

damage. SW039

WARNING

F232205 7

Section 2

Introduction

Customer Service

Alliance Laundry Systems is not responsible for

personal injury or property damage resulting from

improper service. Review all service information

before beginning repairs.

If literature or replacement parts are required, contact

the source from whom the machine was purchased or

contact Alliance Laundry Systems at (920) 748-3950

for the name of the nearest authorized parts distributor.

For technical assistance, call the following number:

Ripon, Wisconsin U.S.A.

(920) 748-3121

Nameplate Location

When calling or writing about your product, be sure to

mention model and serial numbers. Model and serial

numbers are located on nameplate(s) as shown.

Model No.

Serial No.

VoltageAmps

Required Circuit Breaker Amps.

HzWire Phase

Max. LoadKGMax. SpeedRPM

Elec. Heating

Product No.Date Code

KWSteamPress PSIBAR

Model No.

Serial No.

Voltage Amps

Required Circuit Breaker Amps.

Hz Wire Phase

Max. Load KG Max. Speed RPMLB

Elec. Heating

Product No. Date Code

KW Steam Press PSI BAR

CHM2411P

8F232205

Introduction

Model Identification

Information in this manual is applicable to these washer-extractors.

DC20AC2

DC30AC2

DC40AC2

DC60AC2

HC20AC2

HC20ACV

HC20AL2

HC20AX2

HC20AY2

HC20BC2

HC20BL2

HC20BN2

HC20BX2

HC20BY2

HC25AC2

HC25AL2

HC25AX2

HC25AY2

HC25BC2

HC25BL2

HC25BX2

HC25BY2

HC30AC2

HC30ACV

HC30AL2

HC30AX2

HC30AY2

HC30BC2

HC30BL2

HC30BN2

HC30BX2

HC30BY2

HC40AC2

HC40ACV

HC40AL2

HC40AX2

HC40AY2

HC40BC2

HC40BL2

HC40BN2

HC40BX2

HC40BY2

HC50BC2

HC50BL2

HC50BN2

HC50BX2

HC50BY2

HC60AC2

HC60ACF

HC60ACV

HC60AL2

HC60ALF

HC60AX2

HC60AXF

HC60AY2

HC60AYF

HC60BC2

HC60BCF

HC60BL2

HC60BLF

HC60BN2

HC60BNF

HC60BX2

HC60BXF

HC60BY2

HC60BYF

HC80ACV

HC80ALV

HC80ANV

HC80AXV

HC80AYV

HC80BCV

HC80BLV

HC80BNV

HC80BXV

HC80BYV

HC125BCV

HC125BYV

SC20AC2

SC20AL2

SC20ACV

SC20AN2

SC20AX2

SC20AY2

SC20AYV

SC20BC2

SC20BL2

SC20BN2

SC20BX2

SC20BY2

SC25AC2

SC25AL2

SC25AX2

SC25AY2

SC25BC2

SC25BL2

SC25BX2

SC25BY2

SC30AC2

SC30ACV

SC30AL2

SC30AN2

SC30AX2

SC30AY2

SC30AYV

SC30BC2

SC30BL2

SC30BN2

SC30BX2

SC30BY2

SC40AC2

SC40ACV

SC40AL2

SC40AN2

SC40ANV

SC40AX2

SC40AY2

SC40AYV

SC40BC2

SC40BL2

SC40BN2

SC40BX2

SC40BY2

SC50BC2

SC50BL2

SC50BN2

SC50BX2

SC50BY2

SC60AC2

SC60ACF

SC60ACV

SC60AL2

SC60ALF

SC60AN2

SC60ANF

SC60ANV

SC60AX2

SC60AXF

SC60AY2

SC60AYF

SC60AYV

SC60BC2

SC60BCF

SC60BL2

SC60BLF

SC60BN2

SC60BNF

SC60BX2

SC60BXF

SC60BY2

SC60BYF

SC80ACV

SC80ALV

SC80ANV

SC80AXV

SC80AYV

SC80BCV

SC80BLV

SC80BNV

SC80BXV

SC80BYV

SC125ANV

SC125BYV

UC20AN2

UC20BN2

UC30AN2

UC30BN2

UC40AN2

UC40ANV

UC40BN2

UC50BN2

UC60AN2

UC60ANV

UC60BN2

UC60BNF

UC80ANV

UC80BNV

UC125ANV

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Alliance Laundry Systems Rondella

Alliance Laundry Systems

Alliance Laundry Systems LTS80A Series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HWFB61WN1102 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washers Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems LTS95A*N Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems CHM160C Guida alla risoluzione dei problemi

Alliance Laundry Systems

Alliance Laundry Systems HY125_MICRO Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems BA4121 Istruzioni per il montaggio

Alliance Laundry Systems

Alliance Laundry Systems SF18VNV Guida alla manutenzione e all'assistenza

Alliance Laundry Systems

Alliance Laundry Systems FLW63H Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems EC001F Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems BWNBX2PP303AW01 Istruzioni operative

Alliance Laundry Systems

Alliance Laundry Systems WF065B Guida alla manutenzione e all'assistenza

Alliance Laundry Systems

Alliance Laundry Systems CHM1766C Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems UW35PV Series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems Hardmount Coin and OPL Manuale di installazione e funzionamento

Alliance Laundry Systems

Alliance Laundry Systems StGeorge Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems TC5003WN Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HC125BYV Guida alla risoluzione dei problemi

Alliance Laundry Systems

Alliance Laundry Systems SVN255P Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems DRY2033N Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems FLW700C Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems UW100AV Guida alla risoluzione dei problemi

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washer Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems POCKET HARDMOUNT UW50P4 Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
