Alliance Laundry Systems AWNE8 Manuale utente

Installation Instructions

for Topload Washers

Original Instructions

Keep These Instructions for Future Reference.

CAUTION: Read the instructions before using the machine.

(If this machine changes ownership, this manual must accompany machine.)

www.alliancelaundry.com Part No. 204301ENR1

August 2018

Table of Contents

Dimensions and Specifications................................................................ 4

Installation............................................................................................. 5

Before You Start............................................................................................. 5

Supplies..................................................................................................... 5

Parts Included............................................................................................. 5

Order of Installation Steps............................................................................5

Remove the Shipping Brace and Shipping Plug................................................. 5

Wipe Out Inside of Washtub............................................................................ 6

Connect Fill Hoses..........................................................................................6

Water Supply Requirements......................................................................... 6

Connecting Hoses....................................................................................... 7

Connect Drain Hose to Drain Receptacle.......................................................... 7

Standpipe Installation.................................................................................. 8

Low Standpipe Installation...........................................................................8

Wall Installation.......................................................................................... 8

Laundry Tub Installation..............................................................................8

Position and Level the Washer......................................................................... 9

Plug In the Washer..........................................................................................9

Electrical Requirements............................................................................. 10

Earth/Ground Instructions.......................................................................... 11

Check Lid Lock............................................................................................ 12

Check Installation......................................................................................... 12

Installer Checklist.................................................................................13

written consent of the publisher.

DO NOT COPY or TRANSMIT

3 Part No. 204301ENR1

Dimensions and Specifications

TLW2340N_SVG

GFE

A 711 mm [28 in.]

B 562 mm [22.13 in.]

C (to controls) Electronic Control: *1048 mm [41.25 in.]

Knob Control: *1035 mm [40.75]

D *1346 mm [53 in.]

E 660 mm [26 in.]

F 10 mm [0.4 in.]

G 651 mm [25.63 in.]

H *737 mm [29 in.]

I *1086 mm [42.75 in.]

J *914 mm [36 in.]

*With leveling legs turned into base.

Dimensions and Specifications

DO NOT COPY or TRANSMIT

4 Part No. 204301ENR1

Installation

Before You Start

Supplies

For most installations, the basic supplies you will need are:

TLW2218N_SVG

NOTE: A cloth rag and all-purpose cleaner are also

needed.

1. Safety Glasses

2. Wood Block

3. Gloves

4. Wrench

5. Screwdriver

6. Pliers

7. Level

Figure 1

NOTE: If the washer is delivered on a cold day (below

freezing), or is stored in an unheated room or area dur-

ing the cold months, do not attempt to operate it until

the washer has had a chance to warm up.

NOTE: Install dryer before washer. This allows room for

attaching exhaust duct.

NOTE: This appliance is suitable for use in countries

having a warm, damp climate.

Parts Included

An accessories bag has been shipped inside your washer. It in-

cludes:

• Two fill hoses with washers and filter screens

• Four rubber feet

• Beaded strap

• Installation Instructions

• User’s Guide

Order of Installation Steps

The proper order of steps must be followed to ensure correct in-

stallation. Refer to the list below when installing your unit.

1. Put on safety glasses and gloves.

2. Remove the shipping brace and shipping plug.

3. Wipe out inside of the washer.

4. Connect the fill hoses.

5. Connect the drain hose to the drain receptacle.

6. Position and level the washer.

7. Connect the washer to electrical power.

8. Check the lid lock.

9. Check installation.

Remove the Shipping Brace and

Shipping Plug

1. Remove the shipping brace from under the lid.

2. The shipping plug will be released from the base of the wash-

er when removing the cardboard base from the washer.

The shipping brace and plug should be saved and must be rein-

stalled whenever washer is moved or transported to a new loca-

tion. This will prevent damage to washer components.

Do not tilt washer to front or sides when moving.

Refer to the User's Guide for instructions on reinstalling the ship-

ping materials.

Installation

DO NOT COPY or TRANSMIT

5 Part No. 204301ENR1

TLW2280N_SVG

1. Shipping Brace

2. Shipping Plug

3. Cardboard Base

Figure 2

Wipe Out Inside of Washtub

Prior to first wash, use an all purpose cleaner or a detergent

and water solution and a damp cloth to remove shipping dust

from inside of washtub.

TLW2281N_SVG

Figure 3

Connect Fill Hoses

WARNING

Under certain conditions, hydrogen gas may be pro-

duced in a hot water system that has not been used

for two weeks or more. HYDROGEN GAS IS EXPLO-

SIVE. If the hot water system has not been used for

such a period and before using the washer, turn on

all hot water faucets and let the water flow from each

for several minutes. This will release any accumula-

ted hydrogen gas. The gas is flammable. Do not

smoke or use an open flame during this time.

W029

Mixing Valve Flow Rates

Pressure

kPa [psi]

HOT

liters per mi-

nute [gallons

per minute]

COLD

liters per mi-

nute [gallons

per minute]

WARM

liters per mi-

nute [gallons

per minute]

138 [20] 12.9 [3.4] 12.9 [3.4] 15.1 [4,0]

827 [120] 17.4 [4.6] 17.4 [4.6] 17.4 [4.6]

Water Supply Requirements

Water supply faucets must fit standard 19 mm [3/4 inch] female

garden hose couplings. DO NOT USE SLIP-ON OR CLAMP-

ON CONNECTIONS.

NOTE: Water supply faucets should be readily accessi-

ble to permit turning them off when washer is not being

used.

Recommended cold water temperature is 10° to 24° Celsius [50°

to 75° Fahrenheit]. Recommended maximum hot water tempera-

ture is 51° Celsius [125° Fahrenheit]. Warm water is a mixture of

hot and cold water. Warm water temperature is dependent upon

the water temperature and the pressure of both the hot and cold

water supply lines.

WARNING

To prevent personal injury, avoid contact with inlet

water temperatures higher than 51° Celsius [125°

Fahrenheit] and hot surfaces.

W748

Water pressure must be a minimum of 138 to a maximum of 827

kPa [minimum of 20 to a maximum of 120 pounds per square

inch] static pressure measured at the faucet.

Installation

DO NOT COPY or TRANSMIT

6 Part No. 204301ENR1

NOTE: Water pressure under 138 kPa [20 pounds per

square inch] will cause an extended fill time in the

washer.

The appliance is to be connected to the water mains using new

hose-sets and the old hose-sets should not be reused.

Turn on the water supply faucets and flush the lines for approxi-

mately two minutes to remove any foreign materials that could

clog the screens in the water mixing valve. This is especially im-

portant when installing your washer in a newly constructed or

renovated building. Build-up may have occurred during construc-

tion.

Connecting Hoses

1. Insert rubber washers and filter screens (from accessories

bag) in water fill hose couplings (two hoses supplied with

washer). The filter screen must be facing outward.

Models Through Serial Nos. Beginning 1810:

NOTE: If using gray braided hoses with silver hose

couplings (one with hex nut): Insert filter screens in-

to the hex nut shaped hose couplings (BSPP

thread). Insert rubber washers into the knurled,

round shaped hose couplings (GHT).

Models Starting Serial Nos. Beginning 1810:

NOTE: Water mixing valve connections at rear of

washer are BSPP thread. Both hose couplings on fill

hoses included with machine are also BSPP thread.

2. Connect fill hose couplings with filter screens to water supply

faucets.

3. Connect the other hose couplings to the hot and cold valve

connections at the rear of the washer.

Models Through Serial Nos. Beginning 1810:

NOTE: If using gray braided hoses with silver hose

couplings (one with hex nut): Connect the hex nut

shaped hose couplings (BSPP thread, with filter

screens) to the water supply faucets. Then connect

couplings with knurled, round shaped couplings

(GHT) to the hot and cold water mixing valve con-

nections at rear of washer.

Models Starting Serial Nos. Beginning 1810:

NOTE: Water mixing valve connections at rear of

washer are BSPP thread. Both hose couplings on fill

hoses included with machine are also BSPP thread.

4. Make sure the hose from the hot water faucet goes to the wa-

ter mixing valve marked “H” and the hose from the cold fau-

cet goes to the valve marked “C”.

5. Thread hose couplings onto valve connections finger tight.

Then turn 1/4 turn with pliers.

IMPORTANT: DO NOT cross thread or overtighten

couplings. This will cause them to leak.

6. Turn water on and check for leaks.

7. If leaks are found, retighten the hose couplings.

8. Continue tightening and rechecking until no leaks are found.

COLD

HOT

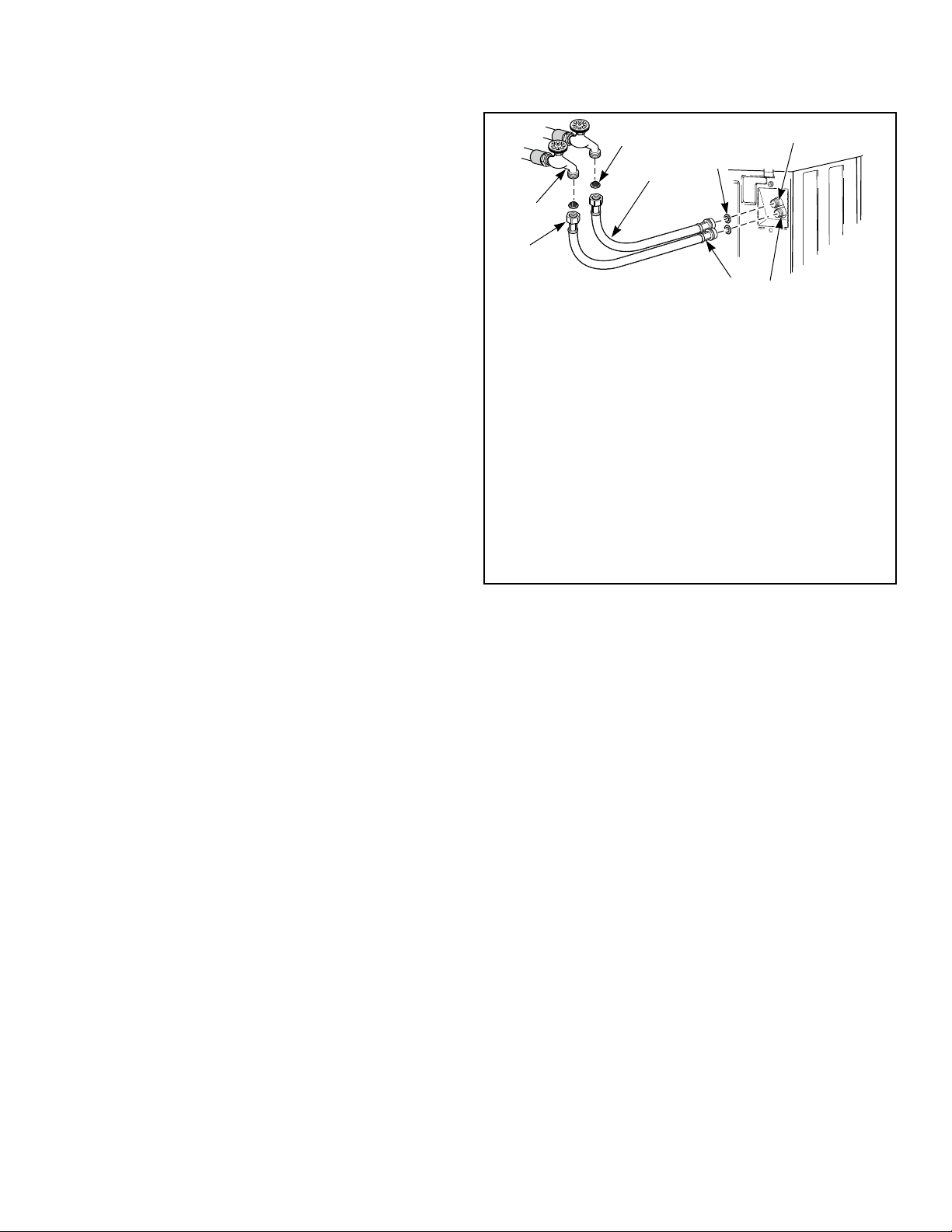

TLW2264N_SVG

1. Filter Screen (Screen must be facing outward)

2. Fill Hose

3. Plain Rubber Washer

4. Cold Water Connection

5. Hot Water Connection

6. Install this end of hose to valve connections at rear of

washer

7. Install this end of hose to water supply faucet (Hex nut

shaped coupling for BSPP thread)

NOTE: Both couplings on fill hoses included with

models starting Serial Nos. beginning 1810 are

BSPP thread.

8. Faucet

Figure 4

IMPORTANT:

Hoses and other rubber parts deteriorate after exten-

ded use. Hoses may develop cracks, blisters or materi-

al wear from the temperature and constant high pres-

sure they are subjected to.

All hoses should be checked on a monthly basis for

any visible signs of deterioration. Any hose showing

the signs of deterioration listed above should be re-

placed immediately. All hoses should be replaced ev-

ery five years.

IMPORTANT: Turn off water supply faucets after check-

out and demonstration. Owner should turn off water

supply whenever there will be an extended period of

non-use.

Connect Drain Hose to Drain

Receptacle

1. Remove the drain hose from its shipping position on the rear

of the washer by unhooking the hose from the retainer clamp.

2. Install the drain hose into the drain receptacle (standpipe, wall

or laundry tub) following the instructions below.

NOTE: Drain receptacle must be capable of handling

a minimum of 32 mm [1-1/4 inch] outside diameter

drain hose.

Installation

DO NOT COPY or TRANSMIT

7 Part No. 204301ENR1

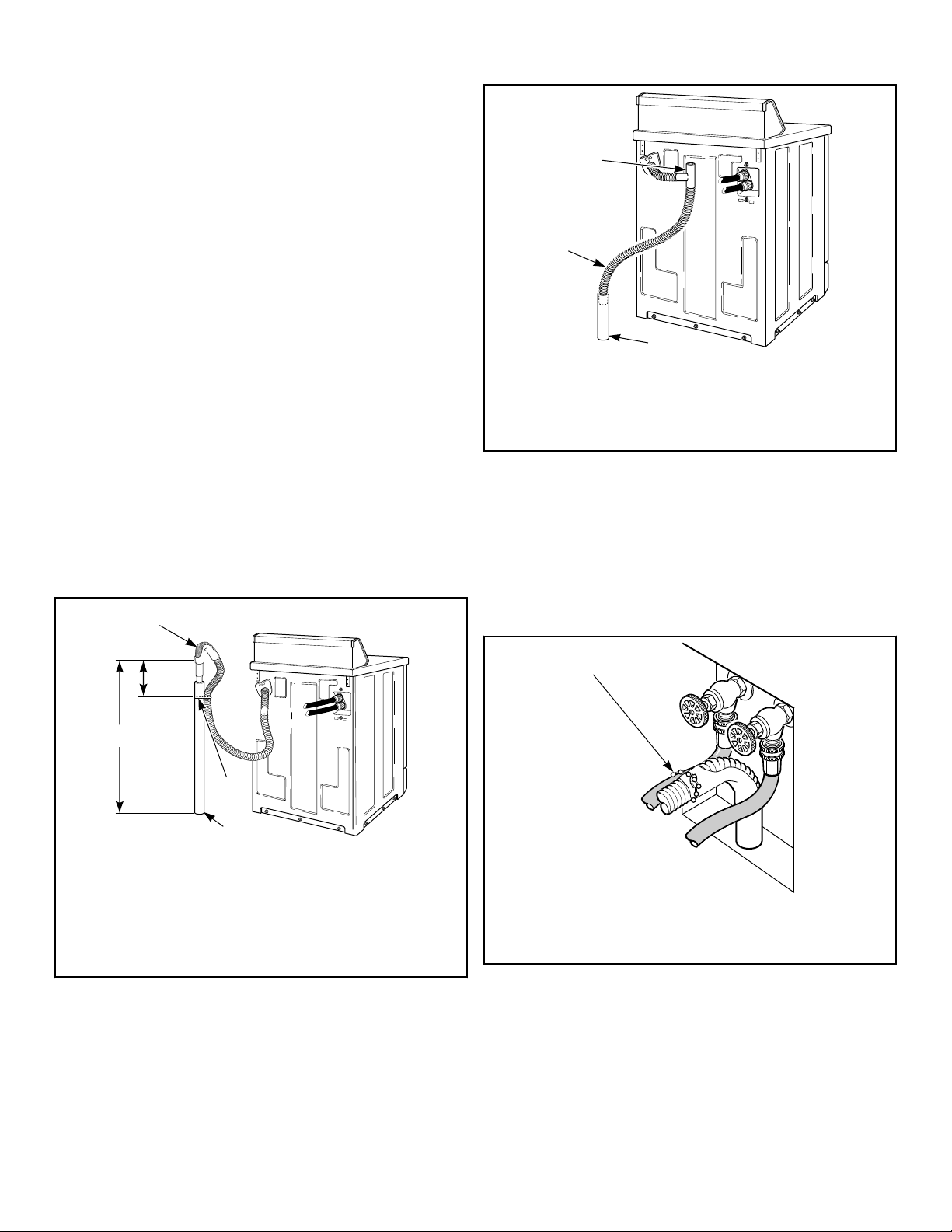

Standpipe Installation

1. Check standpipe height. The recommended height for the

standpipe is 914 mm [36 inches]. Standpipes higher than 1220

mm [4 feet] will result in slower draining and may extend cy-

cle times.

NOTE: Machine will not drain if standpipe is higher

than 2438 mm [8 feet].

2. Place the drain hose into the standpipe.

IMPORTANT: To prevent siphoning, do not place

any ribbed portion of the drain hose into the stand-

pipe.

3. Remove the beaded strap from accessories bag and place

around standpipe and drain hose, approximately 300 mm [12

inches] down from the top of pipe. Refer to Figure 5 .

a. Insert the end of the beaded strap into the larger hole

found on the end of the strap.

b. Tighten to desired fit.

c. Lock strap in place by pulling beaded strap into the ta-

pered smaller opening of the beaded strap end. A distinct

snap noise should be heard once the strap is properly seat-

ed.

d. Pull on the strap once locked in place to ensure beaded

strap is properly installed. This will prevent the drain hose

from dislodging from drain receptacle during use.

TLW2341N_SVG

1. Ribbed Portion of Drain Hose

2. Beaded Strap

3. Standpipe - 51mm [2 in.] or 40 mm [1-1/2 in.] Diameter

4. 914 mm [36 in.] Recommended Height

5. 305 mm [12 in.]

Figure 5

Low Standpipe Installation

If standpipe is lower than 914 mm [36 inches], you must install

No. 562P3 Siphon Break Kit. This kit is available (as optional

equipment at extra cost) through an authorized dealer or parts dis-

tributor. Installation instructions are supplied with the kit.

TLW2283N_SVG

1. 562P3 Siphon Break Kit

2. Standpipe

3. Drain Hose

Figure 6

Wall Installation

Check wall drain height. The recommended height for the drain

is 914 mm [36 inches].

For installations of this type, the drain hose MUST be secured to

one of the fill hoses using the beaded strap from accessories bag.

Refer to Figure 7 .

TLW2342N_SVG

1. Beaded Strap (tape if necessary)

Figure 7

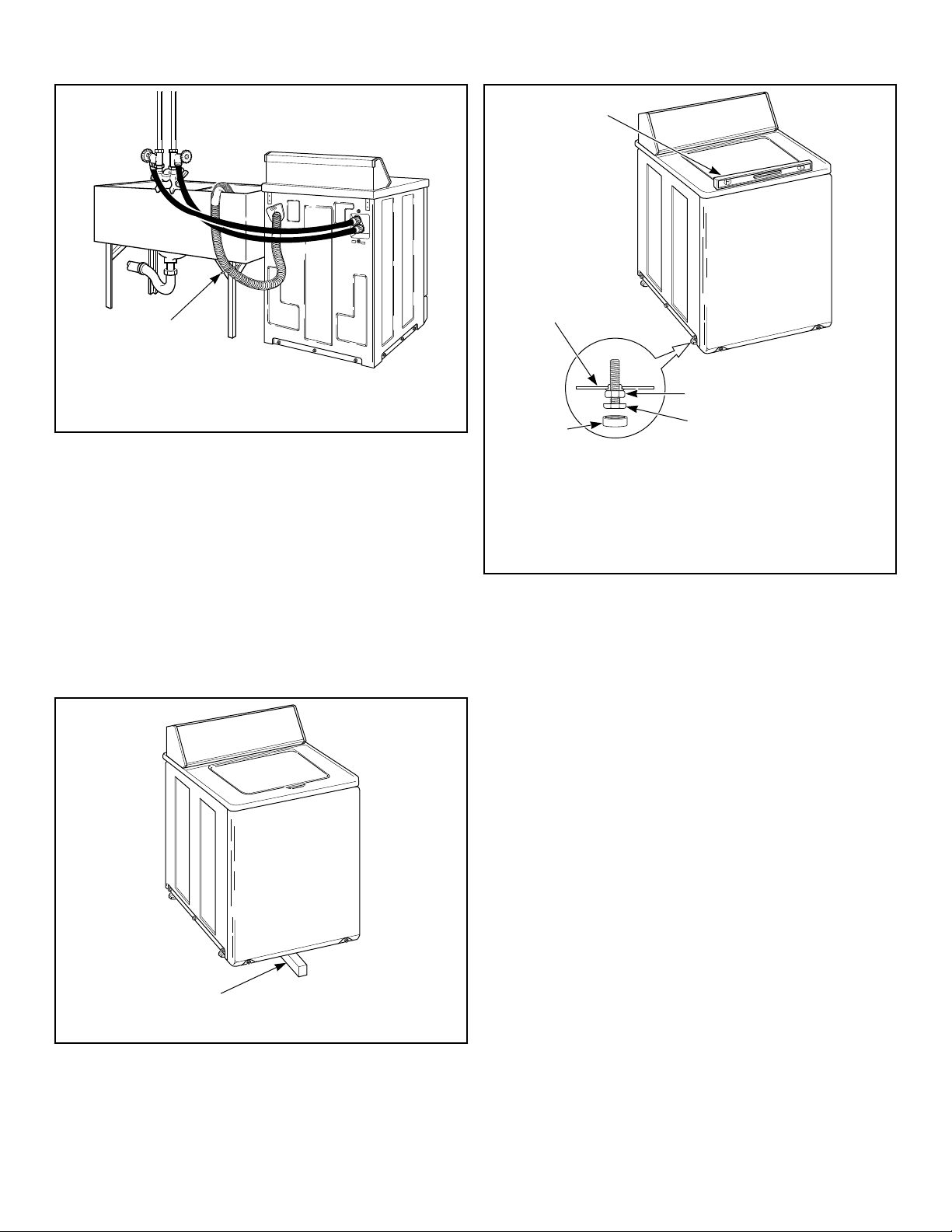

Laundry Tub Installation

For this type of installation, the drain hose MUST be secured to

the stationary tub to prevent hose from disloding during use. Use

the beaded strap (supplied in accessories bag) to secure hose.

Installation

DO NOT COPY or TRANSMIT

8 Part No. 204301ENR1

TLW2284N_SVG

1. Beaded Strap (tape if necessary)

Figure 8

Position and Level the Washer

1. Position washer so it has sufficient clearance for installation

and servicing.

2. Place washer in position on a clean, dry, and reasonably firm

floor. Installing the washer on any type of carpeting is not rec-

ommended.

NOTE: The openings in the base must not be ob-

structed by a carpet.

3. For easier access to leveling legs, prop up washer with a

wooden block.

TLW2285N_SVG

1. Wood Block

Figure 9

4. Place rubber cups (from accessories bag) on all four leveling

legs.

TLW2286N_SVG

1. Level

2. Locknut

3. Leveling Leg

4. Rubber Cup

5. Washer Base

Figure 10

5. Place a level on the cabinet top and check if the washer is lev-

el from side to side and front to back.

6. If washer is not level, tilt washer back to access the front lev-

eling legs. Loosen the locknuts and adjust legs by screwing

into or out of washer base.

7. Once adjusted, tilt the washer forward on front legs and lower

back down into position to set the rear self-leveling legs.

8. Washer must not rock. When washer is level and does not

rock, tighten locknuts securely against bottom of washer base.

If these locknuts are not tight, washer will not remain station-

ary during operation.

Improper installation or flexing of weak floor will cause exces-

sive vibration.

Do not slide washer across floor once the leveling legs have been

extended, as legs and base could become damaged.

9. Verify that unit does not rock.

Installation

DO NOT COPY or TRANSMIT

9 Part No. 204301ENR1

Plug In the Washer

Electrical Requirements

NOTE: Refer to the unit's serial plate for proper voltage

and Hertz the unit is designed to operate on. The serial

plate is located under the lid.

NOTE: The wiring diagram is located in the control

hood.

WARNING

To reduce the risk of fire, electric shock, serious in-

jury or death, all wiring and protective earth/ground

connections MUST abide with local electrical codes.

It is the customer’s responsibility to have the wiring,

fuses and circuit breakers installed by a qualified

electrician to make sure adequate electrical power is

available to the washer.

W882

When connecting the washer to electrical power:

• DO NOT overload circuits.

• DO NOT use an extension cord.

• DO NOT use an adapter.

• DO NOT operate other appliances on the same circuit.

WARNING

To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to connect

the washer to the electric power source.

W082

110 Volt, 60 Hertz, 9.8 Amp

This washer is designed to be operated on a separate branch, po-

larized, three-wire, earth/ground, 110 Volt, 60 Hertz, single-phase

electrical circuit protected by a 15 ampere fuse, equivalent fuse-

tron or circuit breaker.

The three-prong earth/ground plug on the power cord should be

plugged directly into a polarized three-slot effective earth/ground

receptacle rated 110 Volts AC (alternating current) 15 Amps. Re-

fer to Figure 11 .

Standard 110 Volt, 60 Hertz 3-Wire Effective Earth/

Ground Circuit

TLW2287N_SVG

1 3

1. L1

2. Earth/Ground

3. Neutral Side

4. Round Earth/Ground Prong

5. Neutral

6. 0 V.A.C.

7. 110 ± 12 V.A.C.

8. 110 ± 12 V.A.C.

Figure 11

Installation

DO NOT COPY or TRANSMIT

10 Part No. 204301ENR1

Indice

Altri manuali Alliance Laundry Systems Rondella

Alliance Laundry Systems

Alliance Laundry Systems PHM1397C Guida alla risoluzione dei problemi

Alliance Laundry Systems

Alliance Laundry Systems AR105M X CONTROL Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems CCN020HNF Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems LWS02N Series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen FF7008WN Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems CTLW-35A Guida

Alliance Laundry Systems

Alliance Laundry Systems CHM166C Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems A Series Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems AWN311SP111TW01 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems POCKET HARDMOUNT UW50P4 Guida alla manutenzione e all'assistenza

Alliance Laundry Systems

Alliance Laundry Systems Metered models Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen TLW24C-SVG1 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems LTZ87A*H2802 Series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems NetMaster HWTB21 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen LWN311SP101NW22 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems BWNBC2PP112TW01 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems MB26 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems CHM1766C Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems C003292ENR1 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems F8437801 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems LTS90A*N Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems SC70 Guida

Alliance Laundry Systems

Alliance Laundry Systems HC125BYV Guida alla risoluzione dei problemi

Alliance Laundry Systems

Alliance Laundry Systems Frontload Washer Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
