Alliance Laundry Systems CHM1766C Manuale del proprietario

Programming

www.comlaundry.com

Washer-Extractors

Cabinet Hardmount

A-Series Microcomputer for OPL Models

2 Speed and Variable-Speed

Refer to Page 2 for Model Identification

CHM1766C

Part No. F232224R1

May 2008

Keep These Instructions for Future Reference.

(If this machine changes ownership, this manual must accompany machine.)

F232225

means without the expressed written consent of the publisher.

Table of

Contents

Model Identification ........................................................................... 2

Safety Information.............................................................................. 3

Explanation of Safety Messages........................................................... 3

Important Safety Instructions ............................................................... 3

Safety Decals ........................................................................................ 5

Operator Safety..................................................................................... 6

Programming ...................................................................................... 7

Entering Program Mode ....................................................................... 7

Cycle and Error Count .......................................................................... 7

Setup Mode........................................................................................... 7

Programming Cycle Segments ............................................................. 8

Options for Each Segment.................................................................... 10

To Edit an Entire Wash Cycle Formula................................................ 13

Agitation for the Cycle..................................................................... 13

Wash 1 – Wash 5 ............................................................................. 13

Temperature Controlled Fill ............................................................ 14

Rinse 1 – Rinse 6 ............................................................................. 14

Temperature Controlled Fill ............................................................ 15

Abnormal Conditions............................................................................ 16

Door Open During Operation .......................................................... 16

Excessive Fill Time.......................................................................... 16

Out of Balance ................................................................................. 16

Door Will Not Open......................................................................... 16

Excessive Drain Time ...................................................................... 16

Temperature Probe Sensor Problem ................................................ 16

Clean Filter LED On........................................................................ 16

Test Cycle ............................................................................................. 16

Domestic Cycle Charts Custom............................................................ 19

Cycles 1 - 24 .................................................................................... 19

International Cycle Charts Custom....................................................... 21

Cycles 31 - 46 .................................................................................. 21

Model Identification

Information in this manual is applicable to these

models:

HC80ANV SC40AN2 SC60ANF UC30AN2 UC60ANF

SC125ANV SC40ANV SC80ANV UC40AN2 UC60ANV

SC20AN2 SC60ANV UC125ANV UC40ANV UC80ANV

SC30AN2 SC60AN2 UC20AN2 UC60AN2

F232224

Safety Information

Explanation of Safety Messages

Precautionary statements (“DANGER,” “WARNING,”

and “CAUTION”), followed by specific instructions,

are found in this manual and on machine decals. These

precautions are intended for the personal safety of the

operator, user, servicer, and those maintaining the

machine.

Additional precautionary statements (“IMPORTANT”

and “NOTE”) are followed by specific instructions.

IMPORTANT: The word “IMPORTANT” is used

to inform the reader of specific procedures where

minor machine damage will occur if the procedure

is not followed.

IMPORTANT: The word “NOTE” is used to

communicate installation, operation, maintenance

or servicing information that is important but not

hazard related.

Important Safety Instructions

1. Read all instructions before using the washer.

2. Refer to the GROUNDING INSTRUCTIONS in

the INSTALLATION MANUAL for the proper

grounding of the washer.

3. Do not wash textiles that have been previously

cleaned in, washed in, soaked in, or spotted with

gasoline, kerosene, waxes, cooking oils, dry-

cleaning solvents, or other flammable or

explosive substances as they give off vapors that

could ignite or explode.

4. Do not add gasoline, dry-cleaning solvents, or

other flammable or explosive substances to the

wash water. These substances give off vapors that

could ignite or explode.

5. Under certain conditions, hydrogen gas may be

produced in a hot water system that has not been

used for two weeks or more. HYDROGEN GAS

IS EXPLOSIVE. If the hot water system has not

been used for such a period, before using a

washing machine or combination washer-dryer,

turn on all hot water faucets and let the water

flow from each for several minutes. This will

release any accumulated hydrogen gas. The gas is

flammable; do not smoke or use an open flame

during this time.

6. Do not allow children to play on or in the washer.

Close supervision of children is necessary when

the washer is used near children. This is a safety

rule for all appliances.

7. Before the washer is removed from service or

discarded, remove the door to the washing

compartment.

8. Do not reach into the washer if the wash drum is

moving.

DANGER indicates the presence of a

hazard that will cause severe personal

injury, death, or substantial property

damage if the danger is ignored.

DANGER

WARNING indicates the presence of a

hazard that can cause severe personal

injury, death, or substantial property

damage if the warning is ignored.

WARNING

CAUTION indicates the presence of a

hazard that will or can cause minor

personal injury or property damage if the

caution is ignored.

CAUTION

To reduce the risk of fire, electric shock,

serious injury or death to persons when

using your washer, follow these basic

precautions: W023

WARNING

Safety Information

F232224

9. Do not install or store the washer where it will be

exposed to water and/or weather.

10. Do not tamper with the controls.

11. Do not repair or replace any part of the washer, or

attempt any servicing unless specifically

recommended in the user-maintenance

instructions or in published user-repair

instructions that the user understands and has the

skills to carry out.

12. To reduce the risk of an electric shock or fire, DO

NOT use an extension cord or an adapter to

connect the washer to the electrical power source.

13. Use washer only for its intended purpose,

washing textiles.

14. Never wash machine parts or automotive parts in

the machine. This could result in serious damage

to the basket.

15. ALWAYS disconnect the washer from electrical

supply before attempting any service. Disconnect

the power cord by grasping the plug, not the cord.

16. Install the washer according to the

INSTALLATION INSTRUCTIONS. All

connections for water, drain, electrical power and

grounding must comply with local codes and be

made by licensed personnel when required.

17. To reduce the risk of fire, textiles which have

traces of any flammable substances such as

vegetable oil, cooking oil, machine oil,

flammable chemicals, thinner, etc. or anything

containing wax or chemicals such as in mops and

cleaning cloths, must not be put into the washer.

These flammable substances may cause the

fabric to catch on fire by itself.

18. Do not use fabric softeners or products to

eliminate static unless recommended by the

manufacturer of the fabric softener or product.

19. Keep washer in good condition. Bumping or

dropping the washer can damage safety features.

If this occurs, have washer checked by a qualified

service person.

20. If the supply cord is damaged, it must be replaced

by a special cord or assembly available from the

manufacturer or its service agent.

21. Be sure water connections have a shut-off valve

and that fill hose connections are tight. CLOSE

the shut-off valves at the end of each wash day.

22. Loading door MUST BE CLOSED any time the

washer is to fill, tumble or spin. DO NOT

bypass the loading door switch by permitting the

washer to operate with the loading door open.

23. Always read and follow manufacturer’s

instructions on packages of laundry and cleaning

aids. Heed all warnings or precautions. To reduce

the risk of poisoning or chemical burns, keep

them out of the reach of children at all times

(preferably in a locked cabinet).

24. Always follow the fabric care instructions

supplied by the textile manufacturer.

25. Never operate the washer with any guards and/or

panels removed.

26. DO NOT operate the washer with missing or

broken parts.

27. DO NOT bypass any safety devices.

28. Failure to install, maintain, and/or operate this

washer according to the manufacturer’s

instructions may result in conditions which can

produce bodily injury and/or property damage.

NOTE: The WARNINGS and IMPORTANT

SAFETY INSTRUCTIONS appearing in this

manual are not meant to cover all possible

conditions and situations that may occur. Common

sense, caution and care must be exercised when

installing, maintaining, or operating the washer.

Any problems or conditions not understood should be

reported to the dealer, distributor, service agent or the

manufacturer.

Safety Information

F232224

IMPORTANT: Ensure that the recommended

clearances for inspection and maintenance

are provided. Never allow the inspection and

maintenance space to be blocked.

Safety Decals

Safety decals appear at crucial locations on the

machine. Failure to maintain legible safety decals

could result in injury to the operator or service

technician.

To provide personal safety and keep the machine in

proper working order, follow all maintenance and

safety procedures presented in this manual. If

questions regarding safety arise, contact the

manufacturer immediately.

Use manufacturer-authorized spare parts to avoid

safety hazards.

This machine must be installed, adjusted,

and serviced by qualified electrical

maintenance personnel familiar with the

construction and operation of this type of

machinery. They must also be familiar

with the potential hazards involved.

Failure to observe this warning may result

in personal injury and/or equipment

damage, and may void the warranty. SW004

WARNING

Install the machine on a level floor of

sufficient strength. Failure to do so may

result in conditions which can produce

serious injury, death and/or property

damage. W703

WARNING

Be careful around the open door,

particularly when loading from a level

below the door. Impact with door edges

can cause personal injury. SW025

CAUTION

Never touch internal or external steam

pipes, connections, or components.

These surfaces can be extremely hot and

will cause severe burns. The steam must

be turned off and the pipe, connections,

and components allowed to cool before

the pipe can be touched. SW014

WARNING

Safety Information

F232224

Operator Safety

To ensure the safety of machine operators, the

following maintenance checks must be performed

daily:

1. Prior to operating the machine, verify that all

warning signs are present and legible. Missing or

illegible signs must be replaced immediately.

Make certain that spares are available.

2. Check door interlock before starting operation of

the machine:

a. Attempt to start the machine with the door

open. The machine should not start with the

door open.

b. Close the door without locking it and attempt

to start the machine. The machine should not

start with the door unlocked.

c. Close and lock the door and start a cycle.

Attempt to open the door while the cycle is in

progress. The door should not open.

If the door lock and interlock are not functioning

properly, call a service technician.

3. Do not attempt to operate the machine if any of

the following conditions are present:

a. The door does not remain securely locked

during the entire cycle.

b. Excessively high water level is evident.

c. Machine is not connected to a properly

grounded circuit.

Do not bypass any safety devices in the machine.

NEVER insert hands or objects into

basket until it has completely stopped.

Doing so could result in serious injury.

SW012

WARNING

Never operate the machine with a

bypassed or disconnected balance

system. Operating the machine with

severe out-of-balance loads could result

in personal injury and serious equipment

damage. SW039

WARNING

F232224

Programming

NOTE: The machines are factory-programmed

with basic cycles to make the units operational

without programming at the installation.

Entering Program Mode

1. Open machine lid.

2. Locate Program/Run switch on the computer

board. This is accessed through a cutout in the

metal control unit cover. This switch protrudes

from the rear of the electronic control unit cover.

3. Flip switch to the left (as seen from the front of

machine) to enter PROGRAM Mode.

4. Display will show temperature.

Cycle and Error Count

The control logs cycle count (total of all cycles

completed).

1. To read, enter PROGRAM Mode.

2. Press START (Enter) keypad. Display will show

the cycle count.

3. Press START (Enter) keypad. Display will show

certain error conditions that may have been

recorded by the control.

4. Read the information when consulting technical

assistance as needed.

5. Step through the error log by pressing START

keypad repeatedly until display reverts to normal

PROGRAM Mode (“0000” or a temperature).

Setup Mode

NOTE: In SETUP Mode, certain machine

functions can be configured. The settings in this

mode are related to how the machine is equipped

from the factory. Usually, these settings would not

be changed.

NOTE: Enter SETUP Mode through the Program

Mode.

1. Press (6) keypad. Display will show “FAr” or

“CEL”.

NOTE: This selects whether temperatures display

in degrees Fahrenheit (F) or Celsius (C), if control

is equipped with a temperature sensor. Change

selection by pressing ∧or ∨keypad.

NOTE: Changing degrees “FAr” or “CEL” only

has an effect if the control has a temperature probe

connected and/or heat capability.

2. Press START keypad.

3. Select “HEAt” or “noHt”. Change the selection

by pressing the ∧or ∨keypad.

NOTE: If set for “HEAt”, the control has heat

capability enabled. The washer-extractor MUST

have electric or steam heat, and a temperature

probe. If display shows “noHt”, or if the message

“HEAt” or “noHt” does NOT display, the control

does NOT have heat capability.

4. Press START keypad to continue to the next step.

5. Select “AFIL” or “SUP5”. For “SUP5”, a fifth or

sixth supply can be programmed in a cycle step.

“AFIL” allows auxiliary fills to be programmed

to low, medium or high water level in a cycle

step.

6. Press START keypad.

7. Select “tFIL” or “ntFL.” “tFIL” allows a

temperature controlled fill to be programmed for

any segment. Select “ntFL” to disable the

feature.

8. Press START keypad.

9. Select “COOL” or “noCL.” “COOL” enables an

automatic cooldown feature allowing cold water

to flush into wash before a drain if temperature is

140°F (60°C) or above. Select “noCL” to disable

feature.

10. Press START keypad.

11. Select “bEEP” (control sounds beeper during

Add Bleach [Supply 2]) or “nobP” (control does

NOT sound beeper during Add Bleach [Supply

2]). Change selection by pressing ∧or ∨keypad.

12. Press START keypad.

13. Select “Adv” or “noAd”. “Adv” enables the

Rapid Advance feature. Select “noAd” to disable

the feature.

14. Press START keypad.

To avoid personal injury, recommended

inlet water temperature should be no

higher than 125°Fahrenheit (51°Celsius).

W709

WARNING

Programming

F232224

Programming Cycle Segments

The machine has 30 wash cycles available. 26 wash

cycles are pre-programmed. 4 cycles are available for

custom programming. All wash cycles may be edited

as follows.

1. Enter PROGRAM Mode. Refer to Entering

Program Mode section.

2. Press “∧” keypad to enter PROGRAM Mode.

3. Press the cycle number of the cycle to be edited.

Refer to Table 1.

4. Press the START keypad to move into the menu

of options. Refer to Figure 1.

NOTE: While cycle is running, pressing the START

keypad shows the temperature. Pressing the

START keypad a second time displays the cycle.

Pressing the START keypad a third time returns

display to time remaining.

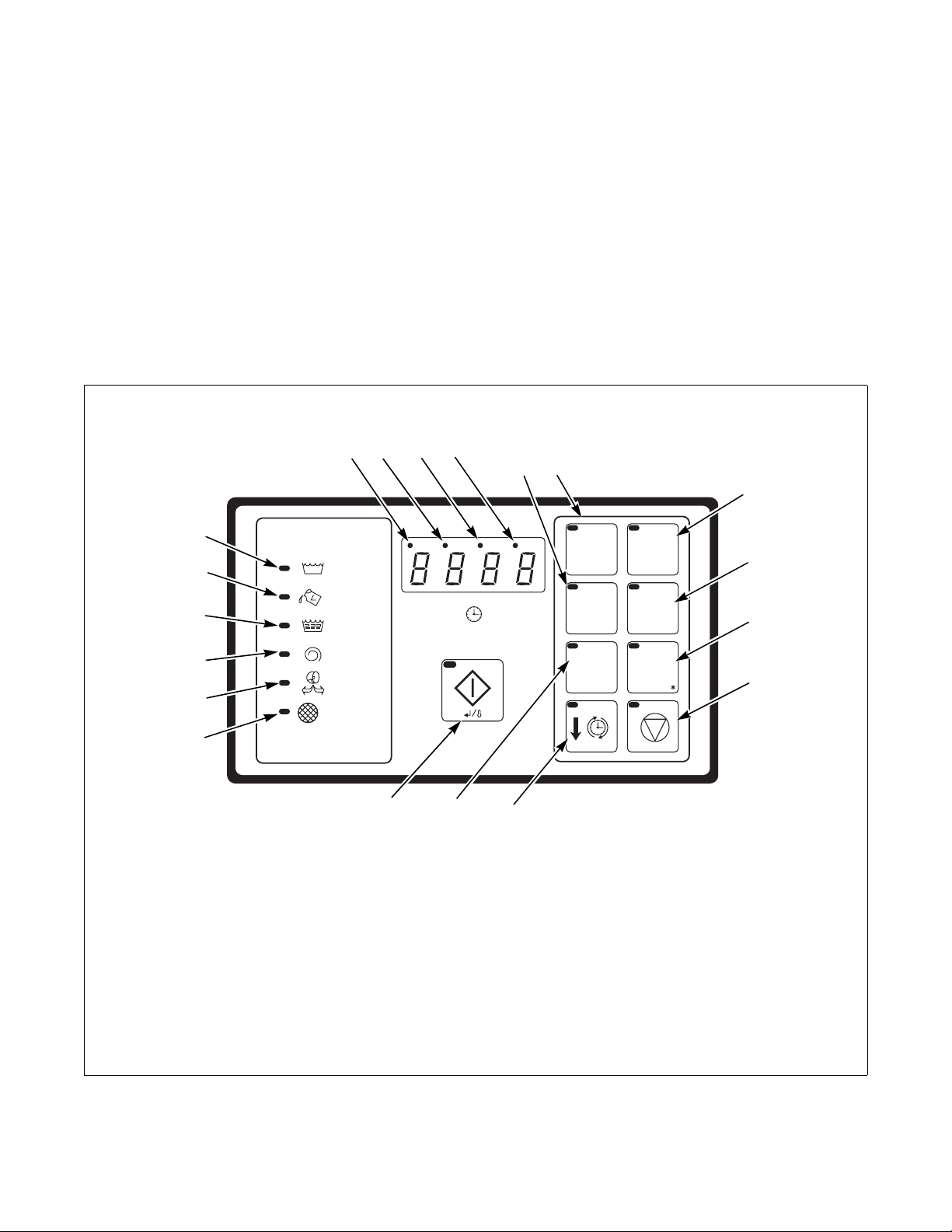

Figure 1

CHM1766C

1Cycle Keypad “1” 11 Door Open LED

2Cycle Keypad “3” 12 Spin Cycle LED

3Cycle Keypad “5” 13 Rinse Cycle LED

4Rapid Advance/Up “∧” Edit 14 Add Bleach LED

5Cycle Keypad “2” 15 Wash Cycle LED

6Cycle Keypad “4” 16 Out-of-Balance Indicator Dot

7Cycle Keypad “6” (Variable-speed only)

8Stop/Down “∨” Edit 17 High Water Level Indicator Dot

9START Keypad 18 Medium Water Level Indicator Dot

10 CLEAN FILTER Indicator LED 19 Low Water Level Indicator Dot

CHM1766C

16 17 18 19

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Alliance Laundry Systems Rondella

Alliance Laundry Systems

Alliance Laundry Systems UW100VV Series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems FLW1548C SVG Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems UW35S2 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems ATE50FWP431AW01 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems NX18BVPA7 Guida alla risoluzione dei problemi

Alliance Laundry Systems

Alliance Laundry Systems P Series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HCD020GD2 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems LTS90A*N Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems 800970R1 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems POCKET HARDMOUNT UW50P4 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems POCKET HARDMOUNT UW50P4 Guida alla manutenzione e all'assistenza

Alliance Laundry Systems

Alliance Laundry Systems Speed Queen TC5000WN Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems PHM798N Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems AFNE9BSS Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems SFNBXFSP122DW01 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems H372I Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems D1528ENR3 Guida alla risoluzione dei problemi

Alliance Laundry Systems

Alliance Laundry Systems PHM1263R Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems F232157R7 Manuale del proprietario

Alliance Laundry Systems

Alliance Laundry Systems LWS02A series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems HTE517xE2802 Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems WF065B Guida alla manutenzione e all'assistenza

Alliance Laundry Systems

Alliance Laundry Systems LWS02M series Manuale utente

Alliance Laundry Systems

Alliance Laundry Systems LTS80A Series Manuale utente

Manuali Rondella popolari di altre marche

Tricity Bendix

Tricity Bendix AW 1000 W Guida del prodotto

Panasonic

Panasonic NA-F60L5WRB Manuale utente

GE WSLP1500 Manuale

Electrolux

Electrolux EWF1284EDW Manuale utente

Bosch

Bosch WAN2829BSN Manuale utente

LG TV2516DV3B Manuale utente

LG TH2517DSAV Manuale utente

VESTEL

VESTEL CMH-XL 7510 TE Manuale utente

AEG

AEG 74335 Manuale operativo

Johnson

Johnson JWF721A Manuale utente

Beko

Beko WTE7604XLW0 Manuale utente

Danby

Danby DTT100A1WDB Istruzioni per il montaggio

Amica

Amica WA 14 Ex Manuale utente

Daewoo

Daewoo DWD-F1222 Manuale utente

Bosch

Bosch WAS28461AU Manuale utente

Miele

Miele PW 6080 Vario Manuale utente

Finlux

Finlux FLX108CF220 Manuale utente

Whirlpool

Whirlpool 3LBR5132AN0 Manuale utente
