Allied Telesis www.alliedtelesis.com

Datasheet | integrated Multiservice Access Platform

CES8

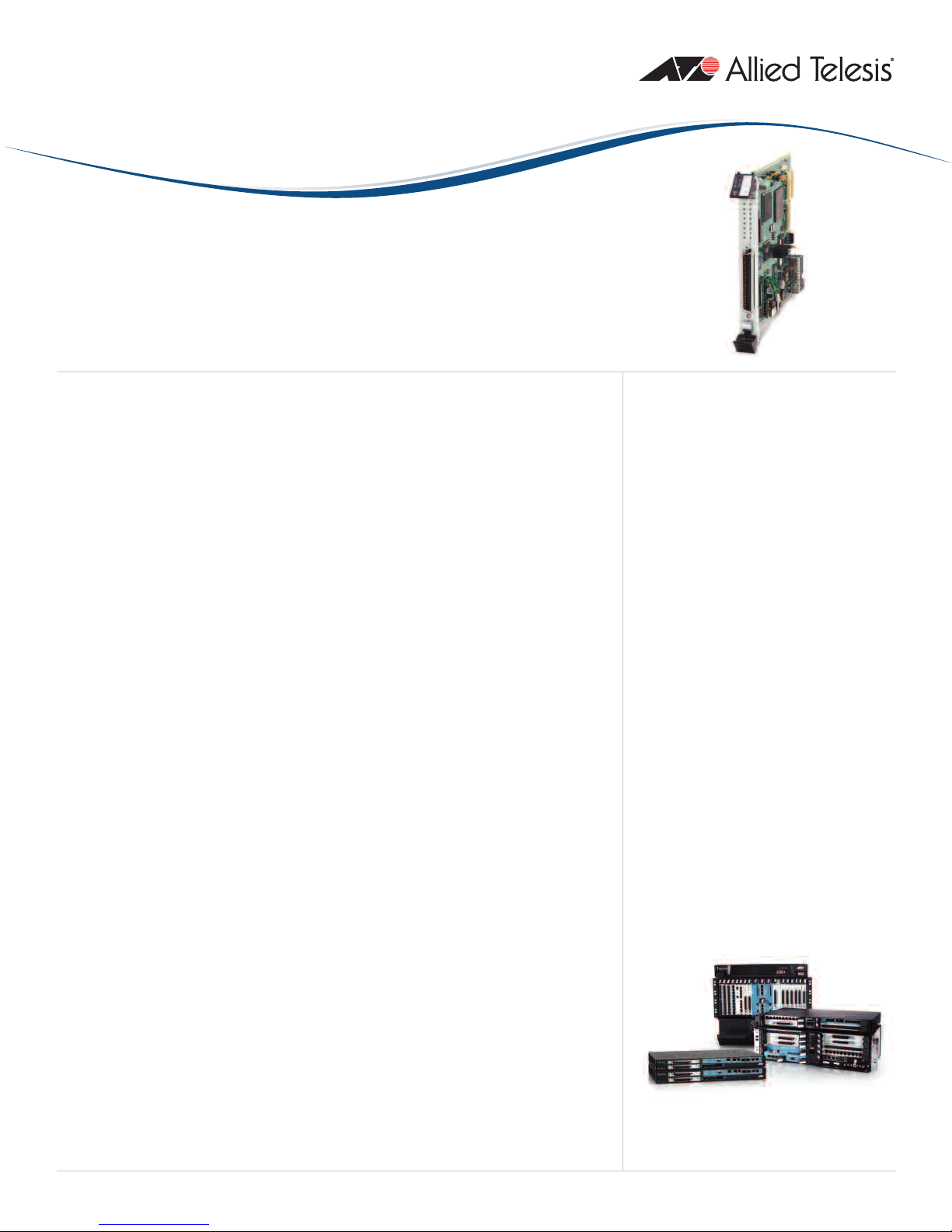

AT-TN119-A 8 Port T1/E1 Circuit Emulation Service Module

Allied Telesis’ iMAP family of integrated

Multiservice Access Platforms

CES8

Circuit Emulation Service Enables

Delivery of T1/E1 over Ethernet

Transport

Migration from TDM to a converged Ethernet-

based network requires a means to compliment

the deliveryof next generation packet-based

services with the delivery of traditional TDM-

based services.The CES8 (AT-TN119) gives the

iMAP the ability to provide transparent

transport for 8 T1/E1 circuits over an Ethernet

network.

TDM to Ethernet interworking is achieved using

the same industry standards for TDM Circuit

Emulation Service over Packet (CESoP) being

defined by the IETF, Metro Ethernet Forum,

MPLS Forum, and ITU-T.This interworking

technology is extremely robust and overcomes

the challenges of delivering TDM services over

an all IP packet network.

The CES8 automaticallycompensates for

packet network congestion, blocking, QoS

prioritization and multiple signal paths with

varying latency which can lead to jitter, lost

packets, duplicate packets, and out of sequence

packet delivery.

Use the CES8 to deliver Private line T1/E1

services, subtend a channel bank for derived

2W/4W legacy special circuits or for Business

LAN services. Whatever the application,

Service Provider SLAs will be honored when

deployed with Ethernet Protection Switched

Ring (EPSR) network topology. Expect five 9’s

(99.999%) reliability of SONET

,but with the

simplicity, efficiency and cost savings of Ethernet.

Part of Allied Telesis’ IP Broadband

Access Family

Whether it is broadband ADSL2+, FTTH or

T1/E1 circuits, the iMAP family is the ideal

platform for last mile service delivery.The CES8

line card can be used with any of the iMAP

family of carrier grade, IP Access platforms:

•iMAP 9700 (9RU, 17 service slots)

•iMAP 9400 (3RU, 7 service slots)

•MiniMAP 9100 (1RU, 3 service slots)

Provisioning, management, and diagnostics of

subscriber ports can be accomplished from

either the iMAP command line interface or the

NMS.

The CES8 has been designed to survivethe

most rugged environmental conditions. It can be

confidently deployed in either a central office or

in outdoor enclosures withstanding extremes of

heat, cold, and light exposure.

Key Features

•8T1/E1 ports

•Pseudo-wire compliant to the SAToIP standard

•T1 reach is selectable for short haul DSX-1

or long haul T1

•Integrated jitter buffers absorb packet network

delay variation

•Provides Layer 2 services using existing

E1/T1 circuits

USA Headquarters |19800 North Creek Parkway |Suite 200 |Bothell |WA 98011 |USA |T: +1 800 424 4284 |F: +1 425 481 3895

Asia-Pacific Headquarters |11 Tai Seng Link |Singapore |534182 |T: +65 6383 3832 |F: +65 6383 3830

www.alliedtelesis.com

©2006 AlliedTelesis Inc. All rights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the property of their respective owners. 617-000039 Rev. D

CES8 |AT-TN119-A 8 Port T1/E1 Circuit Emulation Service Module

*Where XX = 10 for U.S. power cord

=30 for U.K. power cord

=40 for Australia power cord

=50 for Europe power cord

**Where YY =005 for 5 ft

=010 for 10 ft

=015 for 15 ft

=020 for 20 ft

=030 for 30 ft

=040 for 40 ft

=050 for 50 ft

=060 for 60 ft

=070 for 70 ft

=080 for 80 ft

=090 for 90 ft

Ordering Information

iMAP 9x00 Chassis

Model Description Part #

iMAP 9700 17-slot chassis with DC power with faceplates AT-TN-250GF

iMAP 9700 17-slot chassis with DC power without faceplates AT-TN-250G

iMAP 9400 7-slot chassis with DC power with faceplates AT-TN-251GF

iMAP 9400 7-slot chassis with DC power without faceplates AT-TN-251G

MiniMAP 9101 3-slot mini chassis with DC power AT-TN-9101-A-80

MiniMAP 9102 3-slot mini chassis with AC power AT-TN-9102-A-XX*

CES8

Model Description Part #

CES8 8ports, T1/E1 Circuit Emulation Service Module AT-TN-119-A

iMAP Common Control

Model Description Part #

CFC24 24GbE switch controller card AT-TN-401-B

GE3 3x GbE WAN interface card AT-TN-301-A

CFC56 56 GbE switch controller card AT-TN-407-A

XE1 10GbE WAN interface card AT-TN-308-A

CFC12 12GbE switch controller card AT-TN-408-A

Interface Specifications

Number of ports: 8

Connector: RJ-21 (Female)

T1 Specifications

Line rate: 1.544Mbps

Line code: AMI or B8ZS

Framing: Unstructured mode

Jitter: ANSI T1.102, T1.403, GR-499-CORE

Wander: T1.403

E1 Specifications

Line rate: 2.0484Mbps

Line code: AMI or HDB3

Framing: Unstructured mode

Jitter: ITU-T G.823

Wander: ITU-T G.823

CES Specifications

Packetization: 16 to 1023 bytes

PDV Buffer: 74.432ms for T1, 56.112 for E1

Tmining and Synchronization

Timing Source: Loop timed or pseudo-span timed

Holdover Accuracy: Stratum 4 local oscillator

Power Requirements

Maximum Power: 23W

Environmental Conditions

Operating Temp: -40C to 65C

Storage Temp: -40C to 75C

Relative Humidity: 5% to 95%, non-condensing

RegulatoryApprovals

FCC Part 15 Class A/ANSI C63.4

EN 300 386 V1.3.1:2001-09/EN 55022:1998, Class A

VCCI Class A; ITE/ CISPR 22:1997 Class A

EN 300 386 V1.3.1:2001-09/EN 55022:1998, Class A

EN 300 386 V1.3.1:2001-09/EN 61000-4-3:1998

EN 300 386 V1.3.1:2001-09/EN 6100-4-6:1996

EN 300 386 V1.3.1:2001-09/EN 61000-4-4:1995

EN 300 386 V1.3.1:2001-09/EN 61000-4-5:1995

EN 300 386 V1.3.1:2001-09/EN 61000-4-2:1999

UL/cUL 60950: IEC60950

NEBS Level 3, GR-1089 Issue 3, GR63 Issue 2

USDA RUS

Related iMAP Line Cards and Accessories

Model Description Part #

POTS24 24-port, POTS Service Module AT-TN-113-A

PAC24 24-port, POTS/ADSL2+ Combo w/Splitters, Annex A AT-TN-123-A

SHDSL24 24-port, G.SHDSL Service Module AT-TN-127-A

VDSL24 24-port, VDSL2 Service Module, Annex B AT-TN-128-A

ADSL24SA 24-port, ADSL2+ w/Splitters, Annex A AT-TN-129-A

CES8 Cable CES8 RJ21 to Unterminated AT-TN-C021-A-YY**

Filler Full size service slot filler plate AT-TN-M000-A
