AR400 SERIES ROUTER

QUICK INSTALL GUIDE

AR400 Series Router Quick Install Guide

Document Number C613-04032-01 REV C.

19800 North Creek Parkway, Suite 200, Bothell, WA 98011, USA.

permission from Allied Telesyn.

Allied Telesyn International, Corp. reserves the right to make changes in specifications

and other information contained in this document without prior written notice. The

information provided herein is subject to change without notice. In no event shall Allied

Telesyn be liable for any incidental, special, indirect, or consequential damages

whatsoever, including but not limited to lost profits, arising out of or related to this

manual or the information contained herein, even if Allied Telesyn has been advised of,

known, or should have known, the possibility of such damages.

All trademarks are the property of their respective owners.

Quick Install Guide 3

C613-04032-01 REV C

Models Covered By This Guide

This Quick Install Guide includes information on the following models:

■AR410

■AR410S

Quick Install Guide updates can be found at www.alliedtelesyn.co.nz/

support/ar400/.

Package Contents

The following items are included with each AR400 Series router. Contact your

sales representative if any items are damaged or missing.

■One AR400 Series router.

■One AC power cord.

■One power cord retaining clip.

■One terminal cable for connecting the router to a terminal or PC.

■Two UTP network cables.

■One rack-mount kit with brackets and screws.

■One AR400 Series Router Quick Install Guide.

■One Safety and Statutory Information booklet.

■One AR400 Series Router Documentation and Tools CD-ROM (which

includes the complete AR400 Series Document Set and utilities).

■One warranty card.

Port Interface

PIC Quick

PIC Hardwar

AR400 Series Router

Quick Install Guide

Hardware Reference

Software Reference

Cards

Install Guide

e Reference

General Customer Support

Visit www.alliedtelesyn.co.nz for

the latest documentation, FAQ,

and support information

Printed Acrobat PDF

Documentation Roadmap

Website

User Guide

Safety and Statutory Information

4AR400 Series Router

C613-04032-01 REV C

Selecting a Site

The router should be installed on a level surface such as a desktop or bench.

When installing the router, choose a site that:

■Allows adequate airflow around the router and its vents.

■Is free of dust and moisture.

■Will allow the router to operate within a temperature range of 0 to 40º C

(32 to 104º F) and a humidity range of 5 to 95% non-condensing.

■Has a reliable and earthed (grounded), preferably dedicated and filtered

power supply circuit.

■Does not expose cabling to sources of electrical noise, such as radios,

transmitters, broadband amplifiers, power lines, electric motors, and

fluorescent fixtures.

■Allows easy access to the router’s power and cable connections.

Installing the Router

This equipment must be earthed.

Follow these steps to install the router:

1. Read the safety information.

For safety information, see the Safety and Statutory Information booklet. A

copy of this booklet is supplied with each router, and can also be found on

the Documentation and Tools CD-ROM or at www.alliedtelesyn.co.nz/

support/ar400.

2. Gather additional items you will need.

If also installing an optional Port Interface Card (PIC), you will need a PIC

Quick Install guide.

3. Unpack the router.

Verify the package contents. If any items are damaged or missing, contact

your sales representative.

4. Place the router in its operating location.

See the previous Selecting a Site section for guidelines on choosing a

suitable location.

5. Install expansion options.

If you purchased an optional PIC, install it now by following the PIC Quick

Install Guide. That guide can be found on the Documentation and Tools

CD-ROM or can be downloaded from www.alliedtelesyn.co.nz/support/

ar400/.

Quick Install Guide 5

C613-04032-01 REV C

6. Check the supply voltage and the router’s rated voltage.

AR400 Series routers are fitted with a universal mains power supply that

will function over the range 100-240 VAC and 50–60Hz.

The specific power supply requirements for a particular model are clearly

displayed on the rear or underside of the router. If the supply is outside the

accepted range for the router, the router may not operate and damage to the

router may result.

7. Apply power to the router.

Fit the power cord retaining clip to the AC power inlet on the router’s rear

panel.

Plug the power cord into the AC power inlet and check that the power

switch is in the ON position (see Figure 1 on page -5). The Power LED and

System LED will light briefly.

If the power LED fails to light, or the System LED lights continuously, refer

to the troubleshooting section later in this guide.

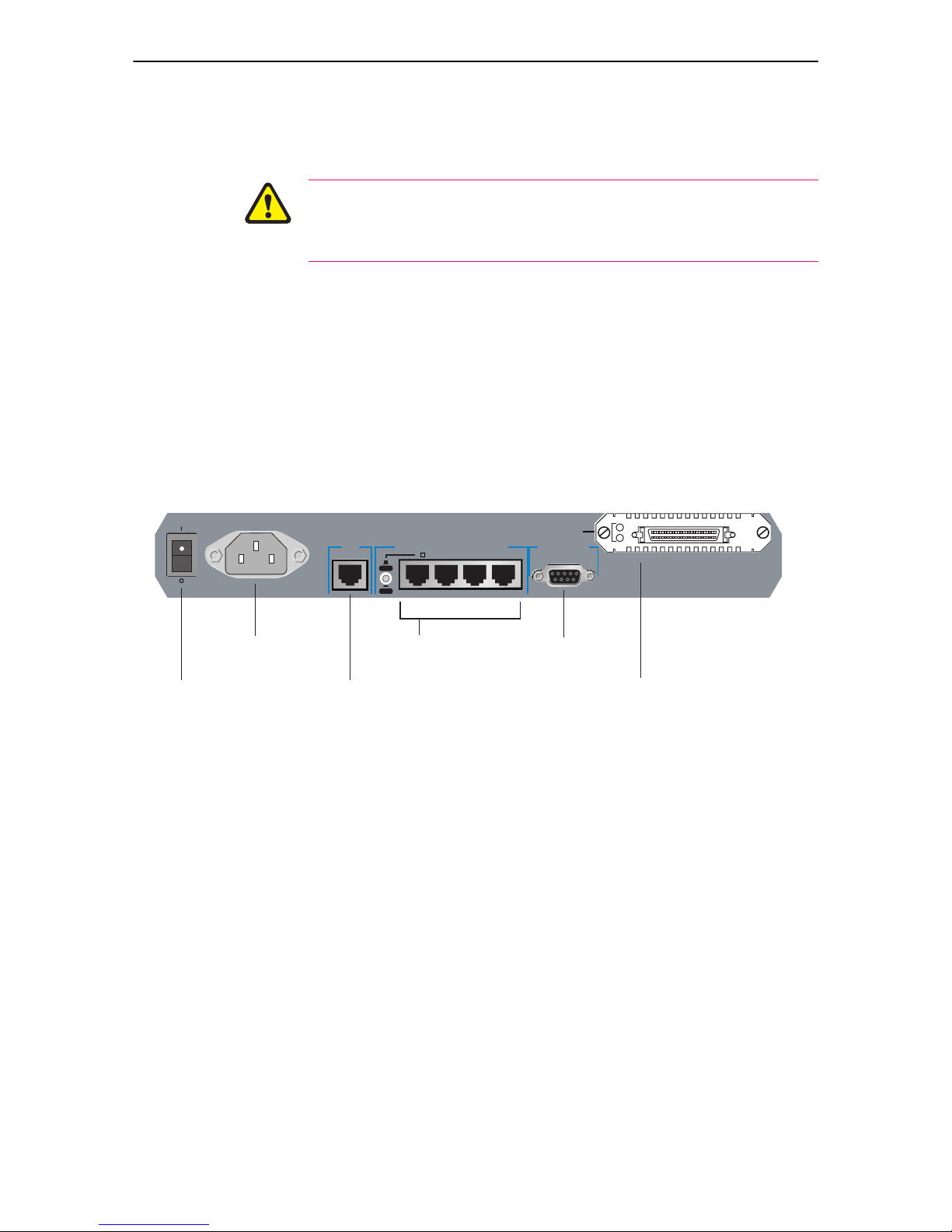

Figure 1: Rear panel of an AR410, showing the AC power inlet, power switch, console port, Ethernet ports, and

an optional PIC card.

8. Connect the data cables.

Make sure that each cable connection is secure.

9. Initiate router start-up.

Using the terminal cable supplied, connect a VT100-compatible terminal,

or the COM port of a PC running a terminal emulation program such as

Windows Terminal, to the Console RS-232 (ASYN 0) port on the router’s

rear panel.

Set the communication parameters on your terminal or terminal emulation

program to:

• Baud rate: 9600

• Data bits: 8

•Parity:None

•Stopbits:1

• Flow control: Hardware

See the AR Router Hardware Reference for more information on configuring

emulation software.

POWER

SYN

AC Power Switch

AC Power Inlet Console Port10/100 Switch Ports

PIC Bay (with optional

AT-AR023 SYN PIC)

CONSOLE RS-232

PIC BAY0

3X ASYN0

2X 1X

POWER

10BASE-T/100BASE-TX SWITCH PORTS

X PC

= HUB

ETH0

ETH 0

6AR400 Series Router

C613-04032-01 REV C

10. Log in and set password.

The log in prompt appears on the terminal or PC. If the log in prompt

doesn’t appear, press [Enter] two or three times.

When the router boots for the first time it automatically creates an account

with manager privileges. The account has the log in name “manager” and

the password is “friend”.

At the log in prompt, enter the log in name and password.

Password: friend

The router’s command prompt appears and you can now configure the

router using the command line interface.

Change the password as soon as possible. Leaving the manager account with

the default password is a serious security risk. Make sure you remember the

new password as there is no way to retrieve it if it is lost.

Use the following command to change the account password:

set password

To access help, enter:

set help=

help-filename

where help-filename is the name of a help file stored in flash.

To see a list of files stored in flash, enter:

show file

Help files have an HLP extension.

To display a list of help topics, enter:

help

To display help on a specific topic, enter:

help

topic

Alternatively, type a question mark (?) at the end of a partially completed

command to see a list of valid options.

See the AR400 Series Router Software Reference for more information on

router start-up and configuration procedures (including a list of message

definitions).

Quick Install Guide 7

C613-04032-01 REV C

LEDs and What They Mean

LEDs indicate the router’s operational status and port activity. Descriptions of

PIC LEDs can be found in the PIC Quick Install Guide and the PIC Hardware

Reference.

Troubleshooting Installation

If you have problems installing the router, try one or more of the following:

No LEDs Light

The most likely reason is that the router is not receiving power. Check the

following:

1. Check that the supply outlet’s switch is in the ON position.

2. Test the mains power outlet to verify that it is working.

If the problem persists, please contact your authorised Allied Telesyn

distributor or reseller.

AR410 System LEDs

LED State Function

Power Green The router is receiving power and the power

switch is in the ON position

System Amber The router is malfunctioning

Off Normal operation

Enabled

(PIC Bay 0)

Green A PIC card is correctly installed and has been

detected by the router

Off No PIC is installed

Full Dup Green The corresponding port is operating at full-

duplex

Off The corresponding port is operating at half-

duplex

Link/ACT Green A link has been established through the

corresponding port

Flashing Data is being transmitted through the

corresponding port

Off No link is present through the corresponding

port

100M Green The corresponding port is operating at

100Mbps

Off The corresponding port is operating at 10Mbps

8AR400 Series Router

C613-04032-01 REV C

LEDs Light Incorrectly

If the System LED stays on, the router software has encountered a fatal

condition. Contact your authorised Allied Telesyn distributor or reseller.

No Response From theTerminal

1. Is the terminal cable correct for both the terminal and the router? Test the

cable operation by connecting Txd and Rxd (pins 2 and 3) together at the

router end of the cable. Characters typed on the terminal should be echoed

back to the screen.

2. Are the terminal or terminal emulation software communication

parameters set correctly? Refer to the AR Router Hardware Reference for more

information on setting communications parameters.

3. Contact your authorised Allied Telesyn distributor or reseller for assistance.

1. Passwords are case sensitive. Check your spelling and that you are using the

right combination of upper and lowercase characters.

2. Contact your authorised Allied Telesyn distributor or reseller for assistance.

Documentation and Tools CD-ROM

The Documentation and Tools CD-ROM bundled with each router contains the

complete Document Set for your router. The CD-ROM also includes tools for

managing your router.

The Document Set includes:

■The AR400 Series Router Safety and Statutory Information booklet, which

provides safety and statutory information.

■This AR400 Series Router Quick Install Guide, which outlines the procedure

for installing an AR400 Series router.

■The AR Router Hardware Reference, which provides detailed information on

the hardware features of AR routers.

■The AR400 Series Router Software Reference, which provides detailed

information on configuring the router and its software.

■The AR400 Series User Guide, which provides an introduction to the router

and its operational features and characteristics.

■AT-TFTP Server for Windows, for downloading software releases.

■Adobe Acrobat Reader, for viewing online documentation.

■Microsoft Internet Explorer.

These documents can also be downloaded from the AR400 Series Router

Support Site at www.alliedtelesyn.co.nz/support/ar400/.

Altri manuali per AR400 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Allied Telesis Router di rete

Allied Telesis

Allied Telesis AT-x310-26FT Manuale utente

Allied Telesis

Allied Telesis AT-8000GS/48 Manuale utente

Allied Telesis

Allied Telesis AT-AR256E v3 Manuale utente

Allied Telesis

Allied Telesis AlliedWare NetScreen Routers Istruzioni di installazione e manutenzione

Allied Telesis

Allied Telesis AT-FS705PD Manuale utente

Allied Telesis

Allied Telesis AT-AR256E v3 Manuale utente

Allied Telesis

Allied Telesis AT-9408LC/SP Series Manuale utente

Allied Telesis

Allied Telesis AT-FS202 Series Manuale utente

Allied Telesis

Allied Telesis AT-8000S Series Manuale di istruzioni

Allied Telesis

Allied Telesis AR 300 AT-AR300 AT-AR300 Manuale di istruzioni

Allied Telesis

Allied Telesis AR415S Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis AR720 Manuale utente

Allied Telesis

Allied Telesis WebSmart AT-FS750/16 Manuale utente

Allied Telesis

Allied Telesis SwitchBlade *8106 Manuale utente

Allied Telesis

Allied Telesis AT AR750S AT-AR750S AT-AR750S Manuale utente

Allied Telesis

Allied Telesis AT-GS950/16 Manuale utente

Allied Telesis

Allied Telesis AT-GS900/8 Manuale utente

Allied Telesis

Allied Telesis AR725 Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis AT-AR236E Scheda informativa del prodotto

Allied Telesis

Allied Telesis AT-8000GS/24 Manuale utente

Allied Telesis

Allied Telesis AT-GS900/8 Manuale utente

Allied Telesis

Allied Telesis AT-GS950/24 Manuale utente

Allied Telesis

Allied Telesis AT-AR441S Manuale utente

Allied Telesis

Allied Telesis AT-8000S Series Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
