AR700 Series Router Quick Install Guide

Document Number C613-04027-01 REV E.

19800 North Creek Parkway, Suite 200, Bothell, WA 98011, USA.

permission from Allied Telesyn.

Allied Telesyn International, Corp. reserves the right to make changes in specifications

and other information contained in this document without prior written notice. The

information provided herein is subject to change without notice. In no event shall Allied

Telesyn be liable for any incidental, special, indirect, or consequential damages

whatsoever, including but not limited to lost profits, arising out of or related to this

manual or the information contained herein, even if Allied Telesyn has been advised of,

known, or should have known, the possibility of such damages.

All trademarks are the property of their respective owners.

Quick Install Guide 3

Software Release 2.6.1

C613-04027-01 REV E

Models Covered By This Guide

This Quick Install Guide includes information on the following models:

■AR720

■AR725

■AR740

■AR745

Quick Install Guide updates can be found at

www.alliedtelesyn.co.nz/documentation/documentation.html.

Package Contents

The following items are included with each AR700 Series router. Contact your

sales representative if any items are damaged or missing.

■One AR700 Series router.

■One AC power cord (AC models only).

■One power cord retaining clip (AR725 and AR745 models only).

■One 19 inch rack-mount kit.

■One terminal cable for connecting the router to a terminal or PC.

■Two CAT 5 Ethernet cables for connecting the router to an Ethernet LAN

(the AR720 package includes one CAT 5 cable).

■One AR700 Series Router Quick Install Guide.

■One Safety and Statutory Information booklet.

■One AR700 Series Router Documentation and Tools CD-ROM (which

includes the complete AR700 Series Document Set and utilities).

■One warranty card.

Port Interface

PIC Quick

PIC Hardwar

Network Service Modules

NSM Quick Install Guide

NSM Hardware Reference

Cards

Install Guide

e Reference

General Customer Support

Visit www.alliedtelesyn.co.nz for

the latest documentation, FAQ,

and support information

Documentation Roadmap

Printed Acrobat PDF Website

AR700 Series Router

Safety and Statutory Information

Quick Install Guide

Hardware Reference

Software Reference

Quick Start Guide

User Guide

4AR700 Series Router

Software Release 2.6.1

C613-04027-01 REV E

Selecting a Site

The router can be installed in a standard 19-inch rack or on a level surface such

as a desktop or bench. When installing the router, choose a site that:

■Allows adequate airflow around the router and its vents.

■Is free of dust and moisture.

■Will maintain an ambient temperature range of 0 to 40º C (32 to 104º F) and

a humidity range of 5 to 95% non-condensing.

■Has a reliable and earthed (grounded) power supply circuit, preferably

dedicated and filtered.

■Does not expose cabling to sources of electrical noise, such as radio

transmitters, broadband amplifiers, power lines, electric motors, and

fluorescent fixtures.

■Allows easy access to the router’s power and cable connections.

Installing the Router

All AC and DC versions of this equipment must be earthed.

Follow these steps to install the router:

1. Read the safety information

For safety information, see the Safety and Statutory Information booklet. A

copy of this booklet is supplied with each router, and can also be found on

the Documentation and Tools CD-ROM or at www.alliedtelesyn/

documentation/documentation.html.

2. Gather the tools and equipment you will need

If installing a DC version of the router, you will need a DC power source,

DC supply cable, and wire strippers (see step 9).

If the router is to be connected to a redundant power supply, you will need

a redundant power supply unit and cable (see step 8).

3. Unpack the router

Verify the package contents. If any items are damaged or missing, contact

your sales representative.

4. Install expansion options

If you purchased optional Port Interface Cards (PICs) or a Network Service

Module (NSM), install them now by following their individual Quick

Install Guides. These guides can be found on the Documentation and Tools

CD-ROM or at

www.alliedtelesyn.co.nz/documentation/documentation.html.

If you purchased an optional PCI or Mini Accelerator Card (PAC or MAC)

install it now by following the instructions in the AR Router Hardware

Reference.

Quick Install Guide 5

Software Release 2.6.1

C613-04027-01 REV E

5. Place the router in its operating location

See the previous “Selecting a Site” section for guidelines on choosing a

suitable location.

6. Check the supply voltage and the router’s rated voltage

AC versions of AR700 Series routers are fitted with a universal power

supply that will function over the range 100-240 VAC and 50–60Hz.

DC versions of AR700 Series routers require a supply voltage in the range

38-59V DC.

The specific power supply requirements for a particular model are clearly

displayed on the rear or underside of the router. If the supply is outside the

accepted range for the router, the router may not operate, or damage to the

router may result.

7. Apply AC power to the router (for AC models)

Fit the power cord retaining clip to the AC power inlet on the router’s rear

panel (for AR725 and AR745 models).

Plug the power cord into the AC power inlet and check that the power

switch is in the ON position (see Figure 1). The Power LED on the router’s

front panel will light, and the System LED (also on the front panel) will

light briefly.

If the power LED fails to light or the System LED lights continuously, refer

to the troubleshooting section later in this guide.

8. Connect the redundant power supply (optional for AC models of the AR725,

AR740, and AR745)

If you purchased an AT-RPS 740 (redundant power supply), install it now

by following the instructions in its Quick Install Guide. The guide can be

found on your router’s Documentation and Tools CD-ROM, or can be

downloaded from

www.alliedtelesyn.co.nz/support/atrps740/index.html.

The AT-RPS 740 can be used with all AR700 Series routers except the

AR720.

Figure 1: Rear panel of an AR720, showing the AC power inlet, power switch, and asynchronous ports.

Asynchronous ports

Power switch Fuse Power inlet

AR720FP

Two PIC bays

DISCONNECT MAINS SUPPLY BEFORE

REMOVING

LEDs Ethernet Port

POWE

S TAT U

BAS BAY 1 BAY 0

ENGIN

ETHERNE PORT INTERFACE

PW RUN SY F LNK RSE

ACT DAT ER CLR 100 COL

010

ACT

PRI

E1/T1

SYN

6AR700 Series Router

Software Release 2.6.1

C613-04027-01 REV E

9. Apply DC power to the router (for DC models)

Before connecting the DC supply:

Read the Safety and Statutory Information booklet. A copy of this booklet is

included with each router. It is also included on the Documentation and

Tools CD-ROM or can be downloaded from

www.alliedtelesyn.co.nz/documentation/documentation.html.

Only trained and qualified personnel should connect a DC power supply. Due

to exposed terminals, DC powered routers should be installed only in restricted

access areas.

DC supply cable specifications:

• Number of wires (cores): 3

• Minimum size: 2.1mm2(14 AWG)

• Minimum cable rating: 600V, 90 degrees Celsius

DC power supply specifications:

• 48V DC (38-59V DC is acceptable)

• Either positive grounded or negative grounded

Circuit protection:

• Use a 10 Amp circuit breaker

To connect the DC supply:

• Ensure the supply cable is not live

• Strip the supply cable wires to expose 8mm (0.31 in.) of bare conductor

• At the router, connect the ground wire to the ground terminal.

Terminals can be identified by the diagram on the router’s rear panel,

see Figure 2. Tighten the terminal to between 0.6 and 0.8 Nm (0.041 to

0.055 pound-force per foot)

• At the router, connect the positive feed to the + (positive) terminal and

the negative feed to the - (negative) terminal. Tighten the terminals to

between 0.6 and 0.8 Nm (0.041 to 0.055 pound-force per foot)

• Ensure there are no exposed conductor strands

• Secure the supply cable (to the rack framework or similar object) so that

the connections are isolated from any force applied to the cable

• Ensure the circuit breaker (for the supply circuit) and the power switch

(on the router) are in the OFF position

• Connect the supply-cable wires to the circuit breaker

• Energise the circuit breaker

• Switch the power switch to the ON position

Quick Install Guide 7

Software Release 2.6.1

C613-04027-01 REV E

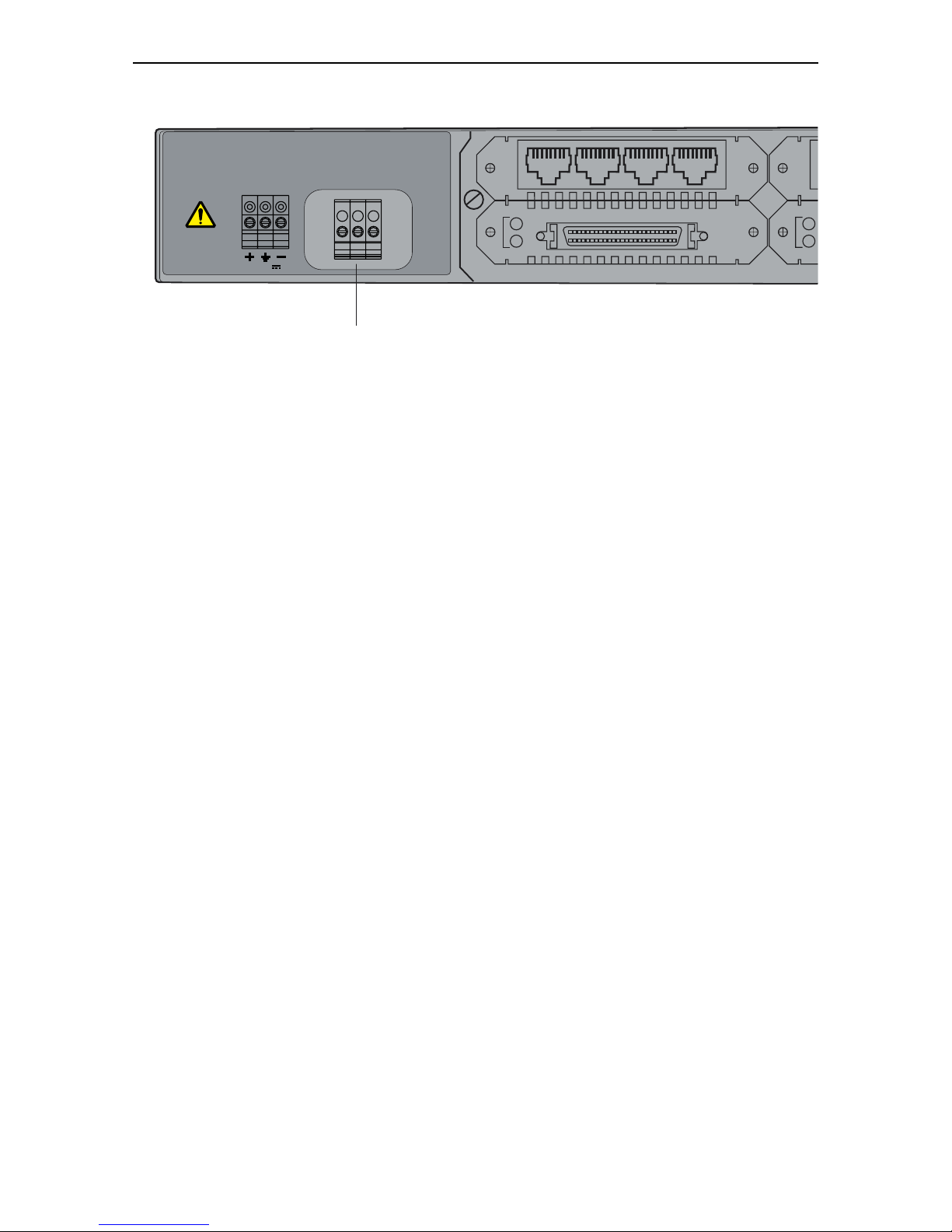

Figure 2: DC Power inlet terminals on an AR740.

The System LED should flash for approximately 10 seconds as the router

runs internal tests. If the LED continues to flash or remains lit, refer to the

AR Router Hardware Reference for troubleshooting information.

DC models do not have RPS connectors.

10. Connect the data cables

Make sure each cable connection is secure.

11. Initiate router start-up

Using the terminal cable supplied, connect a VT100-compatible terminal,

or the COM port of a PC running a terminal emulation program such as

Windows Terminal, to the console port (port 0) on the router’s rear panel.

Set the communication parameters on your terminal or terminal emulation

program to:

• Baud rate: 9600

• Data bits: 8

•Parity:None

•Stopbits:1

• Flow control: Hardware

See the AR Router Hardware Reference for more information on configuring

emulation software.

12. Log in and set password

The log-in prompt appears on the terminal or PC. If the log-in prompt

doesn’t appear, press [Enter] two or three times.

When the router boots for the first time, it automatically creates an account

with manager privileges. The account has the log-in name “manager” and

the password is “friend”.

At the log-in prompt, enter the log-in name and password.

Password: friend

The router’s command prompt appears and you can now configure the

router using the command line interface.

SYN

ASYN

FOR CENTRALIZED DC

POWER CONNECTION,

INSTALL ONLY IN A

RESTRICTED AREA

38-75VDC , 2A

DC Power

Power inlet

8AR700 Series Router

Software Release 2.6.1

C613-04027-01 REV E

Change the password as soon as possible. Leaving the manager account with

the default password is a serious security risk. Make sure you remember the

new password as there is no way to retrieve it if it is lost.

Use the following command to change the account password:

set password

Use the following commands to save the configuration with the newly

created password, and set the router to use it on bootup:

create config=your-name.cfg

set config=your-name.cfg

To display a list of help topics, enter:

help

To display help on a specific topic, enter:

help topic

Alternatively, type a question mark (?) at the end of a partially completed

command to see a list of valid options.

See the AR Series Router Software Reference for more information on router

start-up and configuration procedures (including a list of message

definitions).

Using the GUI to configure a router:

This section describes how to establish a connection to the router through the

GUI, so you can configure the router before installing it in your LAN. For more

information about the GUI, see the AR700 Series User Guide.

1. Select a PC to browse to the router from

You can browse to the router from any PC that is running a supported

operating system with a supported browser installed. JavaScript must be

enabled.

You need to know the PC’s subnet.

2. Connect the PC to the router

Use an Ethernet cable to connect an Ethernet card on the PC to the eth0

port (see Figure 3).

You can browse to the router through any ETH port, as long as you give that interface

an IP address (see below). These instructions assume you will use eth0 as the LAN

interface.

Quick Install Guide 9

Software Release 2.6.1

C613-04027-01 REV E

Figure 3: Connecting a PC directly to the router.

3. Access the router’s command line interface

Access the CLI from the PC, as described in the previous “Using the CLI to

configure a router” section.

4. Enable IP

enable ip

5. Assign the eth0 interface an IP address in the same subnet as the PC

add ip interface=eth0 ip=ipaddress mask=mask

6. Save the configuration and set the router to use it on bootup

create config=your-name.cfg

set config=your-name.cfg

7. On the PC’s web browser, bypass the HTTP proxy server, if necessary

8. Point your web browser at eth0’s IP address

9. At the login prompt, enter the user name and password

The default username is manager:

User Name: manager

Password: friend

For context-sensitive online help on AR725 and AR745 routers, click on the

Help button at the top of the sidebar menu or on any pop-up page.

DISCONNECT MAINS SUPPLY BEFORE

REMOVING

POWE

S TAT U

BAS BAY 1 BAY 0

ENGIN

ETHERNE PORT INTERFACE

PW RUN SY F LNK RSE

ACT DAT ER CLR 100 COL

010

ACT

PRI

E1/T1

SYN

straight-through cable

ETH port

AR700 Series Router

10 AR700 Series Router

Software Release 2.6.1

C613-04027-01 REV E

System LEDs and What They Mean

System LEDs indicate the router’s operational status.

A full description of all AR700 Series router LEDs can be found in the AR

Router Hardware Reference. Descriptions of NSM and PIC LEDs can be found in

their respective Hardware References.

Table1: System LEDs.

LED

Front panel Rear panel

Function

Power PWR Lit when power is supplied and the router is

switched on.

Run Run Lit when the internal processor is executing code. If

the processor stops for any reason (a fault

condition), then the LED will not be lit.

System SYS This LED is not normally lit. It is used to signal

various system conditions (e.g., when the processor

executes the reboot sequence). Generally it signals

a possible fault condition, but is lit during a power-

up or operator-initiated reboot, and remains lit until

a release has been loaded from flash memory.

On the AR725, AR740, and AR745, this LED will

flash in specific sequences to indicate fan, PSU, or

RPS faults:

1 Flash: A router fan has failed.

2 Flashes: If RPS monitoring is enabled, and an RPS

is connected, the RPS fan has failed.

3 Flashes: If an RPS is connected, the router’s PSU

(Power Supply Unit) has failed.

4 Flashes: If RPS monitoring is enabled, the RPS PSU

has failed.

5 Flashes: If RPS monitoring is enabled, an RPS is

not connected or is not operational

Clear CLR Lit when a secure router has enabled PPP interfaces

or Frame Relay circuits that are configured to send

clear text.

Security SEC Lit when a user is logged in with SECURITY OFFICER

privilege and the router is in SECURITY MODE.

- ACT Lit when a Mini Accelerator Card (MAC) or PCI

Accelerator Card (PAC) is installed.

- ERR Lit when there is an error in data transmission to or

from a MAC or PAC.

Altri manuali per Rapier AR 700 Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Allied Telesis Router di rete

Allied Telesis

Allied Telesis AlliedWare Plus GS980M Series Manuale utente

Allied Telesis

Allied Telesis AT-GS900/8 Manuale utente

Allied Telesis

Allied Telesis AR725 Manuale utente

Allied Telesis

Allied Telesis AT-AR221E Manuale utente

Allied Telesis

Allied Telesis AR740 RPS Manuale utente

Allied Telesis

Allied Telesis AT-FS708LE/PoE Manuale utente

Allied Telesis

Allied Telesis AR415S Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis AT-GS950/8 Manuale utente

Allied Telesis

Allied Telesis Routers and Switches Manuale utente

Allied Telesis

Allied Telesis WebSmart AT-FS750/16 Manuale utente

Allied Telesis

Allied Telesis AT-GS950/16 Manuale utente

Allied Telesis

Allied Telesis AT WA1104G SOHO Wireless Router AT-WA1104G-10... Manuale di istruzioni

Allied Telesis

Allied Telesis AT-AR442S Manuale utente

Allied Telesis

Allied Telesis AT-GS950/8POE Manuale utente

Allied Telesis

Allied Telesis AT-8000S Series Manuale di istruzioni

Allied Telesis

Allied Telesis AT-AR3050S Manuale utente

Allied Telesis

Allied Telesis AT-GS950/16 Manuale utente

Allied Telesis

Allied Telesis AT-BSTACK1 Manuale utente

Allied Telesis

Allied Telesis AT-8000GS/24POE Manuale utente

Allied Telesis

Allied Telesis AT-8000GS/24 Manuale utente

Allied Telesis

Allied Telesis AT-FS705LE Manuale utente

Allied Telesis

Allied Telesis AT-AR236E Manuale utente

Allied Telesis

Allied Telesis Rapier AR 300 Series Manuale utente

Allied Telesis

Allied Telesis AT-GS950/8 Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
