AT-9800 Series Quick Install Guide

Document Number C613-04038-01 REV D.

19800 North Creek Parkway, Suite 200, Bothell, WA 98011, USA.

permission from Allied Telesyn.

Allied Telesyn International, Corp. reserves the right to make changes in specifications

and other information contained in this document without prior written notice. The

information provided herein is subject to change without notice. In no event shall Allied

Telesyn be liable for any incidental, special, indirect, or consequential damages

whatsoever, including but not limited to lost profits, arising out of or related to this

manual or the information contained herein, even if Allied Telesyn has been advised of,

known, or should have known, the possibility of such damages.

All trademarks are the property of their respective owners.

This implementation of IPsec has been certified to meet ICSA Labs

IPsec security standards. For more information see

http://www.icsalabs.com

Quick Install Guide 3

C613-04038-01 REV D

Models Covered By This Guide

This Quick Install Guide includes information on the following models:

■AT-9812T

■AT-9812TF

■AT-9816GB

■AT-9816GF

Quick Install Guide updates can be downloaded from

www.alliedtelesyn.co.nz/support/at9800/.

Package Contents

The following items are included with each AT-9800 Series switch. Contact

your sales representative if any items are damaged or missing.

■One AT-9800 Series switch

■One AC power cord (for AC models)

■One serial cable for connecting the switch to a terminal or PC

■One 19 inch rack-mount kit

■One AT-9800 Series Quick Install Guide

■One Safety and Statutory Information booklet

■One AT-9800 Series Documentation and Tools CD-ROM (which includes

the complete AT-9800 Series Document Set and utilities)

■One warranty card

CAM

AT-9800 Series

Printed Acrobat PDF Website

Documentation Roadmap

AT-9800 Series Safety and Statutory Information Booklet

AT-9800 Series Software Reference

AT-9800 Series Hardware Reference

General Customer Support

Visit www.alliedtelesyn.co.nz for

the latest documentation, FAQs,

and support information.

AT-9800 Series Quick Install Guide

CAM Quick Install guide

AT-RPS9000 Quick Install Guide

AT-RPS9000 Safety and Statutory Information Booklet

4AT-9800 Series

C613-04038-01 REV D

Selecting a Site

The switch can be installed in a standard 19-inch rack or on a level surface such

as a desktop or bench. When installing the switch, choose a site that:

■Allows adequate airflow around the switch and its vents

■Is free of dust and moisture

■Will maintain an ambient temperature range of 0 to 40º C (32 to 104º F) and

a humidity range of 5 to 95% non-condensing.

■Has a reliable and earthed (grounded) power supply circuit, preferably

dedicated and filtered.

■Does not expose cabling to sources of electrical noise, such as radios,

transmitters, broadband amplifiers, power lines, electric motors, and

fluorescent fixtures

■Allows easy access to the switch’s power and cable connections

■Will allow all related network devices to be connected to the switch

without exceeding maximum cable length limitations. See the AT-9800

Series Hardware Reference for cable length specifications

Installing the Switch

This equipment must be earthed.

Follow these steps to install the switch:

1. Read the safety information

For safety information, see the Safety and Statutory Information booklet. A

copy of this booklet is supplied with each switch, and can also be found on

the Documentation and Tools CD-ROM or at www.alliedtelesyn.co.nz/

support/at9800/.

2. Gather the tools and equipment you will need

If installing a DC version of the switch, you will need a DC power source,

DC supply cable, and ring connectors (see step 8).

If the switch is to be connected to a redundant power supply, you will need

a redundant power supply unit and cable (see step 10).

3. Choose a suitable site for the switch

Either a flat surface or 19 inch rack.

4. Unpack the switch

Verify the package contents. If any items are damaged or missing, contact

your sales representative.

Quick Install Guide 5

C613-04038-01 REV D

5. Install CAM (Optional)

If you purchased a Content Addressable Memory (CAM) module, install it

now by following the instructions in the CAM Quick Install Guide.

The CAM Quick Install Guide can be found on the AT-9800 Series

Documentation and Tools CD-ROM, or can be downloaded from

www.alliedtelesyn.co.nz/support/at9800/.

6. Place the switch in its operating location

If installing the switch in a rack:

• Remove the rubber feet

• Attach the rack-mounting brackets

• Mount the switch in the rack

7. Apply AC power to the switch (for AC models)

Plug the power cord into the AC power connector on the switch’s rear

panel. The Fault LED should flash for approximately 10 seconds as the

switch runs internal tests.

If the LED continues to flash or remains lit, refer to the AT-9800 Series

Hardware Reference for troubleshooting information.

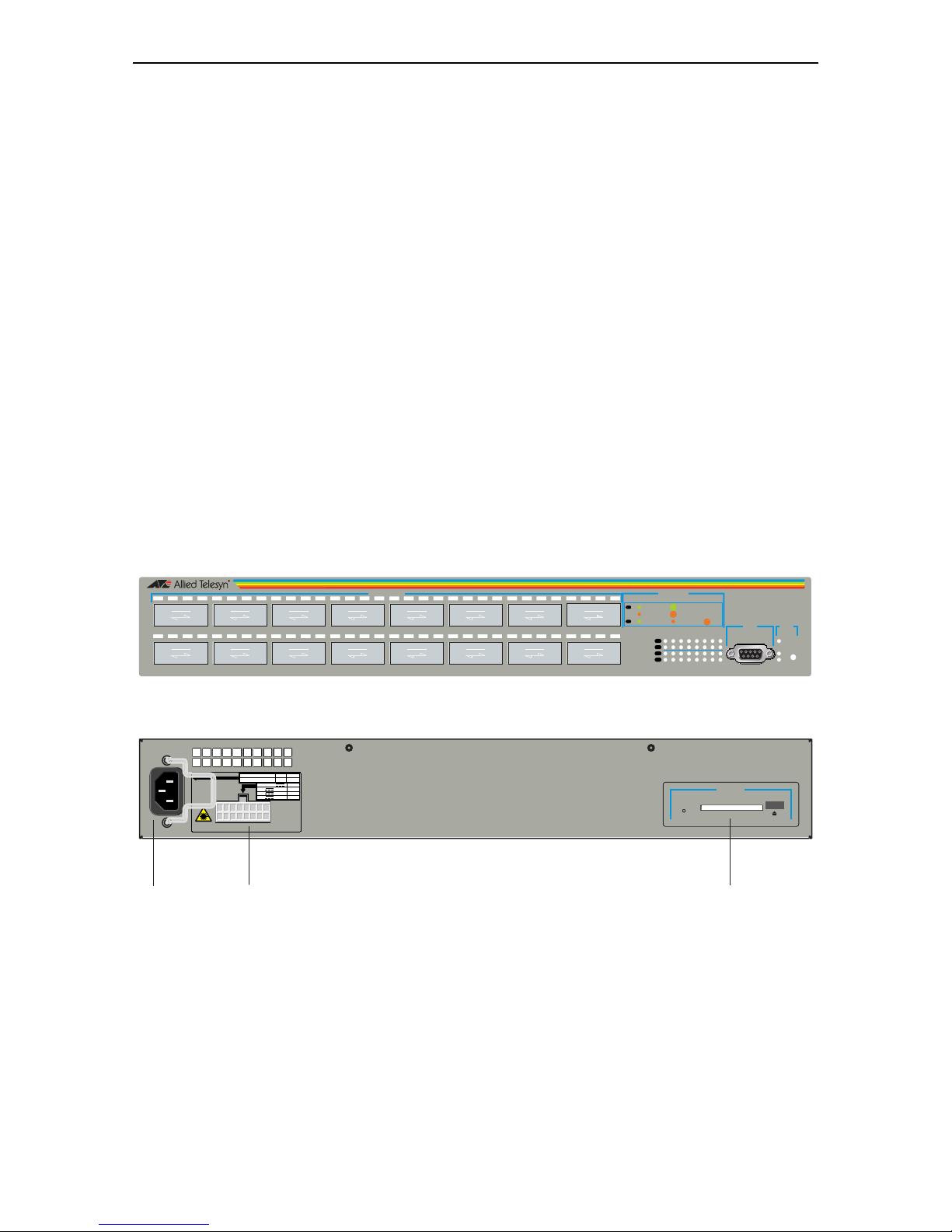

Figure 1: AT-9816GF front panel and rear panel with AC power inlet.

8. Apply DC power to the switch (for DC models)

Read the Safety and Statutory Information booklet before connecting a DC

power supply. A copy of this booklet is included with each switch. It is also

included on the Documentation and Tools CD-ROM, or can be

downloaded from www.alliedtelesyn.co.nz/support/at9800/.

CLASS 1

LASER

R.P.S.

INPUT

AC SUPPLY DATA

100-120/200-240

50/60

AMPS

4/2

Input Vdc

+3.3

+12

A Max

COMPACT FLASH

ACTIVITY

AC Power AT-RPS8000 RPS Connector Compact FLASH

STATUS

RESET

FAULT

PWR

RPS

12345678

9 10111213141516

RS-232

TERMINAL PORT

L/A

GBIC

L/A

GBIC

ASYN0

1000BASE-X GBIC

AT-9816GF

Multi-Layer Gigabit Switch

PORT ACTIVITY

L/A

LINK / FULL DUP ACTIVITY

LINK / HALF DUP ACTIVITY

L/A

ENABLED DISABLED FAULT

GBIC

L/A

GBIC

6AT-9800 Series

C613-04038-01 REV D

Only trained and qualified personnel should connect a DC power supply. Due

to exposed terminals, DC powered switches should only be installed in

Restricted Access Areas.

DC supply cable specifications (one cable is required for each PSU):

• Number of wires (cores): 3

• Minimum size: 2.1mm2(14 AWG)

• Minimum cable rating: 600V, 90 degrees Celsius

DC power supply specifications:

• 48 V DC (36-60 VDC is acceptable)

• Either positive grounded or negative grounded

Circuit protection:

• Use a 10 Amp circuit breaker

To connect each DC supply:

Ensure the supply cable is not live.

a) Ensure that the supply cable is not live.

b) Strip the supply cable wires to expose 8mm (0.31in) of bare conductor

c) At the switch, connect the ground wire to the ground terminal. (The

terminals can be identified by the diagram on the switch’s rear panel.)

Tighten the terminal to between 0.6 and 0.8 Nm (0.041 to 0.055 pound force

per foot).

d) At the switch, connect the positive feed to the + (positive) terminal and

the negative feed to the - (negative) terminal. Tighten the terminal to

between 0.6 and 0.8 Nm (0.041 to 0.055 pound force per foot).

e) Ensure that there are no exposed conductor strands.

f) Secure the supply cable (to the rack framework or similar object) so that

the connections are isolated from any forces applied to the cable.

g) Ensure that the circuit breaker is in the OFF position.

h) Connect the supply cable wires to the circuit breaker.

i) Energise the circuit breaker.

The Fault LED should flash for approximately 10 seconds as the switch

runs internal tests. If the LED continues to flash or remains lit, refer to the

AT-9800 Series Hardware Reference for troubleshooting information.

9. Check that the Power LED on the switch’s front panel lights green

If the LED fails to light, refer to the AT-9800 Series Hardware Reference for

troubleshooting information.

10. Connect the Redundant Power Supply (Optional)

AT-9800 Series switches have a Redundant Power Supply (RPS) connector

on their rear panel.

Quick Install Guide 7

C613-04038-01 REV D

AT-9812TF and AT-9816GF models can be used with AT-RPS8000 RPS

systems, while AT-9812T and AT-9816GB models can be used with

AT-RPS9000 systems.

RPS systems can be purchased separately, contact your authorised Allied

Telesyn distributor or reseller for more information.

11. Install GBICs

Any combination of copper and fibre GBICs can be installed in the

following AT-9800 Series switches:

• AT-9812T

• AT-9812TF

• AT-9816GB

For the AT-9816GF, up to fourteen 1000BASE-T GBICs can be installed. The

actual number depends on the number of fibre GBICs also installed.

Table 1 on page -7 lists the number of 1000BASE-T GBICs that can be

installed in the AT-9816GF for various copper/fibre combinations.

Slide the GBICs into the GBIC slots. Press each GBIC firmly into place.

A range of GBICs have been tested and approved for use with AT-9800 Series switches,

contact your authorised Allied Telesyn distributor or reseller for more information, or

visit www.alliedtelesyn.co.nz/support/at9800.

RX and TX terminal locations on SC fibre GBIC ports are the reverse of RX and TX

terminal locations on fixed SC fibre ports. When looking at an SC fibre GBIC from the

front, the RX terminal is on the left and the TX terminal is on the right.

12. Connect the data cables

Table 1: GBIC configurations for the AT-9816GF.

Number of fibre GBICs installed Maximum number of 1000BASE-T GBICs that

can be installed

014

1 13

2 12

311

4 or 5 10

10 or 11 5

12 4

13 3

14 2

15 1

16 0

8AT-9800 Series

C613-04038-01 REV D

Make sure each cable connection is secure. The switch will now perform

basic Layer 2 switching functions.

Configuring the Switch

Some configuration is necessary if you wish to enable the switch’s advanced

switching capabilities. The switch can be configured via the Command Line

Interface (CLI) or Graphical User Interface (GUI).

Using the CLI to configure a switch

1. Connect a terminal or PC to RS-232 (ASYN0)

Using the supplied RS-232 DB9 straight-through cable, connect your

terminal or PC to the RS-232 Terminal Port on the switch’s front panel.

2. Set the communication parameters

Set the communication parameters on your terminal or terminal emulation

program to:

• Baud rate: 9600

• Data bits: 8

•Parity:None

•Stopbits:1

• Flow control: Hardware

3. Check the power supply

Ensure that the On/Off switch (AC models) or Run/Standby switch (DC

models) is in the On or Run position and that the switch is receiving power

(Power LED lights green).

4. Log in

After the switch has booted, the log in prompt appears. If the log in prompt

doesn’t appear, press [Enter] two or three times.

When the switch boots for the first time it automatically creates an account

with manager privileges. The account has the log in name “manager” and

the password is “friend”.

At the log in prompt, enter the log in name and password.

Password: friend

The switch’s command prompt appears and you can now configure the

switch using the command line interface.

Change the password as soon as possible. Leaving the manager account with

the default password is a serious security risk. Make sure you remember the

new password as there is no way to retrieve it if it is lost.

Use the following command to change the account password:

set password

Quick Install Guide 9

C613-04038-01 REV D

5. Load help files

To access help, enter:

set help=help-filename

where help-filename is the name of a help file stored in flash.

To see a list of files stored in flash, enter:

show file

Help files have an HLP extension.

To display a list of help topics, enter:

help

To display help on a specific topic, enter:

help topic

Alternatively, type a question mark (?) at the end of a partially completed

command to see a list of valid options.

See the AT-9800 Series Software Reference for more information on

configuring the switch.

Using the GUI to configure a switch

The GUI can be accessed through the switch’s default VLAN (VLAN1). To

set-up the GUI the first time it is used, you must first access the CLI.

1. Access the CLI

Follow the instructions in the previous “Using the CLI to configure a

switch” section.

2. Enable IP

At the CLI, enter the command:

ENABLE IP

3. Assign an IP address to VLAN1

Assign the VLAN1 interface an IP address in the required subnet, using the

command:

ADD IP INTERFACE=vlan1 IP=ipaddress MASK=mask

4. Define a route (if required)

If the PC from which you will access the GUI is on a different subnet to the

switch, add a route from the PC to the switch. Enter:

ADD IP ROUTE=PC-ipaddress INTERFACE=vlan1

NEXTHOP=switch-ipaddress

5. Connect the PC to a switch port

The PC can be connected directly, or through a LAN.

The PC should be running Internet Explorer 5.xor Netscape 6.2.2, with

JavaScript enabled. A copy of Internet Explorer can be found on the

Documentation and Tools CD-ROM that is bundled with your switch.

If you access the Internet through a proxy server, set your browser to

bypass the proxy for the IP address you just assigned to the VLAN1

interface.

Point your web browser at the IP address of the VLAN interface.

10 AT-9800 Series

C613-04038-01 REV D

6. Log in

At the log in prompt, enter the log in name and password.

User Name: manager

Password: friend

The system status page appears and you can now use the GUI to configure

the switch.

To ensure configuration settings are saved correctly, use the GUI pages’ menus and

buttons to navigate, not your browser’s buttons.

As a security precaution, change the password as soon as possible.

To change the password, select Management > Users from the sidebar

menu. Select the Manager account and click Modify.

7. To access context-sensitive help

Click on the Help Button [Help] on each page.

System LEDs

Table 2: System LEDs for AT-9800 Series switches.

LED State Function

PWR

(Power)

Green The switch is receiving power

Fault Red The switch or management software is malfunctioning

1 Flash A switch fan has failed or is operating below the

recommended speed

2 Flashes If RPS monitoring is enabled, an RPS fan has failed or is

operating below the recommended speed

3 Flashes If an RPS is connected, the switch’s PSU (Power Supply

Unit) has failed

4 Flashes If RPS monitoring is enabled, the RPS PSU has failed

5 Flashes If RPS monitoring is enabled, an RPS is not connected or

is not operational

6 Flashes The switch’s temperature has exceeded the

recommended threshold

RPS (Redundant

Power Supply)

Green An RPS is connected to the switch and is receiving

power

CompactFlash

Activity

(Rear panel)

Green The compact flash memory is active. Do not eject the

flash memory module

Altri manuali per AT-9812T

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Allied Telesis Interruttore

Allied Telesis

Allied Telesis AT-8316F/MT Manuale utente

Allied Telesis

Allied Telesis AT-9448Ts/XP AC Manuale utente

Allied Telesis

Allied Telesis Rapier 48w Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis IX5-28GPX Manuale di installazione

Allied Telesis

Allied Telesis AT-8600 Series Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis Layer 3 Switches Istruzioni di installazione e manutenzione

Allied Telesis

Allied Telesis AT-FS7016 Manuale utente

Allied Telesis

Allied Telesis AlliedWare Plus AT-x530-28GPXm Manuale utente

Allied Telesis

Allied Telesis AT-9424Ts AC Manuale utente

Allied Telesis

Allied Telesis WebSmart AT-FS750/24 Manuale utente

Allied Telesis

Allied Telesis AT-8100S/24C Manuale utente

Allied Telesis

Allied Telesis AT-9900s Series Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis x510 Series Manuale utente

Allied Telesis

Allied Telesis x900-48FE Guida all'applicazione

Allied Telesis

Allied Telesis AT 8000S/16 Manuale utente

Allied Telesis

Allied Telesis AT-8400 Series Manuale utente

Allied Telesis

Allied Telesis AT-9000 Series Manuale utente

Allied Telesis

Allied Telesis XEM-1XP Manuale utente

Allied Telesis

Allied Telesis AT GS900/8POE Manuale utente

Allied Telesis

Allied Telesis x510 Series Manuale utente

Allied Telesis

Allied Telesis WebSmart AT-FS750/48 Manuale utente

Allied Telesis

Allied Telesis AT-8000S/16 Manuale utente

Allied Telesis

Allied Telesis AlliedWare Plus x220 Series Manuale utente

Allied Telesis

Allied Telesis AT-8948 Manuale di installazione e funzionamento

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
