AT-FH705E

Dual Speed Hub

Installation Guide

PN 613-10803-00 Rev. A

960 Stewart Drive Suite B, Sunnyvale CA 94086, USA

from Allied Telesyn International, Corp.

Ethernet is a registered trademark of Xerox Corporation. All other product names, company names,

logos or other designations mentioned herein are trademarks or registered trademarks of their

respective owners.

Allied Telesyn International, Corp. reserves the right to make changes in specifications andother

information contained in this document without prior written notice. The information provided

herein is subject to change without notice. In no event shall Allied Telesyn International, Corp. be

liable for any incidental, special, indirect, or consequential damages whatsoever, including but not

limited to lost profits, arising out of or related to this manual or the information contained herein,

even if Allied Telesyn International, Corp. has been advised of, known, or should have known, the

possibility of such damages.

iii

FCC Statement

STANDARDS: This product meets the following standards.

U.S. Federal Communications Commission

DECLARATION OF CONFORMITY

Manufacture Name: Allied Telesyn International, Corp.

Manufacture Address: 960 Stewart Drive, Suite B

Sunnyvale, CA 94086 USA

Manufacture Telephone: 408-730-0950

Declares that the product: Hub

Model Number: AT-FH705E

This product complies with FCC Part 15B, Class B Limits:

This device complies with part 15 of the FCC Rules. Operation is subject to thefollowing two conditions:

(1) This device must not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

RADIATED ENERGY

Note: This equipment has been tested and found to comply with the limits for a Class B digital device

pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with instructions, may cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and

on. The user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes and modifications not expressly approved by the manufacturer or registrant of this equipment

can void your authority to operate this equipment under Federal Communications Commission rules.

Industry Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment

Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel

brouilleur du Canada.

Safety Warnings

STANDARDS: This product meets the following standards

RFI Emmission EN55022 Class B

Immunity EN50082-1, 1997

SAFETY

Power to the hub must be sourced only from the adapter.

USA/CANADA

Use a UL Listed/CSA Certified AC adapter of DC 5 V, 2.5 A.

EUROPE - EU

Use TÜV licensed AC adapter of DC 5 V, 2.5 A.

Use a UK Safety Approved AC adapter of DC 5 V, minimum 2.5 A.

LIGHTNING DANGER

DANGER: DO NOT WORK on equipment or CABLES during periods of LIGHTNING ACTIVITY.

Do not connect a telephone line into the singnal connector.

OPERATING TEMPERATURE

This product is designed for a maximum ambient temperature of 40 degrees C.

ALL COUNTRIES: Install product in accordance with local and National Electrical Codes.

NORMEN: Dieses Produkt erfüllt die Anforderungen der nachfolgenden Normen.

Hochfrequenzstörung EN55022 Klasse B

Störsicherheit EN50082-1, 1997

SICHERHEIT

Der Buchse darf nur aus dem Adapter Strom zugeführt werden.

EUROPE - EU

Gebrauchen Sie einen von TÜV zugelassenen Wechselstromadapter für Gleichstrom 5 V, 2.5 A.

GEFAHR DURCH BLITZSCHLAG

GEFAHR: Keine Arbeiten am Gerät oder an den Kabeln während eines Gewitters ausführen

Verbinden Sie nicht das Telefonkabel mit dem Signalverbindungsstecker

BETRIEBSTEMPERATUR

Dieses Produkt wurde fürden Betrieb in einerUmgebungstemperaturvon nicht mehr als 40° C entworfen.

ALLE LÄNDER: Installation muß örtlichen und nationalen elektrischen Vorschriften entsprechen.

NORMES: ce produit est conforme aux normes de suivantes :

Emission d'interférences radioélectriques EN55022 Classe B

Immunité EN50082 - 1, 1997

SÉCURITÉ

L'alimentation du concentrateur doit être uniquement fournie par l'adaptateur.

EUROPE - EU

Utiliser un adaptateur secteur conforme TÜV de 5 V, 2.5 A en courant continu.

DANGER DE FOUDRE

DANGER: NE PAS MANIER le matériel ou les CÂBLES lors d'activité orageuse.

Ne pas connecter une ligne téléphonique au connecteur de signaux.

TEMPÉRATURE DE FONCTIONNEMENT

Ce matériel est capable de tolérer une température ambiante maximum de 40 degrés Celsius.

POUR TOUS PAYS: Installer le matériel conformément aux normes électriques nationales et locales.

Table of Contents

FCC Statement ïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïLLL

Safety Warnings ïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïï LY

Chapter 1

Product Description ïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïï ì

Package Contents....................................................................................................................2

Front Panel..............................................................................................................................2

Rear Panel................................................................................................................................2

Chapter 2

Installation ïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïï ê

Installing the Mini Hub..........................................................................................................3

Application..............................................................................................................................4

Chapter 3

Troubleshooting ïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïï è

Connectivity Testing...............................................................................................................5

Problem Solving......................................................................................................................6

Appendix A

Technical Specifications ïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïï ä

Physical Characteristics...........................................................................................................9

Agency Compliance ..............................................................................................................10

100Base-TX Cable.................................................................................................................11

100Base-TX Connector Pinouts...........................................................................................12

Appendix B

Technical Support Fax Order ïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïï ìê

Incident Summary.................................................................................................................13

Appendix C

AT-FH705E Switch Installation Feedback ïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïï ìè

Appendix D

Where To Find Us ïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïïï ìæ

Chapter 1

Product Description

The AT-FH705E MiniHubis an 5-port 10/100 Mbps dualspeedhubthat offers a

cost-effectivesolutiontotoday’sgrowingneedofnetworkspeedintegration.With

five10/100Mbpsplug-and-playdualspeedportsequippedinitscompactbody,it

is possible toachieve the coexistence of10 Mbps and 100 Mbpsdevices in a single

network now and step to 100 Mbps network in the future. The internal switching

function provides networksegmentation, thereby offering ahigh level of network

flexibility and efficiency. Other key features include:

‰Compliant with IEEE802.3 and 802.3u Class I and II repeater

specifications

‰10Base-T/100Base-TX auto-negotiate for speed detection

1RW

All hubs operate in half-duplex mode only.

‰Supports up to 1792 MAC Address entries

‰Mini compact size with external power adapter

‰One Uplink switch to support uplink function (Port 1)

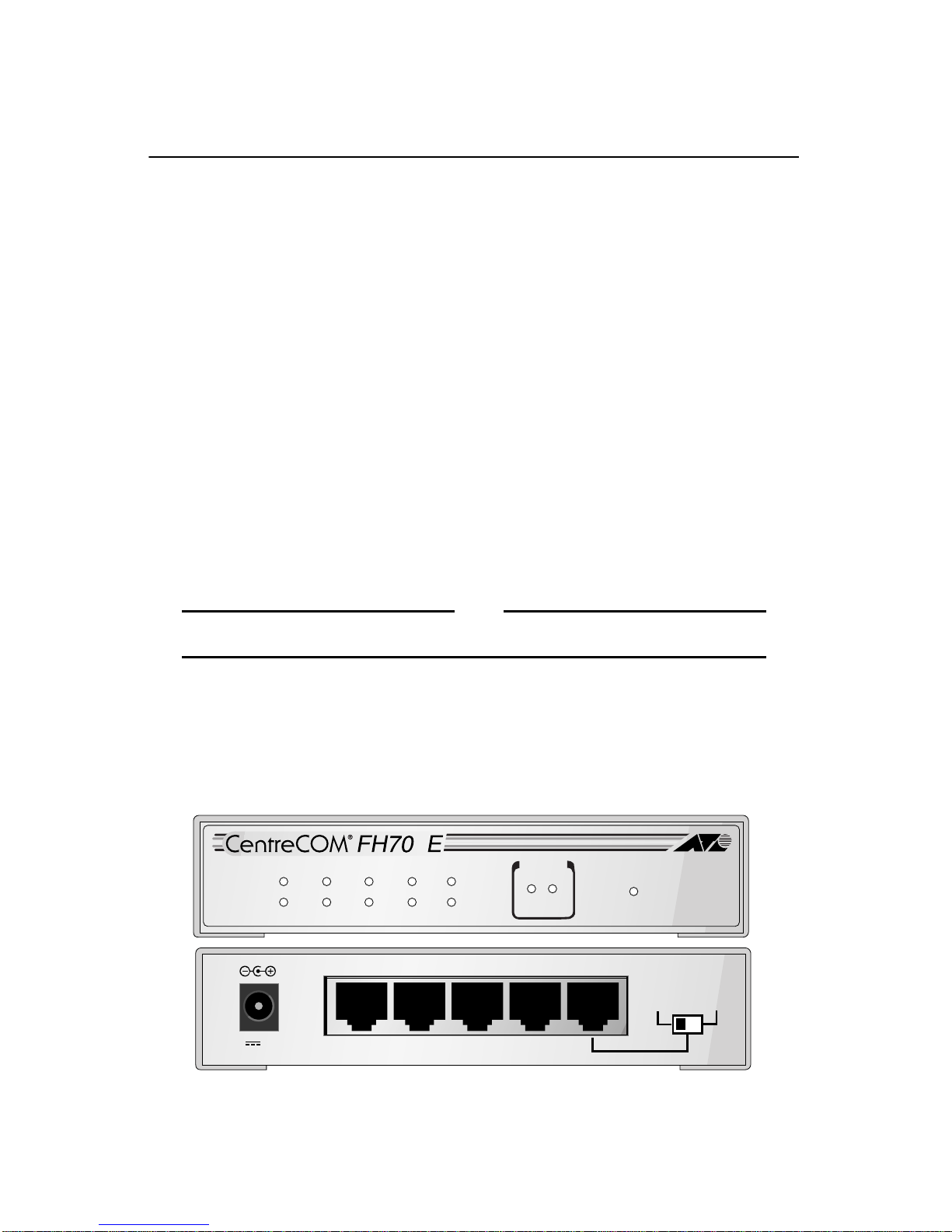

Figure 1 AT-FH705E Mini Hub Front and Rear Panels

4X 3X 2X 1

5V 2.5A

Node Uplink

10BASE-T/100BASE-TX 5 PORT ETHERNET HUB

COLLISION

100M10M POWER

1 2 345

LINK/ACTIVITY

100M

Product Description

Package Contents

The package should include the following items:

‰One 5-port Dual Speed Mini Hub

‰One Power Adapter

‰This Installation Guide

If any item is missing, please contact your dealer immediately.

Front Panel

The front panel contains the hub LED indicators.

The LEDs help monitor the hub’s operating status and overall network

performance. See Table 1 for further information concerning the LEDs.

Rear Panel

Therear panelincludesthepowersocket,which accepts5 Vdc 2.5 Apowerinput,

the uplink slide switch (for Port 1), and 5 RJ45 UTP/STP ports.

Table 1 LEDs

LED Color Description

Power Green ON indicates that the unit is receiving power

Collision for 10/100M Yellow ON indicates data collisions

Link/Activity for 10/

100M Green

Flashing

Green

ON indicates that a link is established

FLASHING indicates that the unit is receiving

data

100M (Speed) Green ON indicates 100 Mbps speed

OFF indicates 10 Mbps speed

Chapter 2

Installation

Installing the Mini Hub

1. Place the Hub on a smooth and horizontal surface.

2. Establish network connection by plugging one end of the Category 5

UTP/STP cable RJ45 connector into the hub port, the other end to the

Ethernet/Fast Ethernet adapter installed in the workstation computers.

(Use Category 5 or above for 100 Mbps; use Category 3, 4, or 5 or above

for 10 Mbps.)

3. Connect each device by repeating Step 2.

4. Make sure that each device is connected properly. Turn on the power by

attaching the power cable to the hub and plug in the power outlet.

Caution

Be sure to use Category 5 or above UTP cable in connecting 100 Mbps

network devices. The cable length should not exceed 100 m (328 ft).

Uplink Connection

1. Set the Uplink switch to the Uplink position.

2. AttachoneendoftheRJ45cableconnectortotheUplinkport(port1)of

the first Hub. (Use Category 5 or above for100 Mbps; use Category 3, 4,

or 5 or above or 10 Mbps.)

3. Plug the other end into any RJ45 port of the second Hub.

Caution

Crossover cable is not necessary in establishing uplink connection

through the uplink port.

Installation

Caution

TheUplink cable lengthcannotexceed 5m(328ft)when using100Mbps.

Application

The hub can be deployed where 10 Mbps and 100 Mbps network devices coexist

and need to be integrated. Figure 2 illustrates a sample application.

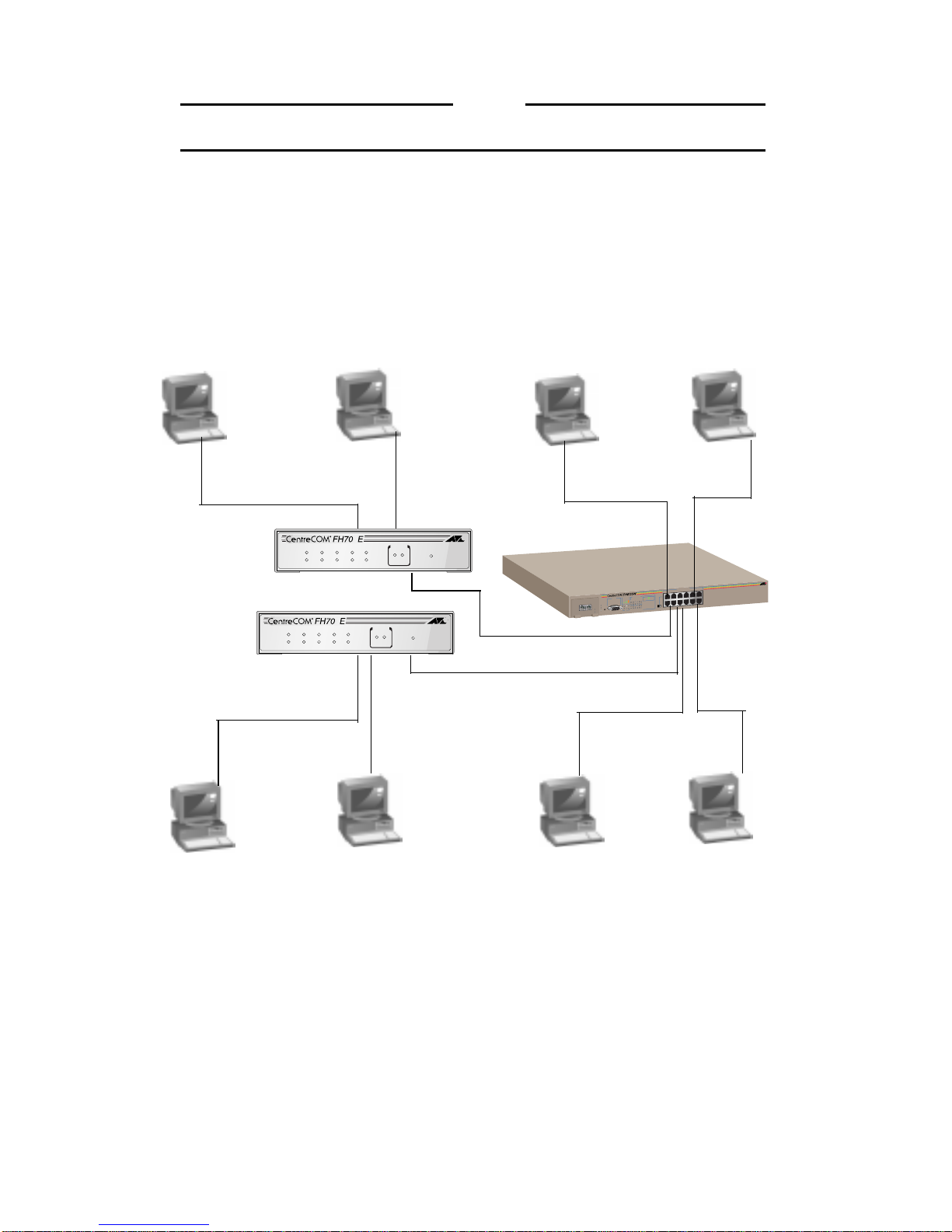

Figure 2 AT-FH705E Mini Hubs Connected to Workstation

10 Mbps

Workstation

10 Mbps

Workstation

100 Mbps

Workstation 100 Mbps

Workstation

100 m (328 ft)

AT-FH705E

100 Mbps

Workstation

100 Mbps

Workstation

100 Mbps

Workstation

100 m (328 ft)

Set to Uplink

10BASE-T/100BASE-TX

RS-232

TERMINALPORT

UTILIZATION

PORTSTATUS

100M

10M

10BASE-T/100BASE-TX

DUALSPEED FAST ETHERNET HUB

WITHINTEGRATED SWITCH

100 m (328 ft)

10/100Base-TX Switch

100 m (328 ft)

10BASE-T/ 100BASE-TX 5 PORT ETHERNET HUB

COLLISION

100M10M POWER

12 345

LINK/ACTIVITY

100M

10BASE-T/ 100BASE-TX 5 PORT ETHERNET HUB

COLLISION

100M10M POWER

12 345

LINK/ACTIVITY

100M

Mini Hubs

Altri manuali per AT-FH705E

Indice

Altri manuali Allied Telesis Interruttore

Allied Telesis

Allied Telesis AT-220-28GS Series Manuale utente

Allied Telesis

Allied Telesis AT-SBx908 Manuale utente

Allied Telesis

Allied Telesis AT-GS950/48 Manuale utente

Allied Telesis

Allied Telesis Rapier 48w Manuale utente

Allied Telesis

Allied Telesis x600-24Ts-POE Manuale utente

Allied Telesis

Allied Telesis AT-8948 Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis x530DP Series Manuale utente

Allied Telesis

Allied Telesis AT-9424T AC Manuale utente

Allied Telesis

Allied Telesis XEM-1XP Manuale utente

Allied Telesis

Allied Telesis AT-IX5-28GPX Manuale utente

Allied Telesis

Allied Telesis Rapier AR 800 Series Manuale di istruzioni

Allied Telesis

Allied Telesis AT-GS950/48 Manuale utente

Allied Telesis

Allied Telesis GS950PS V2 Series Manuale utente

Allied Telesis

Allied Telesis SB244-03 Manuale utente

Allied Telesis

Allied Telesis AT-FS980M/9 Manuale utente

Allied Telesis

Allied Telesis x900-24 series Manuale di istruzioni e di sicurezza

Allied Telesis

Allied Telesis T-8100L/8 Manuale utente

Allied Telesis

Allied Telesis AT-9900 Series Manuale di istruzioni

Allied Telesis

Allied Telesis AlliedWare Plus x220 Series Manuale utente

Allied Telesis

Allied Telesis WebSmart AT-FS750/48 Manuale utente

Allied Telesis

Allied Telesis AT-FSW724 Manuale utente

Allied Telesis

Allied Telesis x310-26FT Manuale di installazione

Allied Telesis

Allied Telesis AT-FS201ST/FS1 Manuale utente

Allied Telesis

Allied Telesis AT-9424T/GB Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
