Datasheet | Switches

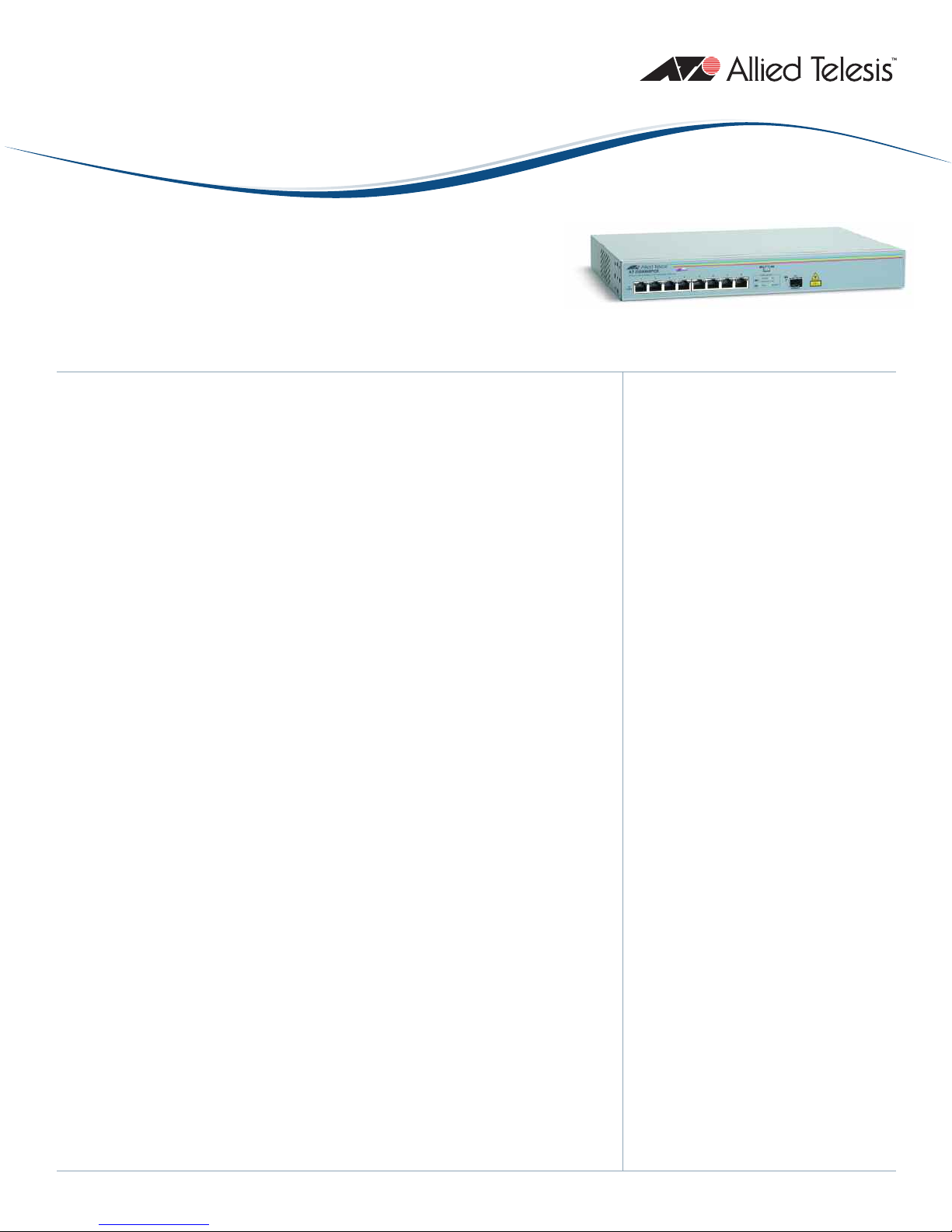

AT-GS900/8POE

Unmanaged 8 port Power over Ethernet Gigabit Switch with 1 SFP

AT-GS900/8POE

8port 10/100/1000T unmanaged

Power over Ethernet Gigabit switch with

1SFP combo port

High Performance

Providing powerful 10/100/1000 switching

solutions for desktop, conference room and

security applications, the Allied Telesis

AT-GS900/8POE unmanaged switch features

automatic detection and classification of an

attached PoE device. With all eight copper

ports PoE capable (four at full 15.4w), this is

the perfect solution for a wireless security or

conference room application.The copper ports

on the switch feature full auto-negotiation.

These ports enable the switches to detect the

speed and duplex modes of attached devices,

enabling them to automatically configure for the

best possible performance. One SFP portis

also available for connecting this device to

other switches in your network, such as the

9400 series of switches over a fiber optic cable.

Simplified Installation

The AT-GS900/8POE provides wall-mount,

rack-mount and desktop options giving users

their choice of deployment locations. Fully auto-

configuring AT-GS900/8POE switch requires

minimal set-up bythe user. Auto-sensing ports

enable seamless and simple connectivity

between existing 10Mbps Ethernet and

100Mbps Fast Ethernet, 1000T UTP devices—

and all units can be installed in minutes. Every

AT-GS900/8POE switch is equipped with auto

MDI/MDI-X across all ports for simple

connection to other hubs and switches as well

as automatic detection and classification of the

PoE ports. Finally, easy to read top panel

LEDs show ongoing switch status and simplify

troubleshooting.

Quality and Reliability

Allied Telesis is a worldwide leader in unmanaged

Ethernet switches. Shipping more than 250,000

each year, Allied Telesis offers proven reliability and

industryrecognized quality.

Key Features

•810/100/1000T ports

•1SFP uplink port (combo)

•Auto detect and classification of PoE

•PoE capable on all 8 10/100/1000T ports

(4 @ 15.4w max)

•IEEE 802.3af standard

•Non-blocking architecture

•Auto-negotiation ports

•Auto MDI/MDI-X on all copper ports

•Plug and Play installation

•Rack-mount, wall-mount and desktop hardware

included

•Supports jumbo frames up to 9.6Kbytes

USA Headquarters |19800 North Creek Parkway |Suite 100 |Bothell |WA 98011 |USA |T: +1 800 424 4284 |F: +1 425 481 3895

Asia-Pacific Headquarters |11 Tai Seng Link |Singapore |534182 |T: +65 6383 3832 |F: +65 6383 3830

www.alliedtelesis.com

©2008 Allied Telesis Inc. All rights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the property of their respective owners. 617-000218 Rev. E

AT-GS900/8POE |8port Power over Ethernet Gigabit Switch with 1 SFP

Performance

Ethernet 10Mbps (half-duplex)

20Mbps (Full-duplex)

Fast Ethernet 100Mbps (Half-duplex)

200Mbps (Full-duplex)

Gigabit Ethernet 1000Mbps (Half-duplex)

2000Mbps (Full-duplex)

MAC addresses 8K

Packet buffer 768K

Half/full-duplex

Auto-negotiation

Auto MDI/MDI-X on all copper ports

Interface Connections

10/100/1000T RJ-45

1xSFP Fiber only

Power Characteristics

Frequency 50 to 60Hz

Power requirements 90-240V AC

Power consumption 90W max

PoE power 48vDC, 65W

Switch and fan power 12vDC, 20W

Environmental Specifications

Operating temp 0°C to 40°C

(32°Fto 104°F)

Non-operating temp -25°Cto 70°C

(-13°F to 158°F)

Operating humidity 10% to 90% non-condensing

Non-operating humidity 5% to 95% non-condensing

Vibration IEC 68-2-36

Shock IEC 68-2-29

Drop IEC 68-2-32

Physical Characteristics

Dimensions 33cm x 22cm x 4.3cm

(W x D x H) (13” x 8.7” x 1.7”)

Weight 1.9kgs (4.20lbs)

Standards and Compliance

IEEE 802.3i 10T Ethernet

IEEE 802.3u 100TX Fast Ethernet

IEEE 802.3x Flow control

IEEE 802.3af Power over Ethernet (mode A)

IEEE 802.3z/ab 1000T Gigabit Ethernet

IEEE 802.3z 1000SX/LX

Certification

UL1950 TUV UL

C-Tick CE Mark

FCC Part 15

CISPR 22

EN55022

Ordering Information

AT-GS900/8POE-xx

8port 10/100/1000T unmanaged PoE switch with 1 SFP

Where xx = 10 for US power cord

30 for UK power cord

40 for Australian power cord

50 for European power cord

Accessories

Small Form Pluggables (SFPs)

AT-SPTX

10/100/1000T 100m copper

Order number: 990-000262-00

AT-SPSX

GbE multi-mode 850nm fiber

Order number: 990-00028-00

AT-SPLX10

GbE single-mode 1310nm fiber up to 10km

Order number: 990-00029-00

AT-SPLX40

GbE single-mode 1310nm fiber up to 40km

Order number: 990-00161-00

AT-SPLX40/1550

GbE single-mode 1550nm fiber up to 40km

Order number: 990-00160-00
