Allied Telesis GS950PS V2 Series Manuale utente

613-003079 Rev. A

*613-003079 Rev A*

GS950PS V2 Series

Gigabit WebSmart Ethernet Switches

GS950/10PS V2

GS950/18PS V2

GS950/28PS V2

GS950/52PS V2

Quick Installation Guide

2 GS950PS V2 Series Quick Installation Guide

Introduction

This Quick Installation Guide contains a short version of the

installation instructions for the GS950PS V2 Series of Gigabit

WebSmart Ethernet Switches. For complete instructions, refer to the

GS950PS V2 Gigabit Ethernet Switch Series Installation Guide on the

Allied Telesis web site at www.alliedtelesis.com/us/en/services-

support. This guide contains the following sections:

“Front Panels” next

“PoE+ Power Budgets” on page 4

“Beginning the Installation” on page 4

“Installing the Switch” on page 8

“Ports” on page 13

“Powering On the Switch” on page 15

“Starting the First Management Session” on page 16

“LEDs” on page 17

“eco-friendly Button” on page 21

“Troubleshooting” on page 22

Front Panels

Here are the front panels of the switches.

1 2 3 4 56

GS950/10PS V2

1234

GS950/18PS V2

1 2 34

GS950/28PS V2

GS950PS V2 Series Quick Installation Guide 3

Here are the 10/100/1000Mbps Ethernet copper ports.

Here are the 100Mbps and 1Gbps SFP transceiver ports.

1 eco-friendly button that turns the LEDs on and off.

2 PoE MAX and POWER LEDs - GS950/10PS V2 Switch.

PoE MAX and SYSTEM LEDs

3 Ethernet copper port LEDs.

4 SFP ports LEDs

5 10/100/1000Mbps Ethernet copper ports with PoE+.

6 100Mbps and 1Gbps SFP transceiver ports.

7 Ports 25 to 48 10/100/1000Mbps Ethernet copper on the

GS950/52PS V2 Switch - no PoE+

Switch 10/100/1000Mbps

Ports (no PoE+)

10/100/1000Mbps

Ports with PoE+

GS950/10PS V2 1 to 8

GS950/18PS V2 1 to 16

GS950/28PS V2 1 to 24

GS950/52PS V2 25 to 48 1 to 24

Switch SFP Transceiver Ports

GS950/10PS V2 9 and 10

GS950/18PS V2 17 and 18

GS950/28PS V2 25 to 28

1 2 574,6

GS950/52PS V2

4 GS950PS V2 Series Quick Installation Guide

PoE+ Power Budgets

Here are the PoE+ power budgets of the switches. Power budgets

are the maximum amounts of power that PoE+ switches can supply

to powered devices on the Ethernet copper ports. The switches can

support IEEE 802.3at Classes 0 to 4 powered devices (maximum

30W at the ports.)

Beginning the Installation

Reviewing Safety Precautions

Review the following safety precautions before installing the product.

Note: The  symbol indicates that a translation of the safety

statement is available in the PDF document “Translated Safety

Statements” on the Allied Telesis website at

www.alliedtelesis.com/us/en/documents/translated-safety-

statements.

GS950/52PS V2 49 to 52

Switch PoE+ Budget

GS950/10PS V2 75 watts

GS950/18PS V2 185 watts

GS950/28PS V2 185 watts

GS950/52PS V2 370 watts

Warning: Class 1 Laser product.



Warning: Do not stare into the laser beam.



Switch SFP Transceiver Ports

GS950PS V2 Series Quick Installation Guide 5

Installation Options

Here are the installation options:

Warning: Power cord is used as a disconnection device.

To de-energize equipment, disconnect the power cord.

 E3

Warning: To prevent electric shock, do not remove the

cover. No user-serviceable parts inside. This unit

contains hazardous voltages and should only be opened

by a trained and qualified technician. To avoid the

possibility of electric shock, disconnect electric power to

the product before connecting or disconnecting the

cables.  E1

Warning: Class I Equipment. This equipment must be

earthed. The power plug must be connected to a

properly wired earth ground socket outlet. An improperly

wired socket outlet could place hazardous voltages on

accessible metal parts.  E4

Warning: The device is heavy. Always ask for

assistance before moving or lifting it to avoid injuring

yourself or damaging the equipment.  E122

Warning: To reduce the risk of electric shock, the PoE

ports on this product must not connect to cabling that is

routed outside the building where this device is located.



E40

6 GS950PS V2 Series Quick Installation Guide

1 - Table

2 - Standard 19-inch Equipment Rack

3 - Wood or concrete wall

Note: Installing the GS950/52PS V2 Switch on a wall requires the

BRKT-J22 kit. The kit is sold separately.

Unpacking the Switch

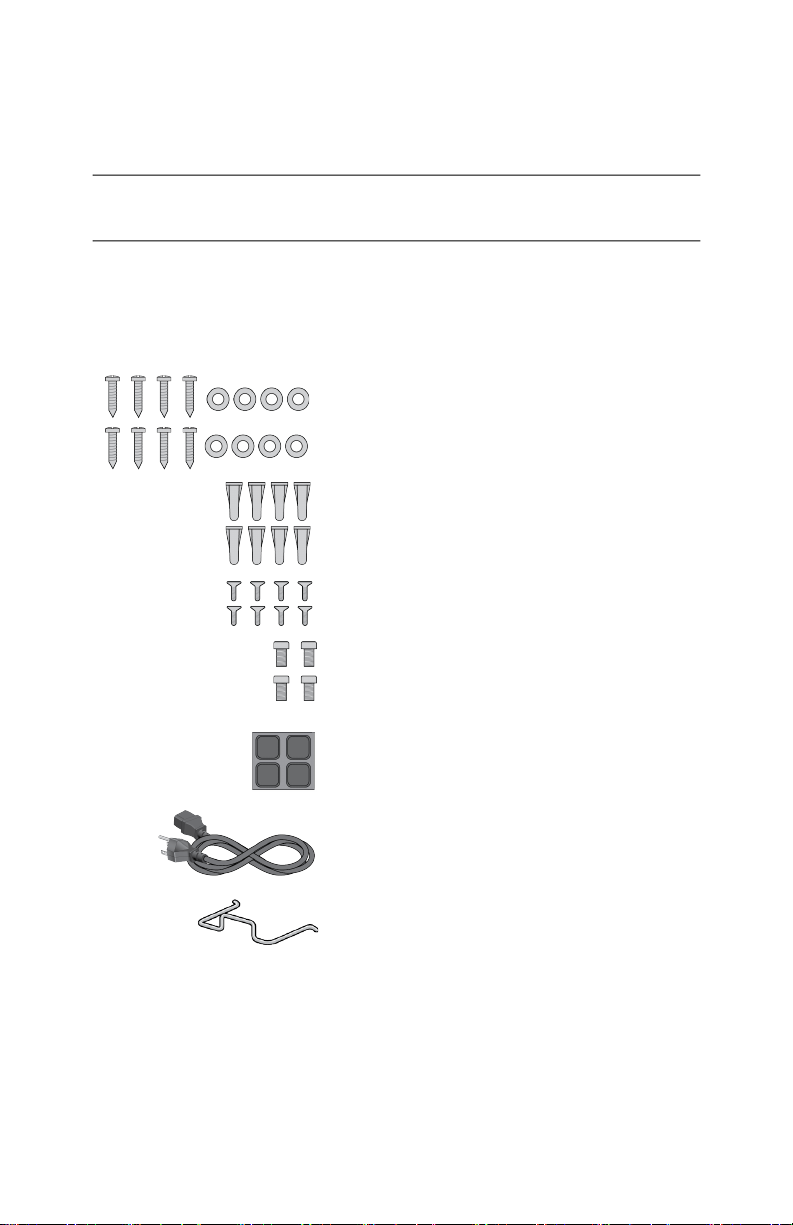

The switches come with these items:

Eight 3.5mm x 16mm wall screws and

washers

Eight 4mm x 22.2mm wall anchors

Eight M3 3mm x 6mm bracket screws

Four 10#-32T 4.7mm x 11mm

equipment rack screws

Four bumper feet

Power cord retaining clip

One AC power cord

GS950PS V2 Series Quick Installation Guide 7

Note: The GS950/52PS V2 Switch does not include the eight wall

screws, washers, and wall anchors.

Choosing a Site for the Switch

Review these site recommendations and requirements.

Before installing the switch in an equipment rack, verify that the

rack is safely secured so that it will not tip over. Devices in a rack

should be installed starting at the bottom of the rack, with the

heavier devices near the bottom.

Before installing the switch on a table, verify that the table is level

and stable.

Before installing the switch on a wall, verify that the wall’s material

is strong enough to hold the switch’s weight. You should position

the device so that it can be screwed into the wall’s framing timber

or equivalent structural element.

The power outlet should be located near the switch and be easily

accessible.

The site should allow for easy access to the ports on the front of

the switch so that you can easily connect and disconnect cables,

and view the port LEDs.

Equipment rack/wall brackets

for the GS950/10PS V2 switch

Equipment rack/wall brackets

for the GS950/18PS V2 and

GS950/28PS V2 switches

Equipment rack brackets for

the GS950/52PS V2 switch

8 GS950PS V2 Series Quick Installation Guide

The site should allow for adequate air flow around the unit and

through the cooling vents on the side panels.

Do not place objects on top of the switch.

The site should not expose the switch to moisture or water.

The site should be a dust-free environment.

The site should use dedicated power circuits or power

conditioners to supply reliable electrical power to the network

devices.

Do not install the switch in a wiring or utility box without adequate

airflow and cooling. The switch might overheat and shutdown.

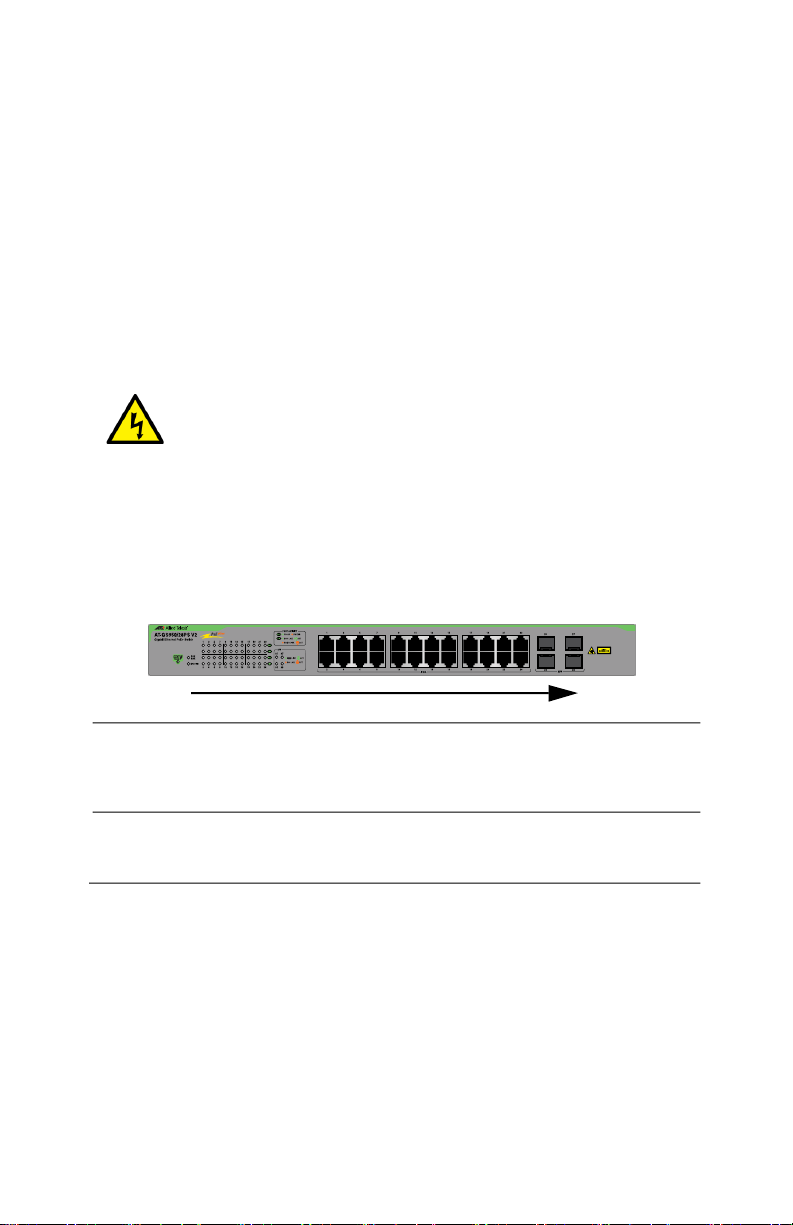

Direction of Ventilation in the Switches

The GS950/18PS V2, GS950/28PS V2, and GS950/52PS V2

Switches have internal ventilation fans. Airflow is from left to right,

when facing the front of the switch.

Note: The GS950/10PS V2 Switch does not have ventilation fans.

The site must provide sufficient airflow to prevent overheating of the

device.

Installing the Switch

Installing the Switch on a Desk or Table

To install the switch on a desk or table, perform the following

procedure:

1. Place the switch upside down on the table.

2. Affix the bumper feet to the four corners on the bottom panel of

the switch.

Warning: Switches should not be stacked on a table or

desktop. They could present a physical safety hazard if

you need to move or replace switches.  E91

GS950PS V2 Series Quick Installation Guide 9

3. Turn over the switch.

4. Go to “Ports” on page 13.

Installing the Switch in an Equipment Rack

Here are the items for installing the switch in an equipment rack:

Two equipment rack brackets (included with the switch)

Eight M4x6mm bracket screws (included with the switch)

Cross-head screwdriver (not provided)

Four equipment rack screws (included with the switch)

To install the switch, perform the following procedure:

1. Place the switch on a table.

2. If the bumper feet are attached to the bottom panel of the switch,

remove them with a flat-head screwdriver.

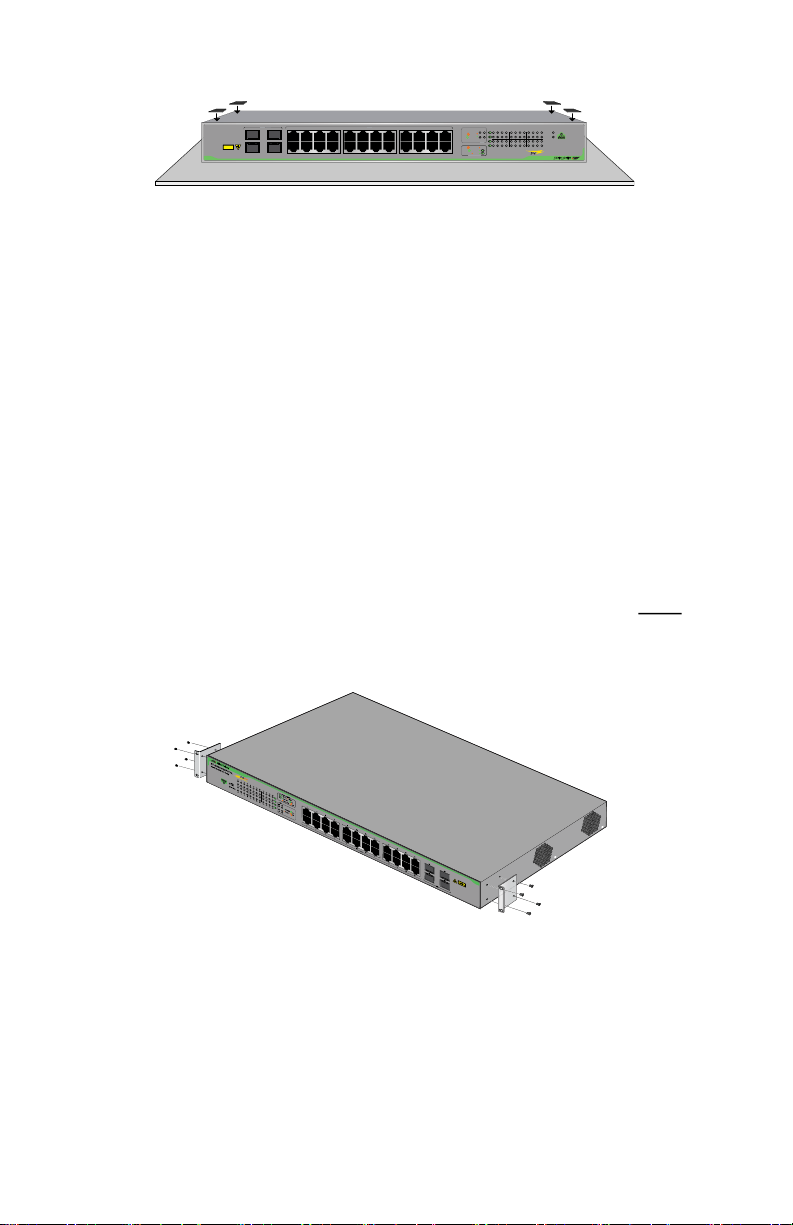

3. Attach the two brackets to the sides of the switch with the eight

M3 3mm x 6mm screws included with the switch. This figure

shows the GS950/28PS V2 Switch.

4. Have another person hold the switch in the equipment rack while

you secure it using four equipment rack screws. The switch

comes with equipment rack screws.

13579111315

AT-GS950/28PS V2

Gigabit Ethernet PoE+ Switch

plus

13579111315

2 4 6 8 10 12 14 16

CLASS1

LASERPRODUCT

POE

MAX

SYSTEM

26 28

25 27

1000LINK

SFP

PDERRPDON

ACT1000LINK

ACT100/10LINK

PORTACTIVITY

26 28

17 19 21 23

18 20 22 24

SFP

1357

2468

POE

9111315

10 12 14 16

17 19 21 23

18 20 22 24

100LINK

ACT

10 GS950PS V2 Series Quick Installation Guide

5. Go to “Ports” on page 13.

Installing the Switch on a Wall

Note: Wall installation of the GS950/52PS V2 Switch requires the

BRKT-J22 brackets kit. The kit is sold separately. For installation

instructions, refer to the GS950PS V2 Gigabit Ethernet Switch

Series Installation Guide on the Allied Telesis web site at

www.alliedtelesis.com/us/en/services-support.

You can install the GS950/10PS V2, GS950/18PS V2, and GS950/

28PS V2 Switches on a wall with the front panels facing up or down.

Note: Do not install the switches with the front panels facing left or

right.
