Night-Lite PRO II™
50/60 Hz
Walk-Around + Training
www.allmand.com
FEATURES
Night-Lite PRO II™
50/60 Hz
Engine / Generator:
•Kohler KDW 1003 diesel, 13.4 hp (11.5 hp 50 Hz)| 7.5 kW (6 kW 50 Hz) generator (standard)
•Kubota D-1005BG diesel, 13.1 hp (9.7 hp 50 Hz)| 7.5 kW generator (optional)
•Kubota D-1105BG diesel, 13.6 hp (11.3 hp 50 Hz)| 8 kW generator (optional)
•CAT C1.1 diesel, 14.3 hp (11.5 hp 50 Hz)| 8 kW generator (optional)
Tower:
•25 ft. (7.62 m) hydraulically actuated - vertical
•30 ft. (9.1 m) telescoping manual winch –laydown
Trailer:
•30 gallon (114 L) polyethylene fuel tank
•Four-point stabilizer design
•Fluid containment system (standard in vertical)
•Gull-wing style doors
•13 in. tires and wheels
•Forklift pockets and lifting eye
Lighting:
•4-1250 watt metal halide SHO-HD lighting system (60 Hz)
•4-1000 metal halide SHO lighting system (50 Hz)
Electrical:
•20A GFCI duplex outlet –60 Hz
•2-16A Schuko receptacles –50 Hz
www.allmand.com
WALK-AROUND

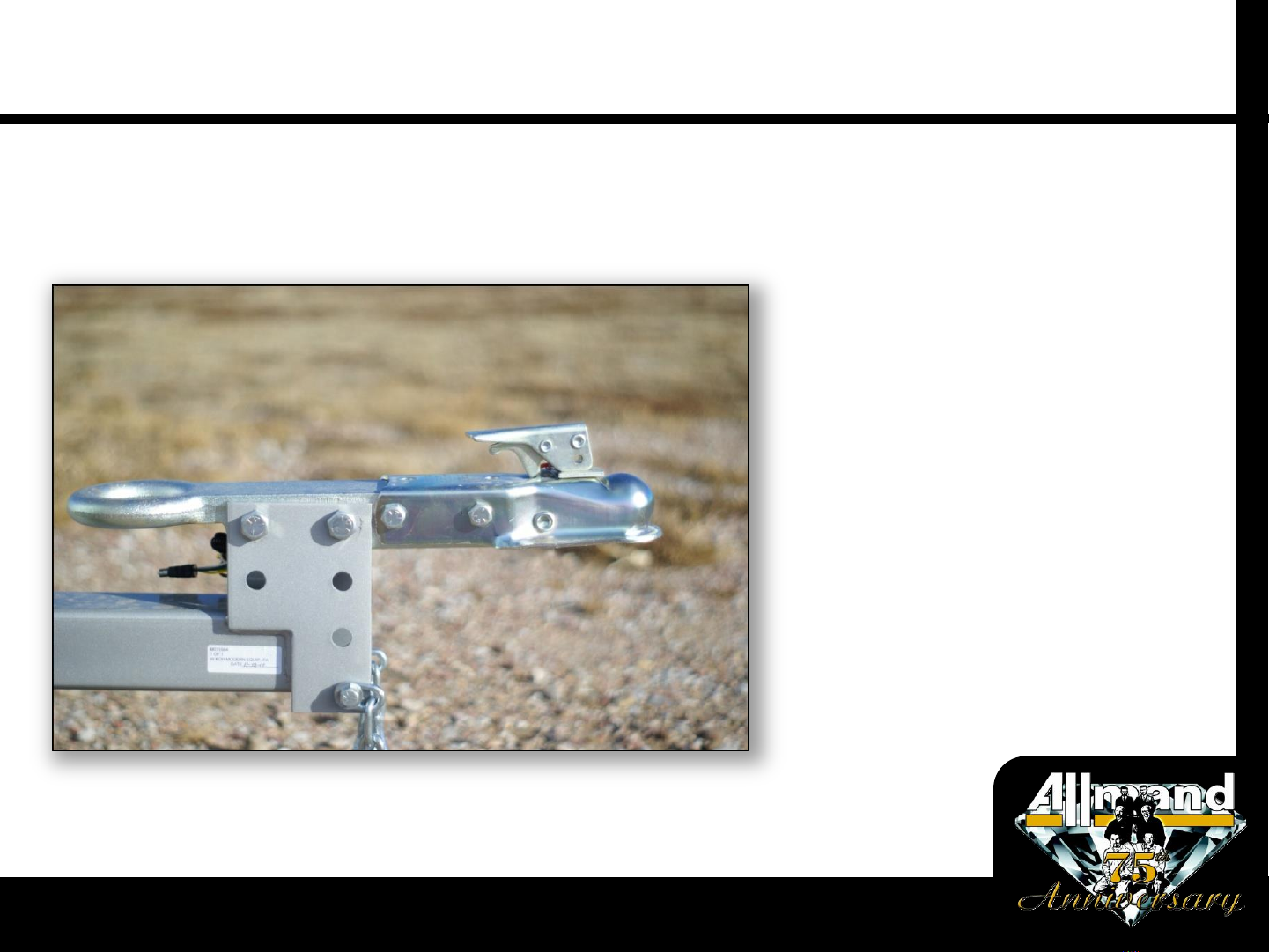

COMBINATION ADJUSTABLE-HEIGHT TOWING HITCH
•2 in. (50 mm) ball coupler
•3 in. (75 mm) pintle eye
•removable hitch
•discourages theft
•easier to service or replace
Night-Lite PRO II™
50/60 Hz
www.allmand.com
WALK-AROUND
SQUARE TUBE DRAWBAR
•3 in. (75 mm) square tube drawbar
•provides maximum turning radius
•removable for service or replacement
*One of the tie-down points on the trailer is
also a part of the drawbar. The tie-down loop
allows the trailer to be secured with chains or
straps when loaded on a truck for transport
to a remote work site.
Front tie-down point
Night-Lite PRO II™
50/60 Hz
www.allmand.com
WALK-AROUND
SQUARE TUBE DRAWBAR –OUTRIGGER AND JACK
•serves as the front outrigger and
mounts the jack used to aid in
connecting the trailer
•levels the trailer for light tower
operation
Night-Lite PRO II™
50/60 Hz
www.allmand.com
WALK-AROUND
SQUARE TUBE DRAWBAR –SAFETY CHAINS
•safety chains with ‘S’ hooks and keepers
•IMPORTANT: fasten the safety chains every
time trailer is connected to a towing vehicle
•protect the trailer
•prevent it from entering oncoming traffic
Night-Lite PRO II™
50/60 Hz
www.allmand.com
WALK-AROUND
•molded from PDCPD poly
•allow full access to all major service points
•break-resistant
•will not rust or dent
•features automotive-style push-button latch
•easily open
•securely close and lock
GULL-WING STYLE DOOR PANELS
Night-Lite PRO II™
50/60 Hz
www.allmand.com
WALK-AROUND
•doors are held open by a positive latch
system
•automatically locks both sides when door
is opened
•easily releasable to close the door
POSITIVE LOCKING MECHANISM
Night-Lite PRO II™
50/60 Hz
www.allmand.com
WALK-AROUND
•located inside the right hand
enclosure door
•raising and lowering the tower
•critical safety and operational
decals
*Be certain that all operators understand and
follow these instructions. The Night-Lite PRO II™ is
designed with safety at the forefront. However, like
any machinery, incorrect operation may pose a
safety hazard.
OPERATING INSTRUCTIONS
Night-Lite PRO II™
50/60 Hz
www.allmand.com
WALK-AROUND

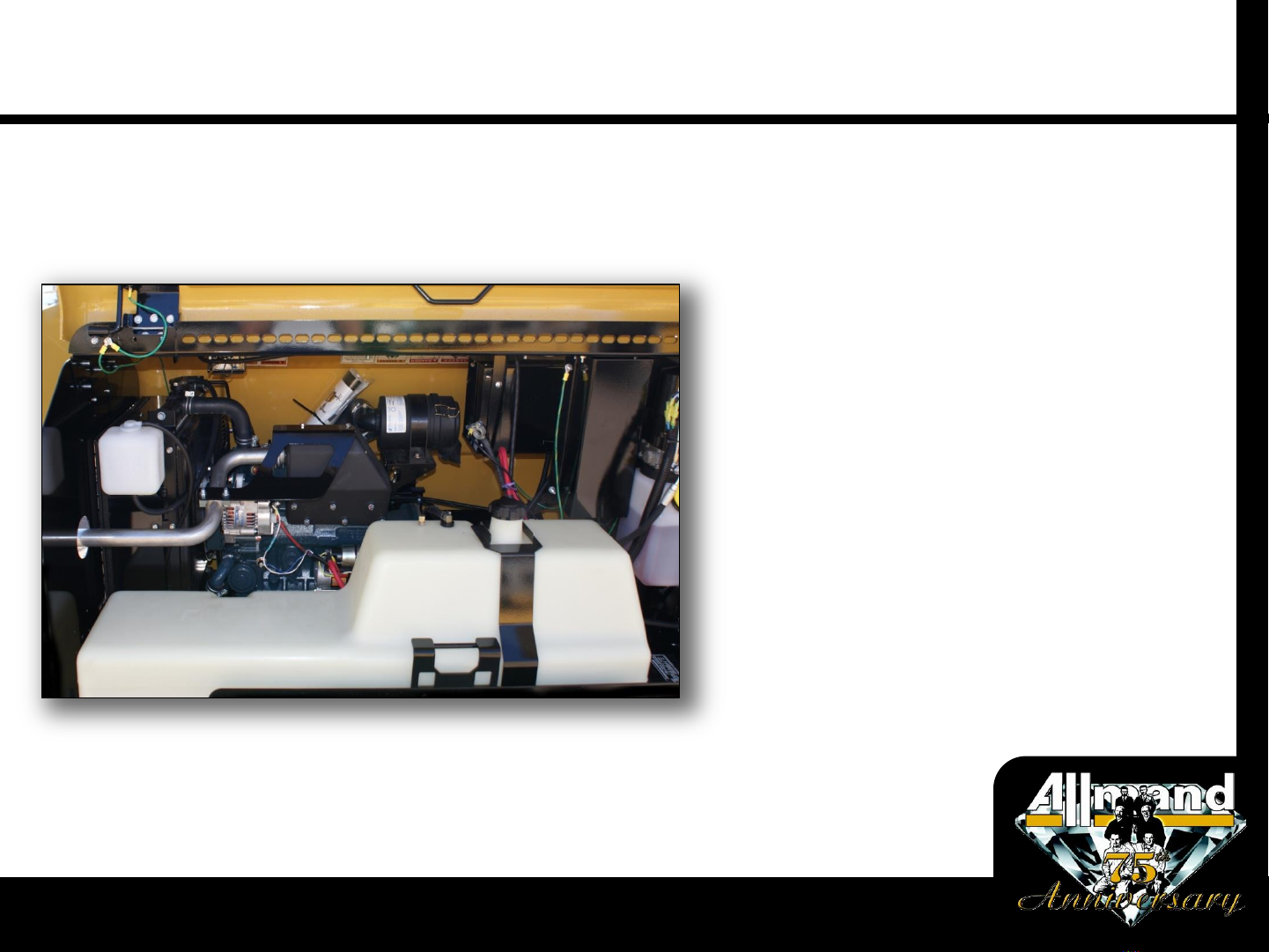

•all are readily accessible through the
gull-wing style door openings
•dipstick
•oil filler
•air / fuel / oil filters
•fuel pump, etc.
ENGINE COMPONENTS AND SERVICE POINTS
Night-Lite PRO II™
50/60 Hz
