Various Printing Operations

Learning to Use the Many Functions of Your Printer

The MD-5000P not only prints outstanding monochrome

and full color images but also offers a wide variety of

other options, including printing in foil or metallic color

and printing on iron-on transfer sheets, photo labels,

and greeting cards. This chapter will show you how to

use these useful functions step by step. Read Chapter 1

of this guide and learn the basic operations of your printer

before reading this chapter. We hope you will take full

advantage of the many functions of your printer.

Various Printing Operations

Photographic-Quality Color Printing

Thissection describeshow toprint Photographic-Quality Colorimages onPhotographic-

Quality Paper.With Photographic-Quality Color printing, you can print continuous-tone

images with the same high quality as photographs. In Photographic-Quality Color print-

ing, you can also print with an overcoat ink that produces a smooth, shiny surface like a

photograph.

Requirements

You need the following items for Photographic-Quality Color printing.

•Ink cartridges

Make sure that you use only the Photographic-Quality ink cartridges listed

below.

Photo Cyan ink cartridge (Part No. 105812-00)

Photo Magenta ink cartridge (Part No. 105814-00)

Photo Yellow ink cartridge (Part No. 105816-00)

Photo Overcoat ink cartridge (Part No. 105818-00)

•Media

Photographic-Quality Paper (8.5" x 11") (Part No. 105822-00)

•The guide sheet (the thick paper with the written description) included with

the set of paper sheets

Caution

Always use Photographic-Quality Paper for Photographic-Qual-

ity Color printing. Failure to do so can damage the printer as

well as the cartridge ribbon. Up to 20 sheets of paper can be

loaded into the sheet feeder at once.

Print surfaces that have been overcoated cannot be used for

subsequent printing. If you attempt to do so, the printer may

malfunction.

Various Printing Operations

Step 1¨¨

¨¨

¨Prepare the Image to be Printed

Use any application to create the image or document you want to

print.

Step 2¨¨

¨¨

¨Install the Photographic-Quality Ink Cartridges

Install the Photographic-Quality ink cartridges into the ink car-

tridge holders.The ink cartridges may be installed in any order.

Step 3¨¨

¨¨

¨Load the Photographic-Quality Paper (8.5"x 11") inYour

Printer

You may use either automatic feed mode or manual feed mode to

load the paper into your printer.

1. For manual feed mode, set the paper feed switch to posi-

tion “M”; for automatic feed mode, set it to “A”.

Paper feed switch “A” Paper feed switch “M”

2. For automatic feeding, load the guide sheet supplied with

the paper into the sheet feeder, placing the printed side

facing down. Then, place the Photographic-Quality Paper

on this sheet. Only the glossy side of the Photographic-

Quality Paper is printable, so be sure to load the sheets

with the glossy, printable side up.When handling sheets,

hold the bent top of the guide sheet only to avoid smear-

ing or discoloring the glossy printing surface.

guide sheet

Various Printing Operations

3. Adjust the paper feed guide to the width of the paper.

4. For manual feeding, load one sheet of paper in the sheet

feeder, and press the

ready / insert

button.

ready / insert

Note

Only the glossy surface of paper can be subjected to Photo-

graphic-Quality printing. Since the opposite surface cannot be

printed on, make sure the paper is correctly oriented.

Important

• You may load as many as 20 sheets of Photographic-Quality

Paper at one time.

• Fan the sheets before loading them on the sheet feeder.The

printer may feed more than one sheet at one time when they

are stuck together.

• If you do not load the guide sheet with the Photographic-

Quality Paper, the final sheet may not feed properly.

• Always use the Photographic-Quality ink cartridges to print

on the Photographic-Quality Paper. Printing with any other

combination can damage the cartridge ribbon as well as the

paper.

• Remove both the Photographic-Quality Paper and the guide

sheet before loading any other type of paper.

• The guide sheet is not reusable. When you load a new set of

Photographic-Quality Paper, make sure that you load them

with the new guide sheet from the same package.

• Note that when all the Photographic-Quality Paper has been

fed from the sheet feeder, the printer will detect that the pa-

per feeder is empty and will not feed the guide sheet. If you

try to feed the guide sheet through the printer, it may get

damaged. Do not use a damaged guide sheet in the printer.

• Keep both used and unused sheets away from heat, humid-

ity, dust, and direct sunlight.

• The printed image on the Photographic-Quality Paper may

discolor. Keep it out of contact with plastic, such as docu-

ment holders, wallet windows, erasers, hairdressing items,

and cosmetic items.

• Keep all unused sheets in the original bag.

Various Printing Operations

Step 4¨¨

¨¨

¨Set Up the Printer Driver for Printing

1. Select Print from the File menu.

The following dialog box appears.

2. Click Properties.

The DocumentType dialog box in the ALPS MD-5000P dialog

box appears.-

Note

Please note that the procedure for opening the dialog box of

ALPS MD-5000P driver may slightly differ from one application

to another.

3. Select Graphics/Text or Photographs from the Document

Types setting in the Document/QualityTab.

4. Select Photographic Paper from the MediaType setting.

Various Printing Operations

5. When the following notice window appears, confirm the

contents, and click OK.

6. Change other necessary settings.

7. When you complete the setup, click OK to close the dia-

log box.

Note

If you select Photographic Paper from the Media Type setting,

the overcoat finishing will be automatically provided. It is rec-

ommended to print with the overcoat. However, if printing with

the overcoat is not desired, click the More Setting button, and

then uncheck the Glossy Finish check-box in the Option set-

ting.

Step 5¨¨

¨¨

¨Print

Click OK in the Print dialog box, and printing will start.

Various Printing Operations

Printing on Photographic-Quality Paper (4" x 6")

Thissection describeshowto printPhotographic-Quality Colorimageson Photographic-

Quality Paper. With Photographic-Quality Color printing, you can print continuous-tone

images with the same high quality as photographs. In Photographic-Quality Color print-

ing, you can also print with an overcoat ink that produces a smooth, shiny surface like a

photograph.

Requirements

You need the following items for Photographic-Quality Color printing.

•Ink cartridges

Make sure that you use only the Photographic-Quality ink cartridges listed

below.

Photo Cyan ink cartridge (Part No. 105812-00)

Photo Magenta ink cartridge (Part No. 105814-00)

Photo Yellow ink cartridge (Part No. 105816-00)

Photo Overcoat ink cartridge (Part No. 105818-00)

•Media

Photographic-Quality Paper (4" x 6") (Part No. 105824-00)

•The guide sheet (the thick paper with the written description) included with

the set of paper sheets

Important

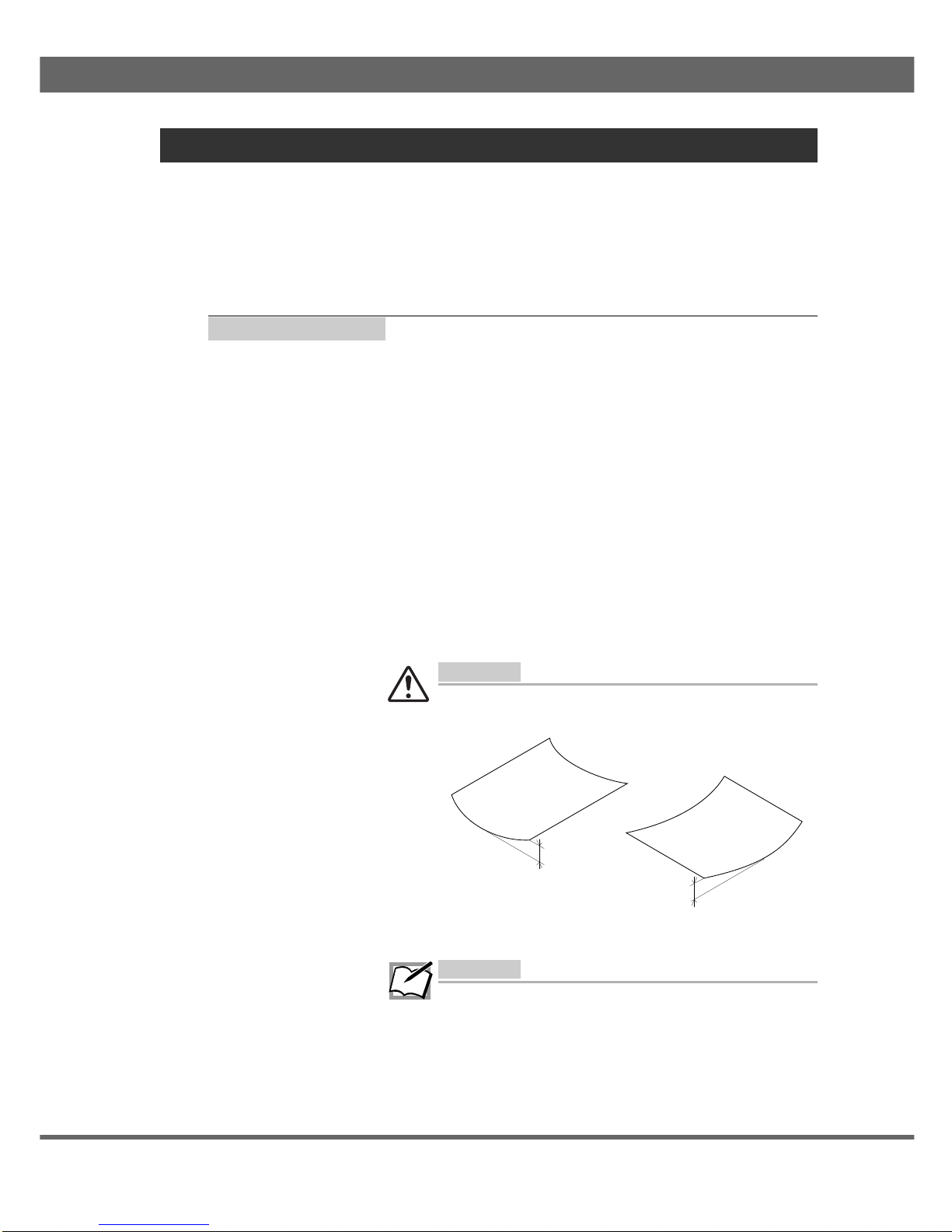

Make sure that none of your Photographic-Quality Paper is

warped more than 0.2" / 5 mm. Warped sheets can cause unsat-

isfactory print results.

Each sheet should have a warp of 0.2" / 5 mm or less when placed

on a flat surface.

Important

• Always use Photographic-Quality Paper for Photographic-

QualityColor printing. Failure todoso can damagetheprinter

as well as the cartridge ribbon. Up to 20 sheets of paper can

be loaded into the sheet feeder at once.

• Print surfaces that have been overcoated cannot be used for

subsequent printing. If you attempt to do so, the printer may

malfunction.

0.2" / 5mm or less
