Alptop Security POE Camera Series Manuale utente
www.alptopsecurity.com support@alptopsecurity.com
Table of Content Page
1.Installation 03-04
2.Connecting the camera to system 05-05
3.Download Search Tool and change IP address 06-07
4.Accessing via Web Browser 08-11
5.Accessing via Client Software 12-14
6.Working with Onvif NVR 15-16
7.Add camera to Blue Iris 17-17
8.Operating via Danale Mobile App 18-24
9.Frequently Asked Questions 24-26
Due to the printing reasons, this manual may not be clear. Please go to our website to
download the electronic file manual. Thank you for your understanding.
If you need more details about Danale APP,LMS Software Client ,Please download from
our website.Thank you for your interest in our products.
www.alptopsecurity.com support@alptopsecurity.com

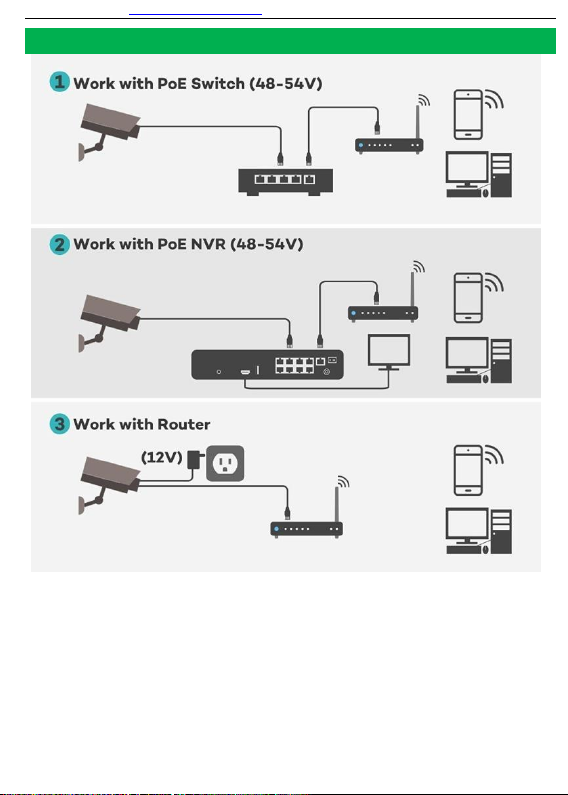

2.Connecting the camera to system
Note:
1.This camera works with ONVIF standard PoE NVR or PoE Switch with 48V-54V power
supply, insuffcient power supply will result in no picture.
2.The camera should be connected to an optional DC 12V power supply if you do not use
PoE (Power over Ethernet).
3.A windows computer is more convenient for setup and troubleshooting.
4. Please choose a power supply method for the camera.
www.alptopsecurity.com support@alptopsecurity.com
3.Download Search Tool and change IP address
Most cameras come with DHCP reservations.You can also set cameras with static IP
address via search tool.
Note:Some model (AT-800DZ) has the same default IP address after leaving the factory.
Default IP address: 192.168.0.123, Username: admin, Password: 123456
3.1 Download Search Tool and get camera ip address
Visit our website www.alptopsecurity.com
Click “SUPPORT” > “AT-200D/800D(Z),AT-200PE/500PE-POE Series” > “Software”,
download the search tool.
There are two versions of the search tool, one for Windows and the other for Mac. Please
select the correct version to download.
Installation language can be selected in the drop-down menu.
Open the search tool,then it will search out your camera IP address automatically.
www.alptopsecurity.com support@alptopsecurity.com
3.Download Search Tool and change IP address

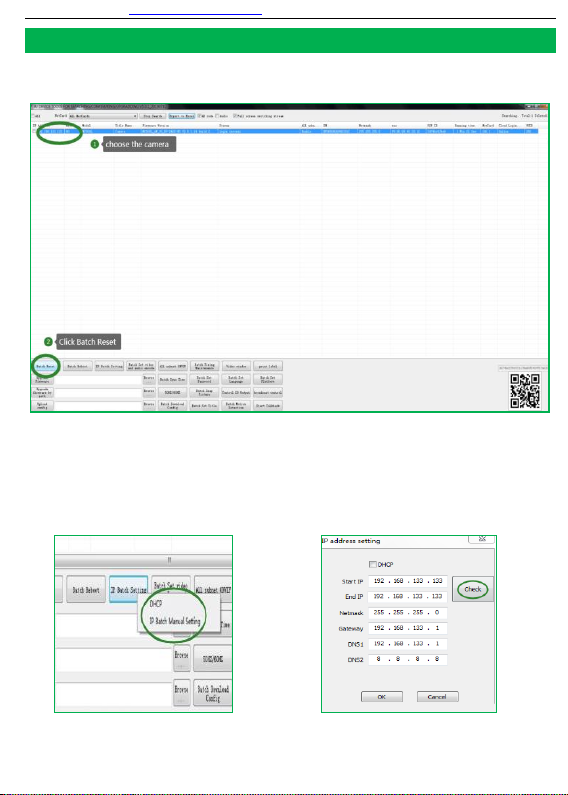

3.2 Restore to Factory Setting
Please tick the camera you need and click ”Batch Reset”
3.3 Revise camera IP address
Please tick the camera you need,click “IP Batch Setting”, You can enable DHCP or revise
camera ip address directly.Please make sure that the camera and computer addresses are
in the same network segment.
Please click "check" to confirm whether the address is OK after modify the IP address.
Tips:
You can also use Hikvision search tool to find or change camera ip address.
www.alptopsecurity.com support@alptopsecurity.com
4.Accessing via Web Browser
4.1 The camera support IE, Firefox Google Chrome and Safari.
1.Open the browser.
2.In the browser address bar, input the IP address of the network camera, and press the
Enter key to enter the login interface.
3.Input the user name(admin) and password(123456)
4.Select the English language from the drop down menu,Click Login
5.Install the plug-in before viewing the live video and managing the camera.
6.Reopen the web browser after the installation of the plug-in.
Note: Only the Motorized Auto Focus cameras can Zoom In and Zoom Out.
www.alptopsecurity.com support@alptopsecurity.com
4.Accessing via Web Browser
If there is a delay in video response when accessing remotely, please switch to
Sub Stream instead.
4.2 General Configurations

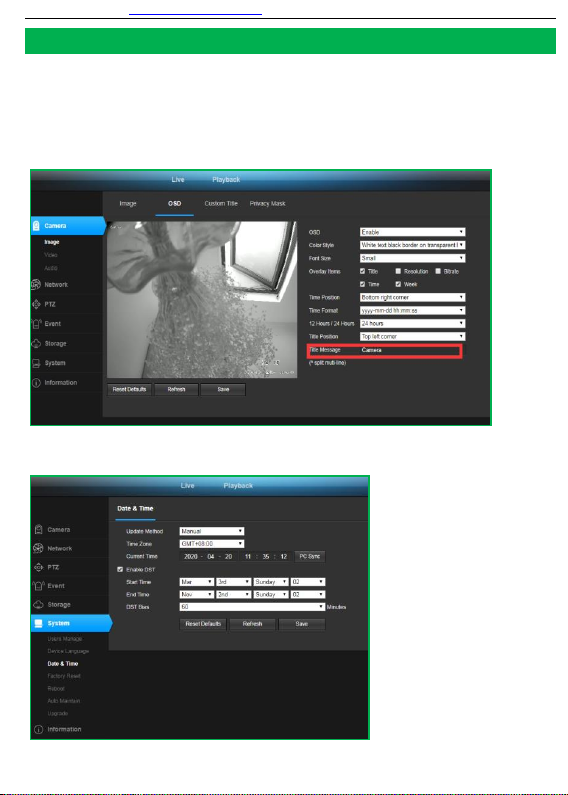

1) To modify the camera Title name and Time & Date
Configuration > Camera > Image > OSD > Title Message
Configuration > System > Time setup
There are two time update modes available, Manual and NTP.
www.alptopsecurity.com support@alptopsecurity.com
4.Accessing via Web Browser
a. Select your Time Zone, and click PC Sync. Set up your DST (Daylight Savings
Time) if needed , click Save. (Time and date will reset to 2000-01-01 if camera restarts)
b. If the camera is connected to the Internet, you can set up a NTP server for the
camera to sync the time and date automatically. We suggest you use NTP; if you choose
Manual, the time will be reset to the default one once you reboot camera

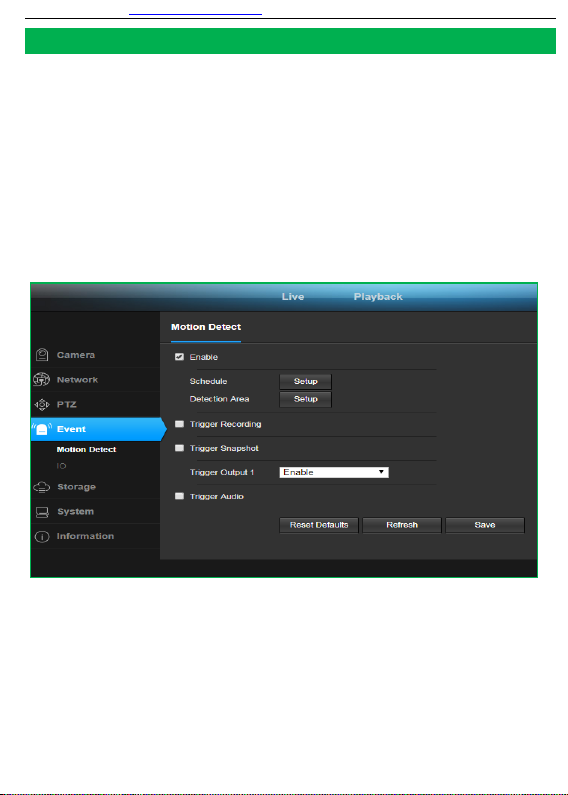

2) To enable Motion Detection Alarm
Configuration > Event > Motion Detection
3) To find the device Cloud ID and QR code for remote access
Configuration > Network > P2P
