PEP
DESCRIPTION OF PARTS
LED linear light system with 9 single reectors (36°) for 48 V DC
systems
Dimensions: L205 x W24,5 x H48 mm
Body colour: black
TECHNICAL DATA
LED luminaire 12W 28V DC 350mA
with an external converter 220-240V 50/60Hz 48VDC
PEP-12WW2= 3000K
PEP-12SW2 = 2700K
Non-dimmable
Protection class III
LAMP
LED
SAFETY INFORMATION
• The light is only suitable for use in interiors, in dry,
enclosed rooms.
• Don’t install under power.
• Follow the instruction manual for installation.
• Installation only by qualied and authorised
persons.
• Do not use the product when it has been damaged
(defective covers) or there are operational faults
such as ickering, smoking, steaming, crackling
noises or the smell of smoke.
• A damaged or defective product must be changed
or repaired by the manufacturer, a service person
or a comparable qualied person.
• Installation only under observance of the valid
guidelines specic to application and country
among others VDE 0.100.
• Never open one of the electrical operating agents
or plug any objects into them. Such procedures
signify a danger to life through electrical shock.
• Absolutely avoid contact between the product
and water or other liquids. For reasons of electrical
safety, the light may not be placed in contact with
water or other liquids or submerged in water.
• The product may not be changed or modied.
DISPOSAL
The packaging consists of environmentally friendly materials.
Dispose of them in the local recycling containers.
Do not dispose of this product in the household gar-
bage when it has reached the end of its lifecycle, but
rather take it to a disposal center.Your local ofcials
will provide you with information about collection
ofces and their business hours.
SAFETY
READ THE INSTRUCTIONS BEFORE USING THIS PRODUCT.
KEEP THE SAFETY AND OPERATING INSTRUCTIONS FOR
FUTURE USE.
MAINTENANCE AND CLEANING
• The LED light agent cannot be replaced.
• Do not use solvents, such as benzene and similar
agents.The light would be damaged thereby.
• Only use a dry, lint-free cloth for cleaning the
product.
Protection class III Notication of Risks
CE label Safety Instructions
The product is only
for use in interiors.
Cleaning Instructions
The product may not
be disposed of in the
household garbage.
ACCESSORIES
Z-RPEP12 reector/lens 12°
Version: 2019-09-04
EN
address | contact
A.L.S. GmbH
Mastorter Str. 31 | 88069 Tettnang (Germany)
Tel.: +49 (0) 75 42 93 44-0 | Fax.: +49 (0) 75 42 93 44-30
E-Mail: inf[email protected] | Web: www.als.de
LED linear light system with 9 single reectors for
48 V DC systems
PEP-12WW2
PEP-12SW2
INTENDED USAGE
This product will only serve the purpose of illumination.
The light is only suitable for use indoors.
SCOPE OF DELIVERY
1 x LED luminaire
1 x set of instructions for assembly, operation and safety
Schwarz
Assembly instructions
Vor der Installation,Stromversorgung abschalten!
Nicht unter Spannung anschließen!
LED Lichteinsatz vorsichtig aus der Verpackung nehmen.
The luminaire can only be operated on the PEP ceiling / recessed
mounting track PEP-202 and PEP-262 with 48 V DC LED converter. Ano-
ther operating mode is not provided. Otherwise, the luminaire may fall
down or be destroyed by incorrect power supply (voltage type).Damage
to the product or injuries may result.
Do not bend, tape, pollute, or oil the spring contacts of the luminaire.
Please avoid placing or storing the luminaire on the contacts.
Assembly of the-12xx2

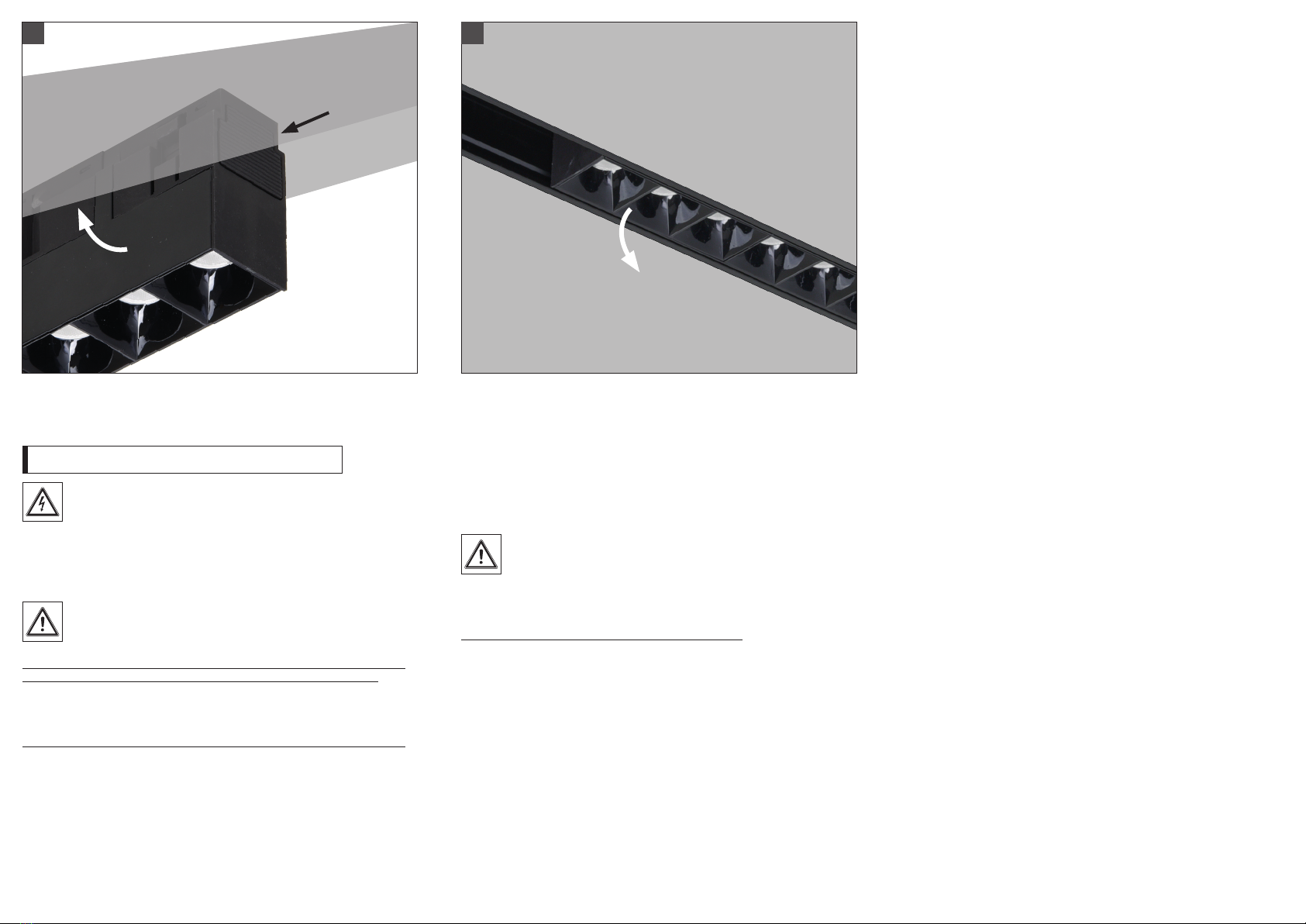

Image 01: Guide the LED track spotlight slightly oblique into the pre-as-
sembled PEP track. Press the head button (A) on the base until the LED
track spotlight ts ush in the track.
Turn on the power.
Image 02: To remove the LED track spotlight, press the head button (A)
located on the base. The fastening is inactive and the LED light can easily
be removed.
Please note:
Do not pull the lamp head by force! Press the head button (A) on the base
again until the LED spotlight can easily be removed.
Disregard will damage the mechanics on the base and the LED oodlight
will not snap into the track. Do not use LED spotlights with damaged sockets.
They could fall off and cause damage / injuries.
The luminaire base can be used in both installation directions (rotated by
180 °), a polarity in the track is not specied.
02
A
01
A
