AM TECH ATP-80KCL2 Manuale utente
AM-TECH.Co.,Ltd
User
Manual
ATP-80KCL2
2
C O N T E N T S
1. INTRODUCTION
1.1 General Specification ---------------------------------------------------------------------------------------------------------5
2. COMPONENT & NAME of PARTS
2.1 Component--------------------------------------------------------------------------------------------------------------------- 6
2.2 Name of Parts ---------------------------------------------------------------------------------------------------------- 7~10
2.3 Printing Mecha Module------------------------------------------------------------------------------------------------------11
2.4 Cutting Module-----------------------------------------------------------------------------------------------------------------12
2.5 Controller ----------------------------------------------------------------------------------------------------------------------13
3. HOW TO USE
3.1 General--------------------------------------------------------------------------------------------------------------------------14
3.2 Paper Specification ----------------------------------------------------------------------------------------------------------14
3.3 Installation – Loading Paper Roll-------------------------------------------------------------------------------------15~16
3.4 Installation – Connecting Cable & Supplying Power & Initial Action---------------------------------------------17
3.5 How to Self Test---------------------------------------------------------------------------------------------------------------17
3.6 How to set DIP switch--------------------------------------------------------------------------------------------------------17
4. HOW TO SOLVE PROBLEMS & ERROR CODE
4.1 General How to Solve Problems------------------------------------------------------------------------------------------18
4.2 Error List-------------------------------------------------------------------------------------------------------------------------18
4.3 Error Checking Method-------------------------------------------------------------------------------------------------19~21
4.4 Other Errors---------------------------------------------------------------------------------------------------------------22~23
5. REPLACEMENT
5.1 Replacing Motor----------------------------------------------------------------------------------------------------------24~25
5.2 Replacing Thermal Head-----------------------------------------------------------------------------------------------25~26
5.3 Replacing Auto Cutter--------------------------------------------------------------------------------------------------26~27
6. CLEANING & CHECK POINTS
6.1 Cleaning and Check List----------------------------------------------------------------------------------------------------28
6.2 Cleaning and Checking Method--------------------------------------------------------------------------------------28~29
APPENDIX
Mechanical Dimension for ATP 80KCL2 -----------------------------------------------------------------------------30~31
3
Record of Revisions
Revision Version Date DESCRIPTION
1.0
25-Jan-2008
Preliminary
4
1.INTRODUCTION
This manual is for ATP-80KCL2.
The ATP-80KCL2 is a mechanical thermal printer for ATM and KIOSK. ATP-80KCL2 print head consists of
576 dots per line (72mm). Resolution is 200 DPI (dot per inch).
Type Name: ATP- 80 KCL2
`
<CAUTION>
1. This specification shall be applied only to the product identified herein.
2. AM Tech CORPORATION shall not warrant that the contents of this specification are not
defective and do not infringe any right of third parties, unless otherwise agreed on written consent
between “the customer” and AM Tech CORPORATION.
3. “The customer” shall not make any duplicates of this specification without prior written approval of
AM Tech CORPORATION.
NO Paper width
80
80Î80mm(3 inch)
K ‘K’ means Kiosk
C
L Loop
2 Series Number
5
1.1 GENERAL SPECIFICATIONS
- Printing Method : Direct Thermal
- Max Printing Speed : 600 DLPS (100mm/s)
- PrintingColumn
Alphabet/Number: 40Col (24X16)
Korean Character: 26Col (24X24)
- Operating Circumstance
Operating Temperature : 0℃~ 45℃
Operating Humidity : 20% ~ 90 %
Storage Temperature : -20℃~ 70℃
Storage Humidity : 5% ~ 90 %
- Operating Voltage
Motor Voltage : +24V ±5%
Head Voltage : +24V ±5%
Logic : +5V±5%
- Consumption Current
Stand-by: 130mA (Typ) 180mA (Max)
Step Motor: 300mA (MIN)
Printer Head(3 inch)
Ratio 12.5% 25% 50% 75% 100%
Max Current 0.5A 1.1A 2.2A 3.3A 4.4A
- Auto-cutter Motor: at Starting: 1.2A, Rated current: 0.2A
- Paper Specification
Paper capacity (Max): Ø230
Paper width: 79.0±0.5mm
Effective printing width: 72mm (576dots)
Paper feeding method: Friction Feeding
6
2.COMPONENT & NAME of PARTS
2.1 Component
ATP-8KCL2 Controller(Serial&USB:option)
Serial Cable USB Cable PaperRollBarUnit 24VPowerSupplier
(option)
7
2.2 Name of Parts
[1, Presenter]
<Top View>
Paper Sensor
(Presenter Exit)
Shutter
Paper Exit
<Side View>
[
1
]
[
2
]
[3]
8
[2, Printing Mecha = 80+]
AutoCutter PrinterHeadPart ThermalHead
Open Lever Black Roller Bar
1 . Jam Detect Sensor : The sensor which detects paper jam
2 . Black Mark Sensor : The sensor which detects black mark on paper
3 . Paper in Sensor : The sensor which detects if paper is present or not
4 . Thermal Head Open Sensor : The sensor which defects if Printer Head Part is open or not
<Side View>
1
2
2
3
4
Motor
9

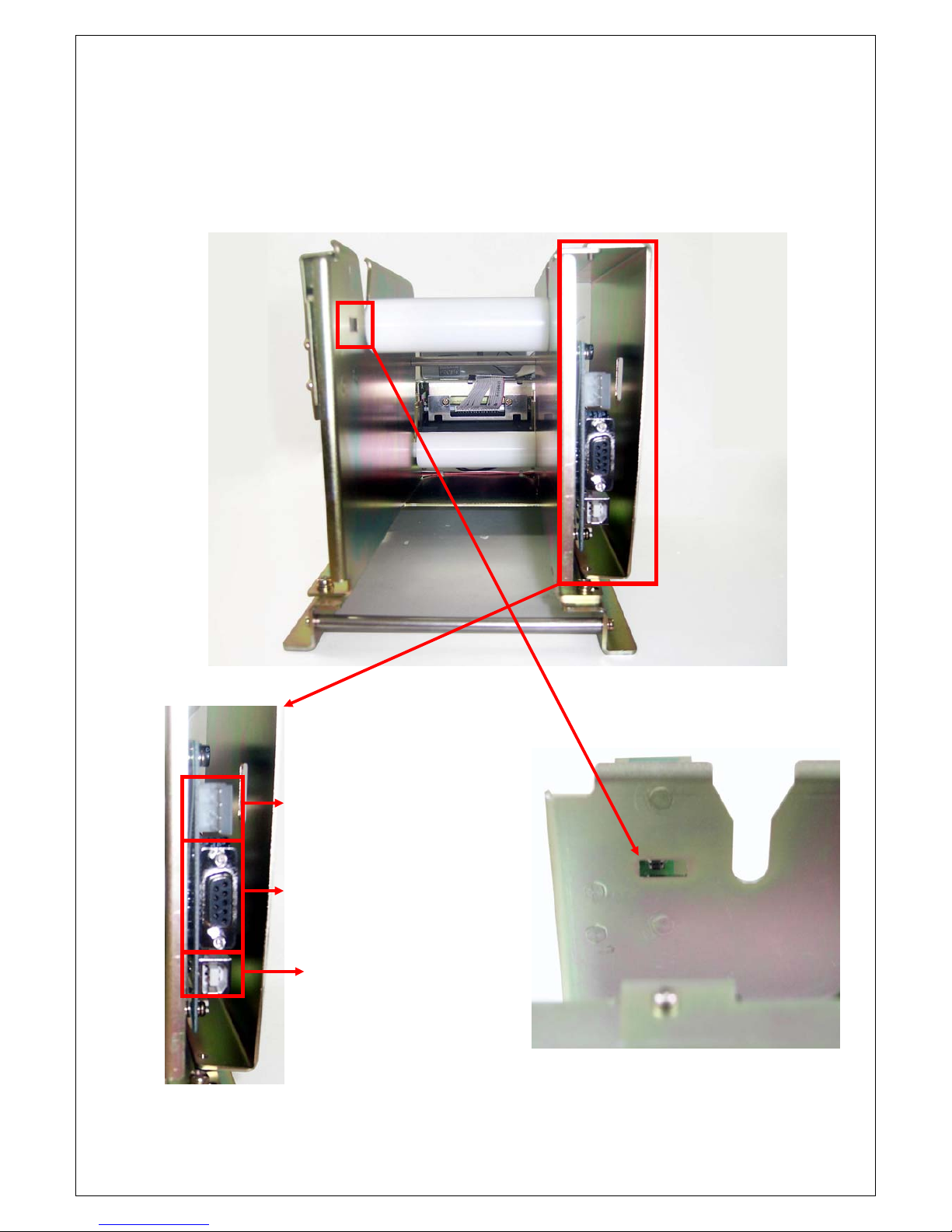

[3, Paper Roll Holder]
<Side View - 1>
<Side View - 2>
Feed Button
Dip Switch
Controller Cover
10
<Back>
Power Connector
Serial Port (RS232C)
USB Port
zNear End Sensor detects a near end of a paper
roll
Near End Sensor
