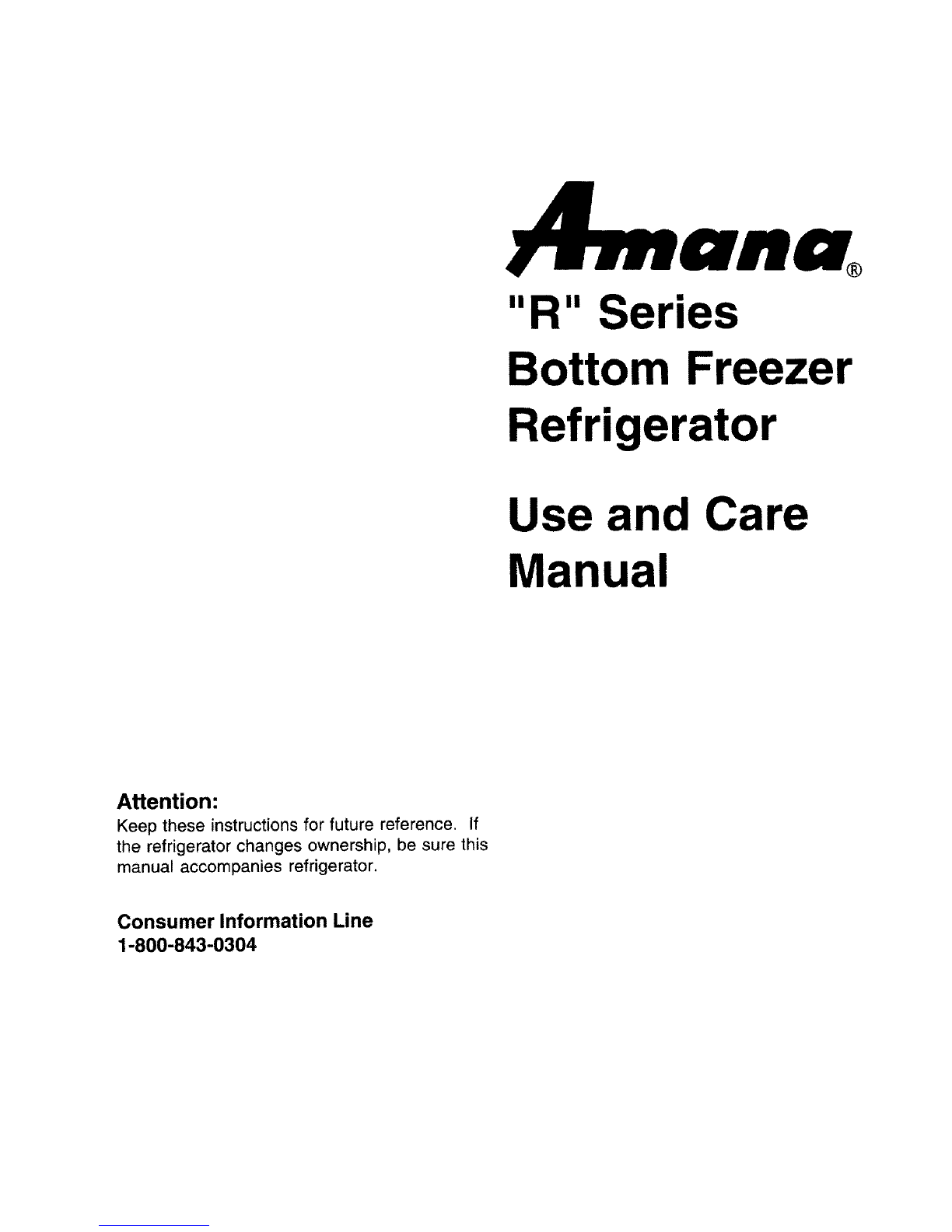

"R" Series

Bottom Freezer

Refrigerator

Use and Care

Manual

Attention:

Keep these instructions for future reference. If

the refrigerator changes ownership, be sure this

manual accompanies refrigerator.

Consumer Information Line

1-800-843-0304

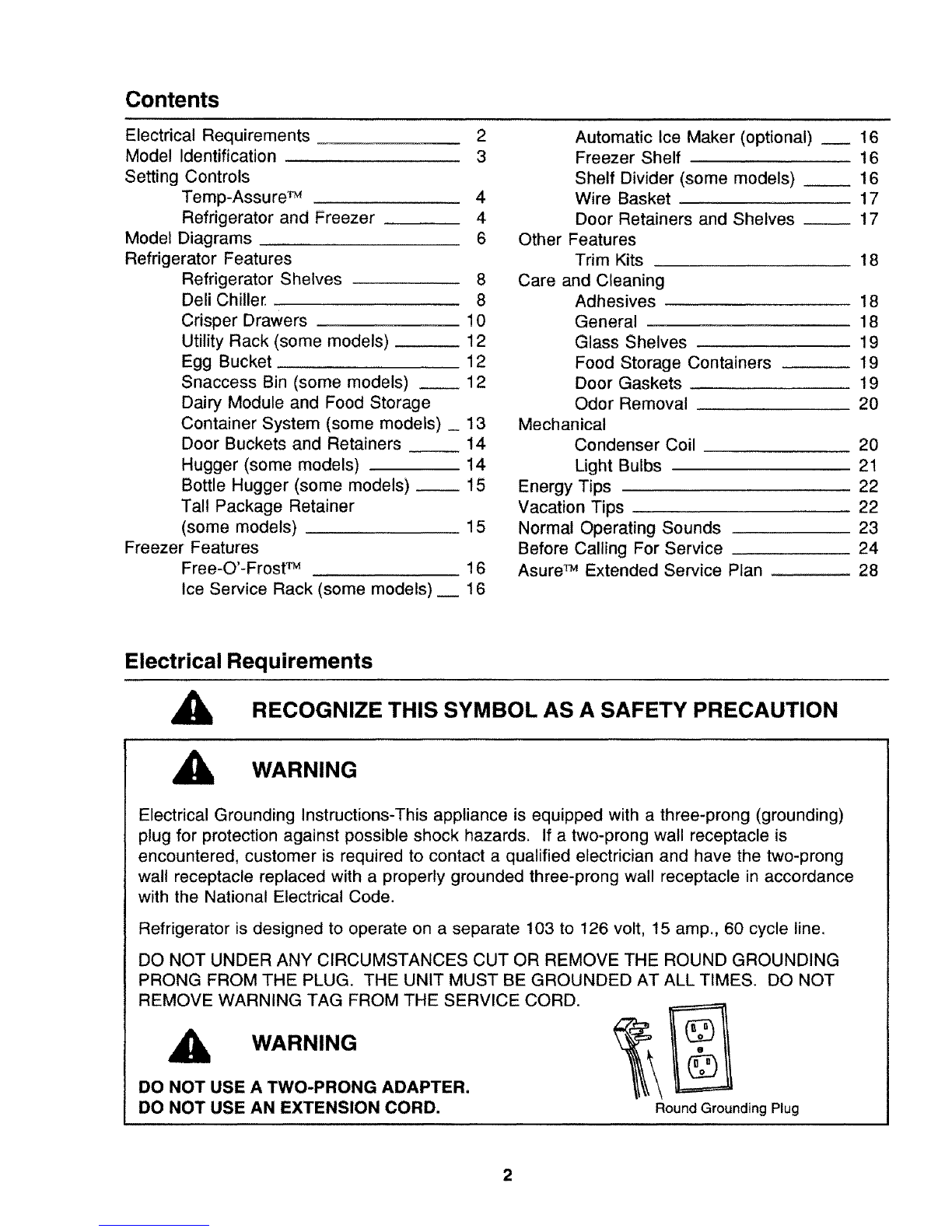

Contents

Electrical Requirements

Model Identification

Setting Controls

Temp-Assure TM

Refrigerator and Freezer

Model Diagrams

Refrigerator Features

Refrigerator Shelves

Automatic Ice Maker (optional) __

Freezer Shelf

Shelf Divider (some models)

Wire Basket

Door Retainers and Shelves __

Other Features

Trim Kits

Care and Cleaning

Deli Chiller 8

Crisper Drawers 10

Utility Rack (some models) 12

Egg Bucket 12

Snaccess Bin (some models) __ 12

Adhesives

General

Glass Shelves

Food Storage Containers

Door Gaskets

Dairy Module and Food Storage

Container System (some models) _ 13

Door Buckets and Retainers 14

Hugger (some models) 14

Bottle Hugger (some models) __ 15

Tall Package Retainer

(some models) 15

Freezer Features

Free-O'-Frost TM 16

Ice Service Rack (some models) __ 16

Odor Removal

Mechanical

Condenser Coil

Light Bulbs

Energy Tips

Vacation Tips

Normal Operating Sounds

Before Calling For Service

Asure TM Extended Service Plan

Electrical Requirements

RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION

WARNING

Electrical Grounding Instructions-This appliance is equipped with a three-prong (grounding)

plug for protection against possible shock hazards. If a two-prong wall receptacle is

encountered, customer is required to contact a qualified electrician and have the two-prong

wall receptacle replaced with a properly grounded three-prong wall receptacle in accordance

with the National Electrical Code.

Refrigerator is designed to operate on a separate 103 to 126 volt, 15 amp., 60 cycle line.

DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE ROUND GROUNDING

PRONG FROM THE PLUG. THE UNIT MUST BE GROUNDED AT ALL TIMES. DO NOT

REMOVE WARNING TAG FROM THE SERVICE CORD.

WARNING

DO NOT USE A TWO-PRONG ADAPTER.

DO NOT USE AN EXTENSION CORD. Round Grounding Plug

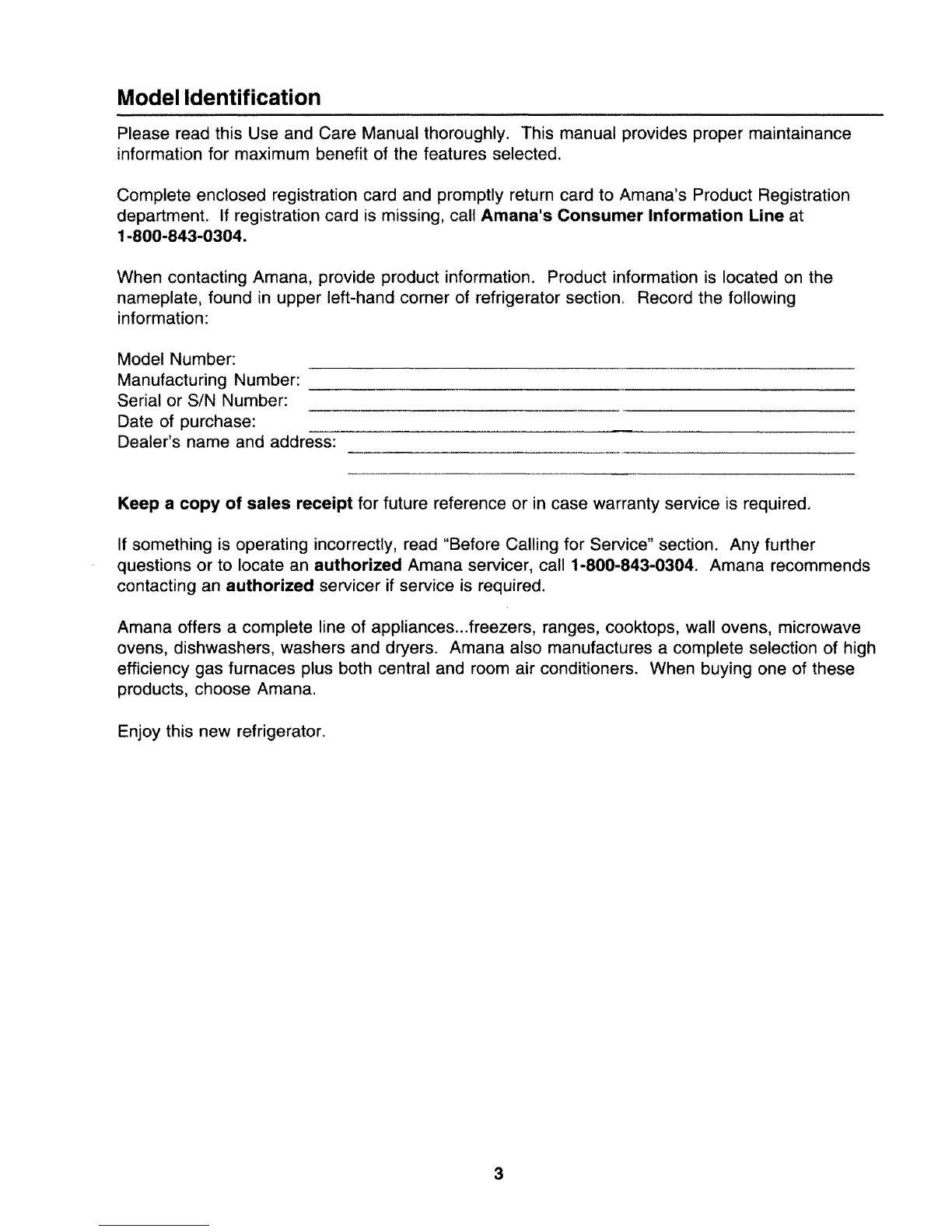

Model Identification

Please read this Use and Care Manual thoroughly. This manual provides proper maintainance

information for maximum benefit of the features selected.

Complete enclosed registration card and promptly return card to Amana's Product Registration

department. If registration card is missing, call Amana's Consumer Information Line at

1-800-843-0304.

When contacting Amana, provide product information. Product information is located on the

nameplate, found in upper left-hand corner of refrigerator section. Record the following

information:

Model Number:

Manufacturing Number:

Serial or S/N Number:

Date of purchase:

Dealer's name and address:

Keep a copy of sales receipt for future reference or in case warranty service is required.

If something is operating incorrectly, read "Before Calling for Service" section. Any further

questions or to locate an authorized Amana servicer, call 1-800-843-0304. Amana recommends

contacting an authorized servicer if service is required.

Amana offers a complete line of appliances...freezers, ranges, cooktops, wall ovens, microwave

ovens, dishwashers, washers and dryers. Amana also manufactures a complete selection of high

efficiency gas furnaces plus both central and room air conditioners. When buying one of these

products, choose Amana.

Enjoy this new refrigerator.

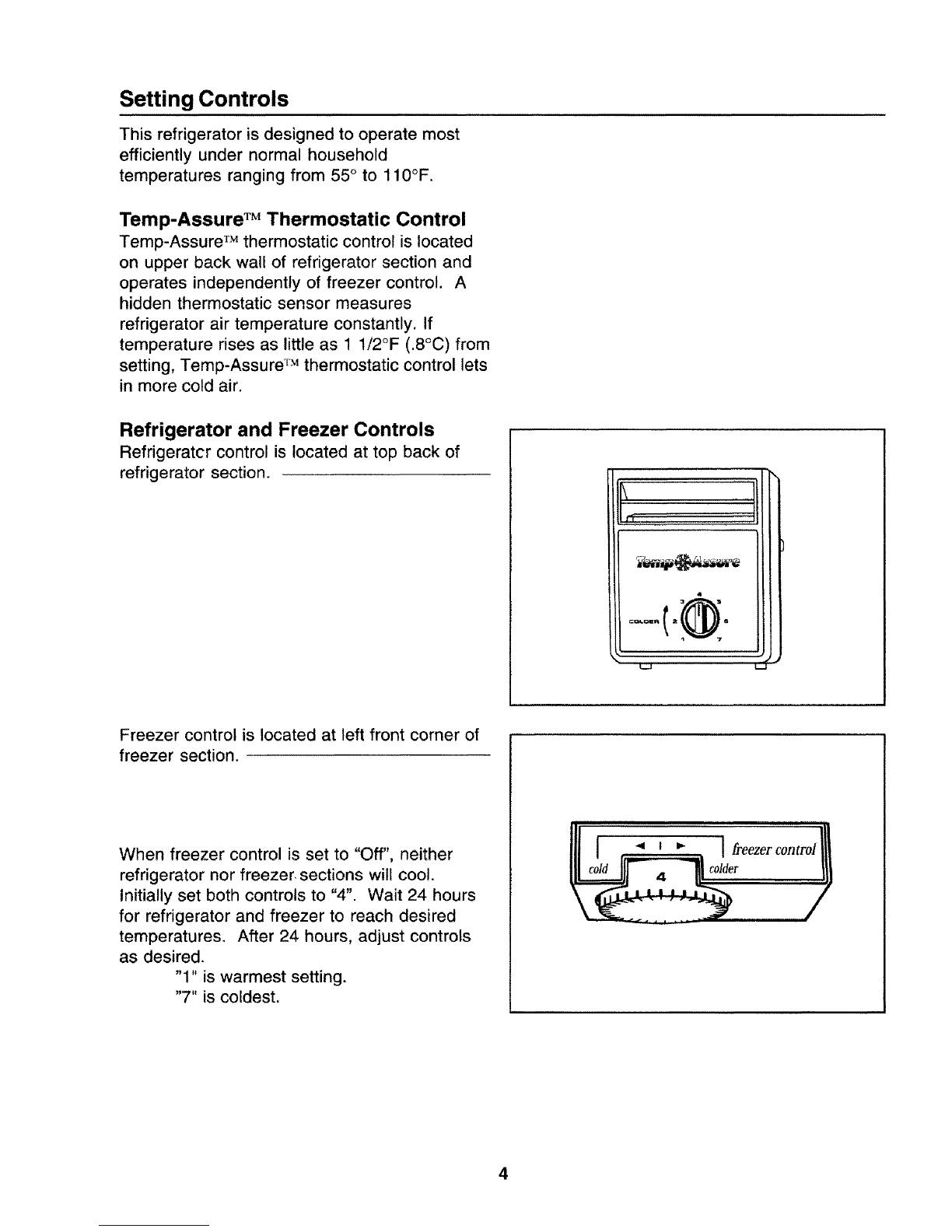

Setting Controls

This refrigerator is designed to operate most

efficiently under normal household

temperatures ranging from 55 ° to 110°F.

Temp-Assure TM Thermostatic Control

Temp-Assure TM thermostatic control is located

on upper back wall of refrigerator section and

operates independently of freezer control. A

hidden thermostatic sensor measures

refrigerator air temperature constantly. If

temperature rises as little as 1 1/2°F (.8°C) from

setting, Temp-Assure TM thermostatic control lets

in more cold air.

Refrigerator and Freezer Controls

Refrigeratcr control is located at top back of

refrigerator section.

....

<L_J

Freezer control is located at left front corner of

freezer section.

When freezer control is set to "Off", neither

refrigerator nor freezer.sections will cool.

Initially set both controls to "4". Wait 24 hours

for refrigerator and freezer to reach desired

temperatures. After 24 hours, adjust controls

as desired.

"1" is warmest setting.

"7" is coldest.

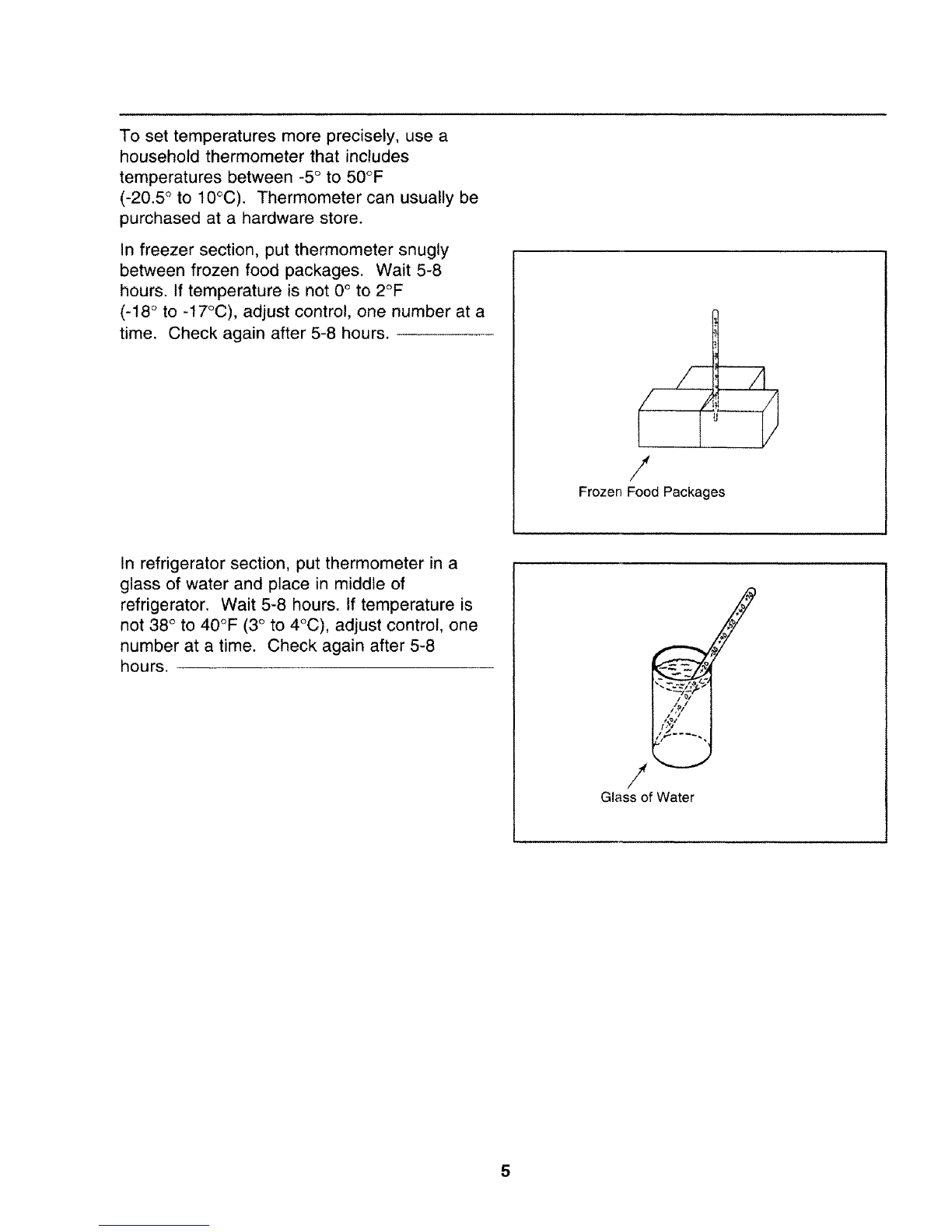

To settemperaturesmoreprecisely,usea

householdthermometerthat includes

temperaturesbetween-5°to 50°F

(-20.5° to 10°C). Thermometercan usuallybe

purchasedat a hardwarestore.

Infreezersection,putthermometersnugly

betweenfrozenfood packages. Wait5-8

hours.Iftemperatureis not0°to 2°F

(-18° to -17°C),adjustcontrol,onenumberat a

time. Checkagain after5-8hours.

Frozen Food Packages

In refrigerator section, put thermometer in a

glass of water and place in middle of

refrigerator. Wait 5-8 hours. If temperature is

not 38 ° to 40°F (3 ° to 4°C), adjust control, one

number at a time. Check again after 5-8

hours. /

_s "_

/ !

• !

Glass of Water

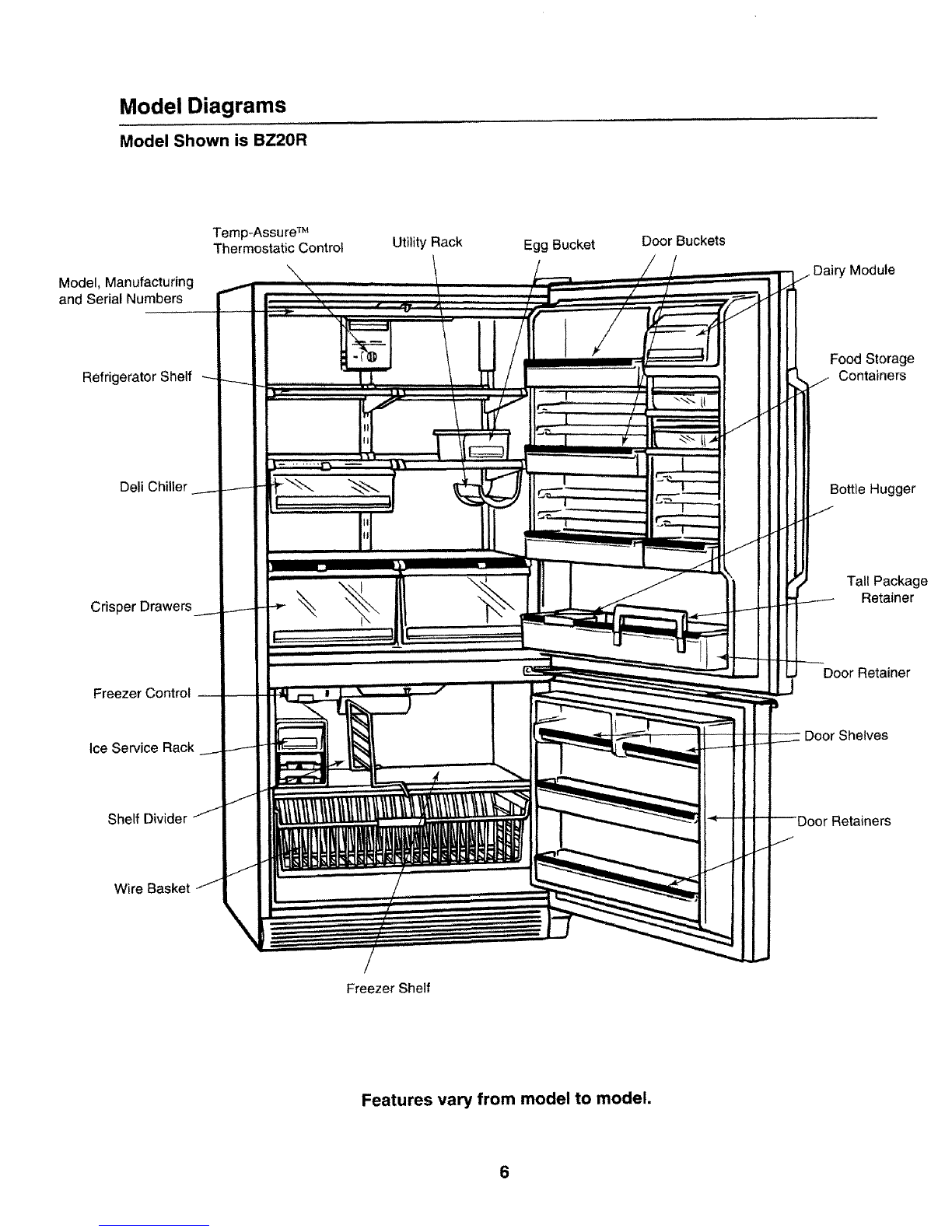

Model Diagrams

Model Shown is BZ20R

Model, Manufacturing

and Serial Numbers

Refrigerator Shelf

Dell Chiller

Crisper Drawers

Freezer Control --

Ice Service Rack __._.

Shelf Divider

Wire Basket

Temp-Assure TM

Thermostatic Control Utility Rack Egg Bucket Door Buckets

'Module

Food Storage

Containers

Bottle Hugger

Tall Package

Retainer

Door Retainer

_Door Shelves

Freezer Shelf

Features vary from model to model.

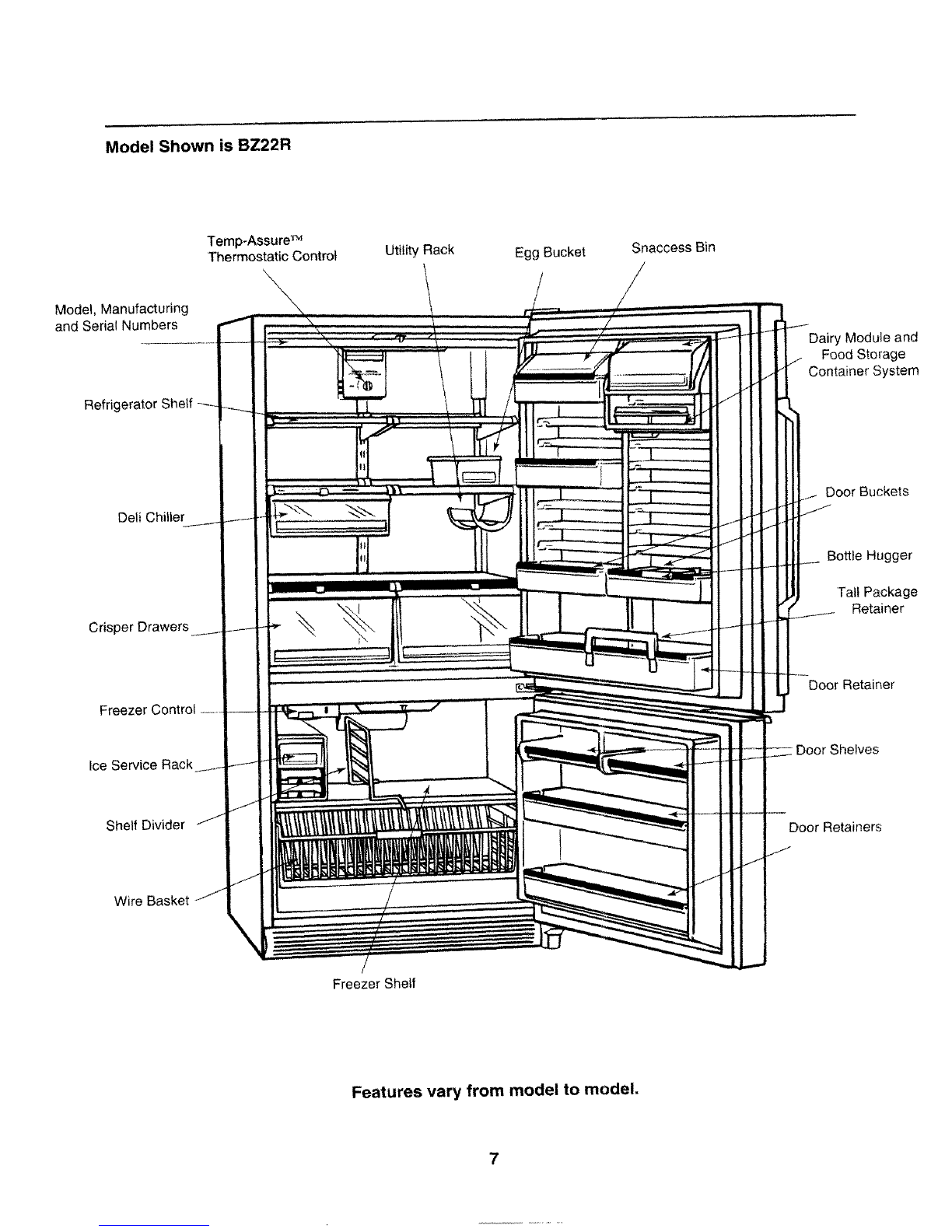

ModelShownis BZ22R

Model, Manufacturing

and Serial Numbers

Refrigerato

Deli Chiller

Crisper Drawers

Freezer Control

_ce Service Rack

Shelf Divider

Wire Basket

Temp.Assure TM

Thermostatic Control Utility Rack Egg Bucket

Snaccess Bin

Dairy Module and

Food Storage

Container System

Door Buckets

Bottle Hugger

Tall Package

Retainer

Door Retair',er

Door Shelves

Door Retainers

Freezer Shelf

Features vary from model to model,

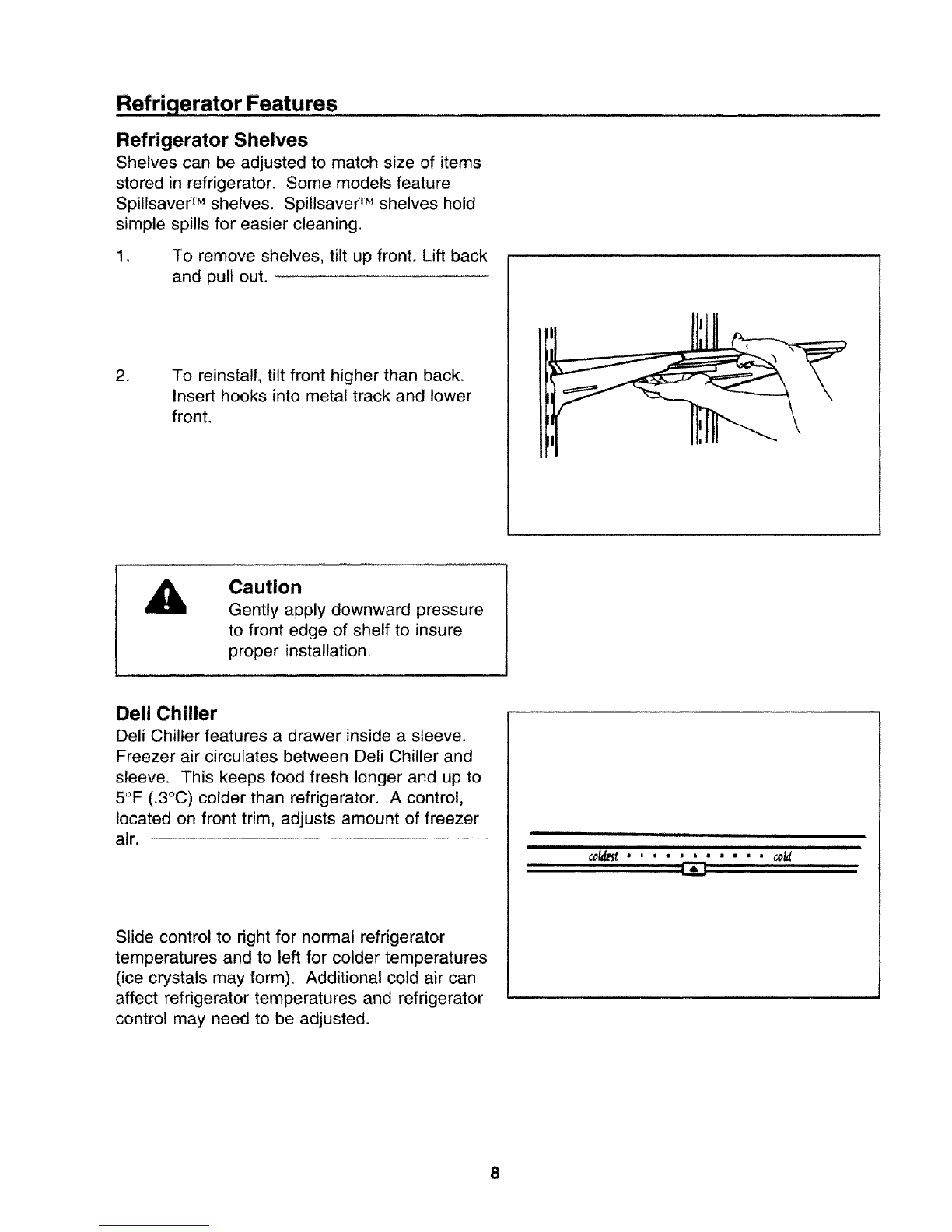

Refrigerator Features

Refrigerator Shelves

Shelves can be adjusted to match size of items

stored in refrigerator. Some models feature

Spillsaver TM shelves. Spillsaver TM shelves hold

simple spills for easier cleaning.

1, To remove shelves, tilt up front. Lift back

and pull out.

,To reinstall, tilt front higher than back.

Insert hooks into metal track and lower

front.

Caution

Gently apply downward pressure

to front edge of shelf to insure

proper installation.

Deli Chiller

Deli Chiller features a drawer inside asleeve.

Freezer air circulates between Dell Chiller and

sleeve. This keeps food fresh longer and up to

5°F (.3°C) colder than refrigerator. A control,

located on front trim, adjusts amount of freezer

air.

Slide control to right for normal refrigerator

temperatures and to left for colder temperatures

(ice crystals may form). Additional cold air can

affect refrigerator temperatures and refrigerator

control may need to be adjusted.

ii i

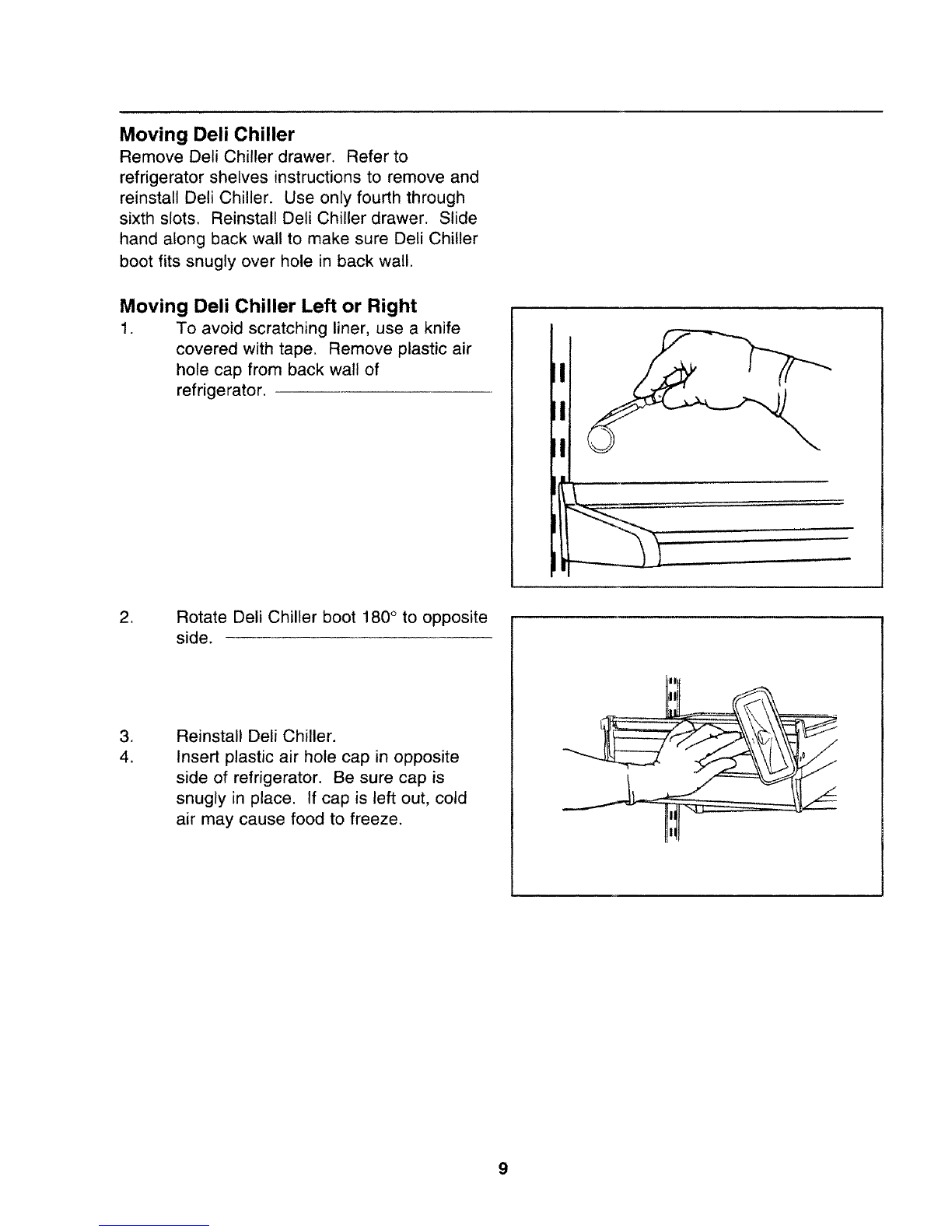

Moving Dell Chiller

Remove Dell Chiller drawer, Refer to

refrigerator shelves instructions to remove and

reinstall Dell Chiller. Use only fourth through

sixth slots. Reinstall Dell Chiller drawer. Slide

hand along back wall to make sure Dell Chiller

boot fits snugly over hole in back wall.

Moving Deli Chiller Left or Right

1. To avoid scratching liner, use a knife

covered with tape. Remove plastic air

hole cap from back wall of

refrigerator. I

2_ Rotate Dell Chiller boot 180 ° to opposite

side.

4. Reinstall Dell Chiller.

Insert plastic air hole cap in opposite

side of refrigerator. Be sure cap is

snugly in place. If cap is left out, cold

air may cause food to freeze.

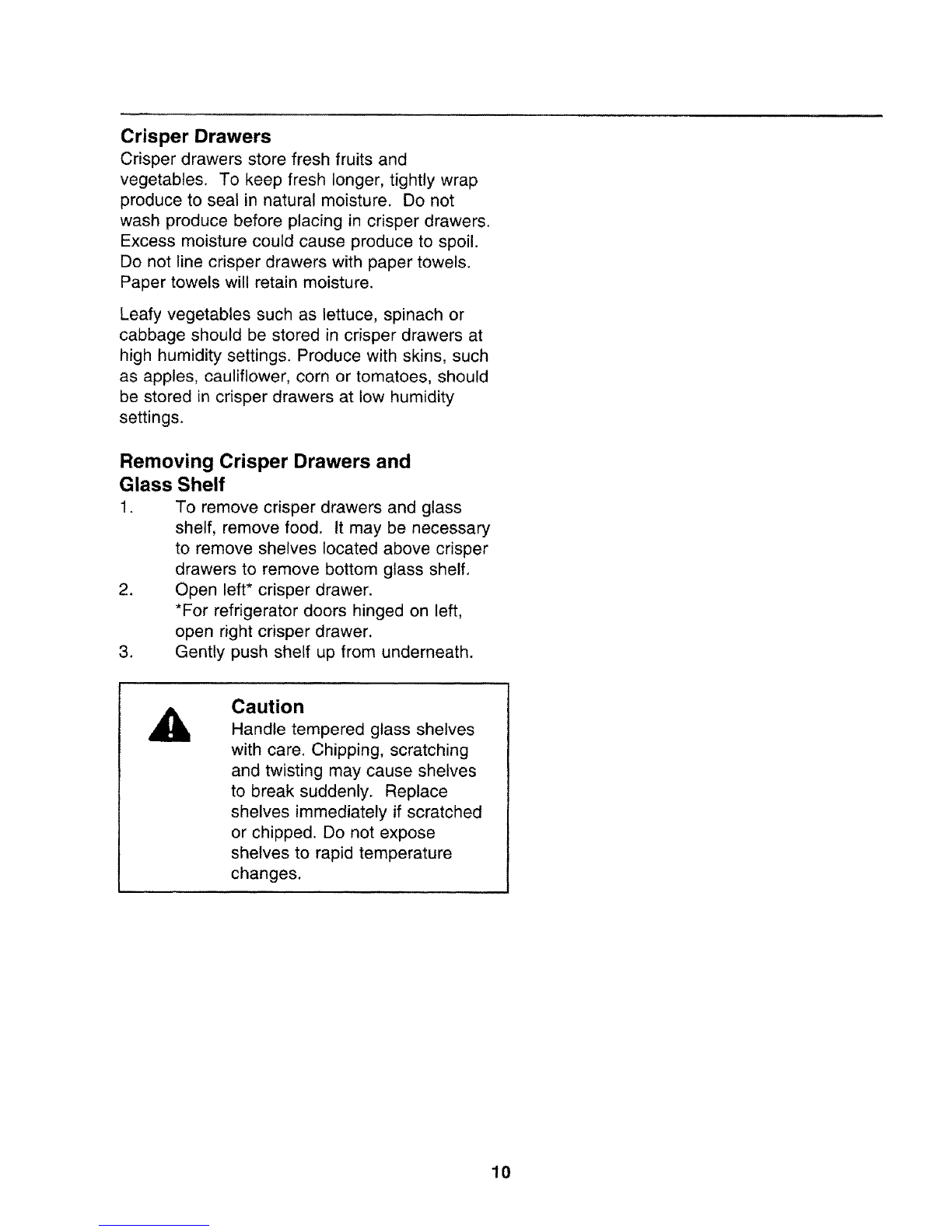

Crisper Drawers

Crisper drawers store fresh fruits and

vegetables. To keep fresh longer, tightly wrap

produce to seal in natural moisture. Do not

wash produce before placing in crisper drawers.

Excess moisture could cause produce to spoil.

Do not line crisper drawers with paper towels.

Paper towels will retain moisture.

Leafy vegetables such as lettuce, spinach or

cabbage should be stored in crisper drawers at

high humidity settings. Produce with skins, such

as apples, cauliflower, corn or tomatoes, should

be stored in crisper drawers at low humidity

settings.

Removing Crisper Drawers and

Glass Shelf

!. To remove crisper drawers and glass

shelf, remove food. It may be necessary

to remove shelves located above crisper

drawers to remove bottom glass shelf.

2. Open left* crisper drawer.

*For refrigerator doors hinged on left,

open right crisper drawer.

3. Gently push shelf up from underneath.

Caution

Handle tempered glass shelves

with care. Chipping, scratching

and twisting may cause shelves

to break suddenly. Replace

shelves immediately if scratched

or chipped. Do not expose

shelves to rapid temperature

changes.
